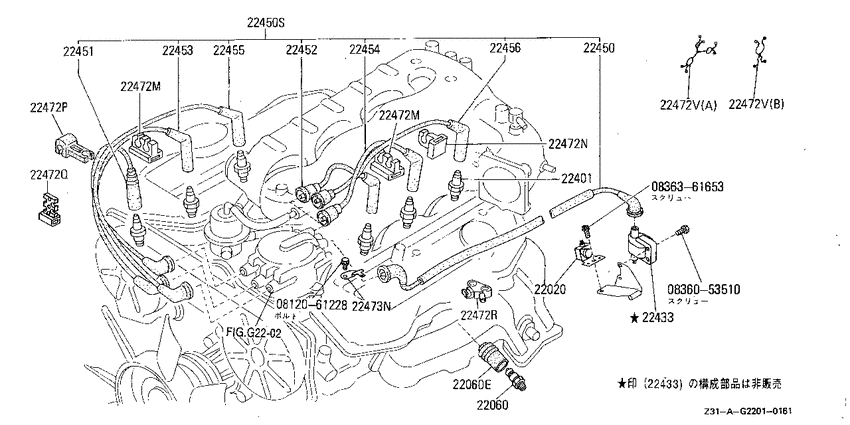

Ignition System (1983-09-01 ~ ; VG20T+VG30T) Diagram Nissan FAIRLADY Z
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- VG20T
- transmission
- MT
- grade
- Z
- Roof
- Z#
- seat
- 2S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0836053510
|
0836053510
08360-53510
BOLT-INJECTOR HOLDER
|
08360-53510 |
— | ||
|
0836361653
|
0836361653
08363-61653
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61653 |
— | ||
| replacement | |||||
|
0836361653
|
0836361653
083606165D Rope & Hook |
083606165D |
US $1.52 |
||
|
22020
|
22020
22020-12P01 Transistor Ignition Unit8510--01 ~ 8610--01; VG20T+VG30T; ﾋﾀﾁ |
22020-12P01 |
US $171.36 |
||
|
22020
|
22020
22020-12P11
Transistor Ignition Unit
8309--01 ~ 8610--01; VG20T+VG30T; ﾊﾝｼﾝ |
22020-12P11 |
— | ||
| replacement | |||||
|
22020
|
22020
B2020-12P11 Transistor ignition unit8309--01 ~ 8610--01; VG20T+VG30T; ﾊﾝｼﾝ |
B2020-12P11 |
US $198.23 |
||
|
22060
|
22060
22060-W3700 Knock Sensor8309--01 ~ 8610--01; VG20T+VG30T |
22060-W3700 |
US $223.20 |
||
|
22060
|
22060
22069-V5300 Knock Sensor Cover8309--01 ~ 8610--01; VG20T+VG30T |
22069-V5300 |
US $5.62 |
||
|
22060E
|
22060E
22069-V5300 Knock Sensor Cover8309--01 ~ 8610--01; VG20T+VG30T |
22069-V5300 |
US $5.62 |
||
|
22401
|
22401
22401V5015 Plug-Spark8309--01 ~ 8610--01; VG20T+VG30T; BCP5ES-11 NGK[B512] |
22401V5015 |
US $7.49 |
||
|
22401
|
22401
22401-V5016 Plug-Spark8309--01 ~ 8610--01; VG20T+VG30T; BCP6ES-11 NGK[B512] |
22401-V5016 |
from US $2.83 |
||
|
22401
|
22401
22401-V5017 Plug-Spark8309--01 ~ 8610--01; VG20T+VG30T; BCP7ES-11[B512] |
22401-V5017 |
from US $3.31 |
||
|
22433
|
22433
22433-12P00
Coil-Ignition
8309--01 ~ 8503--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
22433-12P00 |
— | ||
|
22433
|
22433
22433-12P01 Coil Assy-Ignition8503--01 ~ 8610--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
22433-12P01 |
US $190.08 |
||
| replacement | |||||
|
22433
|
22433
B2433-12P11
Coil assy-ignition exhaust
8503--01 ~ 8610--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
B2433-12P11 |
— | ||
|
22433
|
22433
22433-12P10
Coil-Ignition
8309--01 ~ 8503--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾊﾝｼﾝ |
22433-12P10 |
— | ||
| replacement | |||||
|
22433
|
22433
B2433-12P11
Coil assy-ignition exhaust
8309--01 ~ 8503--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾊﾝｼﾝ |
B2433-12P11 |
— | ||
|
22433
|
22433
22433-12P11
Coil-Ignition
8503--01 ~ 8610--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾊﾝｼﾝ |
22433-12P11 |
— | ||
| replacement | |||||
|
22433
|
22433
B2433-12P11
Coil assy-ignition exhaust
8503--01 ~ 8610--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾊﾝｼﾝ |
B2433-12P11 |
— | ||
|
22433
|
22433
22433-12P00
Coil-Ignition
8309--01 ~ 8503--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
22433-12P00 |
— | ||
|
22433
|
22433
22433-12P01 Coil Assy-Ignition8503--01 ~ 8610--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
22433-12P01 |
US $190.08 |
||
| replacement | |||||
|
22433
|
22433
B2433-12P11
Coil assy-ignition exhaust
8503--01 ~ 8610--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾋﾀﾁ |
B2433-12P11 |
— | ||
|
22433
|
22433
22433-12P10
Coil-Ignition
8309--01 ~ 8503--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾊﾝｼﾝ |
22433-12P10 |
— | ||
| replacement | |||||
|
22433
|
22433
B2433-12P11
Coil assy-ignition exhaust
8309--01 ~ 8503--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾊﾝｼﾝ |
B2433-12P11 |
— | ||
|
22433
|
22433
22433-12P11
Coil-Ignition
8503--01 ~ 8610--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾊﾝｼﾝ |
22433-12P11 |
— | ||
| replacement | |||||
|
22433
|
22433
B2433-12P11
Coil assy-ignition exhaust
8503--01 ~ 8610--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾊﾝｼﾝ |
B2433-12P11 |
— | ||
|
22450
|
22450
22450-12P00
Cable Assy-Ignition Coil To Distributor
8309--01 ~ 8610--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22450-12P00 |
— | ||
| replacement | |||||
|
22450
|
22450
B2450-21P00
Cable assy-ignition coil to distributor
8309--01 ~ 8610--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
B2450-21P00 |
— | ||
|
22450
|
22450
22450-12P10 Cable Assy-Ignition Coil To Distributor8309--01 ~ 8610--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22450-12P10 |
US $30.10 |
||
| replacement | |||||
|
22450
|
22450
B2450-21P00
Cable assy-ignition coil to distributor
8309--01 ~ 8610--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
B2450-21P00 |
— | ||
|
22450
|
22450
2245013P25 Cable Set-High Tension8309--01 ~ 8510--01; VG20T+VG30T |
2245013P25 |
US $127.01 |
||
|
22450
|
22450
22450-13P26 Cable Set-High Tension8510--01 ~ 8610--01; VG20T+VG30T |
22450-13P26 |
US $213.12 |
||
| replacement | |||||
|
22450
|
22450
B2450-13P26
Cable set-high tension
8510--01 ~ 8610--01; VG20T+VG30T |
B2450-13P26 |
— | ||
|
22450S
|
22450S
2245013P25 Cable Set-High Tension8309--01 ~ 8510--01; VG20T+VG30T |
2245013P25 |
US $127.01 |
||
|
22450S
|
22450S
22450-13P26 Cable Set-High Tension8510--01 ~ 8610--01; VG20T+VG30T |
22450-13P26 |
US $213.12 |
||
| replacement | |||||
|
22450S
|
22450S
B2450-13P26
Cable set-high tension
8510--01 ~ 8610--01; VG20T+VG30T |
B2450-13P26 |
— | ||
|
22451
|
22451
22451-15P00 Cable Assy-High Tension, No 18510--01 ~ 8610--01; VG20T+VG30T; ﾔｻﾞｷ |
22451-15P00 |
US $38.45 |
||
|
22451
|
22451
22451-15P10 Cable Assy-High Tension, No 18510--01 ~ 8610--01; VG20T+VG30T; ｽﾐﾄﾓ |
22451-15P10 |
US $34.99 |
||
|
22451
|
22451
22451-V5200 Cable Assy-High Tension, No 18309--01 ~ 8510--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22451-V5200 |
US $23.76 |
||
|
22451
|
22451
22451-V5210 Cable Assy-High Tension, No 18309--01 ~ 8510--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22451-V5210 |
US $40.61 |
||
|
22452
|
22452
22452-15P00 Cable Assy-High Tension, No 28510--01 ~ 8610--01; VG20T+VG30T; ﾔｻﾞｷ |
22452-15P00 |
US $34.13 |
||
|
22452
|
22452
22452-15P10
Cable Assy-High Tension, No 2
8510--01 ~ 8610--01; VG20T+VG30T; ｽﾐﾄﾓ |
22452-15P10 |
— | ||
|
22452
|
22452
22452-V5202 Cable Assy-High Tension, No 28309--01 ~ 8510--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22452-V5202 |
US $15.26 |
||
|
22452
|
22452
22452-V5212 Cable Assy-High Tension, No 28309--01 ~ 8510--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22452-V5212 |
US $36 |
||
|
22453
|
22453
22453-15P00 Cable Assy-High Tension, No 38510--01 ~ 8610--01; VG20T+VG30T; ﾔｻﾞｷ |
22453-15P00 |
US $38.45 |
||
|
22453
|
22453
22453-15P10 Cable Assy-High Tension, No 38510--01 ~ 8610--01; VG20T+VG30T; ｽﾐﾄﾓ |
22453-15P10 |
US $34.99 |
||
|
22453
|
22453
22453-V5200 Cable Assy-High Tension, No 38309--01 ~ 8510--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22453-V5200 |
US $27.07 |
||
|
22453
|
22453
22453-V5210 Cable Assy-High Tension, No 38309--01 ~ 8510--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22453-V5210 |
US $36 |
||
|
22454
|
22454
22454-15P00 Cable Assy-High Tension, No 48510--01 ~ 8610--01; VG20T+VG30T; ﾔｻﾞｷ |
22454-15P00 |
US $34.13 |
||
|
22454
|
22454
22454-15P10
Cable Assy-High Tension, No 4
8510--01 ~ 8610--01; VG20T+VG30T; ｽﾐﾄﾓ |
22454-15P10 |
— | ||
|
22454
|
22454
22454-V5201 Cable Assy-High Tension, No 48309--01 ~ 8510--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22454-V5201 |
US $27.07 |
||
|
22454
|
22454
22454-V5211 Cable Assy-High Tension, No 48309--01 ~ 8510--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22454-V5211 |
US $36 |
||
|
22455
|
22455
22455-15P00 Cable Assy-High Tension, No 58510--01 ~ 8610--01; VG20T+VG30T; ﾔｻﾞｷ |
22455-15P00 |
US $38.45 |
||
|
22455
|
22455
22455-15P10
Cable Assy-High Tension, No 5
8510--01 ~ 8610--01; VG20T+VG30T; ｽﾐﾄﾓ |
22455-15P10 |
— | ||
|
22455
|
22455
22455-V5200 Cable Assy-High Tension, No 58309--01 ~ 8510--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22455-V5200 |
US $27.07 |
||
|
22455
|
22455
22455-V5210 Cable Assy-High Tension, No 58309--01 ~ 8510--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22455-V5210 |
US $26.35 |
||
|
22456
|
22456
22456-15P00 Cable Assy-High Tension, No 68510--01 ~ 8610--01; VG20T+VG30T; ﾔｻﾞｷ |
22456-15P00 |
US $34.13 |
||
|
22456
|
22456
22456-15P10
Cable Assy-High Tension, No 6
8510--01 ~ 8610--01; VG20T+VG30T; ｽﾐﾄﾓ |
22456-15P10 |
— | ||
|
22456
|
22456
22456-V5201 Cable Assy-High Tension, No 68309--01 ~ 8510--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ﾔｻﾞｷ |
22456-V5201 |
US $27.07 |
||
|
22456
|
22456
22456-V5211 Cable Assy-High Tension, No 68309--01 ~ 8510--01; VG20T+VG30T; ｾﾝﾀｸ ｼﾖｳ ｽﾐﾄﾓ |
22456-V5211 |
US $27.07 |
||
|
22472M
|
22472M
22472-D0108 Clamp-High Tension Cable8309--01 ~ 8610--01; VG20T+VG30T |
22472-D0108 |
US $4.30 |
||
|
22472M
|
22472M
22472-D0108 Clamp-High Tension Cable8309--01 ~ 8610--01; VG20T+VG30T |
22472-D0108 |
US $4.30 |
||
|
22472N
|
22472N
22472-D0109
Clamp-High Tension Cable
8309--01 ~ 8610--01; VG20T+VG30T |
22472-D0109 |
— | ||
|
22472P
|
22472P
22472-V5000 Clamp-High Tension Cable8309--01 ~ 8610--01; VG20T+VG30T |
22472-V5000 |
US $11.66 |
||
|
22472Q
|
22472Q
22472-D0107 Clamp-High Tension Cable8309--01 ~ 8610--01; VG20T+VG30T |
22472-D0107 |
US $4.30 |
||
|
22472R
|
22472R
22472-15P00 Clamp-High Tension Cable8510--01 ~ 8610--01; VG20T+VG30T |
22472-15P00 |
US $5.90 |
||
|
22472V
|
22472V
22472-12P00 Clamp-High Tension Cable8309--01 ~ 8610--01; VG30T *VG20T; (A) ｴｱｺﾝ ｼﾖｳ |
22472-12P00 |
US $11.81 |
||
|
22472V
|
22472V
24220B5020 Clip-Wiring Harness8309--01 ~ 8610--01; VG20T+VG30T; (B) |
24220B5020 |
US $1.24 |
||
|
22472V
|
22472V
22472-12P00 Clamp-High Tension Cable8309--01 ~ 8610--01; VG30T *VG20T; (A) ｴｱｺﾝ ｼﾖｳ |
22472-12P00 |
US $11.81 |
||
|
22472V
|
22472V
24220B5020 Clip-Wiring Harness8309--01 ~ 8610--01; VG20T+VG30T; (B) |
24220B5020 |
US $1.24 |
||
|
22473N
|
22473N
13241-01P00 Holder-High Tension Cable8309--01 ~ 8610--01; VG20T+VG30T |
13241-01P00 |
US $3.46 |
||
