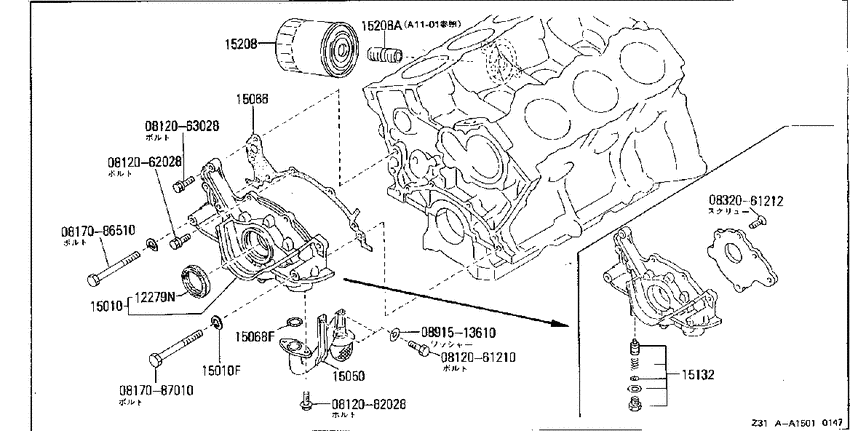

Lubricating system (1983-09-01 ~ ; VG20T+VG30T) Diagram Nissan FAIRLADY Z
- Year
- 1983 - 1986
- Sales region
- Japan
- Engine
- VG20T
- transmission
- MT
- grade
- Z
- Roof
- Z#
- seat
- 2S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061210
|
0812061210
08120-61210
Bolt-hexagon
|
08120-61210 |
— | ||
|
0812062028
|
0812062028
08120-62028
Bolt-hexagon
|
08120-62028 |
— | ||
| replacement | |||||
|
0812062028
|
0812062028
081X0-62028 Bolt-hexagon |
081X0-62028 |
US $2.49 |
||
|
0812063028
|
0812063028
08120-63028
Bolt-hexagon
|
08120-63028 |
— | ||
|
0812082028
|
0812082028
08120-82028
Bolt-hexagon
|
08120-82028 |
— | ||
| replacement | |||||
|
0812082028
|
0812082028
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0817086510
|
0817086510
08170-86510
Bolt-hexagon
|
08170-86510 |
— | ||
|
0817087010
|
0817087010
08170-87010
Bolt-hexagon
|
08170-87010 |
— | ||
|
0832061212
|
0832061212
08320-61212
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-61212 |
— | ||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
12279N
|
12279N
13510-V5000
Seal-Oil, Crankshaft Front
8309--01 ~ 8610--01; VG20T+VG30T |
13510-V5000 |
— | ||
| replacement | |||||
|
12279N
|
12279N
1351088G00 Seal-Oil, Crankshaft Front8309--01 ~ 8610--01; VG20T+VG30T |
1351088G00 |
from US $5.26 |
||
|
15010
|
15010
15010-V5302
Pump Assy-Oil
8309--01 ~ 8610--01; VG20T+VG30T |
15010-V5302 |
— | ||
|
15010
|
15010
01323-00021 WASHER-FINAL DRIVE8309--01 ~ 8610--01; VG20T+VG30T |
01323-00021 |
US $1.73 |
||
|
15010F
|
15010F
01323-00021 WASHER-FINAL DRIVE8309--01 ~ 8610--01; VG20T+VG30T |
01323-00021 |
US $1.73 |
||
|
15050
|
15050
15050-12P01 Strainer Assy-Oil8309--01 ~ 8610--01; VG20T |
15050-12P01 |
US $58.90 |
||
|
15066
|
15066
15066-89E00 GASKET-OIL PUMP TO CYLINDER BLOCK9002--01 ~ ; VG20T+VG30T |
15066-89E00 |
US $4.03 |
||
|
15066
|
15066
15066-V5000 Gasket-Oil Pump To Cylinder Block8309--01 ~ 9002--01; VG20T+VG30T |
15066-V5000 |
US $4.18 |
||
|
15068F
|
15068F
15059V5001
Seal-O Ring, Oil Strainer
8309--01 ~ 8610--01; VG20T+VG30T |
15059V5001 |
— | ||
| replacement | |||||
|
15068F
|
15068F
15059-V500A Ring, e-8309--01 ~ 8610--01; VG20T+VG30T |
15059-V500A |
US $3.60 |
||
|
15132
|
15132
15132-V5001 Valve Assy-Oil Regulator8309--01 ~ 8610--01; VG20T+VG30T |
15132-V5001 |
US $7.35 |
||
|
15208
|
15208
AY100NS007 Filter Assy-Oil8309--01 ~ 8501--01; VG20T+VG30T |
AY100NS007 |
US $11.13 |
||
|
15208
|
15208
15213-21001 Stud-Oil Filter8309--01 ~ 8610--01; VG20T+VG30T |
15213-21001 |
US $4.46 |
||
| replacement | |||||
|
15208
|
15208
15213-W040A Stud-oil filter8309--01 ~ 8610--01; VG20T+VG30T |
15213-W040A |
US $5.81 |
||
|
15208A
|
15208A
15213-21001 Stud-Oil Filter8309--01 ~ 8610--01; VG20T+VG30T |
15213-21001 |
US $4.46 |
||
| replacement | |||||
|
15208A
|
15208A
15213-W040A Stud-oil filter8309--01 ~ 8610--01; VG20T+VG30T |
15213-W040A |
US $5.81 |
||
