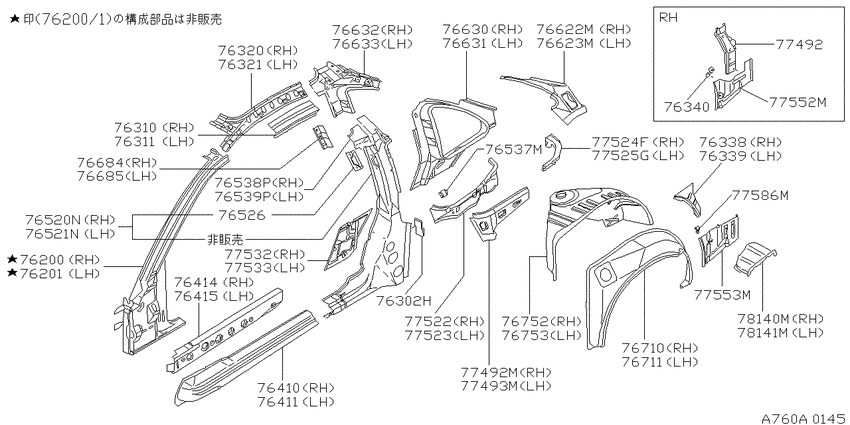

Body side panel (1989-07-01 ~ 1997-01-01; クーペ; Z) Diagram Nissan FAIRLADY Z
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- VG30DTT
- transmission
- MT
- grade
- VS
- Roof
- Z
- seat
- 2S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76200
|
76200
76200-43P10 Pillar-Front, Rh9308--01 ~ 9701--01; Z.VG30DTT.MT |
76200-43P10 |
US $945.89 |
||
|
76200
|
76200
76200-43P55 Pillar-Front, Rh9208--01 ~ 9308--01; Z.VG30DTT.MT |
76200-43P55 |
US $945.89 |
||
|
76200
|
76200
G6200-43P10 Pillar-Front, Rh8907--01 ~ 9208--01; Z.VG30DTT.MT |
G6200-43P10 |
US $945.89 |
||
|
76201
|
76201
76201-43P00 Pillar-Front, Lh9308--01 ~ 9701--01; Z |
76201-43P00 |
US $945.89 |
||
|
76201
|
76201
76201-43P50 Pillar-Front, Lh9208--01 ~ 9308--01; Z |
76201-43P50 |
US $945.89 |
||
|
76201
|
76201
G6201-43P00 Pillar-Front, Lh8907--01 ~ 9208--01; Z |
G6201-43P00 |
US $945.89 |
||
|
76302H
|
76302H
76594-30P00 Plate-Tapping8907--01 ~ 9208--01; Z |
76594-30P00 |
US $7.63 |
||
|
76310
|
76310
76312-33P00 Rail-Side Roof, Outer Rh8907--01 ~ 9701--01; Z |
76312-33P00 |
US $92.45 |
||
|
76311
|
76311
76313-33P00 Rail-Side Roof, Outer Lh8907--01 ~ 9701--01; Z |
76313-33P00 |
US $92.45 |
||
|
76320
|
76320
76330-33P00 Rail-Side Roof, Inner Rh8907--01 ~ 9701--01; Z |
76330-33P00 |
US $80.64 |
||
|
76321
|
76321
76331-33P00 Rail-Side Roof, Inner Lh8907--01 ~ 9701--01; Z |
76331-33P00 |
US $80.64 |
||
|
76338
|
76338
77556-30P00 Retainer-Rear Side Finish, Rh8907--01 ~ 9701--01; Z |
77556-30P00 |
US $77.33 |
||
|
76339
|
76339
77557-30P00 Retainer-Rear Side Finish, Lh8907--01 ~ 9701--01; Z |
77557-30P00 |
US $77.33 |
||
|
76340
|
76340
77596-30P00 Bracket-Body Inner, Rh8907--01 ~ 9701--01; Z |
77596-30P00 |
US $42.62 |
||
|
76410
|
76410
76412-30P00 Sill-Outer, Rh8907--01 ~ 9007--01; Z |
76412-30P00 |
US $390.82 |
||
|
76410
|
76410
76412-30P60 Sill-Outer, Rh9007--01 ~ 9701--01; Z |
76412-30P60 |
US $390.82 |
||
|
76411
|
76411
76413-30P00 Sill-Outer, Lh8907--01 ~ 9007--01; Z |
76413-30P00 |
US $390.82 |
||
|
76411
|
76411
76413-30P60 Sill-Outer, Lh9007--01 ~ 9701--01; Z |
76413-30P60 |
US $527.23 |
||
|
76414
|
76414
76424-30P00 Reinforcement-Sill Outer, Rh8907--01 ~ 9701--01; Z |
76424-30P00 |
US $73.15 |
||
|
76415
|
76415
76425-30P00 Reinforcement-Sill Outer, Lh8907--01 ~ 9701--01; Z |
76425-30P00 |
US $73.15 |
||
|
76520N
|
76520N
76530-33P50 Pillar-Center, Inner Upper Rh8907--01 ~ 9701--01; Z |
76530-33P50 |
US $572.06 |
||
|
76521N
|
76521N
76531-33P50 Pillar-Center, Inner Upper Lh8907--01 ~ 9701--01; Z |
76531-33P50 |
US $572.06 |
||
|
76526
|
76526
76580-30P00 Anchor Assy-Front Shoulder Belt, Rh8907--01 ~ 9309--01; Z |
76580-30P00 |
US $69.70 |
||
|
76537M
|
76537M
77598-30P00 Plate-Rear Side8907--01 ~ 9701--01; Z |
77598-30P00 |
US $21.89 |
||
|
76538P
|
76538P
76538-33P00 Closing Plate-Center Pillar, Rh8907--01 ~ 9701--01; Z |
76538-33P00 |
US $96.48 |
||
|
76539P
|
76539P
76539-33P00 Closing Plate-Center Pillar, Lh8907--01 ~ 9701--01; Z |
76539-33P00 |
US $96.48 |
||
|
76622M
|
76622M
76616-30P00 Reinforce-Rear Pillar Rh8907--01 ~ 9701--01; Z |
76616-30P00 |
US $80.64 |
||
|
76623M
|
76623M
76617-30P00 Reinforce-Rear Pillar Lh8907--01 ~ 9701--01; Z |
76617-30P00 |
US $80.64 |
||
|
76630
|
76630
76652-30P00 Pillar-Rear, Inner Rh8907--01 ~ 9701--01; Z |
76652-30P00 |
US $455.95 |
||
|
76631
|
76631
76653-30P00 Pillar-Rear, Inner Lh8907--01 ~ 9701--01; Z |
76653-30P00 |
US $455.95 |
||
|
76632
|
76632
76630-33P00 Pillar-Rear, Inner Upper Rh8907--01 ~ 9701--01; Z |
76630-33P00 |
US $301.61 |
||
|
76633
|
76633
76631-33P00 Pillar-Rear, Inner Upper Lh8907--01 ~ 9701--01; Z |
76631-33P00 |
US $301.61 |
||
|
76684
|
76684
76584-40P00 Reinforce-Seat Belt Anchor, Rh9309--01 ~ 9701--01; Z |
76584-40P00 |
US $96.48 |
||
|
76685
|
76685
76585-40P00 Reinforce-Seat Belt Anchor, Lh9309--01 ~ 9701--01; Z |
76585-40P00 |
US $96.48 |
||
|
76710
|
76710
76712-30P00 Wheel House-Rear, Outer Rh8907--01 ~ 9701--01; Z |
76712-30P00 |
US $331.34 |
||
|
76711
|
76711
76713-30P00 Wheel House-Rear, Outer Lh8907--01 ~ 9701--01; Z |
76713-30P00 |
US $331.34 |
||
|
76752
|
76752
76750-30P00 Wheel House-Rear, Inner Rh8907--01 ~ 9007--01; Z |
76750-30P00 |
US $355.42 |
||
|
76752
|
76752
76750-30P60 Wheel House-Rear, Inner Rh9007--01 ~ 9701--01; Z |
76750-30P60 |
US $355.42 |
||
|
76753
|
76753
76751-30P00 Wheel House-Rear, Inner Lh8907--01 ~ 9007--01; Z |
76751-30P00 |
US $355.42 |
||
|
76753
|
76753
76751-30P60 Wheel House-Rear, Inner Lh9007--01 ~ 9701--01; Z |
76751-30P60 |
US $355.42 |
||
|
77492
|
77492
77578-30P00 Reinforce-Side Panel, Rh8907--01 ~ 9701--01; Z |
77578-30P00 |
US $58.18 |
||
|
77492
|
77492
76654-30P00 Reinforce-Side Panel, Upper Rh8907--01 ~ 9701--01; Z |
76654-30P00 |
US $76.61 |
||
|
77492M
|
77492M
76654-30P00 Reinforce-Side Panel, Upper Rh8907--01 ~ 9701--01; Z |
76654-30P00 |
US $76.61 |
||
|
77493M
|
77493M
76655-30P00 Reinforce-Side Panel, Upper Lh8907--01 ~ 9701--01; Z |
76655-30P00 |
US $76.61 |
||
|
77522
|
77522
77522-30P00 Side Panel-Inner, Rear Rh8907--01 ~ 9701--01; Z |
77522-30P00 |
US $233.28 |
||
|
77523
|
77523
77521-30P00 Side Panel-Inner, Rear Lh8907--01 ~ 9701--01; Z |
77521-30P00 |
US $233.28 |
||
|
77524F
|
77524F
77524-30P00 Extension-Side Panel, Inner Lower Rh8907--01 ~ 9701--01; Z |
77524-30P00 |
US $76.61 |
||
|
77525G
|
77525G
77525-30P00 Extension-Side Panel, Inner Lower Lh8907--01 ~ 9701--01; Z |
77525-30P00 |
US $76.61 |
||
|
77532
|
77532
77530-30P00 Side Panel-Inner, Front Lower Rh8907--01 ~ 9208--01; Z |
77530-30P00 |
US $54 |
||
| replacement | |||||
|
77532
|
77532
G7530-30P00
Side panel-inner,front lower rh
8907--01 ~ 9208--01; Z |
G7530-30P00 |
— | ||
|
77532
|
77532
77530-40P00 Side Panel-Inner, Front Lower Rh9208--01 ~ 9410--01; Z |
77530-40P00 |
US $54 |
||
|
77532
|
77532
77530-48P00 Side Panel-Inner, Front Lower Rh9410--01 ~ 9701--01; Z |
77530-48P00 |
US $54 |
||
| replacement | |||||
|
77532
|
77532
G7530-48P00
Side panel-inner,front lower rh
9410--01 ~ 9701--01; Z |
G7530-48P00 |
— | ||
|
77533
|
77533
77531-30P00 Side Panel-Inner, Front Lower Lh8907--01 ~ 9208--01; Z |
77531-30P00 |
US $54 |
||
| replacement | |||||
|
77533
|
77533
G7531-30P00
Side panel-inner,front lower lh
8907--01 ~ 9208--01; Z |
G7531-30P00 |
— | ||
|
77533
|
77533
77531-40P00 Side Panel-Inner, Front Lower Lh9208--01 ~ 9410--01; Z |
77531-40P00 |
US $54 |
||
|
77533
|
77533
77531-48P00 Side Panel-Inner, Front Lower Lh9410--01 ~ 9701--01; Z |
77531-48P00 |
US $54 |
||
| replacement | |||||
|
77533
|
77533
G7531-48P00
Side panel-inner,front lower lh
9410--01 ~ 9701--01; Z |
G7531-48P00 |
— | ||
|
77552M
|
77552M
77552-30P00 Side Panel-Inner, Rear Lower Rh8907--01 ~ 9007--01; Z |
77552-30P00 |
US $69.84 |
||
|
77552M
|
77552M
77552-30P60 Side Panel-Inner, Rear Lower Rh9007--01 ~ 9701--01; Z |
77552-30P60 |
US $69.84 |
||
|
77553M
|
77553M
77553-30P00 Side Panel-Inner, Rear Lower Lh8907--01 ~ 9007--01; Z |
77553-30P00 |
US $69.84 |
||
|
77553M
|
77553M
77553-30P60 Side Panel-Inner, Rear Lower Lh9007--01 ~ 9701--01; Z |
77553-30P60 |
US $69.84 |
||
|
77586M
|
77586M
77586-30P00 Bracket-Washer Tank8907--01 ~ 9701--01; Z |
77586-30P00 |
US $11.66 |
||
|
78140M
|
78140M
76808-30P00 Base-Drafter, Rh9007--01 ~ 9701--01; Z |
76808-30P00 |
US $58.18 |
||
|
78141M
|
78141M
76809-30P00 Base-Drafter, Lh9007--01 ~ 9701--01; Z |
76809-30P00 |
US $58.18 |
||
