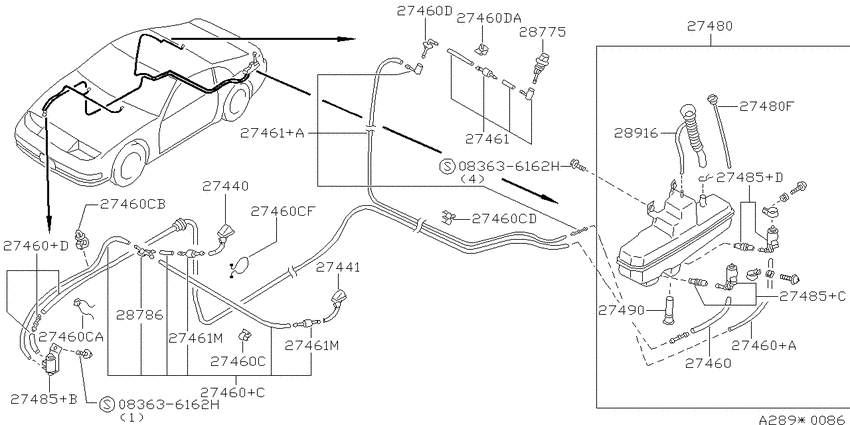

Windshield washer (1989-07-01 ~ 1994-10-01; Z +KZ.2S) Diagram Nissan FAIRLADY Z
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- VG30DTT
- transmission
- MT
- grade
- VS
- Roof
- Z
- seat
- 2S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636162H
|
083636162H
083636162H SCREWMACHINE |
083636162H |
US $2.21 |
||
|
083636162H
|
083636162H
083636162H SCREWMACHINE |
083636162H |
US $2.21 |
||
|
27440
|
27440
28932-40P00 Nozzle Assy-Washer, No 19410--01 ~ 9701--01; CV +Z +KZ |
28932-40P00 |
US $28.66 |
||
|
27440
|
27440
28932-41P00 Nozzle Assy-Washer, No 18907--01 ~ 9410--01; Z +KZ.2S |
28932-41P00 |
US $28.66 |
||
|
27441
|
27441
28933-40P00 Nozzle Assy-Washer, No 29410--01 ~ 9701--01; Z +KZ |
28933-40P00 |
US $28.66 |
||
|
27441
|
27441
28933-41P00 Nozzle Assy-Washer, No 28907--01 ~ 9410--01; Z +KZ.2S |
28933-41P00 |
US $28.66 |
||
|
27460
|
27460
27460-89940
Hose-Washer
8907--01 ~ 9410--01; Z +KZ.2S |
27460-89940 |
— | ||
|
27460
|
27460
27460-89932 Hose-Washer8907--01 ~ 9410--01; Z +KZ.2S |
27460-89932 |
US $8.93 |
||
|
27460
|
27460
28935-30P00 Hose-Washer9410--01 ~ 9701--01; Z +KZ.2S |
28935-30P00 |
US $46.80 |
||
|
27460
|
27460
28935-31P00
Hose-Washer
8907--01 ~ 9410--01; Z +KZ.2S |
28935-31P00 |
— | ||
|
27460
|
27460
28935-31P10 Hose-Washer8907--01 ~ 9410--01; Z +KZ.2S |
28935-31P10 |
US $49.82 |
||
|
27460
|
27460
28945V5000 Clip8907--01 ~ 9208--01; Z +KZ |
28945V5000 |
from US $0.97 |
||
|
27460
|
27460
28945-30P10 Clip-Accelerator Wire8907--01 ~ 9208--01; Z +KZ |
28945-30P10 |
US $1.15 |
||
|
27460
|
27460
28945-30R10 Clip9208--01 ~ 9701--01; CV +Z +KZ |
28945-30R10 |
US $3.46 |
||
|
27460
|
27460
8492901F00 Clip-Harness9410--01 ~ 9701--01; CV +Z +KZ |
8492901F00 |
US $1.24 |
||
|
27460
|
27460
28945-30P20 Clip8907--01 ~ 9410--01; Z +KZ.2S |
28945-30P20 |
US $2.45 |
||
|
27460
|
27460
2247250A00 Clamp-Hose, B8907--01 ~ 9208--01; Z +KZ |
2247250A00 |
US $4.18 |
||
|
27460
|
27460
22472-M7000 Clamp-Tube9412--01 ~ 9701--01; CV +Z +KZ |
22472-M7000 |
US $3.46 |
||
|
27460
|
27460
28945-30P00
Clip
8907--01 ~ 9701--01; Z +KZ |
28945-30P00 |
— | ||
|
27460
|
27460
01552-00081 CLIP9305--01 ~ 9701--01; Z +KZ |
01552-00081 |
US $2.68 |
||
|
27460
|
27460
24220-H5007 Clip-Wiring Harness8907--01 ~ 9305--01; Z +KZ |
24220-H5007 |
US $2.45 |
||
|
27460+A
|
27460+A
27460-89932 Hose-Washer8907--01 ~ 9410--01; Z +KZ.2S |
27460-89932 |
US $8.93 |
||
|
27460+C
|
27460+C
28935-31P00
Hose-Washer
8907--01 ~ 9410--01; Z +KZ.2S |
28935-31P00 |
— | ||
|
27460+D
|
27460+D
28935-31P10 Hose-Washer8907--01 ~ 9410--01; Z +KZ.2S |
28935-31P10 |
US $49.82 |
||
|
27460C
|
27460C
28945V5000 Clip8907--01 ~ 9208--01; Z +KZ |
28945V5000 |
from US $0.97 |
||
|
27460C
|
27460C
28945-30P10 Clip-Accelerator Wire8907--01 ~ 9208--01; Z +KZ |
28945-30P10 |
US $1.15 |
||
|
27460C
|
27460C
28945-30R10 Clip9208--01 ~ 9701--01; CV +Z +KZ |
28945-30R10 |
US $3.46 |
||
|
27460C
|
27460C
8492901F00 Clip-Harness9410--01 ~ 9701--01; CV +Z +KZ |
8492901F00 |
US $1.24 |
||
|
27460C
|
27460C
28945-30P20 Clip8907--01 ~ 9410--01; Z +KZ.2S |
28945-30P20 |
US $2.45 |
||
|
27460C
|
27460C
2247250A00 Clamp-Hose, B8907--01 ~ 9208--01; Z +KZ |
2247250A00 |
US $4.18 |
||
|
27460C
|
27460C
22472-M7000 Clamp-Tube9412--01 ~ 9701--01; CV +Z +KZ |
22472-M7000 |
US $3.46 |
||
|
27460CA
|
27460CA
28945-30P10 Clip-Accelerator Wire8907--01 ~ 9208--01; Z +KZ |
28945-30P10 |
US $1.15 |
||
|
27460CB
|
27460CB
28945-30R10 Clip9208--01 ~ 9701--01; CV +Z +KZ |
28945-30R10 |
US $3.46 |
||
|
27460CD
|
27460CD
28945-30P20 Clip8907--01 ~ 9410--01; Z +KZ.2S |
28945-30P20 |
US $2.45 |
||
|
27460CF
|
27460CF
2247250A00 Clamp-Hose, B8907--01 ~ 9208--01; Z +KZ |
2247250A00 |
US $4.18 |
||
|
27460CF
|
27460CF
22472-M7000 Clamp-Tube9412--01 ~ 9701--01; CV +Z +KZ |
22472-M7000 |
US $3.46 |
||
|
27460D
|
27460D
28945-30P00
Clip
8907--01 ~ 9701--01; Z +KZ |
28945-30P00 |
— | ||
|
27460D
|
27460D
01552-00081 CLIP9305--01 ~ 9701--01; Z +KZ |
01552-00081 |
US $2.68 |
||
|
27460D
|
27460D
24220-H5007 Clip-Wiring Harness8907--01 ~ 9305--01; Z +KZ |
24220-H5007 |
US $2.45 |
||
|
27460DA
|
27460DA
01552-00081 CLIP9305--01 ~ 9701--01; Z +KZ |
01552-00081 |
US $2.68 |
||
|
27460DA
|
27460DA
24220-H5007 Clip-Wiring Harness8907--01 ~ 9305--01; Z +KZ |
24220-H5007 |
US $2.45 |
||
|
27461
|
27461
28975-30P10
Hose-Washer
8907--01 ~ 9701--01; Z +KZ |
28975-30P10 |
— | ||
| replacement | |||||
|
27461
|
27461
B746189910 Hose-Washer8907--01 ~ 9701--01; Z +KZ |
B746189910 |
from US $25.37 |
||
|
27461
|
27461
28975-31P00 Hose-Washer8907--01 ~ 9410--01; Z +KZ.2S |
28975-31P00 |
US $45.79 |
||
|
27461
|
27461
28975-32P00 Hose-Washer9410--01 ~ 9701--01; Z +KZ |
28975-32P00 |
US $49.82 |
||
|
27461
|
27461
27416H8700
Joint-Washer Tube
9410--01 ~ 9701--01; CV +Z +KZ |
27416H8700 |
— | ||
| replacement | |||||
|
27461
|
27461
28937AR000 Connector-Hose9410--01 ~ 9701--01; CV +Z +KZ |
28937AR000 |
from US $1.39 |
||
|
27461
|
27461
2862811C00 Valve-Check8907--01 ~ 9410--01; Z +KZ.2S |
2862811C00 |
US $5.90 |
||
|
27461+A
|
27461+A
28975-31P00 Hose-Washer8907--01 ~ 9410--01; Z +KZ.2S |
28975-31P00 |
US $45.79 |
||
|
27461M
|
27461M
2862811C00 Valve-Check8907--01 ~ 9410--01; Z +KZ.2S |
2862811C00 |
US $5.90 |
||
|
27461M
|
27461M
2862811C00 Valve-Check8907--01 ~ 9410--01; Z +KZ.2S |
2862811C00 |
US $5.90 |
||
|
27480
|
27480
28910-30P15 Tank Assy-Windshield Washer9410--01 ~ 9701--01; Z +KZ |
28910-30P15 |
US $228.96 |
||
|
27480
|
27480
28910-31P00 Tank Assy-Windshield Washer8907--01 ~ 9410--01; Z +KZ.2S |
28910-31P00 |
US $280 |
||
|
27480
|
27480
28910-VP100 Tank Assy-Windshield Washer9810--01 ~ ; Z +KZ |
28910-VP100 |
US $269.28 |
||
|
27480
|
27480
28913-30P10 Cap-Windshield Washer Tank9410--01 ~ 9701--01; CV +Z +KZ |
28913-30P10 |
US $4.61 |
||
| replacement | |||||
|
27480
|
27480
B891365F00 ｷﾔﾂﾌﾟ9410--01 ~ 9701--01; CV +Z +KZ |
B891365F00 |
US $4.03 |
||
|
27480
|
27480
28913-31P00 Cap-Windshield Washer Tank8907--01 ~ 9410--01; Z +KZ.2S |
28913-31P00 |
US $4.61 |
||
|
27480
|
27480
28913-VP100 Cap-Windshield Washer Tank9810--01 ~ ; Z +KZ |
28913-VP100 |
US $4.61 |
||
|
27480F
|
27480F
28913-30P10 Cap-Windshield Washer Tank9410--01 ~ 9701--01; CV +Z +KZ |
28913-30P10 |
US $4.61 |
||
| replacement | |||||
|
27480F
|
27480F
B891365F00 ｷﾔﾂﾌﾟ9410--01 ~ 9701--01; CV +Z +KZ |
B891365F00 |
US $4.03 |
||
|
27480F
|
27480F
28913-31P00 Cap-Windshield Washer Tank8907--01 ~ 9410--01; Z +KZ.2S |
28913-31P00 |
US $4.61 |
||
|
27480F
|
27480F
28913-VP100 Cap-Windshield Washer Tank9810--01 ~ ; Z +KZ |
28913-VP100 |
US $4.61 |
||
|
27485+B
|
27485+B
2892031P00
Pump Assy-Washer
8907--01 ~ 9410--01; Z +KZ.2S |
2892031P00 |
— | ||
|
27485+C
|
27485+C
28920-31P20
Pump Assy-Washer
8907--01 ~ 9410--01; Z +KZ.2S |
28920-31P20 |
— | ||
|
27485+D
|
27485+D
28920-31P21
Pump Assy-Washer
8907--01 ~ 9410--01; Z +KZ.2S |
28920-31P21 |
— | ||
|
27490
|
27490
28911-51L10 Sensor Assy-Water8907--01 ~ 9410--01; Z +KZ.2S |
28911-51L10 |
US $33.70 |
||
|
28775
|
28775
28970-30P00 Nozzle Assy-Rear Window Washer8907--01 ~ 9106--01; Z +KZ |
28970-30P00 |
US $18.14 |
||
|
28775
|
28775
28970-32P00 Nozzle Assy-Rear Window Washer9410--01 ~ 9701--01; Z +KZ.2S |
28970-32P00 |
US $21.46 |
||
|
28786
|
28786
2893730P00 Connector-Hose8907--01 ~ 9208--01; Z +KZ |
2893730P00 |
US $3.46 |
||
|
28916
|
28916
2891530P10 Inlet-Washer Tank9410--01 ~ 9701--01; CV +Z +KZ |
2891530P10 |
US $11.81 |
||
|
28916
|
28916
28915-VP100 Inlet-Washer Tank9810--01 ~ ; Z +KZ |
28915-VP100 |
US $17.42 |
||
|
28916
|
28916
28916-31P00
Inlet-Washer Tank
8907--01 ~ 9410--01; Z +KZ.2S |
28916-31P00 |
— | ||
