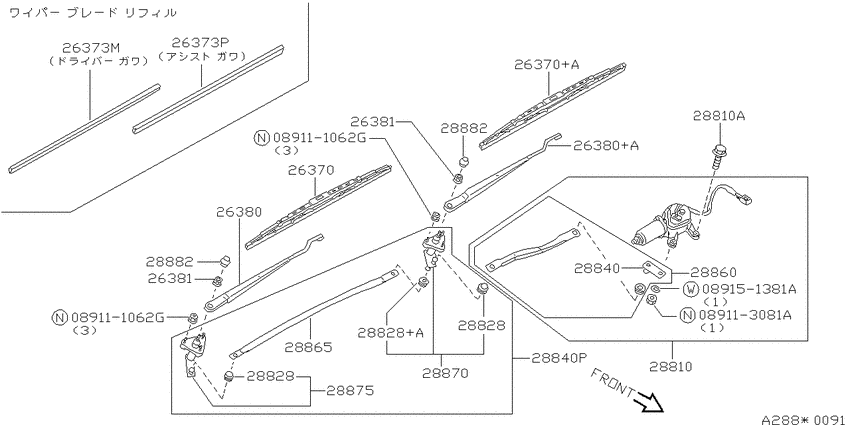

Windshield wiper (1992-08-01 ~ 1997-01-01; CV +Z +KZ) Diagram Nissan FAIRLADY Z
- Year
- 1998 - 2012
- Sales region
- Japan
- Engine
- VG30DTT
- transmission
- MT
- grade
- VS
- Roof
- Z
- seat
- 2S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.56 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.56 |
||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.54 |
||
|
26370
|
26370
28890-40P00 Blade Assy-Windshield Wiper8907--01 ~ 9108--01; Z +KZ; ﾄﾞﾗｲﾊﾞ- ﾖｳ |
28890-40P00 |
US $34.56 |
||
|
26370
|
26370
28890-40P10 Blade Assy-Windshield Wiper9108--01 ~ 9208--01; Z +KZ; ﾄﾞﾗｲﾊﾞ- ﾖｳ |
28890-40P10 |
US $31.68 |
||
|
26370
|
26370
AY001U525R
Blade Assy-Windshield Wiper
9410--01 ~ 9701--01; CV +Z +KZ; ﾄﾞﾗｲﾊﾞ- ﾖｳ |
AY001U525R |
— | ||
| replacement | |||||
|
26370
|
26370
AY001-Z525R
Blade Assy-Windshield Wiper
9410--01 ~ 9701--01; CV +Z +KZ; ﾄﾞﾗｲﾊﾞ- ﾖｳ |
AY001-Z525R |
— | ||
|
26370
|
26370
28890-40P05 Blade Assy-Windshield Wiper8907--01 ~ 9108--01; Z +KZ; ｱｼｽﾄ ﾖｳ |
28890-40P05 |
US $38.02 |
||
|
26370
|
26370
28890-40P15 Blade Assy-Windshield Wiper9108--01 ~ 9208--01; Z +KZ; ｱｼｽﾄ ﾖｳ |
28890-40P15 |
US $38.02 |
||
|
26370
|
26370
AY001U525R
Blade Assy-Windshield Wiper
9410--01 ~ 9701--01; CV +Z +KZ; ｱｼｽﾄ ﾖｳ |
AY001U525R |
— | ||
| replacement | |||||
|
26370
|
26370
AY001-Z525R
Blade Assy-Windshield Wiper
9410--01 ~ 9701--01; CV +Z +KZ; ｱｼｽﾄ ﾖｳ |
AY001-Z525R |
— | ||
|
26370+A
|
26370+A
28890-40P05 Blade Assy-Windshield Wiper8907--01 ~ 9108--01; Z +KZ; ｱｼｽﾄ ﾖｳ |
28890-40P05 |
US $38.02 |
||
|
26370+A
|
26370+A
28890-40P15 Blade Assy-Windshield Wiper9108--01 ~ 9208--01; Z +KZ; ｱｼｽﾄ ﾖｳ |
28890-40P15 |
US $38.02 |
||
|
26370+A
|
26370+A
AY001U525R
Blade Assy-Windshield Wiper
9410--01 ~ 9701--01; CV +Z +KZ; ｱｼｽﾄ ﾖｳ |
AY001U525R |
— | ||
| replacement | |||||
|
26370+A
|
26370+A
AY001-Z525R
Blade Assy-Windshield Wiper
9410--01 ~ 9701--01; CV +Z +KZ; ｱｼｽﾄ ﾖｳ |
AY001-Z525R |
— | ||
|
26373M
|
26373M
AY020TH525
Refill-Wiper Blade, Driver
8907--01 ~ 9208--01; Z +KZ |
AY020TH525 |
— | ||
| replacement | |||||
|
26373M
|
26373M
AY020TH52X Refill-Wiper Blade, Driver8907--01 ~ 9208--01; Z +KZ |
AY020TH52X |
US $8.23 |
||
|
26373P
|
26373P
AY020TH52A Refill-Wiper Blade Assist8907--01 ~ 9208--01; Z +KZ |
AY020TH52A |
US $12.24 |
||
|
26380
|
26380
28881-40P00 Arm Assy-Windshield Wiper8907--01 ~ 9108--01; Z +KZ; ﾄﾞﾗｲﾊﾞ- ﾖｳ |
28881-40P00 |
US $82.94 |
||
|
26380
|
26380
2888140P10 Arm Assy-Windshield Wiper9108--01 ~ 9208--01; Z +KZ; ﾄﾞﾗｲﾊﾞ- ﾖｳ |
2888140P10 |
US $82.94 |
||
|
26380
|
26380
28886-40P00 Arm Assy-Windshield Wiper8907--01 ~ 9108--01; Z +KZ; ｱｼｽﾄ ﾖｳ |
28886-40P00 |
US $82.94 |
||
|
26380
|
26380
2888640P10 Arm Assy-Windshield Wiper9108--01 ~ 9208--01; Z +KZ; ｱｼｽﾄ ﾖｳ |
2888640P10 |
US $82.94 |
||
|
26380+A
|
26380+A
28886-40P00 Arm Assy-Windshield Wiper8907--01 ~ 9108--01; Z +KZ; ｱｼｽﾄ ﾖｳ |
28886-40P00 |
US $82.94 |
||
|
26380+A
|
26380+A
2888640P10 Arm Assy-Windshield Wiper9108--01 ~ 9208--01; Z +KZ; ｱｼｽﾄ ﾖｳ |
2888640P10 |
US $82.94 |
||
|
26381
|
26381
28889-30R00 Nut-Wiper Arm8907--01 ~ 9208--01; Z +KZ |
28889-30R00 |
US $5.47 |
||
|
26381
|
26381
28889-30R00 Nut-Wiper Arm8907--01 ~ 9208--01; Z +KZ |
28889-30R00 |
US $5.47 |
||
|
28810
|
28810
2881040P00 Motor Assy-Windshield Wiper8907--01 ~ 9208--01; Z +KZ |
2881040P00 |
US $538.08 |
||
|
28810
|
28810
01436-00431 SCREW8907--01 ~ 9208--01; Z +KZ |
01436-00431 |
US $2.45 |
||
|
28810A
|
28810A
01436-00431 SCREW8907--01 ~ 9208--01; Z +KZ |
01436-00431 |
US $2.45 |
||
|
28828
|
28828
28828-51E00
SEAL-BALL RETAINER
8907--01 ~ 9208--01; Z +KZ |
28828-51E00 |
— | ||
| replacement | |||||
|
28828
|
28828
2882865F00 Seal-Ball Retainer8907--01 ~ 9208--01; Z +KZ |
2882865F00 |
US $2.49 |
||
|
28828
|
28828
2882865F00 Seal-Ball Retainer9302--01 ~ 9701--01; CV +Z +KZ |
2882865F00 |
US $2.49 |
||
|
28828
|
28828
28828-51E02
SEAL-BALL RETAINER
8907--01 ~ 9208--01; Z +KZ |
28828-51E02 |
— | ||
| replacement | |||||
|
28828
|
28828
2882865F01 Seal-Ball Retainer8907--01 ~ 9208--01; Z +KZ |
2882865F01 |
from US $1.91 |
||
|
28828
|
28828
2882865F01 Seal-Ball Retainer9302--01 ~ 9701--01; CV +Z +KZ |
2882865F01 |
from US $1.91 |
||
|
28828
|
28828
28828-51E00
SEAL-BALL RETAINER
8907--01 ~ 9208--01; Z +KZ |
28828-51E00 |
— | ||
| replacement | |||||
|
28828
|
28828
2882865F00 Seal-Ball Retainer8907--01 ~ 9208--01; Z +KZ |
2882865F00 |
US $2.49 |
||
|
28828
|
28828
2882865F00 Seal-Ball Retainer9302--01 ~ 9701--01; CV +Z +KZ |
2882865F00 |
US $2.49 |
||
|
28828
|
28828
28828-51E02
SEAL-BALL RETAINER
8907--01 ~ 9208--01; Z +KZ |
28828-51E02 |
— | ||
| replacement | |||||
|
28828
|
28828
2882865F01 Seal-Ball Retainer8907--01 ~ 9208--01; Z +KZ |
2882865F01 |
from US $1.91 |
||
|
28828
|
28828
2882865F01 Seal-Ball Retainer9302--01 ~ 9701--01; CV +Z +KZ |
2882865F01 |
from US $1.91 |
||
|
28828+A
|
28828+A
28828-51E02
SEAL-BALL RETAINER
8907--01 ~ 9208--01; Z +KZ |
28828-51E02 |
— | ||
| replacement | |||||
|
28828+A
|
28828+A
2882865F01 Seal-Ball Retainer8907--01 ~ 9208--01; Z +KZ |
2882865F01 |
from US $1.91 |
||
|
28828+A
|
28828+A
2882865F01 Seal-Ball Retainer9302--01 ~ 9701--01; CV +Z +KZ |
2882865F01 |
from US $1.91 |
||
|
28840
|
28840
28825-40P00 Arm Assy-Wiper Motor8907--01 ~ 9208--01; Z +KZ |
28825-40P00 |
US $12.96 |
||
|
28840
|
28840
28840-40P00 Link Assy-Wiper8907--01 ~ 9208--01; Z +KZ; ﾋﾟﾎﾞﾂﾄ ﾂｷ |
28840-40P00 |
US $156.96 |
||
|
28840P
|
28840P
28840-40P00 Link Assy-Wiper8907--01 ~ 9208--01; Z +KZ; ﾋﾟﾎﾞﾂﾄ ﾂｷ |
28840-40P00 |
US $156.96 |
||
|
28860
|
28860
28841-40P00 Link Assy-Connecting, No 18907--01 ~ 9208--01; Z +KZ |
28841-40P00 |
US $19.58 |
||
|
28865
|
28865
28842-40P00 Link Assy-Connecting, No 28907--01 ~ 9208--01; Z +KZ |
28842-40P00 |
US $19.58 |
||
|
28870
|
28870
28850-40P00 Pivot Assy-Wiper, No 18907--01 ~ 9208--01; Z +KZ |
28850-40P00 |
US $92.88 |
||
|
28875
|
28875
28860-40P00 Pivot Assy-Wiper, No 28907--01 ~ 9208--01; Z +KZ |
28860-40P00 |
US $92.88 |
||
|
28882
|
28882
28882-30R00 Cover-Wiper Arm8907--01 ~ 9208--01; Z +KZ; ﾜｲﾊﾟ-ｱ-ﾑ ﾖｳ |
28882-30R00 |
US $7.06 |
||
|
28882
|
28882
28882-30R00 Cover-Wiper Arm8907--01 ~ 9208--01; Z +KZ; ﾜｲﾊﾟ-ｱ-ﾑ ﾖｳ |
28882-30R00 |
US $7.06 |
||
