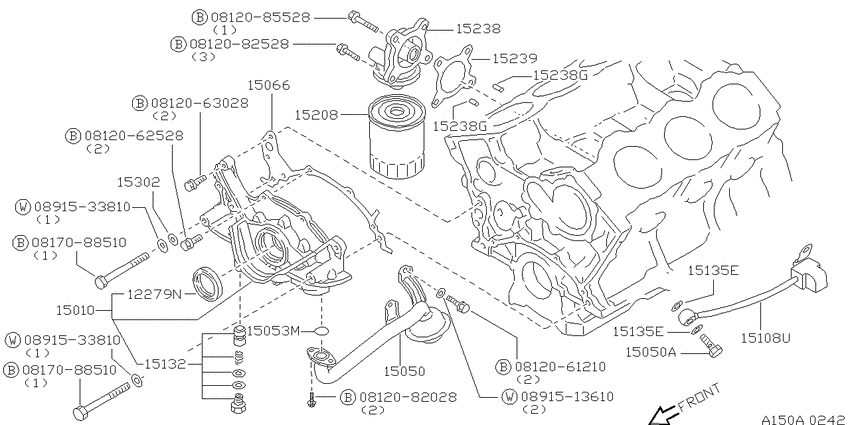

Lubricating system (1992-08-01 ~ 1997-01-01; VG30D) Diagram Nissan FAIRLADY Z
- Year
- 1989 - 1997
- Sales region
- Japan
- Engine
- VG30D
- transmission
- AT
- grade
- NASHI
- Roof
- KZ
- seat
- 2S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061210
|
0812061210
08120-61210
Bolt-hexagon
|
08120-61210 |
— | ||
|
0812062528
|
0812062528
08120-62528 Bolt-hexagon |
08120-62528 |
US $2.21 |
||
|
0812063028
|
0812063028
08120-63028
Bolt-hexagon
|
08120-63028 |
— | ||
|
0812082028
|
0812082028
08120-82028
Bolt-hexagon
|
08120-82028 |
— | ||
| replacement | |||||
|
0812082028
|
0812082028
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
0812082528
|
0812082528
08120-82528
Bolt-hexagon
|
08120-82528 |
— | ||
| replacement | |||||
|
0812082528
|
0812082528
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
0812085528
|
0812085528
08120-85528
Bolt-hexagon
|
08120-85528 |
— | ||
|
0817088510
|
0817088510
08170-88510
Bolt-hexagon
|
08170-88510 |
— | ||
|
0817088510
|
0817088510
08170-88510
Bolt-hexagon
|
08170-88510 |
— | ||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
0891533810
|
0891533810
08915-33810
WASHER-FINAL DRIVE
|
08915-33810 |
— | ||
| replacement | |||||
|
0891533810
|
0891533810
089153381A Washer |
089153381A |
from US $0.67 |
||
|
0891533810
|
0891533810
08915-33810
WASHER-FINAL DRIVE
|
08915-33810 |
— | ||
| replacement | |||||
|
0891533810
|
0891533810
089153381A Washer |
089153381A |
from US $0.67 |
||
|
12279N
|
12279N
13042-42L00
Seal-Oil, Crankshaft Front
8907--01 ~ 9208--01; VG30D |
13042-42L00 |
— | ||
| replacement | |||||
|
12279N
|
12279N
13042-16V0A SI - Le, oil camsiyaft8907--01 ~ 9208--01; VG30D |
13042-16V0A |
from US $7.09 |
||
|
12279N
|
12279N
13510-10Y00
Seal-Oil, Camshaft
9309--01 ~ 9701--01; VG30D; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼｮｳｶ |
13510-10Y00 |
— | ||
| replacement | |||||
|
12279N
|
12279N
1351010Y10 Seal-Oil, Crankshaft Front9309--01 ~ 9701--01; VG30D; NOK ﾄﾞﾁﾗﾃﾞﾓ ｼｮｳｶ |
1351010Y10 |
from US $6.51 |
||
|
12279N
|
12279N
1351010Y10 Seal-Oil, Crankshaft Front9309--01 ~ 9701--01; VG30D; NDK ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳｶ |
1351010Y10 |
from US $6.51 |
||
|
15010
|
15010
15010-16V00 Pump Assy-Oil8907--01 ~ 9007--01; VG30D |
15010-16V00 |
US $342.67 |
||
|
15010
|
15010
15010-45P00 Pump Assy-Oil9309--01 ~ 9701--01; VG30D |
15010-45P00 |
US $477.19 |
||
|
15010
|
15010
1501071V00 Pump Assy-Oil9007--01 ~ 9208--01; VG30D |
1501071V00 |
US $412.06 |
||
|
15050
|
15050
15050-30P01 Strainer Assy-Oil8907--01 ~ 9208--01; VG30D |
15050-30P01 |
US $57.60 |
||
|
15050
|
15050
1505030P02 Strainer Assy-Oil9501--01 ~ 9701--01; VG30D |
1505030P02 |
US $57.60 |
||
|
15050
|
15050
16432-P9000
Bolt-Eye
8907--01 ~ 9208--01; VG30D |
16432-P9000 |
— | ||
| replacement | |||||
|
15050
|
15050
16432P900A Bolt-Eye8907--01 ~ 9208--01; VG30D |
16432P900A |
US $9.69 |
||
|
15050A
|
15050A
16432-P9000
Bolt-Eye
8907--01 ~ 9208--01; VG30D |
16432-P9000 |
— | ||
| replacement | |||||
|
15050A
|
15050A
16432P900A Bolt-Eye8907--01 ~ 9208--01; VG30D |
16432P900A |
US $9.69 |
||
|
15053M
|
15053M
15053-F6500 Seal-O Ring8907--01 ~ 9208--01; VG30D |
15053-F6500 |
US $3.46 |
||
|
15053M
|
15053M
15053-F6501 Seal-O Ring, Oil Strainer9501--01 ~ 9701--01; VG30D |
15053-F6501 |
US $2.45 |
||
|
15066
|
15066
15066-30P00 Gasket-Oil Pump To Cylinder Block8912--01 ~ 9208--01; VG30D |
15066-30P00 |
US $4.18 |
||
|
15066
|
15066
15066-F6500 Gasket-Oil Pump To Cylinder Block8907--01 ~ 8912--01; VG30D |
15066-F6500 |
US $4.18 |
||
|
15108U
|
15108U
15192-40P12 Tube Assy-Oil8907--01 ~ 9208--01; VG30D |
15192-40P12 |
US $63.36 |
||
|
15132
|
15132
15132-16V00 Valve Assy-Oil Regulator8907--01 ~ 9208--01; VG30D |
15132-16V00 |
US $13.10 |
||
|
15135E
|
15135E
15193P9000 Gasket-Eye Bolt8907--01 ~ 9208--01; VG30D |
15193P9000 |
from US $2.44 |
||
|
15135E
|
15135E
15193P9000 Gasket-Eye Bolt8907--01 ~ 9208--01; VG30D |
15193P9000 |
from US $2.44 |
||
|
15208
|
15208
AY100NS007 Filter Assy-Oil8907--01 ~ 9208--01; VG30D |
AY100NS007 |
US $11.13 |
||
|
15238
|
15238
15238-30P10 Bracket-Oil Filter8907--01 ~ 9208--01; VG30D |
15238-30P10 |
US $424.80 |
||
|
15238
|
15238
11022-16A00 Plug-Welch8907--01 ~ 9208--01; VG30D |
11022-16A00 |
US $8.06 |
||
|
15238G
|
15238G
11022-16A00 Plug-Welch8907--01 ~ 9208--01; VG30D |
11022-16A00 |
US $8.06 |
||
|
15238G
|
15238G
11022-16A00 Plug-Welch8907--01 ~ 9208--01; VG30D |
11022-16A00 |
US $8.06 |
||
|
15239
|
15239
15239-40V00 Gasket-Oil Filter To Cylinder Block8907--01 ~ 8912--01; VG30D |
15239-40V00 |
US $5.18 |
||
|
15239
|
15239
1523989E00 GASKET-OIL FILTER TO CYLINDER BLOCK8912--01 ~ 9208--01; VG30D |
1523989E00 |
US $5.04 |
||
|
15302
|
15302
13059-V5000 Washer-Rocker Shaft8907--01 ~ 9208--01; VG30D |
13059-V5000 |
US $2.45 |
||
