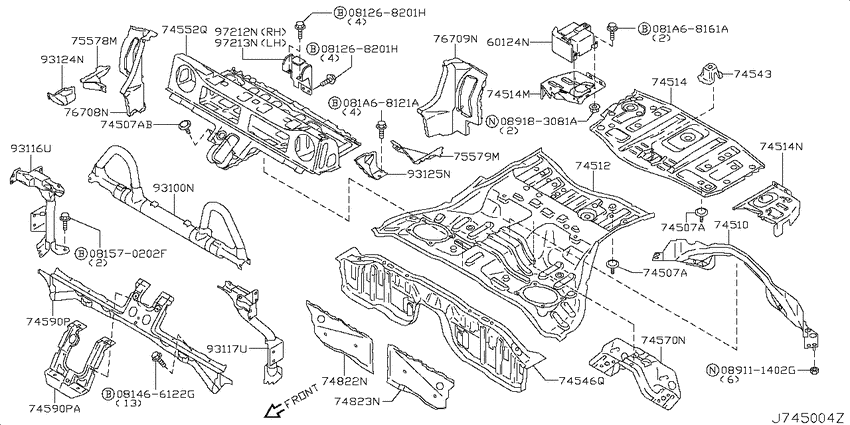

Floor panel (rear) (2005-09-01 ~ 2007-01-01; CV) Diagram Nissan FAIRLADY Z
- Year
- 2005 - 2007
- Sales region
- Japan
- Engine
- VQ35DE
- transmission
- AT
- grade
- VER/T
- body
- CV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268201H
|
081268201H
081268201H
Bolt-hexagon
|
081268201H |
— | ||
|
081268201H
|
081268201H
081268201H
Bolt-hexagon
|
081268201H |
— | ||
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
from US $0.68 |
||
|
081570202F
|
081570202F
08157-0202F
ﾎﾞﾙﾄ
|
08157-0202F |
— | ||
|
081A68121A
|
081A68121A
081A68121A
BOLTFLANGE
|
081A68121A |
— | ||
|
081A68161A
|
081A68161A
081A68161A
BOLTFLANGE
|
081A68161A |
— | ||
|
089111402G
|
089111402G
089111402G
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089111402G |
— | ||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $1 |
||
|
60124N
|
60124N
60124-CE400 ﾀﾞﾝﾊﾟｰ ｱﾂｾﾝﾌﾞﾘｰ,ﾎﾞﾃﾞｰ0509--01 ~ 0701--01; CV |
60124-CE400 |
US $392.23 |
||
|
74507A
|
74507A
0113600221 Bolt0509--01 ~ 0701--01; CV |
0113600221 |
US $1.73 |
||
|
74507A
|
74507A
54459-CD110 ﾎﾞﾙﾄ0509--01 ~ 0701--01; CV |
54459-CD110 |
US $2.45 |
||
|
74507A
|
74507A
0113600221 Bolt0509--01 ~ 0701--01; CV |
0113600221 |
US $1.73 |
||
|
74507A
|
74507A
54459-CD110 ﾎﾞﾙﾄ0509--01 ~ 0701--01; CV |
54459-CD110 |
US $2.45 |
||
|
74507AB
|
74507AB
54459-CD110 ﾎﾞﾙﾄ0509--01 ~ 0701--01; CV |
54459-CD110 |
US $2.45 |
||
|
74510
|
74510
74510-AL500 Board Assy-Rear Floor0509--01 ~ 0701--01; CV |
74510-AL500 |
US $210.35 |
||
|
74512
|
74512
74512-AM630 Floor-Rear, Front0509--01 ~ 0701--01; CV |
74512-AM630 |
US $383.74 |
||
| replacement | |||||
|
74512
|
74512
74512-AM639 ﾌﾛｱ,ﾘﾔ ﾌﾛﾝﾄ0509--01 ~ 0701--01; CV |
74512-AM639 |
US $320.02 |
||
|
74514
|
74514
74514-CD030 Floor-Rear, Rear0509--01 ~ 0701--01; CV |
74514-CD030 |
US $356.20 |
||
|
74514
|
74514
74530-CE400 ﾌﾛｱ,ﾘﾔ ﾘﾔ ｻｲﾄﾞ rh0509--01 ~ 0701--01; CV |
74530-CE400 |
US $90.58 |
||
|
74514
|
74514
74531-CD000 Floor-Rear, Rear Side Lh0509--01 ~ 0701--01; CV |
74531-CD000 |
from US $76.76 |
||
|
74514M
|
74514M
74530-CE400 ﾌﾛｱ,ﾘﾔ ﾘﾔ ｻｲﾄﾞ rh0509--01 ~ 0701--01; CV |
74530-CE400 |
US $90.58 |
||
|
74514N
|
74514N
74531-CD000 Floor-Rear, Rear Side Lh0509--01 ~ 0701--01; CV |
74531-CD000 |
from US $76.76 |
||
|
74543
|
74543
745880N000 Bracket-Spare Tire Clamp0509--01 ~ 0701--01; CV |
745880N000 |
US $14.98 |
||
|
74546Q
|
74546Q
74546-CD010 ﾚｲﾝﾎｰｽ ｱﾂｼ-,ｸﾛｽ ﾒﾝﾊﾞｰ ﾘｱｰ ｼｰﾄ0509--01 ~ 0701--01; CV |
74546-CD010 |
US $162.72 |
||
|
74552Q
|
74552Q
74552-CE400 ﾊﾟﾈﾙ,ｽﾃﾂﾌﾟ ｲﾝｻｲﾄﾞ0509--01 ~ 0701--01; CV |
74552-CE400 |
US $317.18 |
||
|
74570N
|
74570N
74574-CD000 ﾚｲﾝﾌｵ-ｽ,ｱﾝｶ- ﾍﾞﾙﾄ ﾘﾔ ﾌﾛｱ0509--01 ~ 0701--01; CV |
74574-CD000 |
US $83.38 |
||
|
74590P
|
74590P
74554-CD000 ﾊﾟﾈﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾃﾂﾌﾟ0509--01 ~ 0701--01; CV |
74554-CD000 |
US $138.67 |
||
|
74590P
|
74590P
74554-CD010 ﾊﾟﾈﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾃﾂﾌﾟ0509--01 ~ 0701--01; CV |
74554-CD010 |
US $69.12 |
||
|
74590PA
|
74590PA
74554-CD010 ﾊﾟﾈﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｽﾃﾂﾌﾟ0509--01 ~ 0701--01; CV |
74554-CD010 |
US $69.12 |
||
|
74822N
|
74822N
748B2-CE400 ｶﾞｾﾂﾄ,ﾌﾛｱ ﾘﾔ rh0509--01 ~ 0701--01; CV |
748B2-CE400 |
US $52.13 |
||
|
74823N
|
74823N
748B3-CE400 ｶﾞｾﾂﾄ,ﾌﾛｱ ﾘﾔ lh0509--01 ~ 0701--01; CV |
748B3-CE400 |
US $52.13 |
||
|
75578M
|
75578M
75578-CE400 ｺﾈｸﾀ-,ﾘﾔ ｻｲﾄﾞ ﾒﾝﾊﾞ-0509--01 ~ 0701--01; CV |
75578-CE400 |
US $28.08 |
||
|
75579M
|
75579M
75579-CE400 ｺﾈｸﾀｰ,ﾘﾔ ｻｲﾄﾞ ﾒﾝﾊﾞｰ lh0509--01 ~ 0701--01; CV |
75579-CE400 |
US $28.08 |
||
|
76708N
|
76708N
76708-CE400 ｺﾈｸﾀｰ,ﾘﾔ ﾎｲｰﾙﾊｳｽ ｲﾝﾅｰ rh0509--01 ~ 0701--01; CV |
76708-CE400 |
US $89.42 |
||
|
76709N
|
76709N
76709-CE400 ｺﾈｸﾀｰ,ﾘﾔ ﾎｲｰﾙﾊｳｽ ｲﾝﾅｰ lh0509--01 ~ 0701--01; CV |
76709-CE400 |
US $89.42 |
||
|
93100N
|
93100N
93100-CE400 ﾌﾚｰﾑ ｱﾂｾﾝﾌﾞﾘｰ,ｶﾞｰﾄﾞ0509--01 ~ 0701--01; CV |
93100-CE400 |
US $920.40 |
||
|
93116U
|
93116U
93116-CE400 ﾎﾟｽﾄ,ｲﾝｻｲﾄﾞ ｶﾞｰﾄﾞﾌﾚｰﾑ rh0509--01 ~ 0701--01; CV |
93116-CE400 |
US $210.24 |
||
|
93117U
|
93117U
93117-CE400 ﾎﾟｽﾄ,ｲﾝｻｲﾄﾞ ｶﾞｰﾄﾞﾌﾚｰﾑ lh0509--01 ~ 0701--01; CV |
93117-CE400 |
US $210.24 |
||
|
93124N
|
93124N
93124-CE411 ｶﾞｾﾂﾄ,ｶﾞｰﾄﾞ ﾌﾚｰﾑ rh0509--01 ~ 0701--01; CV |
93124-CE411 |
US $23.18 |
||
|
93125N
|
93125N
93125-CE411 ｶﾞｾﾂﾄ,ｶﾞｰﾄﾞ ﾌﾚｰﾑ lh0509--01 ~ 0701--01; CV |
93125-CE411 |
US $23.18 |
||
|
97212N
|
97212N
97212-CE401 ﾚｲﾝﾌｵｰｽ,ｽﾄﾚｰｼﾞ ﾘﾂﾄﾞ ﾛﾂｸ rh0509--01 ~ 0701--01; CV |
97212-CE401 |
US $32.98 |
||
|
97213N
|
97213N
97213-CE401 ﾚｲﾝﾌｵｰｽ,ｽﾄﾚｰｼﾞ ﾘﾂﾄﾞ ﾛﾂｸ lh0509--01 ~ 0701--01; CV |
97213-CE401 |
US $32.98 |
||
