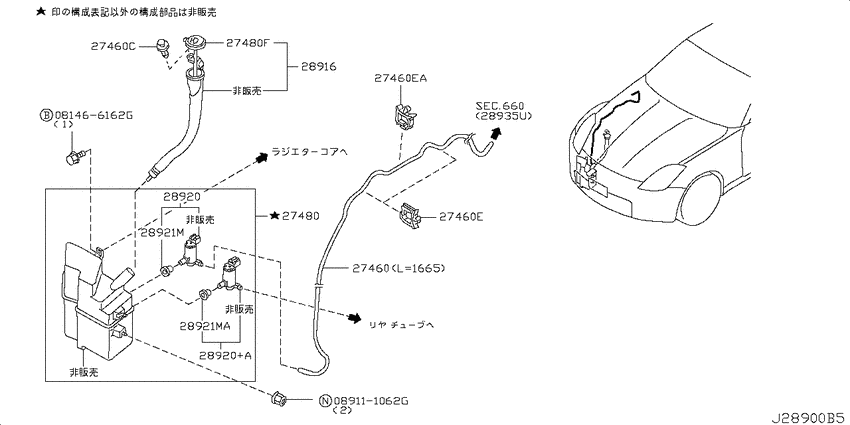

Windshield washer (2005-09-01 ~ 2007-01-01; ﾌﾛﾝﾄ ｳｫｯｼｬー; C +CV) Diagram Nissan FAIRLADY Z
- Year
- 2005 - 2007
- Sales region
- Japan
- Engine
- VQ35DE
- transmission
- MT
- grade
- VER/S
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
27460
|
27460
28935-CD400
Hose-Washer
0509--01 ~ 0701--01; C +CV; L=1665 S/#B7460-89910 |
28935-CD400 |
— | ||
|
27460
|
27460
01651-00601 GROMMET0509--01 ~ 0701--01; C |
01651-00601 |
US $2.45 |
||
|
27460
|
27460
0155309321 CLIP0509--01 ~ 0701--01; C +CV |
0155309321 |
US $0.97 |
||
|
27460
|
27460
28945AQ010 Clip0509--01 ~ 0701--01; C |
28945AQ010 |
US $4.18 |
||
|
27460
|
27460
2894501E00 CLIP0509--01 ~ 0701--01; C |
2894501E00 |
US $0.86 |
||
|
27460
|
27460
2894561Y10 Clip0509--01 ~ 0701--01; C |
2894561Y10 |
US $4.18 |
||
|
27460
|
27460
28945AQ000 Clip0509--01 ~ 0701--01; C +CV |
28945AQ000 |
from US $0.78 |
||
|
27460
|
27460
2894501E00 CLIP0509--01 ~ 0701--01; C +CV |
2894501E00 |
US $0.86 |
||
|
27460C
|
27460C
0155309321 CLIP0509--01 ~ 0701--01; C +CV |
0155309321 |
US $0.97 |
||
|
27460E
|
27460E
28945AQ000 Clip0509--01 ~ 0701--01; C +CV |
28945AQ000 |
from US $0.78 |
||
|
27460E
|
27460E
2894501E00 CLIP0509--01 ~ 0701--01; C +CV |
2894501E00 |
US $0.86 |
||
|
27460EA
|
27460EA
2894501E00 CLIP0509--01 ~ 0701--01; C +CV |
2894501E00 |
US $0.86 |
||
|
27480
|
27480
28910CD400 Tank Assy-Windshield Washer0509--01 ~ 0701--01; C |
28910CD400 |
US $197.28 |
||
|
27480
|
27480
28913-CD400
Cap-Windshield Washer Tank
0509--01 ~ 0701--01; C +CV |
28913-CD400 |
— | ||
| replacement | |||||
|
27480
|
27480
B8913-JG000 Cap-windshield washer tank0509--01 ~ 0701--01; C +CV |
B8913-JG000 |
from US $3.52 |
||
|
27480F
|
27480F
28913-CD400
Cap-Windshield Washer Tank
0509--01 ~ 0701--01; C +CV |
28913-CD400 |
— | ||
| replacement | |||||
|
27480F
|
27480F
B8913-JG000 Cap-windshield washer tank0509--01 ~ 0701--01; C +CV |
B8913-JG000 |
from US $3.52 |
||
|
28916
|
28916
28915CD400 Inlet-Washer Tank0509--01 ~ 0701--01; C +CV |
28915CD400 |
US $31.97 |
||
|
28920
|
28920
2892050Y00 Pump Assy-Washer0509--01 ~ 0701--01; C +CV; FR |
2892050Y00 |
from US $26.76 |
||
|
28920
|
28920
2892050Y10 Pump Assy-Washer0509--01 ~ 0701--01; C; RR |
2892050Y10 |
from US $40.06 |
||
|
28920+A
|
28920+A
2892050Y10 Pump Assy-Washer0509--01 ~ 0701--01; C; RR |
2892050Y10 |
from US $40.06 |
||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor0509--01 ~ 0701--01; C +CV; FR |
2892150Y00 |
US $4.57 |
||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor0509--01 ~ 0701--01; C +CV; RR |
2892150Y00 |
US $4.57 |
||
|
28921MA
|
28921MA
2892150Y00 Packing-Washer Motor0509--01 ~ 0701--01; C +CV; RR |
2892150Y00 |
US $4.57 |
||
|
660
|
Cowl top & fitting
660
|
||||
