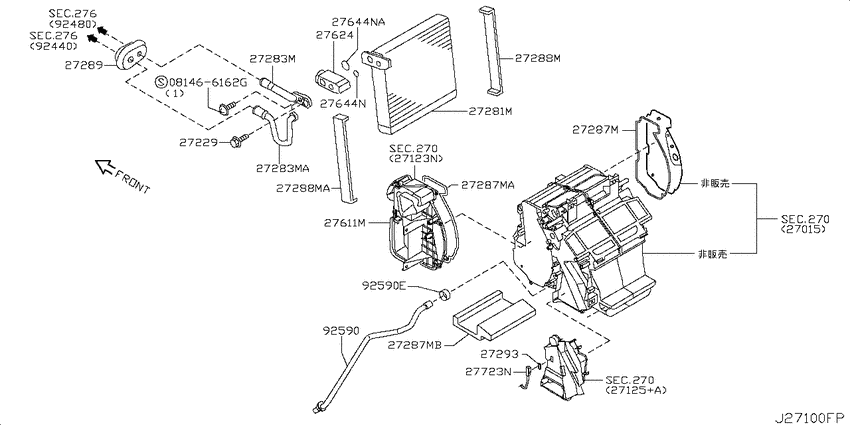

Cooling unit (2007-01-01 ~ ; C +CV) Diagram Nissan FAIRLADY Z
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ35HR
- transmission
- MT
- grade
- VER/S
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.68 |
||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
270
|
Heater & blower unit
270
|
||||
|
27229
|
27229
272294M40A Bolt-Kit0701--01 ~ ; C +CV |
272294M40A |
US $1.58 |
||
|
27281M
|
27281M
27281-AL500 Evapolator Assy-Front0701--01 ~ ; C +CV |
27281-AL500 |
US $247.36 |
||
|
27283M
|
27283M
27283AL510 Pipe Assy-Cooler, In0701--01 ~ ; C +CV |
27283AL510 |
US $72.53 |
||
|
27283M
|
27283M
27283-AL500 Pipe Assy-Cooler, In0701--01 ~ ; C +CV |
27283-AL500 |
US $24.17 |
||
|
27283MA
|
27283MA
27283-AL500 Pipe Assy-Cooler, In0701--01 ~ ; C +CV |
27283-AL500 |
US $24.17 |
||
|
27287M
|
27287M
27287-AL501 Seal-Cooling Unit0701--01 ~ ; C +CV |
27287-AL501 |
US $3.17 |
||
|
27287M
|
27287M
27287-8H360 Seal-Cooling Unit0701--01 ~ ; C +CV |
27287-8H360 |
US $3.17 |
||
|
27287M
|
27287M
27287-AL503 Seal-Cooling Unit0701--01 ~ ; C +CV |
27287-AL503 |
US $10.37 |
||
|
27287MA
|
27287MA
27287-8H360 Seal-Cooling Unit0701--01 ~ ; C +CV |
27287-8H360 |
US $3.17 |
||
|
27287MB
|
27287MB
27287-AL503 Seal-Cooling Unit0701--01 ~ ; C +CV |
27287-AL503 |
US $10.37 |
||
|
27288M
|
27288M
27288-AL51A Insulator0701--01 ~ ; C +CV; [B517] |
27288-AL51A |
US $1.58 |
||
|
27288M
|
27288M
27288-AL51B Insulator0701--01 ~ ; C +CV; [B517] |
27288-AL51B |
US $1.58 |
||
|
27288MA
|
27288MA
27288-AL51B Insulator0701--01 ~ ; C +CV; [B517] |
27288-AL51B |
US $1.58 |
||
|
27289
|
27289
27289AL510 Grommet0701--01 ~ ; C +CV |
27289AL510 |
US $11.52 |
||
|
27293
|
27293
27293-AL500
Bracket-Thermistor
0701--01 ~ ; C +CV |
27293-AL500 |
— | ||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
27611M
|
27611M
27284-AL500 Case-Blower0701--01 ~ ; C +CV |
27284-AL500 |
US $20.45 |
||
|
27624
|
27624
92200AL500 Valve Assy-Expansion0701--01 ~ ; C +CV |
92200AL500 |
from US $72.86 |
||
|
27644N
|
27644N
9247571L00 O Ring0701--01 ~ ; C +CV |
9247571L00 |
from US $0.98 |
||
|
27644N
|
27644N
9247572L00 O Ring0701--01 ~ ; C +CV |
9247572L00 |
from US $0.98 |
||
|
27644NA
|
27644NA
9247572L00 O Ring0701--01 ~ ; C +CV |
9247572L00 |
from US $0.98 |
||
|
27723N
|
27723N
27723AG000 Sensor Assy-Thermister0701--01 ~ ; C +CV |
27723AG000 |
from US $22.06 |
||
|
92590
|
92590
92590-AL500 Hose-Drain0701--01 ~ ; C +CV |
92590-AL500 |
US $28.80 |
||
|
92590
|
92590
27153-AL50A Clip0701--01 ~ ; C +CV |
27153-AL50A |
US $3.17 |
||
|
92590E
|
92590E
27153-AL50A Clip0701--01 ~ ; C +CV |
27153-AL50A |
US $3.17 |
||
