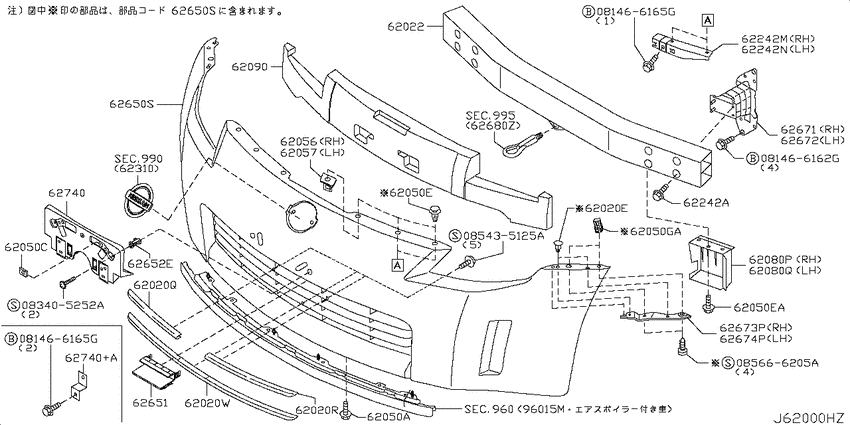

Front bumper (2007-01-01 ~ ; C +CV) Diagram Nissan FAIRLADY Z
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ35HR
- transmission
- MT
- grade
- VER/S
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
081466165G
|
081466165G
081466165G Bolt-hexagon |
081466165G |
from US $0.67 |
||
|
081466165G
|
081466165G
081466165G Bolt-hexagon |
081466165G |
from US $0.67 |
||
|
083405252A
|
083405252A
083405252A
SCREWMACHINE
|
083405252A |
— | ||
|
085435125A
|
085435125A
085435125A Screw |
085435125A |
US $0.57 |
||
|
085666205A
|
085666205A
085666205A SCREW TAPPING |
085666205A |
from US $0.54 |
||
|
62020E
|
62020E
0155301A50 Clamp-Propeller Shaft Balance0701--01 ~ ; C +CV |
0155301A50 |
from US $0.57 |
||
|
62020Q
|
62020Q
62082CF40A Moulding-Front Bumper, Rh0701--01 ~ ; C +CV |
62082CF40A |
US $28.56 |
||
|
62020R
|
62020R
62083CF40A Moulding-Front Bumper, Lh0701--01 ~ ; C +CV |
62083CF40A |
US $28.56 |
||
|
62020W
|
62020W
62084CF40A Moulding-Front Bumper, Lower0701--01 ~ ; C +CV |
62084CF40A |
US $66.38 |
||
|
62022
|
62022
62030CD705 Reinforce-Front Bumper Center, Inner0701--01 ~ ; C +CV |
62030CD705 |
US $253.44 |
||
|
62050A
|
62050A
0145600691 SCREW0701--01 ~ ; C +CV |
0145600691 |
from US $0.67 |
||
|
62050C
|
62050C
01241-00661 NUT-SPRING0701--01 ~ ; C +CV |
01241-00661 |
US $1.73 |
||
|
62050E
|
62050E
0155309241 CLAMP0701--01 ~ ; C +CV |
0155309241 |
from US $0.82 |
||
|
62050E
|
62050E
0155310541
CLIP-TRIM
0701--01 ~ ; C +CV |
0155310541 |
— | ||
| replacement | |||||
|
62050E
|
62050E
01553-05933 CLIP0701--01 ~ ; C +CV |
01553-05933 |
from US $0.65 |
||
|
62050EA
|
62050EA
0155310541
CLIP-TRIM
0701--01 ~ ; C +CV |
0155310541 |
— | ||
| replacement | |||||
|
62050EA
|
62050EA
01553-05933 CLIP0701--01 ~ ; C +CV |
01553-05933 |
from US $0.65 |
||
|
62050GA
|
62050GA
0128101081 GROMMET-SCREW0701--01 ~ ; C +CV |
0128101081 |
US $0.85 |
||
|
62056
|
62056
62058CD000 Stiffener-Front Bumper Side, Rh0701--01 ~ ; C +CV |
62058CD000 |
from US $6.88 |
||
|
62057
|
62057
62059CD000 Stiffener-Front Bumper Side, Lh0701--01 ~ ; C +CV |
62059CD000 |
from US $6.81 |
||
|
62080P
|
62080P
62234-CF40A Shield-Sight, Front Bumper Rh0701--01 ~ ; C +CV |
62234-CF40A |
US $39.46 |
||
|
62080Q
|
62080Q
62235-CF40A Shield-Sight, Front Bumper Lh0701--01 ~ ; C +CV |
62235-CF40A |
US $39.46 |
||
|
62090
|
62090
62090CF50A Absorber-Energy, Front Bumper0701--01 ~ ; C +CV |
62090CF50A |
US $73.58 |
||
|
62242A
|
62242A
54459CD010 Bolt0701--01 ~ ; C +CV |
54459CD010 |
from US $1.35 |
||
|
62242M
|
62242M
62240EV00A Retainer-Front Bumper, Upper Rh0701--01 ~ ; C +CV |
62240EV00A |
US $22.61 |
||
|
62242N
|
62242N
62241CD000 Retainer-Front Bumper, Upper Lh0701--01 ~ ; C +CV |
62241CD000 |
from US $24.91 |
||
|
62650S
|
62650S
F2022CF50A ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-0701--01 ~ ; C +CV |
F2022CF50A |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-CF50C ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0701--01 ~ 0712--01; C +CV |
F2022-CF50C |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-CF51C ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0701--01 ~ ; C +CV |
F2022-CF51C |
US $1,281.48 |
||
|
62650S
|
62650S
F2022CF52E ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-0701--01 ~ ; C +CV |
F2022CF52E |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-CF53A ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0701--01 ~ ; C +CV |
F2022-CF53A |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-CF53B ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0712--01 ~ ; C +CV |
F2022-CF53B |
US $1,281.48 |
||
|
62650S
|
62650S
F2022EV10A ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-0701--01 ~ 0712--01; C +CV |
F2022EV10A |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-EV10B ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0701--01 ~ ; C +CV |
F2022-EV10B |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-EV10C ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0701--01 ~ ; C +CV |
F2022-EV10C |
US $1,281.48 |
||
|
62650S
|
62650S
F2022EV11A ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-0712--01 ~ ; C +CV |
F2022EV11A |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-EV12A ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0712--01 ~ ; C +CV |
F2022-EV12A |
US $1,281.48 |
||
|
62650S
|
62650S
F2022CF50A ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-0701--01 ~ ; C +CV |
F2022CF50A |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-CF50C ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0701--01 ~ 0712--01; C +CV |
F2022-CF50C |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-CF51C ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0701--01 ~ ; C +CV |
F2022-CF51C |
US $1,281.48 |
||
|
62650S
|
62650S
F2022CF52E ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-0701--01 ~ ; C +CV |
F2022CF52E |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-CF53A ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0701--01 ~ ; C +CV |
F2022-CF53A |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-CF53B ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0712--01 ~ ; C +CV |
F2022-CF53B |
US $1,281.48 |
||
|
62650S
|
62650S
F2022EV10A ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-0701--01 ~ 0712--01; C +CV |
F2022EV10A |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-EV10B ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0701--01 ~ ; C +CV |
F2022-EV10B |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-EV10C ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0701--01 ~ ; C +CV |
F2022-EV10C |
US $1,281.48 |
||
|
62650S
|
62650S
F2022EV11A ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟ-0712--01 ~ ; C +CV |
F2022EV11A |
US $1,281.48 |
||
|
62650S
|
62650S
F2022-EV12A ﾌｴｲｼｱ ｷﾂﾄ,ﾌﾛﾝﾄ ﾊﾞﾝﾊﾟｰ0712--01 ~ ; C +CV |
F2022-EV12A |
US $1,281.48 |
||
|
62651
|
62651
62023CF40A Bumper-Front, Center0701--01 ~ ; C +CV |
62023CF40A |
from US $31.52 |
||
|
62652E
|
62652E
6228481F00 Grommet-Screw0701--01 ~ ; C +CV |
6228481F00 |
from US $0.87 |
||
|
62671
|
62671
62210CD010 Stay-Front Bumper, Rh0701--01 ~ ; C +CV |
62210CD010 |
US $61.68 |
||
|
62672
|
62672
62211CD010 Stay-Front Bumper, Lh0701--01 ~ ; C +CV |
62211CD010 |
from US $41.79 |
||
|
62673P
|
62673P
62222CD001 Bracket-Front Bumper Side, Rh0701--01 ~ ; C +CV |
62222CD001 |
from US $12.54 |
||
|
62674P
|
62674P
62223CD001 Bracket-Front Bumper Side, Lh0701--01 ~ ; C +CV |
62223CD001 |
from US $11.91 |
||
|
62740
|
62740
96212CF40A BRACKETLICENCE0701--01 ~ ; C +CV |
96212CF40A |
US $69.41 |
||
|
62740
|
62740
96210EG100 ﾗｲｾﾝｽ ﾌﾞﾗｹﾂﾄ0701--01 ~ ; C +CV |
96210EG100 |
US $56.59 |
||
|
62740+A
|
62740+A
96210EG100 ﾗｲｾﾝｽ ﾌﾞﾗｹﾂﾄ0701--01 ~ ; C +CV |
96210EG100 |
US $56.59 |
||
|
