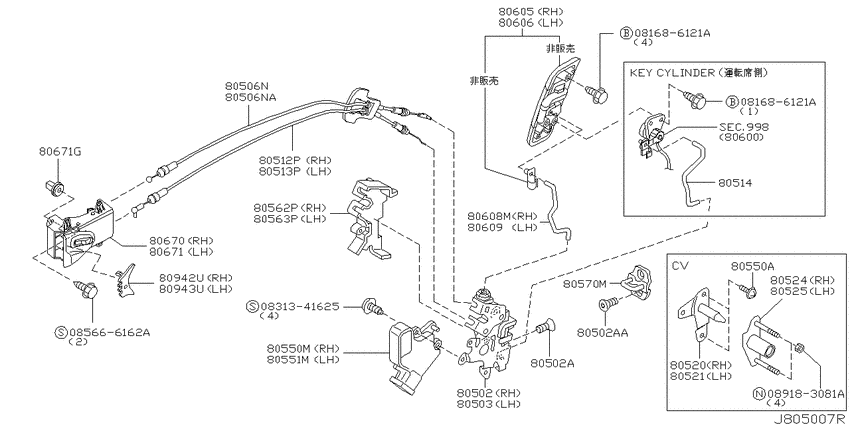

Front door lock & handle (2007-01-01 ~ ; C +CV) Diagram Nissan FAIRLADY Z
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ35HR
- transmission
- MT
- grade
- VER/S
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
0831341625
|
0831341625
08313-41625
Болт
|
08313-41625 |
— | ||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
US $2.21 |
||
|
089183081A
|
089183081A
089183081A NUT FLANGE HEX |
089183081A |
US $1 |
||
|
80502
|
80502
80502AR000 Lock Assy-Front Door, Rh0701--01 ~ ; C +CV |
80502AR000 |
US $110.45 |
||
|
80502
|
80502
80599AX00E Screw0701--01 ~ ; C +CV |
80599AX00E |
US $2.45 |
||
|
80502
|
80502
0143300181 SCREW0701--01 ~ ; C +CV |
0143300181 |
US $2.45 |
||
|
80502A
|
80502A
80599AX00E Screw0701--01 ~ ; C +CV |
80599AX00E |
US $2.45 |
||
|
80502A
|
80502A
0143300181 SCREW0701--01 ~ ; C +CV |
0143300181 |
US $2.45 |
||
|
80502AA
|
80502AA
0143300181 SCREW0701--01 ~ ; C +CV |
0143300181 |
US $2.45 |
||
|
80503
|
80503
80503-AL500 Lock Assy-Front Door, Lh0701--01 ~ ; C +CV |
80503-AL500 |
US $110.45 |
||
|
80506N
|
80506N
80506-CD00A CABLEFRONT DOO0701--01 ~ ; C +CV |
80506-CD00A |
US $12.38 |
||
|
80506N
|
80506N
80506-CD00A CABLEFRONT DOO0701--01 ~ ; C +CV |
80506-CD00A |
US $12.38 |
||
|
80506NA
|
80506NA
80506-CD00A CABLEFRONT DOO0701--01 ~ ; C +CV |
80506-CD00A |
US $12.38 |
||
|
80512P
|
80512P
80512-CD000 ｹｰﾌﾞﾙ,ﾛﾂｸ ﾉﾌﾞ rh0701--01 ~ ; C +CV |
80512-CD000 |
from US $6.64 |
||
|
80513P
|
80513P
80513-CD000 ｹｰﾌﾞﾙ,ﾛﾂｸ ﾉﾌﾞ lh0701--01 ~ ; C +CV |
80513-CD000 |
from US $6.68 |
||
|
80514
|
80514
80514-CD000 ﾛﾂﾄﾞ,ｷ- ﾛﾂｸ rh0701--01 ~ ; C +CV |
80514-CD000 |
US $11.93 |
||
|
80550M
|
80550M
80552-AL510 Actuator-Auto Door Lock, Front Rh0701--01 ~ ; C +CV |
80552-AL510 |
US $91.30 |
||
|
80551M
|
80551M
80553AL510 ACTUATORAUTO D0701--01 ~ ; C +CV |
80553AL510 |
from US $104.09 |
||
|
80562P
|
80562P
80562AR000 Cover-Front Door Lock, Rh0701--01 ~ ; C +CV |
80562AR000 |
US $11.38 |
||
|
80563P
|
80563P
80563-AR000 Cover-Front Door Lock, Lh0701--01 ~ ; C +CV |
80563-AR000 |
US $11.38 |
||
|
80570M
|
80570M
80570AA20A Striker Assy-Front Door Lock0701--01 ~ ; C +CV |
80570AA20A |
from US $32.98 |
||
|
80605
|
80605
80606-CD40C ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ﾄﾞｱ ｱｳﾄｻｲﾄﾞ rh0701--01 ~ ; C +CV |
80606-CD40C |
US $110.88 |
||
|
80606
|
80606
80607CD00C ﾄﾞｱ ﾊﾝﾄﾞﾙ lh0701--01 ~ ; C +CV |
80607CD00C |
US $110.88 |
||
|
80608M
|
80608M
80608-CD000 ﾛﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｱｳﾄｻｲﾄﾞ ﾊﾝﾄﾞﾙ rh0701--01 ~ ; C +CV |
80608-CD000 |
from US $12.01 |
||
|
80609
|
80609
80609CD000 ROD ASSYOUTSID0701--01 ~ ; C +CV |
80609CD000 |
from US $12.12 |
||
|
80670
|
80670
80670-CF00A ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｲﾝｻｲﾄﾞ rh0701--01 ~ ; C +CV |
80670-CF00A |
US $82.94 |
||
|
80671
|
80671
80671-CF00A ﾊﾝﾄﾞﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾄﾞｱ ｲﾝｻｲﾄﾞ lh0701--01 ~ ; C +CV |
80671-CF00A |
US $82.94 |
||
|
80671
|
80671
0128101231 GROMMET-SCREW0701--01 ~ ; C +CV |
0128101231 |
US $4.16 |
||
|
80671G
|
80671G
0128101231 GROMMET-SCREW0701--01 ~ ; C +CV |
0128101231 |
US $4.16 |
||
|
80942U
|
80942U
80942-CD000 ｷﾔﾂﾌﾟ,ﾄﾞｱ ﾌｲﾆﾂｼﾔｰ0701--01 ~ ; C +CV |
80942-CD000 |
US $5.62 |
||
|
80943U
|
80943U
80943CD000 ｷﾔﾂﾌﾟ,ﾄﾞｱ ﾌｲﾆﾂｼ0701--01 ~ ; C +CV |
80943CD000 |
US $5.62 |
||
|
998
|
Key set & blank key
998
|
||||
