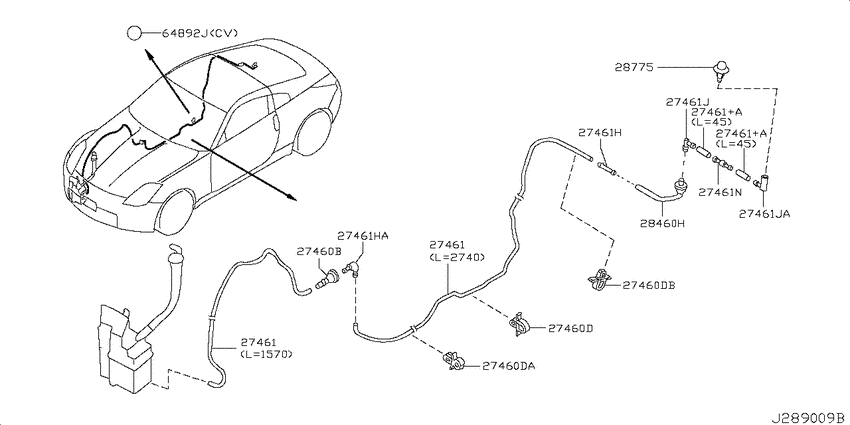

Windshield washer (2007-01-01 ~ ; ﾘﾔ ｳｫｯｼｬｰ; C +CV) Diagram Nissan FAIRLADY Z
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ35HR
- transmission
- MT
- grade
- VER/S
- body
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27460B
|
27460B
01651-00601 GROMMET0701--01 ~ ; C |
01651-00601 |
US $2.45 |
||
|
27460D
|
27460D
28945AQ010 Clip0701--01 ~ ; C |
28945AQ010 |
US $4.18 |
||
|
27460D
|
27460D
2894501E00 CLIP0701--01 ~ ; C |
2894501E00 |
US $0.86 |
||
|
27460D
|
27460D
2894561Y10 Clip0701--01 ~ ; C |
2894561Y10 |
US $4.18 |
||
|
27460DA
|
27460DA
2894501E00 CLIP0701--01 ~ ; C |
2894501E00 |
US $0.86 |
||
|
27460DB
|
27460DB
2894561Y10 Clip0701--01 ~ ; C |
2894561Y10 |
US $4.18 |
||
|
27461
|
27461
28975-CD000
Hose-Washer
0701--01 ~ ; C; L=2740/1570 S/#B7460-89910 |
28975-CD000 |
— | ||
|
27461
|
27461
28976-CD000 Hose-Washer0701--01 ~ ; C; L=45/45 S/#B7460-89910 |
28976-CD000 |
US $16.27 |
||
|
27461
|
27461
28937-40F00 Connector-Hose0701--01 ~ ; C |
28937-40F00 |
US $2.45 |
||
|
27461
|
27461
289375Y500 Connector-Tube0701--01 ~ ; C; [B309] |
289375Y500 |
from US $1.72 |
||
|
27461
|
27461
28937V6000 Connector-Hose0701--01 ~ ; C |
28937V6000 |
US $0.97 |
||
|
27461
|
27461
289371W300 Connector-Hose0701--01 ~ ; C |
289371W300 |
from US $5.27 |
||
|
27461
|
27461
2893850A00 Valve-Check0701--01 ~ ; C |
2893850A00 |
US $6.34 |
||
|
27461
|
27461
28975-CD000
Hose-Washer
0701--01 ~ ; C; L=2740/1570 S/#B7460-89910 |
28975-CD000 |
— | ||
|
27461
|
27461
28976-CD000 Hose-Washer0701--01 ~ ; C; L=45/45 S/#B7460-89910 |
28976-CD000 |
US $16.27 |
||
|
27461
|
27461
28937-40F00 Connector-Hose0701--01 ~ ; C |
28937-40F00 |
US $2.45 |
||
|
27461
|
27461
289375Y500 Connector-Tube0701--01 ~ ; C; [B309] |
289375Y500 |
from US $1.72 |
||
|
27461
|
27461
28937V6000 Connector-Hose0701--01 ~ ; C |
28937V6000 |
US $0.97 |
||
|
27461
|
27461
289371W300 Connector-Hose0701--01 ~ ; C |
289371W300 |
from US $5.27 |
||
|
27461
|
27461
2893850A00 Valve-Check0701--01 ~ ; C |
2893850A00 |
US $6.34 |
||
|
27461+A
|
27461+A
28976-CD000 Hose-Washer0701--01 ~ ; C; L=45/45 S/#B7460-89910 |
28976-CD000 |
US $16.27 |
||
|
27461+A
|
27461+A
28976-CD000 Hose-Washer0701--01 ~ ; C; L=45/45 S/#B7460-89910 |
28976-CD000 |
US $16.27 |
||
|
27461H
|
27461H
28937-40F00 Connector-Hose0701--01 ~ ; C |
28937-40F00 |
US $2.45 |
||
|
27461H
|
27461H
289375Y500 Connector-Tube0701--01 ~ ; C; [B309] |
289375Y500 |
from US $1.72 |
||
|
27461HA
|
27461HA
289375Y500 Connector-Tube0701--01 ~ ; C; [B309] |
289375Y500 |
from US $1.72 |
||
|
27461J
|
27461J
28937V6000 Connector-Hose0701--01 ~ ; C |
28937V6000 |
US $0.97 |
||
|
27461J
|
27461J
289371W300 Connector-Hose0701--01 ~ ; C |
289371W300 |
from US $5.27 |
||
|
27461JA
|
27461JA
289371W300 Connector-Hose0701--01 ~ ; C |
289371W300 |
from US $5.27 |
||
|
27461N
|
27461N
2893850A00 Valve-Check0701--01 ~ ; C |
2893850A00 |
US $6.34 |
||
|
28460H
|
28460H
28982-CD000 Grommet0701--01 ~ ; C |
28982-CD000 |
US $4.61 |
||
|
28775
|
28775
28970-CD000 Nozzle Assy-Rear Window Washer0701--01 ~ ; C |
28970-CD000 |
US $21.60 |
