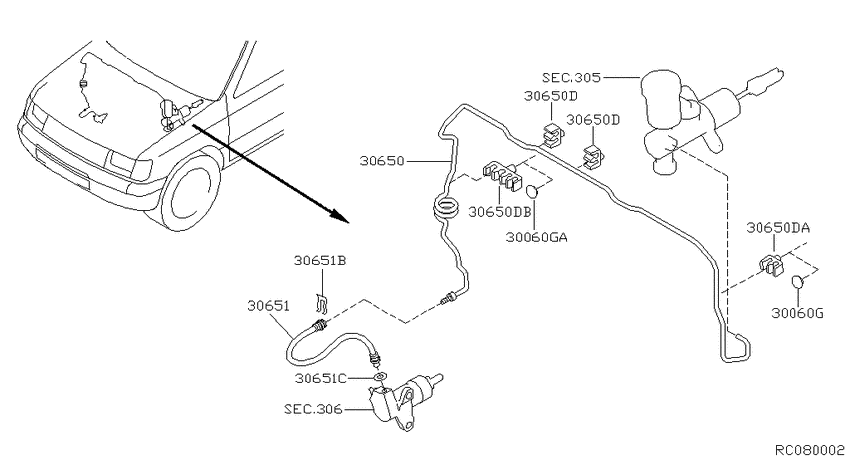

Clutch piping (2001-07-01 ~ ; KA24DE) Diagram Nissan FRONTIER
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- drive
- 2WD
- transmission
- MT
- body
- KC
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30650
|
30650
30850-3S502
Tube assy-clutch
2001-07-01 ~ ; KA24DE.MT; , |
30850-3S502 |
— | ||
|
30650
|
30650
46271-01B10
Clip
1998-08-01 ~ 1999-04-01; KA24DE.MT; , |
46271-01B10 |
— | ||
| replacement | |||||
|
30650
|
30650
46271-01E00 CLAMP-BRAKE TUBE1998-08-01 ~ 1999-04-01; KA24DE.MT; , |
46271-01E00 |
from US $1.67 |
||
|
30650
|
30650
46289-0C010 Clamp2001-07-01 ~ ; KA24DE.MT; , |
46289-0C010 |
US $2.45 |
||
|
30650
|
30650
46271-01B00
Clamp
2001-07-01 ~ ; KA24DE.MT; , |
46271-01B00 |
— | ||
| replacement | |||||
|
30650
|
30650
46271W1601 Clip-Tube, Clutch2001-07-01 ~ ; KA24DE.MT; , |
46271W1601 |
from US $3.59 |
||
|
30650
|
30650
01552-00731 CLIP-TUBE,BRAKE2001-07-01 ~ ; KA24DE.MT; , |
01552-00731 |
US $2.91 |
||
|
30650D
|
30650D
46271-01B10
Clip
1998-08-01 ~ 1999-04-01; KA24DE.MT; , |
46271-01B10 |
— | ||
| replacement | |||||
|
30650D
|
30650D
46271-01E00 CLAMP-BRAKE TUBE1998-08-01 ~ 1999-04-01; KA24DE.MT; , |
46271-01E00 |
from US $1.67 |
||
|
30650D
|
30650D
46289-0C010 Clamp2001-07-01 ~ ; KA24DE.MT; , |
46289-0C010 |
US $2.45 |
||
|
30650D
|
30650D
46271-01B00
Clamp
2001-07-01 ~ ; KA24DE.MT; , |
46271-01B00 |
— | ||
| replacement | |||||
|
30650D
|
30650D
46271W1601 Clip-Tube, Clutch2001-07-01 ~ ; KA24DE.MT; , |
46271W1601 |
from US $3.59 |
||
|
30650D
|
30650D
01552-00731 CLIP-TUBE,BRAKE2001-07-01 ~ ; KA24DE.MT; , |
01552-00731 |
US $2.91 |
||
|
30650D
|
30650D
46271-01B10
Clip
1998-08-01 ~ 1999-04-01; KA24DE.MT; , |
46271-01B10 |
— | ||
| replacement | |||||
|
30650D
|
30650D
46271-01E00 CLAMP-BRAKE TUBE1998-08-01 ~ 1999-04-01; KA24DE.MT; , |
46271-01E00 |
from US $1.67 |
||
|
30650D
|
30650D
46289-0C010 Clamp2001-07-01 ~ ; KA24DE.MT; , |
46289-0C010 |
US $2.45 |
||
|
30650D
|
30650D
46271-01B00
Clamp
2001-07-01 ~ ; KA24DE.MT; , |
46271-01B00 |
— | ||
| replacement | |||||
|
30650D
|
30650D
46271W1601 Clip-Tube, Clutch2001-07-01 ~ ; KA24DE.MT; , |
46271W1601 |
from US $3.59 |
||
|
30650D
|
30650D
01552-00731 CLIP-TUBE,BRAKE2001-07-01 ~ ; KA24DE.MT; , |
01552-00731 |
US $2.91 |
||
|
30650DA
|
30650DA
46271-01B00
Clamp
2001-07-01 ~ ; KA24DE.MT; , |
46271-01B00 |
— | ||
| replacement | |||||
|
30650DA
|
30650DA
46271W1601 Clip-Tube, Clutch2001-07-01 ~ ; KA24DE.MT; , |
46271W1601 |
from US $3.59 |
||
|
30650DB
|
30650DB
01552-00731 CLIP-TUBE,BRAKE2001-07-01 ~ ; KA24DE.MT; , |
01552-00731 |
US $2.91 |
||
|
30651
|
30651
46211-01A11 Hose Assy-Clutch2001-07-01 ~ ; KA24DE.MT; , |
46211-01A11 |
US $20.45 |
||
| replacement | |||||
|
30651
|
30651
4621101A2B
Hose Assy-Clutch
2001-07-01 ~ ; KA24DE.MT; , |
4621101A2B |
— | ||
|
30651
|
30651
46211-79911 Hose Assy-Clutch1997-09-01 ~ 1998-08-01; (FED.2WD+CAL.2WD).KA24DE.MT; SELECT USE HITACHI |
46211-79911 |
US $20.45 |
||
| replacement | |||||
|
30651
|
30651
4621101A2B
Hose Assy-Clutch
1997-09-01 ~ 1998-08-01; (FED.2WD+CAL.2WD).KA24DE.MT; SELECT USE HITACHI |
4621101A2B |
— | ||
|
30651
|
30651
46206M0200 Spring-Lock2001-07-01 ~ ; KA24DE.MT; , |
46206M0200 |
from US $0.76 |
||
|
30651
|
30651
46237A4600 Gasket-Clutch Hose1997-09-01 ~ 1999-04-01; (FED.2WD+CAL.2WD).KA24DE.MT; , |
46237A4600 |
from US $0.33 |
||
|
30651B
|
30651B
46206M0200 Spring-Lock2001-07-01 ~ ; KA24DE.MT; , |
46206M0200 |
from US $0.76 |
||
|
30651C
|
30651C
46237A4600 Gasket-Clutch Hose1997-09-01 ~ 1999-04-01; (FED.2WD+CAL.2WD).KA24DE.MT; , |
46237A4600 |
from US $0.33 |
||
