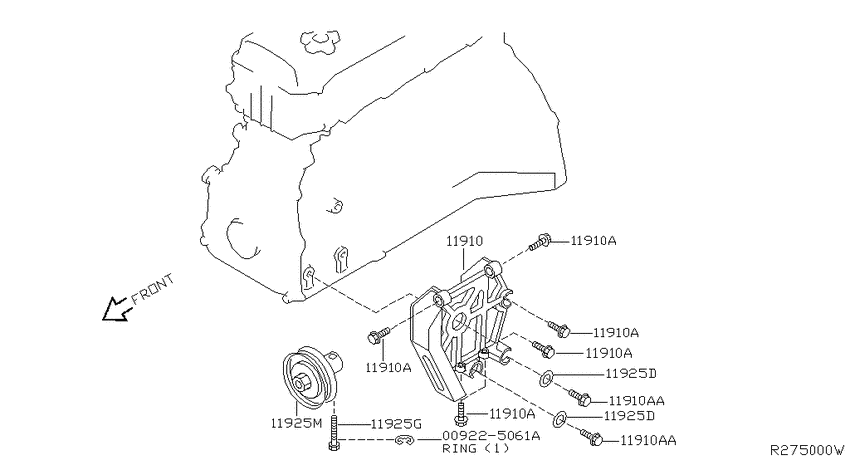

Compressor mounting & fitting (2001-07-01 ~ ; KA24DE) Diagram Nissan FRONTIER
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- drive
- 2WD
- transmission
- MT
- body
- KC
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009225061A
|
009225061A
00922-5061A
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-5061A |
— | ||
|
11910
|
11910
11910-8B000
Bracket-Compressor
1999-04-01 ~ 2000-07-01; *KA24DE; , |
11910-8B000 |
— | ||
|
11910
|
11910
11910-8B010
Bracket-Compressor
2001-07-01 ~ ; *KA24DE; , |
11910-8B010 |
— | ||
|
11910
|
11910
11916-9E010
BOLT
2001-07-01 ~ ; *KA24DE; , |
11916-9E010 |
— | ||
|
11910
|
11910
11916-3S502
Bolt
2001-07-01 ~ 2002-09-01; *KA24DE; , |
11916-3S502 |
— | ||
|
11910
|
11910
11916-3S502
Bolt
1998-08-01 ~ 1999-04-01; *KA24DE; F/AIR CON-STD TYPE |
11916-3S502 |
— | ||
|
11910A
|
11910A
11916-9E010
BOLT
2001-07-01 ~ ; *KA24DE; , |
11916-9E010 |
— | ||
|
11910A
|
11910A
11916-3S502
Bolt
2001-07-01 ~ 2002-09-01; *KA24DE; , |
11916-3S502 |
— | ||
|
11910A
|
11910A
11916-3S502
Bolt
1998-08-01 ~ 1999-04-01; *KA24DE; F/AIR CON-STD TYPE |
11916-3S502 |
— | ||
|
11910A
|
11910A
11916-9E010
BOLT
2001-07-01 ~ ; *KA24DE; , |
11916-9E010 |
— | ||
|
11910A
|
11910A
11916-3S502
Bolt
2001-07-01 ~ 2002-09-01; *KA24DE; , |
11916-3S502 |
— | ||
|
11910A
|
11910A
11916-3S502
Bolt
1998-08-01 ~ 1999-04-01; *KA24DE; F/AIR CON-STD TYPE |
11916-3S502 |
— | ||
|
11910A
|
11910A
11916-9E010
BOLT
2001-07-01 ~ ; *KA24DE; , |
11916-9E010 |
— | ||
|
11910A
|
11910A
11916-3S502
Bolt
2001-07-01 ~ 2002-09-01; *KA24DE; , |
11916-3S502 |
— | ||
|
11910A
|
11910A
11916-3S502
Bolt
1998-08-01 ~ 1999-04-01; *KA24DE; F/AIR CON-STD TYPE |
11916-3S502 |
— | ||
|
11910A
|
11910A
11916-9E010
BOLT
2001-07-01 ~ ; *KA24DE; , |
11916-9E010 |
— | ||
|
11910A
|
11910A
11916-3S502
Bolt
2001-07-01 ~ 2002-09-01; *KA24DE; , |
11916-3S502 |
— | ||
|
11910A
|
11910A
11916-3S502
Bolt
1998-08-01 ~ 1999-04-01; *KA24DE; F/AIR CON-STD TYPE |
11916-3S502 |
— | ||
|
11910A
|
11910A
11916-9E010
BOLT
2001-07-01 ~ ; *KA24DE; , |
11916-9E010 |
— | ||
|
11910A
|
11910A
11916-3S502
Bolt
2001-07-01 ~ 2002-09-01; *KA24DE; , |
11916-3S502 |
— | ||
|
11910A
|
11910A
11916-3S502
Bolt
1998-08-01 ~ 1999-04-01; *KA24DE; F/AIR CON-STD TYPE |
11916-3S502 |
— | ||
|
11910AA
|
11910AA
11916-3S502
Bolt
2001-07-01 ~ 2002-09-01; *KA24DE; , |
11916-3S502 |
— | ||
|
11910AA
|
11910AA
11916-3S502
Bolt
2001-07-01 ~ 2002-09-01; *KA24DE; , |
11916-3S502 |
— | ||
|
11925D
|
11925D
11058-9Z400
Washer-Plain
2001-07-01 ~ ; *KA24DE; , |
11058-9Z400 |
— | ||
|
11925D
|
11925D
11058H1001 Washer-Plain2000-07-01 ~ 2001-07-01; *KA24DE; , |
11058H1001 |
US $2.45 |
||
|
11925D
|
11925D
11058-9Z400
Washer-Plain
2001-07-01 ~ ; *KA24DE; , |
11058-9Z400 |
— | ||
|
11925D
|
11925D
11058H1001 Washer-Plain2000-07-01 ~ 2001-07-01; *KA24DE; , |
11058H1001 |
US $2.45 |
||
|
11925G
|
11925G
11948-30W00 Bolt-Adjust, Idler Pulley2001-07-01 ~ ; *KA24DE; , |
11948-30W00 |
US $11.66 |
||
| replacement | |||||
|
11925G
|
11925G
11948-30W0A
Bolt-Adjust
2001-07-01 ~ ; *KA24DE; , |
11948-30W0A |
— | ||
|
11925M
|
11925M
11925-3S501
Pulley Assy-Idler, Compressor
2001-07-01 ~ 2003-11-01; *KA24DE; , |
11925-3S501 |
— | ||
|
11925M
|
11925M
11925-3S502
Pulley Assy-Idler, Compressor
2003-11-01 ~ ; *KA24DE; , |
11925-3S502 |
— | ||
