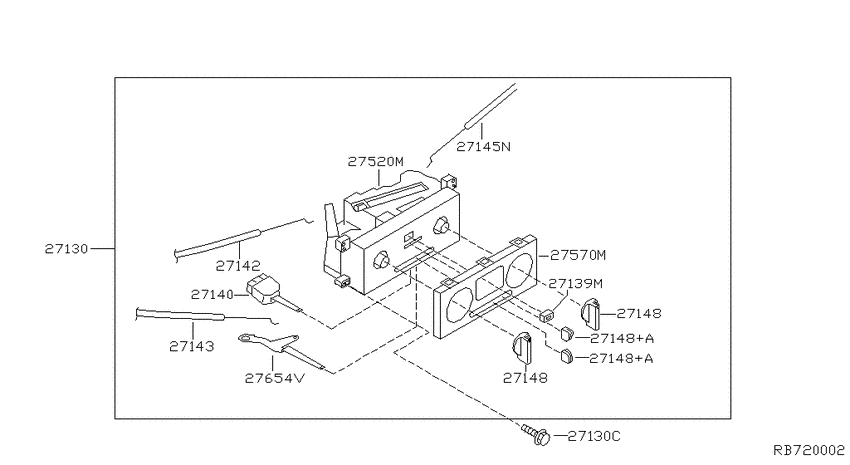

Control unit (1997-09-01 ~ 1998-08-01; T +KC) Diagram Nissan FRONTIER
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- drive
- 2WD
- transmission
- MT
- body
- KC
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27130
|
27130
27510-3S500
Controller Assy-Air Conditiner
1997-09-01 ~ 1998-08-01; T.XE +KC; , |
27510-3S500 |
— | ||
|
27130
|
27130
27510-7Z000
Controller Assy-Air Conditiner
1999-04-01 ~ 1999-09-01; *T +*KC.4WD.VG33E +*KC.KA24DE; , |
27510-7Z000 |
— | ||
|
27130
|
27130
27510-7Z110
Controller Assy-Air Conditiner
1999-09-01 ~ 2000-07-01; *T +*KC +*CC; , |
27510-7Z110 |
— | ||
|
27130
|
27130
27510-7Z411
Controller Assy-Air Conditiner
2001-07-01 ~ 2002-09-01; *KC.KA24DE +*KC.VG33E.XE; , |
27510-7Z411 |
— | ||
|
27130
|
27130
27510-ZD015
Controller Assy-Air Conditiner
2002-09-01 ~ ; *KC.KA24DE +*KC.VG33E.XE; , |
27510-ZD015 |
— | ||
|
27130
|
27130
27515-1Z615
Controller Assy-Air Conditiner
2002-09-01 ~ ; KC.KA24DE +KC.VG33E.XE; , |
27515-1Z615 |
— | ||
|
27130
|
27130
27515-3S510
Controller Assy-Air Conditiner
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE; , |
27515-3S510 |
— | ||
|
27130
|
27130
27515-7Z100
Controller Assy-Air Conditiner
1999-09-01 ~ 2000-07-01; T +KC +CC; , |
27515-7Z100 |
— | ||
|
27130
|
27130
27515-7Z401
Controller Assy-Air Conditiner
2001-07-01 ~ 2002-09-01; KC.KA24DE +KC.VG33E.XE; , |
27515-7Z401 |
— | ||
|
27130
|
27130
0145100581 SCREW1998-08-01 ~ 1999-04-01; T +KC; , |
0145100581 |
from US $0.63 |
||
|
27130C
|
27130C
0145100581 SCREW1998-08-01 ~ 1999-04-01; T +KC; , |
0145100581 |
from US $0.63 |
||
|
27139M
|
27139M
27670-7Z100
Switch Assy-Front Air Conditioner
1999-09-01 ~ 2000-07-01; *T +*KC +*CC; , |
27670-7Z100 |
— | ||
|
27139M
|
27139M
27670-8B400
Switch Assy-Front Air Conditioner
1999-04-01 ~ 1999-09-01; *T +*KC.4WD.VG33E +*KC.KA24DE; , |
27670-8B400 |
— | ||
|
27140
|
27140
27660-1M200
Switch-Fan
1999-09-01 ~ 2000-07-01; T +KC +CC; , |
27660-1M200 |
— | ||
|
27140
|
27140
27660-8B400
Switch-Fan
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27660-8B400 |
— | ||
|
27142
|
27142
27541-7Z102
Cable-Control, Mode Door
2000-07-01 ~ 2001-07-01; T +KC +CC; , |
27541-7Z102 |
— | ||
|
27142
|
27142
27541-7Z400
Cable-Control, Mode Door
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27541-7Z400 |
— | ||
|
27142
|
27142
27541-8B400
Cable-Control, Mode Door
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE; , |
27541-8B400 |
— | ||
|
27143
|
27143
27540-8B400
Cable-Control, Air Intake Door
1999-04-01 ~ 1999-09-01; *T +*KC.4WD.VG33E +*KC.KA24DE; , |
27540-8B400 |
— | ||
|
27145N
|
27145N
27542-7Z102
Cable-Temperature Control
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27542-7Z102 |
— | ||
|
27145N
|
27145N
27542-8B400
Cable-Temperature Control
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE; , |
27542-8B400 |
— | ||
|
27148
|
27148
27559-7Z100
Knob-Control
1999-09-01 ~ 2000-07-01; T +KC +CC; , |
27559-7Z100 |
— | ||
|
27148
|
27148
27559-7Z400
Knob-Control
2001-07-01 ~ ; *KC.KA24DE +*KC.VG33E.XE; , |
27559-7Z400 |
— | ||
|
27148
|
27148
27559-8B400
Knob-Control
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE; , |
27559-8B400 |
— | ||
|
27148
|
27148
27560-7Z410
Knob-Control
2000-07-01 ~ 2001-07-01; $*T +*KC.KA24DE +*KC.VG33E.XE +*CC.XE; , |
27560-7Z410 |
— | ||
|
27148
|
27148
27560-8B400
Knob-Control
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE; , |
27560-8B400 |
— | ||
|
27148
|
27148
27559-7Z100
Knob-Control
1999-09-01 ~ 2000-07-01; T +KC +CC; , |
27559-7Z100 |
— | ||
|
27148
|
27148
27559-7Z400
Knob-Control
2001-07-01 ~ ; *KC.KA24DE +*KC.VG33E.XE; , |
27559-7Z400 |
— | ||
|
27148
|
27148
27559-8B400
Knob-Control
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE; , |
27559-8B400 |
— | ||
|
27148
|
27148
27560-7Z410
Knob-Control
2000-07-01 ~ 2001-07-01; $*T +*KC.KA24DE +*KC.VG33E.XE +*CC.XE; , |
27560-7Z410 |
— | ||
|
27148
|
27148
27560-8B400
Knob-Control
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE; , |
27560-8B400 |
— | ||
|
27148+A
|
27148+A
27560-7Z410
Knob-Control
2000-07-01 ~ 2001-07-01; $*T +*KC.KA24DE +*KC.VG33E.XE +*CC.XE; , |
27560-7Z410 |
— | ||
|
27148+A
|
27148+A
27560-8B400
Knob-Control
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE; , |
27560-8B400 |
— | ||
|
27148+A
|
27148+A
27560-7Z410
Knob-Control
2000-07-01 ~ 2001-07-01; $*T +*KC.KA24DE +*KC.VG33E.XE +*CC.XE; , |
27560-7Z410 |
— | ||
|
27148+A
|
27148+A
27560-8B400
Knob-Control
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE; , |
27560-8B400 |
— | ||
|
27520M
|
27520M
27520-1M200
Base-Controller
1999-09-01 ~ 2000-07-01; T +KC +CC; , |
27520-1M200 |
— | ||
|
27520M
|
27520M
27520-7Z000
Base-Controller
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE; , |
27520-7Z000 |
— | ||
|
27520M
|
27520M
27520-7Z410
Base-Controller
2002-09-01 ~ ; KC; , |
27520-7Z410 |
— | ||
|
27520M
|
27520M
27520-8B400
Base-Controller
1998-08-01 ~ 1999-04-01; T +KC; , |
27520-8B400 |
— | ||
|
27570M
|
27570M
27570-7Z100
Finisher Assy-Controller
1999-09-01 ~ 2000-07-01; T +KC +CC; , |
27570-7Z100 |
— | ||
|
27570M
|
27570M
27570-7Z110
Finisher Assy-Controller
2001-11-01 ~ 2002-09-01; *KC.KA24DE +*KC.VG33E.XE; , |
27570-7Z110 |
— | ||
|
27570M
|
27570M
27570-7Z400
Finisher Assy-Controller
2001-07-01 ~ 2001-11-01; *KC.KA24DE +*KC.VG33E.XE; , |
27570-7Z400 |
— | ||
|
27570M
|
27570M
27570-8B400
Finisher Assy-Controller
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE; , |
27570-8B400 |
— | ||
|
27570M
|
27570M
27575-7Z110
Finisher Assy-Controller
2001-11-01 ~ 2002-09-01; KC.KA24DE +KC.VG33E.XE; , |
27575-7Z110 |
— | ||
|
27570M
|
27570M
27575-7Z400
Finisher Assy-Controller
2001-07-01 ~ 2001-11-01; KC.KA24DE +KC.VG33E.XE; , |
27575-7Z400 |
— | ||
|
27654V
|
27654V
27525-8B400
Lever-Intake
1999-04-01 ~ 1999-09-01; *T +*KC.4WD.VG33E +*KC.KA24DE; , |
27525-8B400 |
— |
