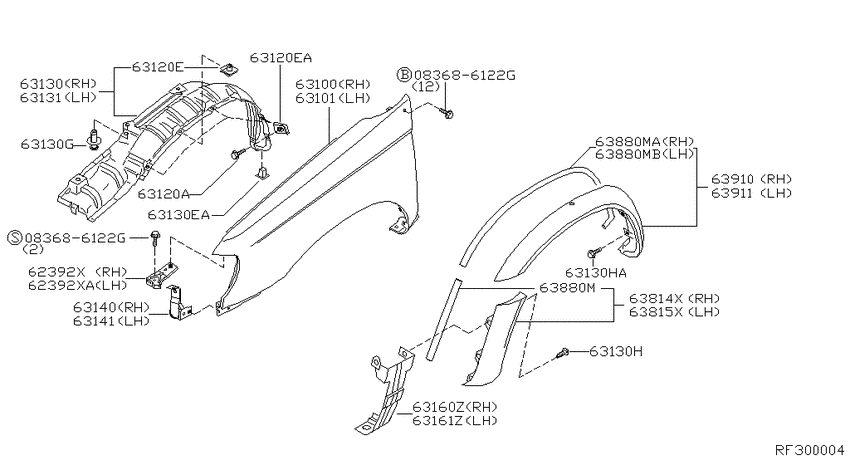

Front fender & fitting (1997-09-01 ~ 1999-04-01; 2WD; T.2WD +KC.2WD) Diagram Nissan FRONTIER
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- drive
- 2WD
- transmission
- MT
- body
- KC
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083686122G
|
083686122G
083686122G
SCRHEX HDPP W
|
083686122G |
— | ||
|
083686122G
|
083686122G
083686122G
SCRHEX HDPP W
|
083686122G |
— | ||
|
62392X
|
62392X
62394-3S530
Bracket-radiator grille
1999-04-01 ~ 2000-07-01; T +KC +CC; , |
62394-3S530 |
— | ||
|
62392X
|
62392X
62395-3S530
Bracket-radiator grille
1999-04-01 ~ 1999-09-01; T +KC +CC; , |
62395-3S530 |
— | ||
|
62392XA
|
62392XA
62395-3S530
Bracket-radiator grille
1999-04-01 ~ 1999-09-01; T +KC +CC; , |
62395-3S530 |
— | ||
|
63100
|
63100
63112-3S530
Fender-front,rh
1999-04-01 ~ 2000-07-01; T.2WD +KC.2WD.KA24DE; , |
63112-3S530 |
— | ||
|
63100
|
63100
63112-9Z430
Fender-front,rh
2002-09-01 ~ ; KC.KA24DE; , |
63112-9Z430 |
— | ||
|
63101
|
63101
63113-3S530
Fender-front,lh
1999-04-01 ~ 2000-07-01; T.2WD +KC.2WD.KA24DE; , |
63113-3S530 |
— | ||
|
63101
|
63101
63113-9Z430
Fender-front,lh
2002-09-01 ~ ; KC.KA24DE; , |
63113-9Z430 |
— | ||
|
63120A
|
63120A
0145100891 SCREW2002-09-01 ~ ; KC.KA24DE; , |
0145100891 |
from US $0.96 |
||
|
63120A
|
63120A
01466-0002U Screw2001-07-01 ~ 2002-09-01; KC +CC.SB +CC.XB; , |
01466-0002U |
US $0.59 |
||
|
63120A
|
63120A
0146600051 SCREW1998-08-01 ~ 1999-04-01; T +KC; , |
0146600051 |
US $0.82 |
||
|
63120E
|
63120E
63848D4001 Clip2002-09-01 ~ ; KC +CC.SB +CC.XB; , |
63848D4001 |
from US $0.63 |
||
|
63120E
|
63120E
768820M000 Clip2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
768820M000 |
from US $3.03 |
||
|
63120E
|
63120E
76882-D4002 Nut-Spring1999-04-01 ~ 2000-07-01; T +KC +CC; , |
76882-D4002 |
US $1.93 |
||
|
63120EA
|
63120EA
768820M000 Clip2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
768820M000 |
from US $3.03 |
||
|
63120EA
|
63120EA
76882-D4002 Nut-Spring1999-04-01 ~ 2000-07-01; T +KC +CC; , |
76882-D4002 |
US $1.93 |
||
|
63130
|
63130
63842-3S500
Protector-front fender,rh
1999-04-01 ~ 2000-07-01; T +KC +CC; , |
63842-3S500 |
— | ||
|
63130
|
63130
63842-9Z400
Protector-front fender,rh
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
63842-9Z400 |
— | ||
|
63130
|
63130
01281-0002U
Grommet-Screw
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
01281-0002U |
— | ||
|
63130
|
63130
0128100441
GROMMET-SCREW
2000-11-01 ~ 2001-07-01; T +KC +CC; , |
0128100441 |
— | ||
| replacement | |||||
|
63130
|
63130
0128100801 GROMMET-SCREW2000-11-01 ~ 2001-07-01; T +KC +CC; , |
0128100801 |
from US $0.93 |
||
|
63130
|
63130
01281-0002U
Grommet-Screw
1999-12-01 ~ 2000-07-01; T +KC +CC; , |
01281-0002U |
— | ||
|
63130
|
63130
0128100831 GROMMET-SCREW2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
0128100831 |
from US $0.87 |
||
|
63130
|
63130
0155309321 CLIP2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
0155309321 |
US $0.97 |
||
|
63130
|
63130
0145100891 SCREW2001-07-01 ~ ; KC.KA24DE; , |
0145100891 |
from US $0.96 |
||
|
63130
|
63130
0145100891 SCREW2001-07-01 ~ ; *KC.KA24DE; , |
0145100891 |
from US $0.96 |
||
|
63130
|
63130
0145100891 SCREW1997-09-01 ~ 1998-08-01; 8*T.(FED.2WD+CAL.2WD).XE.MT +*T.AT +*KC.(FED.2WD+CAL.2WD); F/OVER FDR |
0145100891 |
from US $0.96 |
||
|
63130
|
63130
0145100841 SCREW1998-08-01 ~ 1999-04-01; 8*T.(FED.2WD+CAL.2WD).XE.MT +*T.AT +*KC.(FED.2WD+CAL.2WD); F/OVER FDR |
0145100841 |
from US $0.93 |
||
|
63130EA
|
63130EA
01281-0002U
Grommet-Screw
1999-12-01 ~ 2000-07-01; T +KC +CC; , |
01281-0002U |
— | ||
|
63130EA
|
63130EA
0128100831 GROMMET-SCREW2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
0128100831 |
from US $0.87 |
||
|
63130G
|
63130G
0155309321 CLIP2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
0155309321 |
US $0.97 |
||
|
63130H
|
63130H
0145100891 SCREW2001-07-01 ~ ; KC.KA24DE; , |
0145100891 |
from US $0.96 |
||
|
63130H
|
63130H
0145100891 SCREW2001-07-01 ~ ; *KC.KA24DE; , |
0145100891 |
from US $0.96 |
||
|
63130H
|
63130H
0145100891 SCREW1997-09-01 ~ 1998-08-01; 8*T.(FED.2WD+CAL.2WD).XE.MT +*T.AT +*KC.(FED.2WD+CAL.2WD); F/OVER FDR |
0145100891 |
from US $0.96 |
||
|
63130H
|
63130H
0145100841 SCREW1998-08-01 ~ 1999-04-01; 8*T.(FED.2WD+CAL.2WD).XE.MT +*T.AT +*KC.(FED.2WD+CAL.2WD); F/OVER FDR |
0145100841 |
from US $0.93 |
||
|
63130HA
|
63130HA
0145100891 SCREW2001-07-01 ~ ; *KC.KA24DE; , |
0145100891 |
from US $0.96 |
||
|
63131
|
63131
63843-3S500
Protector-front fender,lh
1999-04-01 ~ 2000-07-01; T +KC.KA24DE; , |
63843-3S500 |
— | ||
|
63131
|
63131
63843-9Z400
Protector-front fender,lh
2001-07-01 ~ ; KC.KA24DE; , |
63843-9Z400 |
— | ||
|
63131
|
63131
01241-0006U
Nut-Spring
2002-09-01 ~ ; KC.KA24DE; , |
01241-0006U |
— | ||
|
63131
|
63131
0124100113 NUT-J1997-09-01 ~ 1998-08-01; 8*T.(FED.2WD+CAL.2WD).XE.MT +*T.AT +*KC.(FED.2WD+CAL.2WD); F/OVER FDR |
0124100113 |
from US $0.81 |
||
|
63131
|
63131
01241-00771
GROMMET-SCREW
2001-07-01 ~ 2002-02-01; KC.KA24DE; , |
01241-00771 |
— | ||
| replacement | |||||
|
63131
|
63131
0124100941 NUT-SPRING2001-07-01 ~ 2002-02-01; KC.KA24DE; , |
0124100941 |
from US $1.15 |
||
|
63131
|
63131
0124100113 NUT-J2000-07-01 ~ 2001-07-01; T +KC +CC; , |
0124100113 |
from US $0.81 |
||
|
63140
|
63140
63140-3S535
Bracket-front fender,rh
1998-08-01 ~ 1999-04-01; T +KC; , |
63140-3S535 |
— | ||
|
63140
|
63140
63140-7B430
Bracket-front fender,rh
1999-04-01 ~ 2000-07-01; T +KC +CC; , |
63140-7B430 |
— | ||
|
63140
|
63140
63140-9Z430
Bracket-front fender,rh
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
63140-9Z430 |
— | ||
|
63141
|
63141
63141-3S535
Bracket-front fender,lh
1998-08-01 ~ 1999-04-01; T +KC; , |
63141-3S535 |
— | ||
|
63141
|
63141
63141-7B430
Bracket-front fender,lh
1999-04-01 ~ 2000-07-01; T +KC +CC; , |
63141-7B430 |
— | ||
|
63141
|
63141
63141-9Z430
Bracket-front fender,lh
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
63141-9Z430 |
— | ||
|
63160Z
|
63160Z
62244-8B400
Retainer-front fender,rh
1997-09-01 ~ 1998-08-01; 8*T.(FED.2WD+CAL.2WD).XE.MT +*T.AT +*KC.(FED.2WD+CAL.2WD); F/OVER FDR |
62244-8B400 |
— | ||
|
63161Z
|
63161Z
62245-8B400
Retainer-front fender,lh
1998-08-01 ~ 1999-04-01; 1*T.(FED.2WD+CAL.2WD).XE +*KC.(FED.2WD+CAL.2WD).XE; F/OVER FDR |
62245-8B400 |
— | ||
|
63814X
|
63814X
63814-8B400
Over fender assy-front bumper side,rh
1998-08-01 ~ 1999-04-01; 1*T.(FED.2WD+CAL.2WD).XE +*KC.(FED.2WD+CAL.2WD).XE; F/OVER FDR |
63814-8B400 |
— | ||
|
63815X
|
63815X
63815-8B400
Over fender assy-front bumper side,lh
1998-08-01 ~ 1999-04-01; 1*T.(FED.2WD+CAL.2WD).XE +*KC.(FED.2WD+CAL.2WD).XE; F/OVER FDR |
63815-8B400 |
— | ||
|
63880M
|
63880M
63818-8B400
Rubber assy-over fender,front
1997-09-01 ~ 1998-08-01; 8*T.(FED.2WD+CAL.2WD).XE.MT +*T.AT +*KC.(FED.2WD+CAL.2WD); F/OVER FDR |
63818-8B400 |
— | ||
|
63880M
|
63880M
63880-8B400
Rubber assy-over fender,front
1998-08-01 ~ 1999-04-01; 1*T.(FED.2WD+CAL.2WD).XE +*KC.(FED.2WD+CAL.2WD).XE; F/OVER FDR |
63880-8B400 |
— | ||
|
63880M
|
63880M
63881-8B400
Rubber assy-over fender,front
1998-08-01 ~ 1999-04-01; 1*T.(FED.2WD+CAL.2WD).XE +*KC.(FED.2WD+CAL.2WD).XE; F/OVER FDR |
63881-8B400 |
— | ||
|
63880MA
|
63880MA
63880-8B400
Rubber assy-over fender,front
1998-08-01 ~ 1999-04-01; 1*T.(FED.2WD+CAL.2WD).XE +*KC.(FED.2WD+CAL.2WD).XE; F/OVER FDR |
63880-8B400 |
— | ||
|
63880MB
|
63880MB
63881-8B400
Rubber assy-over fender,front
1998-08-01 ~ 1999-04-01; 1*T.(FED.2WD+CAL.2WD).XE +*KC.(FED.2WD+CAL.2WD).XE; F/OVER FDR |
63881-8B400 |
— | ||
|
63910
|
63910
63810-8B400
Fender-over,front rh
1998-08-01 ~ 1999-04-01; 1*T.(FED.2WD+CAL.2WD).XE +*KC.(FED.2WD+CAL.2WD).XE; F/OVER FDR |
63810-8B400 |
— | ||
|
63910
|
63910
63812-9Z440
Fender-over,front rh
2001-07-01 ~ 2001-12-01; KC.KA24DE; , |
63812-9Z440 |
— | ||
|
63910
|
63910
63812-9Z441
Fender-over,front rh
2001-12-01 ~ ; KC.KA24DE; , |
63812-9Z441 |
— | ||
|
63911
|
63911
63811-8B400
Fender-over,front lh
1998-08-01 ~ 1999-04-01; 1*T.(FED.2WD+CAL.2WD).XE +*KC.(FED.2WD+CAL.2WD).XE; F/OVER FDR |
63811-8B400 |
— | ||
|
63911
|
63911
63813-9Z440
Fender-over,front lh
2001-07-01 ~ 2001-12-01; KC.KA24DE; , |
63813-9Z440 |
— | ||
|
63911
|
63911
63813-9Z441
Fender-over,front lh
2001-12-01 ~ ; KC.KA24DE; , |
63813-9Z441 |
— | ||
