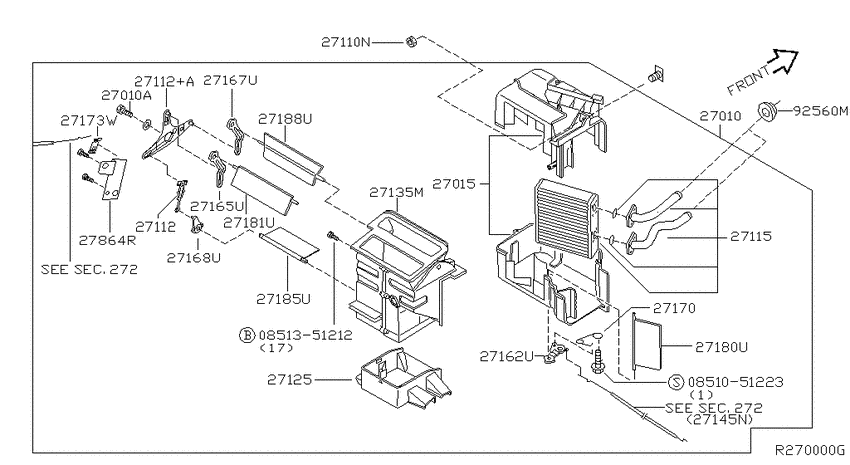

Heater & blower unit (2000-07-01 ~ 2001-07-01; HEATER-FR; T +KC +CC) Diagram Nissan FRONTIER
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- drive
- 2WD
- transmission
- MT
- body
- KC
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0851051223
|
0851051223
08510-51223
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-51223 |
— | ||
|
0851351212
|
0851351212
08513-51212
SCREW
|
08513-51212 |
— | ||
|
27010
|
27010
27110-3S500
Heating Unit Assy-Front
1999-04-01 ~ 1999-09-01; T +KC +CC; , |
27110-3S500 |
— | ||
|
27010
|
27010
27110-7Z100
Heating Unit Assy-Front
1999-09-01 ~ 2000-07-01; T +KC +CC; , |
27110-7Z100 |
— | ||
|
27010
|
27010
27110-9Z302
Heating Unit Assy-Front
2001-07-01 ~ ; KC; , |
27110-9Z302 |
— | ||
|
27010
|
27010
27199-51E00 SCREW1998-08-01 ~ 1999-04-01; T +KC; , |
27199-51E00 |
US $0.86 |
||
|
27010A
|
27010A
27199-51E00 SCREW1998-08-01 ~ 1999-04-01; T +KC; , |
27199-51E00 |
US $0.86 |
||
|
27015
|
27015
27120-3S500
Case Assy-Front Heater
2001-07-01 ~ ; KC; , |
27120-3S500 |
— | ||
|
27015
|
27015
92295-0P000 Clip2001-07-01 ~ ; *KC.KA24DE +*KC.VG33E.XE; , |
92295-0P000 |
US $6.91 |
||
|
27015
|
27015
92295-0P001 Clip1999-04-01 ~ 1999-09-01; "*T +*KC.4WD.VG33E +*KC.KA24DE +*CC; , |
92295-0P001 |
US $5.18 |
||
|
27015
|
27015
21476-B0100
Clip-Cooler Case
1998-08-01 ~ 1999-04-01; *T +*KC.XE; F/AIR CON-STD TYPE |
21476-B0100 |
— | ||
| replacement | |||||
|
27015
|
27015
21476-C5500 Clip1998-08-01 ~ 1999-04-01; *T +*KC.XE; F/AIR CON-STD TYPE |
21476-C5500 |
from US $3 |
||
|
27015
|
27015
92520-9Z000
Clip
1999-09-01 ~ 2000-07-01; *T +*KC +*CC; , |
92520-9Z000 |
— | ||
|
27110N
|
27110N
0122500561 NUT1999-09-01 ~ 2000-07-01; T +KC +CC; , |
0122500561 |
from US $0.54 |
||
|
27112
|
27112
27159-1M200
Link Assy-Side
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27159-1M200 |
— | ||
|
27112
|
27112
27155-8B400
Link Assy-Side
1999-09-01 ~ 2000-07-01; T +KC +CC; , |
27155-8B400 |
— | ||
|
27112
|
27112
27155-8B700
Link Assy-Side
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27155-8B700 |
— | ||
|
27112+A
|
27112+A
27155-8B400
Link Assy-Side
1999-09-01 ~ 2000-07-01; T +KC +CC; , |
27155-8B400 |
— | ||
|
27112+A
|
27112+A
27155-8B700
Link Assy-Side
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27155-8B700 |
— | ||
|
27115
|
27115
27140-3S500
Core Assy-Front Heater
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE +CC; , |
27140-3S500 |
— | ||
|
27115
|
27115
27140-9Z302
Core Assy-Front Heater
2001-07-01 ~ ; KC; , |
27140-9Z302 |
— | ||
|
27115
|
27115
27148-1E400
Support-Heater Core
1998-08-01 ~ 1999-04-01; T +KC; , |
27148-1E400 |
— | ||
|
27125
|
27125
27125-3S500
Duct-Foot
2001-07-01 ~ ; KC; , |
27125-3S500 |
— | ||
|
27125
|
27125
27125-7Z000
Duct-Foot
1999-09-01 ~ 2000-07-01; T +KC +CC; , |
27125-7Z000 |
— | ||
|
27135M
|
27135M
27135-7Z100
Duct Assy-Ventilator
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27135-7Z100 |
— | ||
|
27135M
|
27135M
27135-8B400
Duct Assy-Ventilator
1999-04-01 ~ 1999-09-01; T +KC.4WD.VG33E +KC.KA24DE +CC; , |
27135-8B400 |
— | ||
|
27162U
|
27162U
27162-1M200
Lever-Air Mix Door
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27162-1M200 |
— | ||
|
27165U
|
27165U
27165-1M201
Lever-Ventilator
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27165-1M201 |
— | ||
|
27167U
|
27167U
27167-1M201
Lever-Defroster
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27167-1M201 |
— | ||
|
27168U
|
27168U
27168-8B400
Lever-Foot
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27168-8B400 |
— | ||
|
27170
|
27170
27170-8B400
Spring-Mix
1998-08-01 ~ 1999-04-01; T +KC; , |
27170-8B400 |
— | ||
|
27173W
|
27173W
27137-8B400
Clip-Control
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27137-8B400 |
— | ||
|
27180U
|
27180U
27180-1M200
Door-Front Heater
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27180-1M200 |
— | ||
|
27181U
|
27181U
27181-1M200
Door Assy-Ventilation
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27181-1M200 |
— | ||
|
27185U
|
27185U
27185-1M201
Door Assy-Foot
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27185-1M201 |
— | ||
|
27185U
|
27185U
27185-4B000
Door Assy-Foot
1999-04-01 ~ 2000-07-01; T +KC +CC; , |
27185-4B000 |
— | ||
|
27188U
|
27188U
27188-1M200
Door Assy-Defroster
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
27188-1M200 |
— | ||
|
27864R
|
27864R
27175-8B400
Bracket
2002-09-01 ~ ; KC +CC.SB +CC.XB; , |
27175-8B400 |
— | ||
|
92560M
|
92560M
92580-01E00 GROMMET-RUBBER2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
92580-01E00 |
US $6.05 |
||
