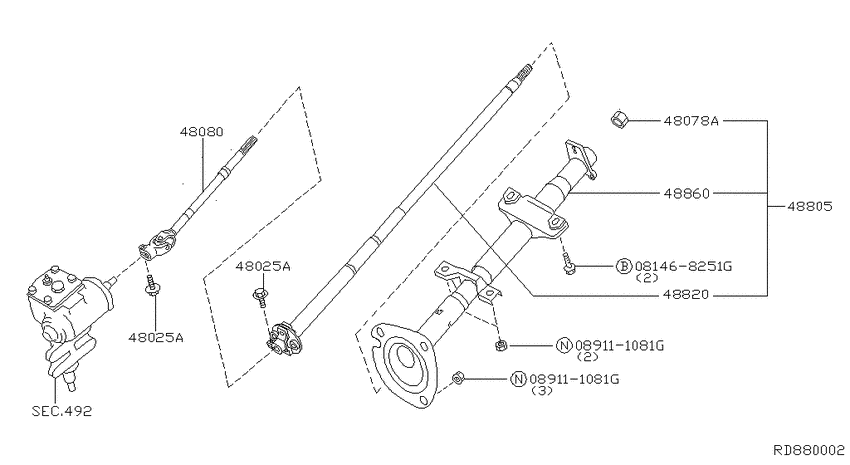

Steering column (2000-07-01 ~ 2001-07-01; KA24DE.MT) Diagram Nissan FRONTIER
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- drive
- 2WD
- transmission
- MT
- body
- KC
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081468251G
|
081468251G
081468251G
BOLT
|
081468251G |
— | ||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
48025A
|
48025A
48935-4P000 Bolt2001-07-01 ~ ; KA24DE +VG33E; , |
48935-4P000 |
US $2.45 |
||
|
48025A
|
48025A
48935-4P000 Bolt2001-07-01 ~ ; KA24DE +VG33E; , |
48935-4P000 |
US $2.45 |
||
|
48078A
|
48078A
48938-70T10 Nut2001-07-01 ~ ; KA24DE +VG33E; , |
48938-70T10 |
US $1.73 |
||
|
48080
|
48080
48080-3S105
Joint Assy-Steering Column, Lower
1998-08-01 ~ 1999-04-01; ,(FED.2WD+CAL.2WD).KA24DE.XE.MT +KA24DE.SE.MT; , |
48080-3S105 |
— | ||
| replacement | |||||
|
48080
|
48080
48080-VK91A
Joint Assy-Steering Column, Lower
1998-08-01 ~ 1999-04-01; ,(FED.2WD+CAL.2WD).KA24DE.XE.MT +KA24DE.SE.MT; , |
48080-VK91A |
— | ||
|
48080
|
48080
48080-8Z001
Joint assy-steering,lower
2001-07-01 ~ ; KA24DE; , |
48080-8Z001 |
— | ||
|
48080
|
48080
48080-9Z001
Joint assy-steering,lower
2000-07-01 ~ 2001-07-01; KA24DE.MT; , |
48080-9Z001 |
— | ||
|
48805
|
48805
48805-1Z600
Column assy-steering
2002-09-01 ~ ; KA24DE.MT +VG33E; , |
48805-1Z600 |
— | ||
|
48805
|
48805
48805-1Z605
Column assy-steering
2002-09-01 ~ ; *KA24DE.MT +*VG33E; , |
48805-1Z605 |
— | ||
|
48805
|
48805
48805-3S500
Column assy-steering
1997-09-01 ~ 1998-08-01; KA24DE.(STD+XE.MT); , |
48805-3S500 |
— | ||
|
48805
|
48805
48805-3S502
Column assy-steering
1999-04-01 ~ 1999-09-01; 0T.2WD.KA24DE.MT +KC.2WD.KA24DE.XE.MT +4WD.KA24DE; , |
48805-3S502 |
— | ||
|
48805
|
48805
48805-3S505
Column assy-steering
1997-09-01 ~ 1998-08-01; *KA24DE.XE.MT; F/TILT STRG |
48805-3S505 |
— | ||
|
48805
|
48805
48805-3S507
Column assy-steering
1999-04-01 ~ 1999-09-01; 3*T.2WD.KA24DE.MT +*KC.2WD.KA24DE.XE.MT +*4WD.KA24DE; , |
48805-3S507 |
— | ||
|
48805
|
48805
48805-9Z300
Column assy-steering
2001-07-01 ~ 2002-09-01; KA24DE.MT +VG33E; , |
48805-9Z300 |
— | ||
|
48805
|
48805
48805-9Z305
Column assy-steering
2000-07-01 ~ 2001-07-01; *KC.KA24DE.MT; , |
48805-9Z305 |
— | ||
|
48805
|
48805
48805-9Z350
Column assy-steering
1999-09-01 ~ 2000-07-01; 0T.2WD.KA24DE.MT +KC.2WD.KA24DE.XE.MT +4WD.KA24DE; , |
48805-9Z350 |
— | ||
|
48805
|
48805
48805-9Z355
Column Assy-Steering
1999-09-01 ~ 2000-07-01; 3*T.2WD.KA24DE.MT +*KC.2WD.KA24DE.XE.MT +*4WD.KA24DE; , |
48805-9Z355 |
— | ||
|
48820
|
48820
48820-3S500
Shaft Assy-Steering Column, Upper
2001-07-01 ~ ; KA24DE +VG33E; , |
48820-3S500 |
— | ||
|
48860
|
48860
48860-3S500
Tube assy-jacket,upper
1997-09-01 ~ 1998-08-01; KA24DE.(STD+XE.MT); , |
48860-3S500 |
— | ||
|
48860
|
48860
48860-3S502
Tube assy-jacket,upper
1999-04-01 ~ 1999-09-01; 0T.2WD.KA24DE.MT +KC.2WD.KA24DE.XE.MT +4WD.KA24DE; , |
48860-3S502 |
— | ||
|
48860
|
48860
48860-3S505
Tube assy-jacket,upper
1997-09-01 ~ 1998-08-01; *KA24DE.XE.MT; F/TILT STRG |
48860-3S505 |
— | ||
|
48860
|
48860
48860-3S507
Tube assy-jacket,upper
1998-08-01 ~ 1999-04-01; *KA24DE.XE.MT; F/TILT STRG |
48860-3S507 |
— | ||
|
48860
|
48860
48860-9Z300
Tube assy-jacket,upper
2001-07-01 ~ ; KA24DE.MT +VG33E; , |
48860-9Z300 |
— | ||
|
48860
|
48860
48860-9Z305
Tube Assy-Jacket, Upper
2000-07-01 ~ 2001-07-01; *KC.KA24DE.MT; , |
48860-9Z305 |
— | ||
