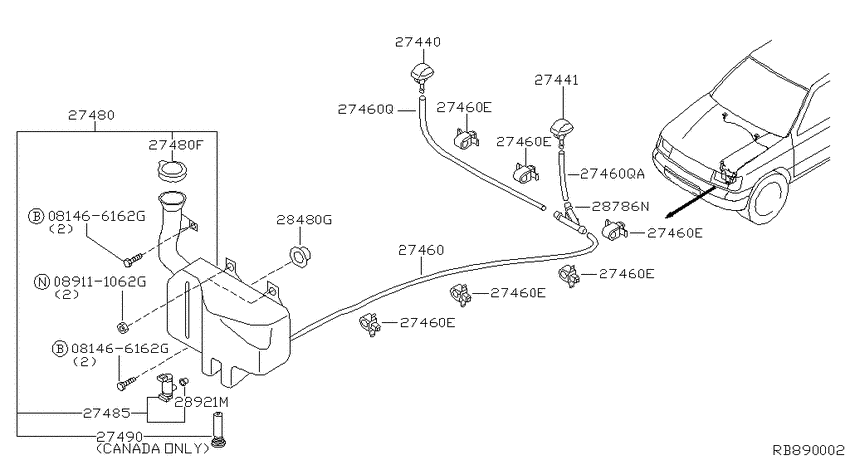

Windshield washer (1998-08-01 ~ 1999-04-01; T +KC) Diagram Nissan FRONTIER
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- drive
- 2WD
- transmission
- MT
- body
- KC
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.19 |
||
|
27440
|
27440
28930-3S500
Nozzle Assy-Washer, Rh
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
28930-3S500 |
— | ||
|
27441
|
27441
28931-3S500
Nozzle Assy-Washer, Lh
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
28931-3S500 |
— | ||
|
27460
|
27460
28940-3S520
Tube-Washer, Windshield
2000-07-01 ~ 2001-07-01; T +KC +CC; L=1950S/#B7461-89910 |
28940-3S520 |
— | ||
|
27460
|
27460
28940-9Z420
Tube-Washer, Windshield
2001-07-01 ~ ; KC +CC.SB +CC.XB; L=1950S/#B7461-89910 |
28940-9Z420 |
— | ||
|
27460
|
27460
B746189910 Hose-Washer1997-09-01 ~ 1998-08-01; T +KC; L=10M F/CUT USE |
B746189910 |
US $25.37 |
||
|
27460
|
27460
28945-8B400
Clip
2001-07-01 ~ 2002-09-01; KC +CC.SB +CC.XB; , |
28945-8B400 |
— | ||
|
27460
|
27460
28940-3S500
Tube-Washer, Windshield
2001-07-01 ~ ; KC +CC.SB +CC.XB; L=420 S/#B7461-89910 |
28940-3S500 |
— | ||
|
27460
|
27460
B746189910 Hose-Washer1997-09-01 ~ 1998-08-01; T +KC; L=10M CUT USE |
B746189910 |
US $25.37 |
||
|
27460
|
27460
28940-3S510
Tube-Washer, Windshield
2001-07-01 ~ ; KC +CC.SB +CC.XB; L=120 S/#B7461-89910 |
28940-3S510 |
— | ||
|
27460
|
27460
B746189910 Hose-Washer1997-09-01 ~ 1998-08-01; T +KC; L=10M CUT USE |
B746189910 |
US $25.37 |
||
|
27460E
|
27460E
28945-8B400
Clip
2001-07-01 ~ 2002-09-01; KC +CC.SB +CC.XB; , |
28945-8B400 |
— | ||
|
27460E
|
27460E
28945-8B400
Clip
2001-07-01 ~ 2002-09-01; KC +CC.SB +CC.XB; , |
28945-8B400 |
— | ||
|
27460E
|
27460E
28945-8B400
Clip
2001-07-01 ~ 2002-09-01; KC +CC.SB +CC.XB; , |
28945-8B400 |
— | ||
|
27460E
|
27460E
28945-8B400
Clip
2001-07-01 ~ 2002-09-01; KC +CC.SB +CC.XB; , |
28945-8B400 |
— | ||
|
27460E
|
27460E
28945-8B400
Clip
2001-07-01 ~ 2002-09-01; KC +CC.SB +CC.XB; , |
28945-8B400 |
— | ||
|
27460E
|
27460E
28945-8B400
Clip
2001-07-01 ~ 2002-09-01; KC +CC.SB +CC.XB; , |
28945-8B400 |
— | ||
|
27460Q
|
27460Q
28940-3S500
Tube-Washer, Windshield
2001-07-01 ~ ; KC +CC.SB +CC.XB; L=420 S/#B7461-89910 |
28940-3S500 |
— | ||
|
27460Q
|
27460Q
B746189910 Hose-Washer1997-09-01 ~ 1998-08-01; T +KC; L=10M CUT USE |
B746189910 |
US $25.37 |
||
|
27460Q
|
27460Q
28940-3S510
Tube-Washer, Windshield
2001-07-01 ~ ; KC +CC.SB +CC.XB; L=120 S/#B7461-89910 |
28940-3S510 |
— | ||
|
27460Q
|
27460Q
B746189910 Hose-Washer1997-09-01 ~ 1998-08-01; T +KC; L=10M CUT USE |
B746189910 |
US $25.37 |
||
|
27460QA
|
27460QA
28940-3S510
Tube-Washer, Windshield
2001-07-01 ~ ; KC +CC.SB +CC.XB; L=120 S/#B7461-89910 |
28940-3S510 |
— | ||
|
27460QA
|
27460QA
B746189910 Hose-Washer1997-09-01 ~ 1998-08-01; T +KC; L=10M CUT USE |
B746189910 |
US $25.37 |
||
|
27480
|
27480
28910-3S500
Tank Assy-Windshield Washer
1997-09-01 ~ 1998-08-01; T +KC; , |
28910-3S500 |
— | ||
|
27480
|
27480
28910-7B400
Tank Assy-Windshield Washer
1999-04-01 ~ 2000-07-01; T +KC +CC; , |
28910-7B400 |
— | ||
|
27480
|
27480
28910-9Z400
Tank Assy-Windshield Washer
2001-07-01 ~ ; KC.KA24DE; , |
28910-9Z400 |
— | ||
|
27480
|
27480
28913-8B700 Cap-Windshield Washer Tank2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
28913-8B700 |
US $4.38 |
||
|
27480F
|
27480F
28913-8B700 Cap-Windshield Washer Tank2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
28913-8B700 |
US $4.38 |
||
|
27485
|
27485
289201E400 Pump Assy-Washer2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
289201E400 |
US $27.86 |
||
|
27490
|
27490
28911-V5000 Sensor Assy-Water1999-04-01 ~ 2000-07-01; T +KC +CC; , |
28911-V5000 |
US $41.33 |
||
|
28480G
|
28480G
24276-8B400
Protector
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
24276-8B400 |
— | ||
|
28786N
|
28786N
28937-9E000
CONNECTOR-WASHER TUBE
2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
28937-9E000 |
— | ||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor2001-07-01 ~ ; KC +CC.SB +CC.XB; , |
2892150Y00 |
US $4.30 |
