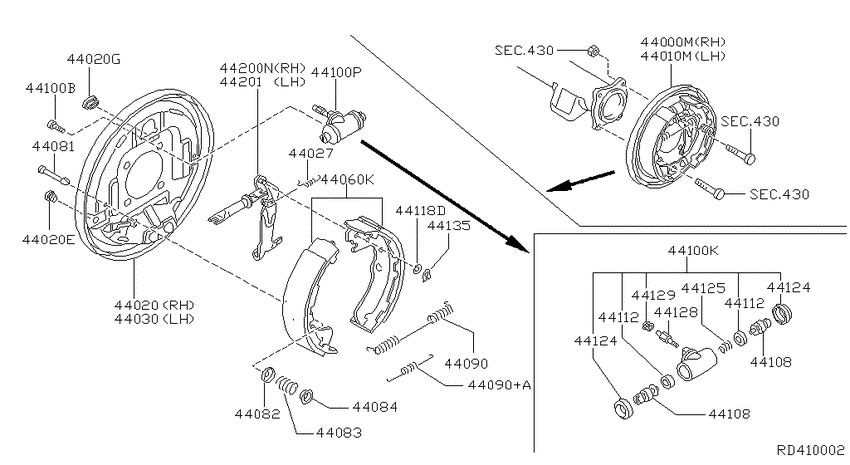

Rear brake (1999-09-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT) Diagram Nissan FRONTIER
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Engine
- KA24DE
- drive
- 2WD
- transmission
- AT
- body
- KC
- trim lvl
- SE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44000M
|
44000M
44000-3S600
Brake assy-drum,rear rh
1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44000-3S600 |
— | ||
|
44000M
|
44000M
44000-7B400
Brake assy-drum,rear rh
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44000-7B400 |
— | ||
|
44010M
|
44010M
44010-3S600
Brake assy-drum,rear lh
1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44010-3S600 |
— | ||
|
44010M
|
44010M
44010-7B400
Brake assy-drum,rear lh
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44010-7B400 |
— | ||
|
44020
|
44020
44020-2S400 Plate Assy-Back, Rear Brake Rh1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44020-2S400 |
US $126.62 |
||
|
44020
|
44020
44020-7B400
Plate assy-back,rear brake rh
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44020-7B400 |
— | ||
|
44020
|
44020
4109808G10 Plug1999-09-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
4109808G10 |
from US $1.83 |
||
|
44020
|
44020
4409801A00 Plug1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
4409801A00 |
from US $4.59 |
||
|
44020
|
44020
44098-7B400
Plug
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44098-7B400 |
— | ||
|
44020E
|
44020E
4109808G10 Plug1999-09-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
4109808G10 |
from US $1.83 |
||
|
44020G
|
44020G
4409801A00 Plug1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
4409801A00 |
from US $4.59 |
||
|
44020G
|
44020G
44098-7B400
Plug
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44098-7B400 |
— | ||
|
44027
|
44027
44214-08G10 Spring-Adjusting, Rear Brake1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44214-08G10 |
from US $1.67 |
||
|
44027
|
44027
44214-7B400
Spring-adjusting,rear brake
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44214-7B400 |
— | ||
|
44030
|
44030
44030-2S400 Plate Assy-Back, Rear Brake Lh1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44030-2S400 |
US $126.62 |
||
|
44030
|
44030
44030-7B400
Plate assy-back,rear brake lh
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44030-7B400 |
— | ||
|
44060K
|
44060K
44060-2S425 Shoe Set-Rear Brake1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44060-2S425 |
US $116.35 |
||
| replacement | |||||
|
44060K
|
44060K
D4060-2S425 Shoe Set-Rear Brake1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
D4060-2S425 |
US $80.29 |
||
|
44060K
|
44060K
44060-7B425
Shoe set-rear brake
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44060-7B425 |
— | ||
|
44081
|
44081
41081-7B400
Pin-anti shoe rattle
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
41081-7B400 |
— | ||
|
44081
|
44081
41081-T3260
Pin-Anti Shoe Rattle
1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
41081-T3260 |
— | ||
| replacement | |||||
|
44081
|
44081
41081T326A Pin-Anti Shoe Rattle1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
41081T326A |
from US $0.96 |
||
|
44082
|
44082
44082-7B400
Seat-spring
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44082-7B400 |
— | ||
|
44082
|
44082
44082-U9200
Seat-Spring
1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44082-U9200 |
— | ||
| replacement | |||||
|
44082
|
44082
44082U920A Seat-Spring1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44082U920A |
from US $2.64 |
||
|
44083
|
44083
44083-7B400
Spring-anti shoe rattle
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44083-7B400 |
— | ||
|
44083
|
44083
44083U9200 Spring-Anti Shoe Rattle1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44083U9200 |
from US $1.07 |
||
|
44084
|
44084
44084-2B000
Retainer-Spring, Anti Shoe Rattle
1999-09-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44084-2B000 |
— | ||
|
44084
|
44084
44084-U9200
Retainer-Spring, Anti Shoe Rattle
1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44084-U9200 |
— | ||
| replacement | |||||
|
44084
|
44084
44084U920A Retainer-Spring, Anti Shoe Rattle1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44084U920A |
from US $1.67 |
||
|
44090
|
44090
44090-7B400
Spring-return,rear brake shoe
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44090-7B400 |
— | ||
|
44090
|
44090
44090V0200 Spring-Return, Rear Brake Shoe1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44090V0200 |
from US $4.66 |
||
|
44090
|
44090
4409108G10 Spring-Return, Rear Brake Shoe1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
4409108G10 |
from US $1.67 |
||
|
44090
|
44090
44091-7B400
Spring-return,rear brake shoe
1999-09-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44091-7B400 |
— | ||
|
44090+A
|
44090+A
4409108G10 Spring-Return, Rear Brake Shoe1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
4409108G10 |
from US $1.67 |
||
|
44090+A
|
44090+A
44091-7B400
Spring-return,rear brake shoe
1999-09-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44091-7B400 |
— | ||
|
44100B
|
44100B
0143600052 BOLT1999-04-01 ~ 1999-09-01; KA24DE; , |
0143600052 |
US $2.91 |
||
|
44100K
|
44100K
D4100-08G90 Cup Kit-Brake Wheel Cylinder, Rear1997-09-01 ~ 1999-04-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
D4100-08G90 |
US $19.87 |
||
|
44100K
|
44100K
D4100-37G92
Cup Kit-Brake Wheel Cylinder, Rear
1999-09-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
D4100-37G92 |
— | ||
|
44100P
|
44100P
44100-8B400
Cylinder assy-rear wheel
1997-09-01 ~ 1999-04-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44100-8B400 |
— | ||
|
44100P
|
44100P
44100-8Z400
Cylinder assy-rear wheel
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44100-8Z400 |
— | ||
|
44108
|
44108
44108-51S01 Piston-Cylinder1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44108-51S01 |
US $19.01 |
||
|
44108
|
44108
44108-51S01 Piston-Cylinder1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44108-51S01 |
US $19.01 |
||
|
44112
|
44112
44112-U4800
Cup-Piston
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44112-U4800 |
— | ||
|
44112
|
44112
44112-U4800
Cup-Piston
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44112-U4800 |
— | ||
|
44118D
|
44118D
44085-01A00
Washer-Lock
1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44085-01A00 |
— | ||
| replacement | |||||
|
44118D
|
44118D
4408501A0A Washer-Lock1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
4408501A0A |
from US $0.76 |
||
|
44118D
|
44118D
44085-2B000
Washer-Lock
1999-09-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44085-2B000 |
— | ||
|
44124
|
44124
44124-08G00 Cover-Dust1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44124-08G00 |
US $4.61 |
||
|
44124
|
44124
44124-08G00 Cover-Dust1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44124-08G00 |
US $4.61 |
||
|
44125
|
44125
41125-05N00 Spring1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
41125-05N00 |
US $5.04 |
||
|
44128
|
44128
44128-60R00 Screw-Bleeder1999-09-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44128-60R00 |
US $6.77 |
||
|
44129
|
44129
41129-60R00 Cap-Bleeder Screw1999-09-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
41129-60R00 |
US $1.58 |
||
|
44135
|
44135
44222-4B000
Ring-Retaining
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44222-4B000 |
— | ||
|
44135
|
44135
44222-M4900
Ring-Retaining
1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44222-M4900 |
— | ||
| replacement | |||||
|
44135
|
44135
44222M490A Ring-Retaining1997-09-01 ~ 1998-08-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
44222M490A |
from US $0.81 |
||
|
44200N
|
44200N
44200-08G11
Adjuster Assy-Rear Brake, Rh
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44200-08G11 |
— | ||
| replacement | |||||
|
44200N
|
44200N
4420008G1A Adjuster Assy-Rear Brake, Rh1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
4420008G1A |
from US $59.32 |
||
|
44201
|
44201
44201-08G11
Adjuster Assy-Rear Brake, Lh
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44201-08G11 |
— | ||
| replacement | |||||
|
44201
|
44201
44201-08G1A Adjuster Assy-Rear Brake, Lh1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
44201-08G1A |
from US $59.32 |
||
