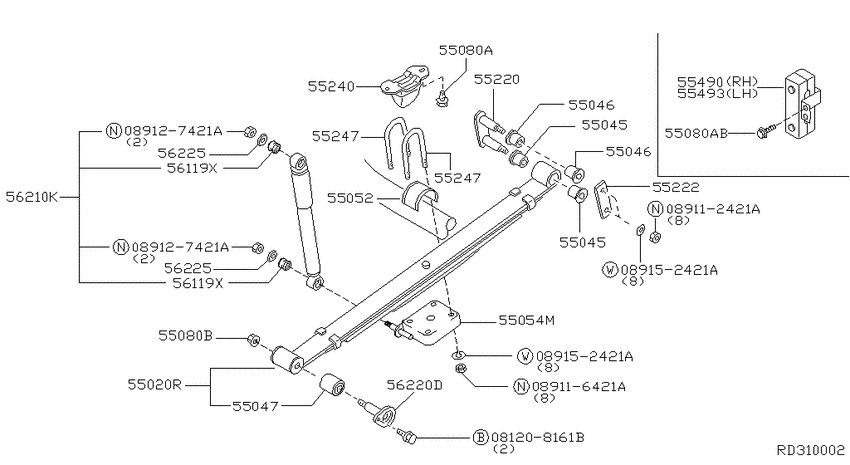

Rear suspension (1997-09-01 ~ 1998-08-01; ;T.2WD.KA24DE.XE.MT +KC.2WD.KA24DE.MT +KA24DE.STD +KA24DE.AT) Diagram Nissan FRONTIER
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Engine
- KA24DE
- drive
- 2WD
- transmission
- AT
- body
- KC
- trim lvl
- SE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208161B
|
081208161B
08120-8161B
Bolt-hexagon
|
08120-8161B |
— | ||
|
089112421A
|
089112421A
089112421A NUTHEX |
089112421A |
from US $0.57 |
||
|
089116421A
|
089116421A
089116421A Nut |
089116421A |
US $3.06 |
||
|
089127421A
|
089127421A
089127421A NUTHEX |
089127421A |
US $0.56 |
||
|
089127421A
|
089127421A
089127421A NUTHEX |
089127421A |
US $0.56 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
55020R
|
55020R
55020-3S505
Spring assy-leaf,rear
1998-05-01 ~ 1998-08-01; ,KC.(FED.2WD+CAL.2WD).KA24DE.MT +KC.KA24DE.AT; , |
55020-3S505 |
— | ||
|
55020R
|
55020R
55020-8B411
Spring assy-leaf,rear
1997-09-01 ~ 1998-05-01; ,KC.(FED.2WD+CAL.2WD).KA24DE.MT +KC.KA24DE.AT; , |
55020-8B411 |
— | ||
|
55045
|
55045
55045-8B400
Bush-rear spring
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
55045-8B400 |
— | ||
|
55045
|
55045
55045-8B400
Bush-rear spring
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
55045-8B400 |
— | ||
|
55046
|
55046
55046-8B400
Bush-rear spring
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
55046-8B400 |
— | ||
|
55046
|
55046
55046-8B400
Bush-rear spring
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
55046-8B400 |
— | ||
|
55047
|
55047
55047-01G10 Bush-Rear Spring1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
55047-01G10 |
US $25.68 |
||
|
55052
|
55052
55052-8B400
Reinforce-rear spring
1999-04-01 ~ 1999-09-01; 2WD.KA24DE.MT +KA24DE.AT; , |
55052-8B400 |
— | ||
|
55054M
|
55054M
55054-3B000
Seat assy-rear spring,lower
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
55054-3B000 |
— | ||
|
55080A
|
55080A
01121-00022 BOLT1999-04-01 ~ 1999-09-01; &KC.2WD.VG33E +2WD.KA24DE.MT +KA24DE.AT; , |
01121-00022 |
from US $3.06 |
||
|
55080B
|
55080B
0122500032 NUT-MOUNTING BOLT,LOWER1999-09-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
0122500032 |
from US $3.06 |
||
|
55220
|
55220
55220-01G10
Shackle Assy-Rear Spring
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
55220-01G10 |
— | ||
|
55222
|
55222
55221-3B305
Shackle-rear spring
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
55221-3B305 |
— | ||
|
55240
|
55240
55240-15G00 Bumper Assy-Bound Rear Suspension1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
55240-15G00 |
US $49.21 |
||
|
55247
|
55247
55247-8B000
Clip-rear spring
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
55247-8B000 |
— | ||
|
55247
|
55247
55247-8B000
Clip-rear spring
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
55247-8B000 |
— | ||
|
56119X
|
56119X
5611941W00 Bush-Rubber, Shock Absorber1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
5611941W00 |
from US $4.18 |
||
|
56119X
|
56119X
5611941W00 Bush-Rubber, Shock Absorber1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
5611941W00 |
from US $4.18 |
||
|
56210K
|
56210K
56200-3S525
Absorber kit-shock,rear
1999-04-01 ~ 2000-07-01; 2WD.KA24DE.MT +KA24DE.AT; , |
56200-3S525 |
— | ||
|
56220D
|
56220D
55210-01G00
Pin-Rear Spring, Front
1997-09-01 ~ 1999-04-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
55210-01G00 |
— | ||
| replacement | |||||
|
56220D
|
56220D
55210-VK810 Pin-Rear Spring1997-09-01 ~ 1999-04-01; &(FED.2WD+CAL.2WD).KA24DE.MT +KA24DE.AT; , |
55210-VK810 |
US $10.05 |
||
|
56225
|
56225
56225-27400 Washer-Special, Inner1999-04-01 ~ 2000-07-01; #2WD.KA24DE.MT +2WD.VG33E +KA24DE.AT; , |
56225-27400 |
US $2.45 |
||
| replacement | |||||
|
56225
|
56225
562252740A Washer-Special1999-04-01 ~ 2000-07-01; #2WD.KA24DE.MT +2WD.VG33E +KA24DE.AT; , |
562252740A |
from US $1.20 |
||
|
56225
|
56225
56225-27400 Washer-Special, Inner1999-04-01 ~ 2000-07-01; #2WD.KA24DE.MT +2WD.VG33E +KA24DE.AT; , |
56225-27400 |
US $2.45 |
||
| replacement | |||||
|
56225
|
56225
562252740A Washer-Special1999-04-01 ~ 2000-07-01; #2WD.KA24DE.MT +2WD.VG33E +KA24DE.AT; , |
562252740A |
from US $1.20 |
||
