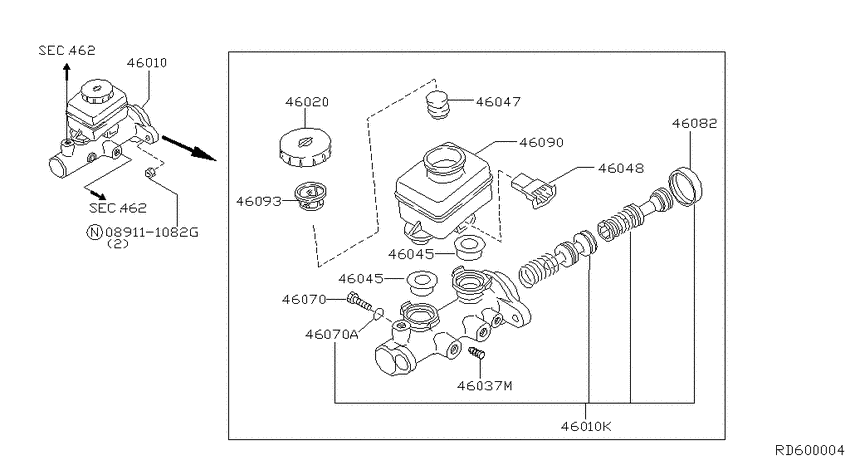

Brake master cylinder (1997-09-01 ~ 1998-08-01; 4WD.KA24DE) Diagram Nissan FRONTIER
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Engine
- KA24DE
- drive
- 4WD
- transmission
- MT
- body
- KC
- trim lvl
- XE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
46010
|
46010
46010-7B400
Cylinder assy-brake master
1998-08-01 ~ 1999-04-01; KC.(FED.4WD+CAL.4WD).KA24DE; , |
46010-7B400 |
— | ||
|
46010
|
46010
46010-8B620
Cylinder assy-brake master
1997-09-01 ~ 1998-08-01; KC.(FED.4WD+CAL.4WD).KA24DE; TOKICO 35.0 |
46010-8B620 |
— | ||
|
46010
|
46010
46011-0W025 Piston Kit-Tandem Brake Master Cylinder1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE; , |
46011-0W025 |
US $91.58 |
||
|
46010
|
46010
46011-14Y26 Piston Kit-Tandem Brake Master Cylinder1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO 25.4(1) |
46011-14Y26 |
US $91.58 |
||
| replacement | |||||
|
46010
|
46010
D601114Y26
Piston Kit-Tandem Brake Master Cylinder
1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO 25.4(1) |
D601114Y26 |
— | ||
|
46010K
|
46010K
46011-0W025 Piston Kit-Tandem Brake Master Cylinder1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE; , |
46011-0W025 |
US $91.58 |
||
|
46010K
|
46010K
46011-14Y26 Piston Kit-Tandem Brake Master Cylinder1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO 25.4(1) |
46011-14Y26 |
US $91.58 |
||
| replacement | |||||
|
46010K
|
46010K
D601114Y26
Piston Kit-Tandem Brake Master Cylinder
1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO 25.4(1) |
D601114Y26 |
— | ||
|
46020
|
46020
4602064J01 Cap Assy-Oil Reservoir Tank1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO |
4602064J01 |
from US $17.15 |
||
|
46020
|
46020
46020-64J21
Cap Assy-Oil Reservoir Tank
1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE; , |
46020-64J21 |
— | ||
| replacement | |||||
|
46020
|
46020
460206N000 Cap Assy-Oil Reservoir Tank1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE; , |
460206N000 |
US $18.02 |
||
|
46020
|
46020
0165801481 PLUG1999-09-01 ~ 2000-07-01; T.4WD +KC.4WD.KA24DE; , |
0165801481 |
US $3.18 |
||
|
46037M
|
46037M
46037-5V200 Pin-Spring1999-09-01 ~ 2000-07-01; KC.4WD.KA24DE; , |
46037-5V200 |
US $1.52 |
||
|
46045
|
46045
3064421U00 Seal-O Ring, Reservoir Cap1999-04-01 ~ 2000-07-01; 4WD.KA24DE; , |
3064421U00 |
US $2.91 |
||
|
46045
|
46045
46045W1010 Seal-Reservoir Tank1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO |
46045W1010 |
from US $3.07 |
||
|
46045
|
46045
3064421U00 Seal-O Ring, Reservoir Cap1999-04-01 ~ 2000-07-01; 4WD.KA24DE; , |
3064421U00 |
US $2.91 |
||
|
46045
|
46045
46045W1010 Seal-Reservoir Tank1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO |
46045W1010 |
from US $3.07 |
||
|
46047
|
46047
46047-64J01 Float-Reservoir Tank1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO |
46047-64J01 |
US $5.04 |
||
|
46047
|
46047
46047-64J21 Float-Reservoir Tank1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE; , |
46047-64J21 |
US $5.18 |
||
|
46048
|
46048
46048-64J01 Indicator Assy-Level1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO |
46048-64J01 |
US $42.91 |
||
|
46048
|
46048
46048-64J21 Indicator Assy-Level1999-04-01 ~ 2000-07-01; 4WD.KA24DE; , |
46048-64J21 |
US $42.91 |
||
|
46070
|
46070
46032-30P21 Screw-Stopper1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE; , |
46032-30P21 |
US $3.74 |
||
|
46070
|
46070
46032-70T00 Screw-Stopper1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO |
46032-70T00 |
US $4.18 |
||
|
46070
|
46070
46079-1P220 Packing-Stopper Screw1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE; , |
46079-1P220 |
US $1.95 |
||
|
46070
|
46070
46079-W1010 Packing-Stopper Screw1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO |
46079-W1010 |
US $2.45 |
||
|
46070A
|
46070A
46079-1P220 Packing-Stopper Screw1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE; , |
46079-1P220 |
US $1.95 |
||
|
46070A
|
46070A
46079-W1010 Packing-Stopper Screw1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO |
46079-W1010 |
US $2.45 |
||
|
46082
|
46082
46082-R9000 Ring-Snap1999-04-01 ~ 2000-07-01; 4WD.KA24DE; , |
46082-R9000 |
US $3.17 |
||
| replacement | |||||
|
46082
|
46082
46082R900A Retainer-Piston1999-04-01 ~ 2000-07-01; 4WD.KA24DE; , |
46082R900A |
US $2.64 |
||
|
46090
|
46090
46091-40Y20 Tank-Oil Reservoir1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE; , |
46091-40Y20 |
US $32.98 |
||
|
46090
|
46090
46091-64J01 Tank-Oil Reservoir1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO |
46091-64J01 |
US $29.38 |
||
|
46093
|
46093
46093-5V200 Strainer-Brake Oil1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE; , |
46093-5V200 |
US $9.79 |
||
|
46093
|
46093
4609364J05 Strainer-Brake Oil1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; TOKICO |
4609364J05 |
US $9.65 |
||
