Component List FRONTIER
Rear brake (1998-08-01 ~ 1999-04-01; 4WD.KA24DE +VG33E)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
081708201A	081708201A 08170-8201A Bolt-hexagon	08170-8201A	—
089111052A	089111052A 08911-1052A ﾅﾂﾄ,ﾍｸｻｺﾞﾝ	08911-1052A	—
089152381A	089152381A 089152381A Washer	089152381A	—
43083M	43083M 43083-2S600 Bolt-Bearing Cage, Rear Axle Case 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	43083-2S600	US $5.76
43083M	43083M 43083-0W000 Bolt-Bearing Cage, Rear Axle Case 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	43083-0W000	—
	replacement
43083M	43083M 430830W00A BOLT 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	430830W00A	US $3.06
44000D	44000D 01416-00081 SCREW 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	01416-00081	US $1.73
44000M	44000M 44000-3S500 Brake assy-drum,rear rh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44000-3S500	—
44000M	44000M 44000-7B700 Brake assy-drum,rear rh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44000-7B700	—
44010M	44010M 44010-3S500 Brake assy-drum,rear lh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44010-3S500	—
44010M	44010M 44010-7B700 Brake assy-drum,rear lh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44010-7B700	—
44020	44020 44020-37G10 Plate Assy-Back, Rear Brake Rh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44020-37G10	US $137.65
44020	44020 44020-7B700 Plate assy-back,rear brake rh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44020-7B700	—
44020	44020 4109808G10 Plug 1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE +VG33E; ,	4109808G10	from US $1.83
44020	44020 41098-01J10 Plug 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	41098-01J10	US $4.03
44020	44020 44098-2B001 Plug 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44098-2B001	—
44020E	44020E 4109808G10 Plug 1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE +VG33E; ,	4109808G10	from US $1.83
44020G	44020G 41098-01J10 Plug 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	41098-01J10	US $4.03
44020G	44020G 44098-2B001 Plug 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44098-2B001	—
44027	44027 4421401J10 Spring-Adjusting, Rear Brake 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	4421401J10	from US $2.78
44027	44027 44214-7B700 Spring-adjusting,rear brake 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44214-7B700	—
44030	44030 4403037G10 Plate Assy-Back, Rear Brake Lh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	4403037G10	US $137.65
44030	44030 44030-7B700 Plate assy-back,rear brake lh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44030-7B700	—
44030	44030 44049-37G11 Spring-Holder 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44049-37G11	US $4.18
	replacement
44030	44030 44049-37G1A Spring-Holder 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44049-37G1A	US $5.27
44030	44030 44049-7B700 Spring-holder 1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE +VG33E; ,	44049-7B700	—
44030H	44030H 44049-37G11 Spring-Holder 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44049-37G11	US $4.18
	replacement
44030H	44030H 44049-37G1A Spring-Holder 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44049-37G1A	US $5.27
44030H	44030H 44049-7B700 Spring-holder 1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE +VG33E; ,	44049-7B700	—
44041	44041 44041-37G10 Lever-Toggle, Lh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44041-37G10	US $38.45
	replacement
44041	44041 4404137G1A Lever-Toggle, Lh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	4404137G1A	from US $38.45
44041	44041 44041-7B700 Lever-toggle,rh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44041-7B700	—
44045	44045 44045-37G11 Pulley-Parking Brake Cable 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44045-37G11	from US $13.01
44045	44045 44045-7B700 Pulley-parking brake cable 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44045-7B700	US $19.91
44051	44051 44051-37G10 Lever-Toggle, Rh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44051-37G10	US $38.45
	replacement
44051	44051 44051-37G1A Lever-Toggle, Rh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44051-37G1A	US $38.45
44051	44051 44051-7B700 Lever-toggle,lh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44051-7B700	—
44060K	44060K 44060-56G26 Shoe Set-Rear Brake 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44060-56G26	—
	replacement
44060K	44060K DD060-56G26 Shoe set-rear brake 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	DD060-56G26	US $214.39
44060K	44060K 44060-7B725 Shoe set-rear brake 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44060-7B725	—
44081	44081 41081-7B700 Pin-anti shoe rattle 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	41081-7B700	—
44081	44081 41081-T3260 Pin-Anti Shoe Rattle 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	41081-T3260	—
	replacement
44081	44081 41081T326A Pin-Anti Shoe Rattle 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	41081T326A	from US $0.96
44082	44082 44082-7B700 Seat-spring 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44082-7B700	—
44082	44082 44082-U9200 Seat-Spring 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44082-U9200	—
	replacement
44082	44082 44082U920A Seat-Spring 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44082U920A	from US $2.64
44083	44083 4108337G10 Spring-Anti Shoe Rattle 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	4108337G10	from US $1.65
44083	44083 41083-7B700 Spring-anti shoe rattle 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	41083-7B700	—
44084	44084 44084-2B000 Retainer-Spring, Anti Shoe Rattle 1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE +VG33E; ,	44084-2B000	—
44084	44084 44084-U9200 Retainer-Spring, Anti Shoe Rattle 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44084-U9200	—
	replacement
44084	44084 44084U920A Retainer-Spring, Anti Shoe Rattle 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44084U920A	from US $1.67
44090	44090 4409037G10 Spring-Return, Rear Brake Shoe 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	4409037G10	from US $4.64
44090	44090 44090-7B700 Spring-return,rear brake shoe 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44090-7B700	—
44091	44091 4409101J10 Spring-Return, Rear Brake Shoe 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	4409101J10	from US $2.78
44091	44091 44091-7B700 Spring-return,rear brake shoe 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44091-7B700	—
44100B	44100B 0143600052 BOLT 1999-04-01 ~ 1999-09-01; KA24DE; ,	0143600052	US $2.91
44100K	44100K D4100-37G92 Cup Kit-Brake Wheel Cylinder, Rear 1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE +VG33E; ,	D4100-37G92	—
44100P	44100P 4410037G12 Cylinder Assy-Rear Wheel 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	4410037G12	US $58.32
44100P	44100P 44100-8B500 Cylinder assy-rear wheel 1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE +VG33E; ,	44100-8B500	—
44100P	44100P 44100-8Z500 Cylinder assy-rear wheel 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44100-8Z500	—
44108	44108 44108-37G12 Piston-Cylinder 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44108-37G12	US $12.96
44108	44108 44108-37G12 Piston-Cylinder 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44108-37G12	US $12.96
44112	44112 44112-U4000 Cup-Piston 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44112-U4000	—
44112	44112 44112-U4000 Cup-Piston 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44112-U4000	—
44118C	44118C 271900501P Washer-Plain 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	271900501P	US $0.86
44118C	44118C 27190-7B700 Washer-plain 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	27190-7B700	—
44118D	44118D 44085-01A00 Washer-Lock 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44085-01A00	—
	replacement
44118D	44118D 4408501A0A Washer-Lock 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	4408501A0A	from US $0.76
44118D	44118D 44085-2B000 Washer-Lock 1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE +VG33E; ,	44085-2B000	—
44118G	44118G 44039-32G10 Spring 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44039-32G10	US $5.47
44118G	44118G 44039-7B700 Spring 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44039-7B700	—
44124	44124 44124-01J00 Cover-Dust 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44124-01J00	US $2.30
44124	44124 44124-01J00 Cover-Dust 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44124-01J00	US $2.30
44125	44125 44125-01J00 Spring 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44125-01J00	US $3.74
44127	44127 44095-31G10 Boot 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44095-31G10	US $5.47
44127	44127 44095-7B700 Boot 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44095-7B700	—
44128	44128 44128-60R00 Screw-Bleeder 1999-04-01 ~ 1999-09-01; KA24DE; ,	44128-60R00	US $6.77
44129	44129 41129-60R00 Cap-Bleeder Screw 1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE +VG33E; ,	41129-60R00	US $1.58
44135	44135 44222-37G10 Lever Assy-Wheel Cylinder 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44222-37G10	US $2.45
	replacement
44135	44135 4422237G1A Ring-Retaining 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	4422237G1A	US $2.78
44135	44135 44222-7B700 Ring-retaining 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44222-7B700	—
44135	44135 44222-4B000 Ring-Retaining 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44222-4B000	—
44135	44135 44222-M4900 Ring-Retaining 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44222-M4900	—
	replacement
44135	44135 44222M490A Ring-Retaining 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44222M490A	from US $0.81
44135	44135 44222-4B000 Ring-Retaining 1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE +VG33E; ,	44222-4B000	—
44135	44135 44222-M4900 Ring-Retaining 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44222-M4900	—
	replacement
44135	44135 44222M490A Ring-Retaining 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44222M490A	from US $0.81
44135+A	44135+A 44222-4B000 Ring-Retaining 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44222-4B000	—
44135+A	44135+A 44222-M4900 Ring-Retaining 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44222-M4900	—
	replacement
44135+A	44135+A 44222M490A Ring-Retaining 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44222M490A	from US $0.81
44135+B	44135+B 44222-4B000 Ring-Retaining 1998-08-01 ~ 1999-04-01; (FED.4WD+CAL.4WD).KA24DE +VG33E; ,	44222-4B000	—
44135+B	44135+B 44222-M4900 Ring-Retaining 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44222-M4900	—
	replacement
44135+B	44135+B 44222M490A Ring-Retaining 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44222M490A	from US $0.81
44200N	44200N 44200-37G10 Adjuster Assy-Rear Brake, Lh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44200-37G10	—
	replacement
44200N	44200N 4420037G1A Adjuster Assy-Rear Brake, Lh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	4420037G1A	US $61.55
44201	44201 44201-37G10 Adjuster Assy-Rear Brake, Rh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44201-37G10	—
	replacement
44201	44201 4420137G1A Adjuster Assy-Rear Brake, Rh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	4420137G1A	from US $61.55
44208M	44208M 44033-31G10 Rod-Adjuster, Lh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44033-31G10	US $12.99
44208M	44208M 44033-7B700 Rod-adjuster,lh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44033-7B700	—
44208N	44208N 44023-31G10 Rod-Adjuster, Rh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44023-31G10	US $12.24
44208N	44208N 44023-7B700 Rod-adjuster,rh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44023-7B700	—
44209	44209 44041-37G11 Lever-Toggle, Rh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44041-37G11	US $32.98
	replacement
44209	44209 44041-8B500 Lever Assy-Adjuster 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44041-8B500	US $24.91
44209	44209 44041-7B701 Lever assy-adjuster 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44041-7B701	—
44209	44209 44051-37G11 Lever-Toggle, Lh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44051-37G11	US $32.98
	replacement
44209	44209 44051-8B500 Lever Assy-Adjuster 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44051-8B500	US $24.91
44209	44209 44051-7B701 Lever assy-adjuster 1999-09-01 ~ 2000-07-01; 4WD.KA24DE +VG33E; ,	44051-7B701	—
44209	44209 44211-37G10 Lever Assy-Adjuster, Rh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44211-37G10	—
	replacement
44209	44209 4421137G1A Lever Assy-Adjuster, Rh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	4421137G1A	from US $15.11
44209	44209 44210-37G10 Lever Assy-Adjuster, Lh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44210-37G10	—
	replacement
44209	44209 4421037G1A Lever Assy-Adjuster, Lh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	4421037G1A	from US $15.11
44209+A	44209+A 44051-37G11 Lever-Toggle, Lh 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44051-37G11	US $32.98
	replacement
44209+A	44209+A 44051-8B500 Lever Assy-Adjuster 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44051-8B500	US $24.91
44209+A	44209+A 44051-7B701 Lever assy-adjuster 1999-09-01 ~ 2000-07-01; 4WD.KA24DE +VG33E; ,	44051-7B701	—
44209M	44209M 44211-37G10 Lever Assy-Adjuster, Rh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44211-37G10	—
	replacement
44209M	44209M 4421137G1A Lever Assy-Adjuster, Rh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	4421137G1A	from US $15.11
44209N	44209N 44210-37G10 Lever Assy-Adjuster, Lh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44210-37G10	—
	replacement
44209N	44209N 4421037G1A Lever Assy-Adjuster, Lh 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	4421037G1A	from US $15.11
44215	44215 44046-37G10 Cable-Adjust Lever, Parking Brake 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44046-37G10	US $10.95
	replacement
44215	44215 4404637G1A Cable-Adjust Lever, Parking Brake 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	4404637G1A	—
44215	44215 44046-7B700 Cable-adjust lever,parking brake 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44046-7B700	—
44215	44215 44047-37G10 Cable-Adjust Lever, Parking Brake 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44047-37G10	US $13.39
	replacement
44215	44215 4404737G1A Cable-Adjust Lever, Parking Brake 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	4404737G1A	US $20.11
44215	44215 44047-7B700 Cable-adjust lever,parking brake 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44047-7B700	—
44215M	44215M 44047-37G10 Cable-Adjust Lever, Parking Brake 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	44047-37G10	US $13.39
	replacement
44215M	44215M 4404737G1A Cable-Adjust Lever, Parking Brake 1997-09-01 ~ 1998-08-01; (FED.4WD+CAL.4WD).KA24DE; ,	4404737G1A	US $20.11
44215M	44215M 44047-7B700 Cable-adjust lever,parking brake 1999-04-01 ~ 1999-09-01; 4WD.KA24DE; ,	44047-7B700	—

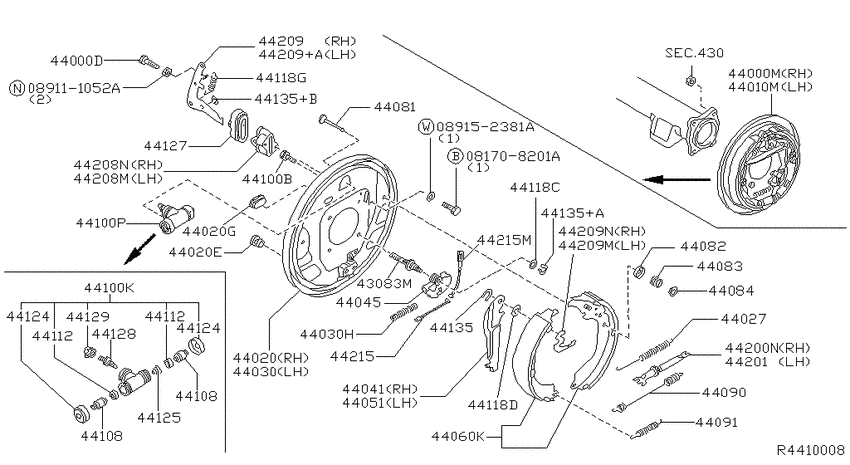

Rear brake (1998-08-01 ~ 1999-04-01; 4WD.KA24DE +VG33E) Diagram Nissan FRONTIER U.S.A. 2301748-182013

Rear brake (1998-08-01 ~ 1999-04-01; 4WD.KA24DE +VG33E) Diagram Nissan FRONTIER U.S.A. 2301748-182013
