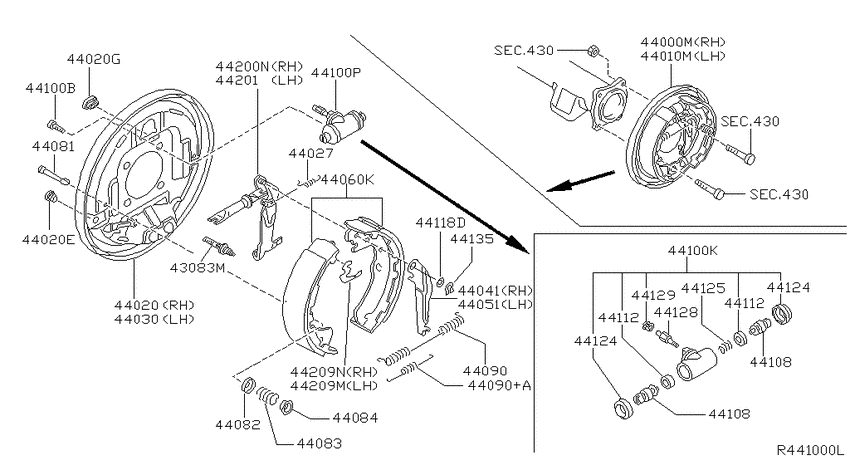

Rear brake (2001-07-01 ~ ; VG33E) Diagram Nissan FRONTIER
- Year
- 1999 - 2000
- Sales region
- U.S.A.
- Engine
- VG33E
- drive
- 2WD
- transmission
- MT
- body
- KC
- trim lvl
- SE
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43083M
|
43083M
43083-2S600 Bolt-Bearing Cage, Rear Axle Case2000-07-01 ~ 2001-07-01; VG33E; , |
43083-2S600 |
US $5.76 |
||
|
43083M
|
43083M
43083-8B500
Bolt-bearing cage,rear axle case
2002-09-01 ~ 2002-11-01; VG33E; , |
43083-8B500 |
— | ||
|
44000M
|
44000M
44000-2Z600
Brake assy-drum,rear rh
2002-09-01 ~ ; VG33E; , |
44000-2Z600 |
— | ||
|
44000M
|
44000M
44000-7B700
Brake assy-drum,rear rh
2000-07-01 ~ 2001-07-01; VG33E; , |
44000-7B700 |
— | ||
|
44000M
|
44000M
44000-8Z300
Brake assy-drum,rear rh
2001-07-01 ~ 2002-09-01; VG33E; , |
44000-8Z300 |
— | ||
|
44010M
|
44010M
44010-2Z600
Brake assy-drum,rear lh
2002-09-01 ~ ; VG33E; , |
44010-2Z600 |
— | ||
|
44010M
|
44010M
44010-7B700
Brake assy-drum,rear lh
2000-07-01 ~ 2001-07-01; VG33E; , |
44010-7B700 |
— | ||
|
44010M
|
44010M
44010-8Z300
Brake assy-drum,rear lh
2001-07-01 ~ 2002-09-01; VG33E; , |
44010-8Z300 |
— | ||
|
44020
|
44020
44020-7B700
Plate assy-back,rear brake rh
2000-07-01 ~ 2001-07-01; VG33E; , |
44020-7B700 |
— | ||
|
44020
|
44020
44020-8Z300
Plate assy-back,rear brake rh
2001-07-01 ~ ; VG33E; , |
44020-8Z300 |
— | ||
|
44020
|
44020
4109808G10 Plug2001-07-01 ~ ; VG33E; , |
4109808G10 |
from US $1.83 |
||
|
44020
|
44020
44098-2B001
Plug
2000-07-01 ~ 2001-07-01; VG33E; , |
44098-2B001 |
— | ||
|
44020
|
44020
44098-7B400
Plug
2002-09-01 ~ ; VG33E; , |
44098-7B400 |
— | ||
|
44020E
|
44020E
4109808G10 Plug2001-07-01 ~ ; VG33E; , |
4109808G10 |
from US $1.83 |
||
|
44020G
|
44020G
44098-2B001
Plug
2000-07-01 ~ 2001-07-01; VG33E; , |
44098-2B001 |
— | ||
|
44020G
|
44020G
44098-7B400
Plug
2002-09-01 ~ ; VG33E; , |
44098-7B400 |
— | ||
|
44027
|
44027
44214-7B700
Spring-adjusting,rear brake
2001-07-01 ~ ; VG33E; , |
44214-7B700 |
— | ||
|
44030
|
44030
44030-7B700
Plate assy-back,rear brake lh
2000-07-01 ~ 2001-07-01; VG33E; , |
44030-7B700 |
— | ||
|
44030
|
44030
44030-8Z300
Plate assy-back,rear brake lh
2001-07-01 ~ ; VG33E; , |
44030-8Z300 |
— | ||
|
44030
|
44030
44049-7B700
Spring-holder
1999-09-01 ~ 2000-07-01; 4WD.KA24DE +VG33E; , |
44049-7B700 |
— | ||
|
44041
|
44041
44041-7B700
Lever-toggle,rh
2001-07-01 ~ ; VG33E; , |
44041-7B700 |
— | ||
|
44051
|
44051
44051-7B700
Lever-toggle,lh
2001-07-01 ~ ; VG33E; , |
44051-7B700 |
— | ||
|
44060K
|
44060K
44060-7B725
Shoe set-rear brake
2001-07-01 ~ ; VG33E; , |
44060-7B725 |
— | ||
|
44081
|
44081
41081-7B400
Pin-anti shoe rattle
2001-07-01 ~ ; VG33E; , |
41081-7B400 |
— | ||
|
44081
|
44081
41081-7B700
Pin-anti shoe rattle
2000-07-01 ~ 2001-07-01; VG33E; , |
41081-7B700 |
— | ||
|
44082
|
44082
44082-7B400
Seat-spring
2001-07-01 ~ ; VG33E; , |
44082-7B400 |
— | ||
|
44082
|
44082
44082-7B700
Seat-spring
2000-07-01 ~ 2001-07-01; VG33E; , |
44082-7B700 |
— | ||
|
44083
|
44083
41083-7B700
Spring-anti shoe rattle
2000-07-01 ~ 2001-07-01; VG33E; , |
41083-7B700 |
— | ||
|
44083
|
44083
44083-7B700
Spring-anti shoe rattle
2001-07-01 ~ ; VG33E; , |
44083-7B700 |
— | ||
|
44084
|
44084
44084-2B000
Retainer-Spring, Anti Shoe Rattle
1999-09-01 ~ 2000-07-01; 4WD.KA24DE +VG33E; , |
44084-2B000 |
— | ||
|
44090
|
44090
44090-7B700
Spring-return,rear brake shoe
2001-07-01 ~ ; VG33E; , |
44090-7B700 |
— | ||
|
44090
|
44090
44091-7B700
Spring-return,rear brake shoe
2001-07-01 ~ ; VG33E; , |
44091-7B700 |
— | ||
|
44090+A
|
44090+A
44091-7B700
Spring-return,rear brake shoe
2001-07-01 ~ ; VG33E; , |
44091-7B700 |
— | ||
|
44100B
|
44100B
0143600052 BOLT2001-07-01 ~ ; VG33E; , |
0143600052 |
US $2.91 |
||
|
44100K
|
44100K
D4100-37G92 Cup Kit-Brake Wheel Cylinder, Rear2001-07-01 ~ ; VG33E; , |
D4100-37G92 |
US $27.88 |
||
|
44100P
|
44100P
44100-7Z800
Cylinder assy-rear wheel
2002-09-01 ~ ; VG33E; , |
44100-7Z800 |
— | ||
|
44100P
|
44100P
44100-8Z500
Cylinder assy-rear wheel
2001-07-01 ~ 2002-09-01; VG33E; , |
44100-8Z500 |
— | ||
|
44108
|
44108
44108-37G12 Piston-Cylinder2002-09-01 ~ ; VG33E; , |
44108-37G12 |
US $12.96 |
||
|
44108
|
44108
44108-37G12 Piston-Cylinder2002-09-01 ~ ; VG33E; , |
44108-37G12 |
US $12.96 |
||
|
44112
|
44112
44112-U4000
Cup-Piston
2002-09-01 ~ ; VG33E; , |
44112-U4000 |
— | ||
|
44112
|
44112
44112-U4000
Cup-Piston
2002-09-01 ~ ; VG33E; , |
44112-U4000 |
— | ||
|
44118D
|
44118D
44085-2B000
Washer-Lock
2001-07-01 ~ ; VG33E; , |
44085-2B000 |
— | ||
|
44124
|
44124
44124-01J00 Cover-Dust2001-07-01 ~ 2002-09-01; VG33E; , |
44124-01J00 |
US $2.30 |
||
|
44124
|
44124
44124-01J00 Cover-Dust2001-07-01 ~ 2002-09-01; VG33E; , |
44124-01J00 |
US $2.30 |
||
|
44125
|
44125
44125-01J00 Spring2001-07-01 ~ ; VG33E; , |
44125-01J00 |
US $3.74 |
||
|
44128
|
44128
44128-60R00 Screw-Bleeder2001-07-01 ~ ; VG33E; , |
44128-60R00 |
US $6.77 |
||
|
44129
|
44129
41129-60R00 Cap-Bleeder Screw2001-07-01 ~ ; VG33E; , |
41129-60R00 |
US $1.58 |
||
|
44135
|
44135
44222-7B700
Ring-retaining
2001-07-01 ~ ; VG33E; , |
44222-7B700 |
— | ||
|
44135
|
44135
44222-4B000
Ring-Retaining
2000-07-01 ~ 2001-07-01; VG33E; , |
44222-4B000 |
— | ||
|
44135
|
44135
44222-4B000
Ring-Retaining
1999-09-01 ~ 2000-07-01; 4WD.KA24DE +VG33E; , |
44222-4B000 |
— | ||
|
44200N
|
44200N
44200-2Z600
Adjuster assy-rear brake,rh
2002-09-01 ~ ; VG33E; , |
44200-2Z600 |
— | ||
|
44200N
|
44200N
44200-37G10
Adjuster Assy-Rear Brake, Lh
2000-07-01 ~ 2001-07-01; VG33E; , |
44200-37G10 |
— | ||
| replacement | |||||
|
44200N
|
44200N
4420037G1A Adjuster Assy-Rear Brake, Lh2000-07-01 ~ 2001-07-01; VG33E; , |
4420037G1A |
US $61.55 |
||
|
44200N
|
44200N
44200-37G11
Adjuster Assy-Rear Brake, Lh
2001-07-01 ~ 2002-09-01; VG33E; , |
44200-37G11 |
— | ||
| replacement | |||||
|
44200N
|
44200N
4420037G1A Adjuster Assy-Rear Brake, Lh2001-07-01 ~ 2002-09-01; VG33E; , |
4420037G1A |
US $61.55 |
||
|
44201
|
44201
44201-2Z600
Adjuster assy-rear brake,lh
2002-09-01 ~ ; VG33E; , |
44201-2Z600 |
— | ||
|
44201
|
44201
44201-37G10
Adjuster Assy-Rear Brake, Rh
2001-07-01 ~ 2002-09-01; VG33E; , |
44201-37G10 |
— | ||
| replacement | |||||
|
44201
|
44201
4420137G1A Adjuster Assy-Rear Brake, Rh2001-07-01 ~ 2002-09-01; VG33E; , |
4420137G1A |
from US $61.55 |
||
|
44209M
|
44209M
44211-37G10
Lever Assy-Adjuster, Rh
2001-07-01 ~ ; VG33E; , |
44211-37G10 |
— | ||
| replacement | |||||
|
44209M
|
44209M
4421137G1A Lever Assy-Adjuster, Rh2001-07-01 ~ ; VG33E; , |
4421137G1A |
from US $15.11 |
||
|
44209N
|
44209N
44210-37G10
Lever Assy-Adjuster, Lh
2001-07-01 ~ ; VG33E; , |
44210-37G10 |
— | ||
| replacement | |||||
|
44209N
|
44209N
4421037G1A Lever Assy-Adjuster, Lh2001-07-01 ~ ; VG33E; , |
4421037G1A |
from US $15.11 |
||
