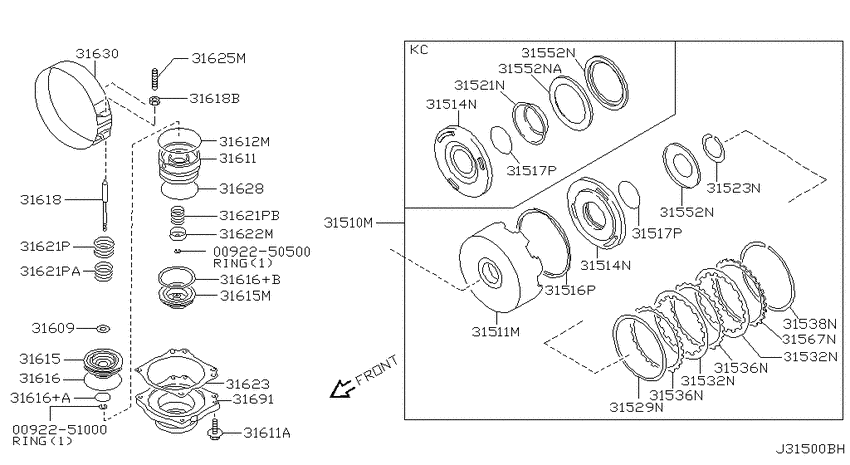

Clutch & band servo (2001-07-01 ~ ; SERVO & REVERSE CLUTCH; 4WD.AT) Diagram Nissan FRONTIER
- Year
- 2001 - 2011
- Sales region
- U.S.A.
- Engine
- VG33E
- drive
- 4WD
- transmission
- AT
- body
- CC.XB
- trim lvl
- SC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250500
|
0092250500
00922-50500
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-50500 |
— | ||
|
0092251000
|
0092251000
00922-51000
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-51000 |
— | ||
|
31510M
|
31510M
31510-41X24 Clutch Assy-Reverse2001-07-01 ~ ; 4WD.SC.AT; N-D |
31510-41X24 |
US $298.78 |
||
|
31511M
|
31511M
31511-41X06 Drum-Reverse Clutch2001-07-01 ~ ; 4WD.SC.AT; , |
31511-41X06 |
US $158.40 |
||
|
31514N
|
31514N
31514-41X00 Piston Assy-Clutch2001-07-01 ~ ; 4WD.SC.AT; , |
31514-41X00 |
US $83.52 |
||
|
31514N
|
31514N
31514-41X00 Piston Assy-Clutch2001-07-01 ~ ; 4WD.SC.AT; , |
31514-41X00 |
US $83.52 |
||
|
31516P
|
31516P
31516-21X01
Seal-Lip
2001-07-01 ~ ; 4WD.AT; , |
31516-21X01 |
— | ||
| replacement | |||||
|
31516P
|
31516P
C1516-21X01 Seal-lip2001-07-01 ~ ; 4WD.AT; , |
C1516-21X01 |
US $11.79 |
||
|
31517P
|
31517P
31517-21X00 Seal-Lathe Cut Ring2001-07-01 ~ ; 4WD.AT; , |
31517-21X00 |
US $6.77 |
||
|
31517P
|
31517P
31517-21X00 Seal-Lathe Cut Ring2001-07-01 ~ ; 4WD.AT; , |
31517-21X00 |
US $6.77 |
||
|
31521N
|
31521N
31505-41X07 Spring-Piston Return2001-07-01 ~ ; 4WD.SC.AT; , |
31505-41X07 |
US $0.86 |
||
|
31523N
|
31523N
31523-21X00 Ring-Snap2001-07-01 ~ ; 4WD.AT; , |
31523-21X00 |
US $2.45 |
||
|
31529N
|
31529N
31535-41X09 Plate-Dished2001-07-01 ~ ; 4WD.SC.AT; , |
31535-41X09 |
US $10.80 |
||
|
31532N
|
31532N
31532-41X76 Plate Assy-Drive2001-07-01 ~ ; 4WD.SC.AT; , |
31532-41X76 |
US $17.71 |
||
|
31532N
|
31532N
31532-41X76 Plate Assy-Drive2001-07-01 ~ ; 4WD.SC.AT; , |
31532-41X76 |
US $17.71 |
||
|
31536N
|
31536N
31536-41X20 Plate-Driven2001-07-01 ~ ; 4WD.SC.AT; , |
31536-41X20 |
US $10.80 |
||
|
31536N
|
31536N
31536-41X20 Plate-Driven2001-07-01 ~ ; 4WD.SC.AT; , |
31536-41X20 |
US $10.80 |
||
|
31538N
|
31538N
3150641X13 Ring-Snap2001-07-01 ~ ; 4WD.AT; , |
3150641X13 |
US $6.19 |
||
|
31552N
|
31552N
31522-41X04 Retainer-Spring2001-07-01 ~ ; 4WD.SC.AT; , |
31522-41X04 |
US $4.18 |
||
|
31552N
|
31552N
31522-41X03 Retainer-Spring2001-07-01 ~ ; 4WD.SC.AT; , |
31522-41X03 |
US $4.18 |
||
|
31552N
|
31552N
31522-41X04 Retainer-Spring2001-07-01 ~ ; 4WD.SC.AT; , |
31522-41X04 |
US $4.18 |
||
|
31552N
|
31552N
31522-41X03 Retainer-Spring2001-07-01 ~ ; 4WD.SC.AT; , |
31522-41X03 |
US $4.18 |
||
|
31552NA
|
31552NA
31522-41X03 Retainer-Spring2001-07-01 ~ ; 4WD.SC.AT; , |
31522-41X03 |
US $4.18 |
||
|
31567N
|
31567N
31537-42X20 Plate-Retaining2001-07-01 ~ ; 4WD.SC.AT; SELECT T=4.8 |
31537-42X20 |
US $17.71 |
||
|
31567N
|
31567N
31537-42X21 Plate-Retaining2001-07-01 ~ ; 4WD.SC.AT; SELECT T=5.0 |
31537-42X21 |
US $17.71 |
||
|
31567N
|
31567N
31537-42X22 Plate-Retaining2001-07-01 ~ ; 4WD.SC.AT; SELECT T=5.2 |
31537-42X22 |
US $17.71 |
||
|
31567N
|
31567N
31537-42X23 Plate-Retaining2001-07-01 ~ ; 4WD.SC.AT; SELECT T=5.4 |
31537-42X23 |
US $17.71 |
||
|
31567N
|
31567N
31537-42X24 Plate-Retaining2001-07-01 ~ ; 4WD.SC.AT; SELECT T=5.6 |
31537-42X24 |
US $17.71 |
||
|
31609
|
31609
31619-01X00 Washer-Piston Stem2001-07-01 ~ ; 4WD.AT; , |
31619-01X00 |
US $0.86 |
||
|
31611
|
31611
31611-41X01 Retainer-Servo Piston2001-07-01 ~ ; 4WD.AT; 2ND SERVO |
31611-41X01 |
US $47.66 |
||
|
31611
|
31611
31377-51X04 Bolt2001-07-01 ~ ; 4WD.AT; , |
31377-51X04 |
US $1.73 |
||
|
31611A
|
31611A
31377-51X04 Bolt2001-07-01 ~ ; 4WD.AT; , |
31377-51X04 |
US $1.73 |
||
|
31612M
|
31612M
31612-X0300 Seal-Lathe Cut Ring2001-07-01 ~ ; 4WD.AT; , |
31612-X0300 |
US $2.36 |
||
|
31615
|
31615
31615-41X06 Piston-Band Servo2001-07-01 ~ ; 4WD.AT; 2ND SERVO |
31615-41X06 |
US $36.86 |
||
|
31615
|
31615
31526-41X02 Seal-O Ring2001-07-01 ~ ; 4WD.AT; 3R |
31526-41X02 |
US $2.36 |
||
|
31615
|
31615
31526-41X03 Seal-O Ring2001-07-01 ~ ; 4WD.AT; 3R |
31526-41X03 |
US $2.36 |
||
|
31615
|
31615
31526-41X02 Seal-O Ring2001-07-01 ~ ; 4WD.AT; 2A |
31526-41X02 |
US $2.36 |
||
|
31615
|
31615
31695-41X01 Piston-Overdrive Servo2001-07-01 ~ ; 4WD.AT; , |
31695-41X01 |
US $15.26 |
||
|
31615M
|
31615M
31695-41X01 Piston-Overdrive Servo2001-07-01 ~ ; 4WD.AT; , |
31695-41X01 |
US $15.26 |
||
|
31616
|
31616
31527-41X03 Seal-Lathe Cut Ring2001-07-01 ~ ; 4WD.AT; , |
31527-41X03 |
US $4.57 |
||
|
31616
|
31616
31527-41X04 Seal-Lathe Cut Ring2001-07-01 ~ ; 4WD.AT; , |
31527-41X04 |
US $4.57 |
||
|
31616
|
31616
31527-41X03 Seal-Lathe Cut Ring2001-07-01 ~ ; 4WD.AT; , |
31527-41X03 |
US $4.57 |
||
|
31616+A
|
31616+A
31527-41X04 Seal-Lathe Cut Ring2001-07-01 ~ ; 4WD.AT; , |
31527-41X04 |
US $4.57 |
||
|
31616+B
|
31616+B
31527-41X03 Seal-Lathe Cut Ring2001-07-01 ~ ; 4WD.AT; , |
31527-41X03 |
US $4.57 |
||
|
31618
|
31618
31618-41X03 Stem-Band Servo Piston2001-07-01 ~ ; 4WD.AT; , |
31618-41X03 |
US $8.93 |
||
|
31618
|
31618
31365-41X00 Nut2001-07-01 ~ ; 4WD.AT; , |
31365-41X00 |
US $1.73 |
||
|
31618B
|
31618B
31365-41X00 Nut2001-07-01 ~ ; 4WD.AT; , |
31365-41X00 |
US $1.73 |
||
|
31621P
|
31621P
31605-41X14 Spring-Servo2001-07-01 ~ ; 4WD.SC.AT; , |
31605-41X14 |
US $4.03 |
||
|
31621P
|
31621P
31605-41X01 Spring-Servo2001-07-01 ~ ; 4WD.AT; 4TH RETURN |
31605-41X01 |
US $2.45 |
||
|
31621P
|
31621P
31605-41X02 Spring-Servo2001-07-01 ~ ; 4WD.AT; N-D |
31605-41X02 |
US $4.03 |
||
|
31621P
|
31621P
31605-41X06 Spring-Servo2001-07-01 ~ ; 4WD.AT; 4A |
31605-41X06 |
US $1.73 |
||
|
31621P
|
31621P
31605-4AX03 Spring-Servo2001-07-01 ~ ; 4WD.SC.AT; 3R |
31605-4AX03 |
US $4.03 |
||
|
31621P
|
31621P
31605-41X09 Spring-Servo2003-10-01 ~ ; 4WD.AT; 2A |
31605-41X09 |
US $3.88 |
||
|
31621P
|
31621P
31605-41X09 Spring-Servo2001-07-01 ~ ; 4WD.AT; 2A |
31605-41X09 |
US $3.88 |
||
|
31621PB
|
31621PB
31605-41X01 Spring-Servo2001-07-01 ~ ; 4WD.AT; 4TH RETURN |
31605-41X01 |
US $2.45 |
||
|
31622M
|
31622M
31622-41X00 Retainer-Spring, Servo Piston2001-07-01 ~ ; 4WD.AT; 4TH |
31622-41X00 |
US $1.73 |
||
|
31623
|
31623
31623-41X00 Gasket-Retainer, Servo2001-07-01 ~ ; 4WD.AT; , |
31623-41X00 |
US $0.82 |
||
|
31625M
|
31625M
31625-41X01 Pin-Anchor End2001-07-01 ~ ; 4WD.AT; , |
31625-41X01 |
US $4.03 |
||
|
31628
|
31628
31628-X0100 Seal-O Ring2001-07-01 ~ ; 4WD.AT; , |
31628-X0100 |
US $1.67 |
||
|
31630
|
31630
316304AX00 Band Assy-Brake2001-07-01 ~ ; 4WD.SC.AT; , |
316304AX00 |
US $49.25 |
||
|
31691
|
31691
31691-41X01 Retainer-Piston, Overdrive Servo2001-07-01 ~ ; 4WD.AT; , |
31691-41X01 |
US $37.58 |
||
