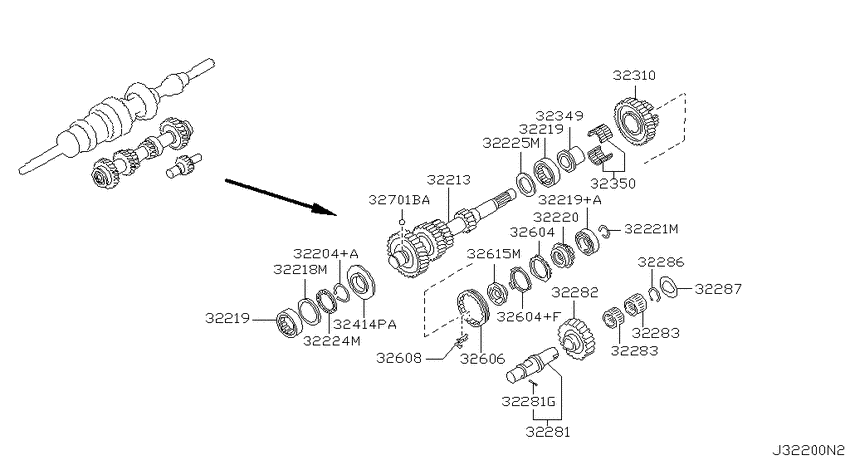

Transmission gear (2004-10-01 ~ 2005-09-01; 5MT COUNTER SHAFT; 5MT) Diagram Nissan FRONTIER
- Year
- 2004 - 2008
- Sales region
- U.S.A.
- Engine
- QR25DE
- drive
- 2WD
- transmission
- 5MT
- grade
- XE
- body
- KC
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32204+A
|
32204+A
3220401G10 Ring-Snap2004-10-01 ~ 2008-07-01; 5MT; , |
3220401G10 |
US $4.03 |
||
|
32213
|
32213
32212-AA304 Gear-Counter2004-10-01 ~ 2008-07-01; 5MT; , |
32212-AA304 |
US $253.67 |
||
|
32218M
|
32218M
3221801G00 Shim-Bearing2004-10-01 ~ 2008-07-01; 5MT; SELECT T=0.8 |
3221801G00 |
US $5.96 |
||
|
32218M
|
32218M
3221801G04 Shim-Bearing2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.2 |
3221801G04 |
US $5.96 |
||
|
32218M
|
32218M
3221801G11 Shim-Bearing2004-10-01 ~ 2008-07-01; 5MT; SELECT T=0.88 |
3221801G11 |
US $5.96 |
||
|
32218M
|
32218M
32218-01G12 Shim-Bearing2004-10-01 ~ 2008-07-01; 5MT; SELECT T=0.96 |
32218-01G12 |
US $5.96 |
||
|
32218M
|
32218M
32218-01G13 Shim-Bearing2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.04 |
32218-01G13 |
US $5.96 |
||
|
32218M
|
32218M
32218-01G14 Shim-Bearing2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.12 |
32218-01G14 |
US $5.96 |
||
|
32218M
|
32218M
3221801G15 Shim-Bearing2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.28 |
3221801G15 |
US $5.96 |
||
|
32218M
|
32218M
32218-01G16 Shim-Bearing2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.36 |
32218-01G16 |
US $5.96 |
||
|
32218M
|
32218M
32218-01G17 Shim-Bearing2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.44 |
32218-01G17 |
US $5.96 |
||
|
32219
|
32219
32219-01G10 Bearing-Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; , |
32219-01G10 |
from US $19.41 |
||
|
32219
|
32219
32219E9020 Bearing-Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; , |
32219E9020 |
from US $19.41 |
||
|
32219
|
32219
32219-01G10 Bearing-Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; , |
32219-01G10 |
from US $19.41 |
||
|
32219
|
32219
32219E9020 Bearing-Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; , |
32219E9020 |
from US $19.41 |
||
|
32219+A
|
32219+A
32219E9020 Bearing-Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; , |
32219E9020 |
from US $19.41 |
||
|
32220
|
32220
32220-30P60
Gear-Reverse, Counter
2004-10-01 ~ 2008-07-01; 5MT; , |
32220-30P60 |
— | ||
| replacement | |||||
|
32220
|
32220
32220-30P6A Gear-Reverse, Counter2004-10-01 ~ 2008-07-01; 5MT; , |
32220-30P6A |
US $44.77 |
||
|
32221M
|
32221M
32236-01G00 Ring-Snap, Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.32 |
32236-01G00 |
US $4.30 |
||
|
32221M
|
32221M
32236-01G01 Ring-Snap, Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.38 |
32236-01G01 |
US $4.30 |
||
|
32221M
|
32221M
32236-01G02 Ring-Snap, Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.44 |
32236-01G02 |
US $4.16 |
||
|
32221M
|
32221M
32236-01G03 Ring-Snap, Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.50 |
32236-01G03 |
US $4.16 |
||
|
32221M
|
32221M
32236-01G04 Ring-Snap, Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; SELECT T-1.56 |
32236-01G04 |
US $4.16 |
||
|
32221M
|
32221M
32236-01G05 Ring-Snap, Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.62 |
32236-01G05 |
US $4.30 |
||
|
32221M
|
32221M
32236-01G06 Ring-Snap, Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.68 |
32236-01G06 |
US $4.16 |
||
|
32221M
|
32221M
32236-01G07 Ring-Snap, Counter Shaft2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.74 |
32236-01G07 |
US $4.03 |
||
|
32224M
|
32224M
32224-01G00 Bearing-Needle, Thrust Front2004-10-01 ~ 2008-07-01; 5MT; , |
32224-01G00 |
from US $10.27 |
||
|
32225M
|
32225M
32225-01G00 Bearing-Needle, Thrust Rear2004-10-01 ~ 2008-07-01; 5MT; , |
32225-01G00 |
US $11.54 |
||
|
32281
|
32281
32320-VB361 Shaft-Reverse Idler2004-10-01 ~ 2008-07-01; 5MT; , |
32320-VB361 |
US $73.33 |
||
|
32281
|
32281
38428-96W00 Pin-Retaining2004-10-01 ~ 2008-07-01; 5MT; , |
38428-96W00 |
US $3.46 |
||
|
32281G
|
32281G
38428-96W00 Pin-Retaining2004-10-01 ~ 2008-07-01; 5MT; , |
38428-96W00 |
US $3.46 |
||
|
32282
|
32282
32282-30P61 Gear-Reverse Idler2004-10-01 ~ 2008-07-01; 5MT; , |
32282-30P61 |
US $57.97 |
||
|
32283
|
32283
32272-21P20 Bearing-Reverse Idler Gear2004-10-01 ~ 2008-07-01; 5MT; , |
32272-21P20 |
from US $13.10 |
||
|
32283
|
32283
32272-21P20 Bearing-Reverse Idler Gear2004-10-01 ~ 2008-07-01; 5MT; , |
32272-21P20 |
from US $13.10 |
||
|
32286
|
32286
32249-CD000 Washer-Thrust, Reverse Idler2004-10-01 ~ 2005-09-01; 5MT; , |
32249-CD000 |
US $4.18 |
||
|
32287
|
32287
32284-01G20
Washer-Thrust, Reverse Idler
2004-10-01 ~ 2008-07-01; 5MT; SELECT T=2.07 |
32284-01G20 |
— | ||
|
32287
|
32287
32284-01G21
Washer-Thrust, Reverse Idler
2004-10-01 ~ 2008-07-01; 5MT; SELECT T=1.97 |
32284-01G21 |
— | ||
|
32310
|
32310
3231230P24 Gear-Overdrive, Counter2004-10-01 ~ 2008-07-01; 5MT; , |
3231230P24 |
US $187.13 |
||
|
32349
|
32349
3234901G00 Bush-Overdrive Gear2004-10-01 ~ 2008-07-01; 5MT; , |
3234901G00 |
from US $35.49 |
||
|
32350
|
32350
32350-01G60 Bearing-Overdrive Gear2004-10-01 ~ 2008-07-01; 5MT; , |
32350-01G60 |
from US $8.43 |
||
|
32414PA
|
32414PA
32414-01G00 Bracket-Sub Gear2004-10-01 ~ 2008-07-01; 5MT; F/COUNTER GEAR |
32414-01G00 |
US $9.07 |
||
|
32604
|
32604
32614-30P60 Ring-Baulk2004-10-01 ~ 2008-07-01; 5MT; OD |
32614-30P60 |
from US $44.36 |
||
|
32604
|
32604
32604-23P60 Ring-Baulk2004-10-01 ~ 2008-07-01; 5MT; 1ST |
32604-23P60 |
from US $47.88 |
||
|
32604
|
32604
32604-30P60 Ring-Baulk2006-09-01 ~ 2008-07-01; 5MT; , |
32604-30P60 |
from US $46.85 |
||
|
32604
|
32604
32604-30P61 Ring-Baulk2004-10-01 ~ 2008-07-01; 5MT; 3RD |
32604-30P61 |
from US $44.49 |
||
|
32604
|
32604
32604-40P61 Ring-Baulk2004-10-01 ~ 2008-07-01; 5MT; 4TH |
32604-40P61 |
from US $43.05 |
||
|
32604
|
32604
32617-30P60 Ring-Baulk2004-10-01 ~ 2008-07-01; 5MT; REV |
32617-30P60 |
from US $46.85 |
||
|
32604+F
|
32604+F
32617-30P60 Ring-Baulk2004-10-01 ~ 2008-07-01; 5MT; REV |
32617-30P60 |
from US $46.85 |
||
|
32606
|
32606
32616-30P20 Sleeve-Coupling2004-10-01 ~ 2008-07-01; 5MT; OD |
32616-30P20 |
US $28.01 |
||
|
32606
|
32606
32606-30P10
Sleeve-Coupling
2006-09-01 ~ 2008-07-01; 5MT; , |
32606-30P10 |
— | ||
| replacement | |||||
|
32606
|
32606
32606-30P1A Sleeve-Coupling2006-09-01 ~ 2008-07-01; 5MT; , |
32606-30P1A |
from US $65.98 |
||
|
32606
|
32606
32611AA510
Sleeve-Coupling
2004-10-01 ~ 2008-07-01; 5MT; 3RD & 4TH |
32611AA510 |
— | ||
| replacement | |||||
|
32606
|
32606
32611-AA51A Sleeve-Coupling2004-10-01 ~ 2008-07-01; 5MT; 3RD & 4TH |
32611-AA51A |
from US $65.98 |
||
|
32606
|
32606
32618-30P00 Sleeve-Coupling2004-10-01 ~ 2008-07-01; 5MT; REV |
32618-30P00 |
from US $28.14 |
||
|
32608
|
32608
32615-30P60 Insert-Shifting2004-10-01 ~ 2008-07-01; 5MT; OD |
32615-30P60 |
from US $4.03 |
||
|
32608
|
32608
32609-23P00 Insert-Shifting2004-10-01 ~ 2008-07-01; 5MT; 1ST & 2ND |
32609-23P00 |
from US $1.87 |
||
|
32608
|
32608
32609-AA510 Insert-Shifting2004-10-01 ~ 2008-07-01; 5MT; 3RD & 4TH |
32609-AA510 |
from US $4.03 |
||
|
32615M
|
32615M
32214-01G21 Cone-Counter Reverse Gear2004-10-01 ~ 2008-07-01; 5MT; , |
32214-01G21 |
US $24.54 |
||
|
32701BA
|
32701BA
3272014600 Ball-Steel2004-10-01 ~ 2008-07-01; 5MT; F/COUNTER GEAR |
3272014600 |
from US $0.41 |
||
