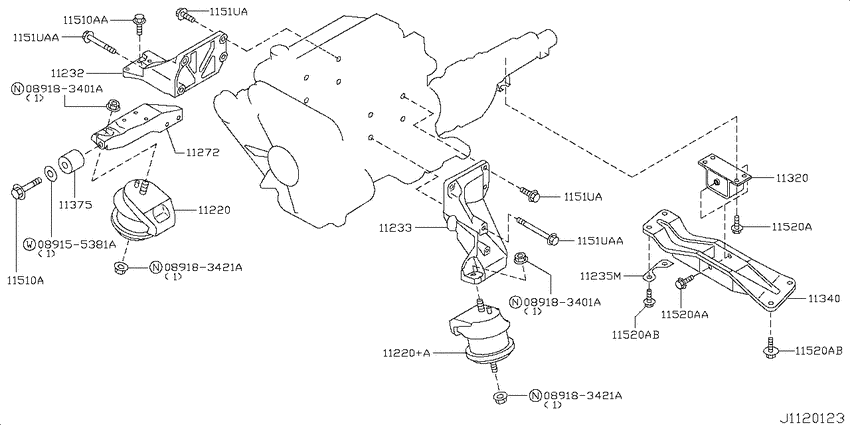

Engine & transmission mounting (2007-12-01 ~ ; 4WD.VQ35HR) Diagram Nissan FUGA
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ35HR
- drive
- 4WD
- transmission
- AT
- grade
- 350GT4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089155381A
|
089155381A
089155381A Washer-Plain |
089155381A |
US $1.90 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183421A
|
089183421A
089183421A NUT FLANGEHEX |
089183421A |
US $0.68 |
||
|
089183421A
|
089183421A
089183421A NUT FLANGEHEX |
089183421A |
US $0.68 |
||
|
11220
|
11220
11220-EG301 Insulator-Engine Mounting, Front0712--01 ~ ; 4WD.VQ35HR |
11220-EG301 |
from US $142.89 |
||
|
11220
|
11220
11220-EG30A Insulator-Engine Mounting, Front0712--01 ~ ; 4WD.VQ35HR |
11220-EG30A |
US $201.60 |
||
|
11220+A
|
11220+A
11220-EG30A Insulator-Engine Mounting, Front0712--01 ~ ; 4WD.VQ35HR |
11220-EG30A |
US $201.60 |
||
|
11232
|
11232
11232-JK500 Bracket-Engine Mounting, Rh0712--01 ~ ; 4WD.VQ35HR |
11232-JK500 |
US $97.34 |
||
|
11233
|
11233
11233-AF800 Bracket-Engine Mounting, Lh0712--01 ~ ; 4WD.VQ35HR |
11233-AF800 |
US $116.78 |
||
|
11235M
|
11235M
11384-AF800 Plate-Heat Shield0712--01 ~ ; 4WD.VQ35HR |
11384-AF800 |
US $15.26 |
||
|
11272
|
11272
11272-EG30A Bracket-Engine Mounting0712--01 ~ ; 4WD.VQ35HR |
11272-EG30A |
US $101.23 |
||
|
11320
|
11320
11320-AF800 Insulator-Engine Mounting, Rear0712--01 ~ ; 4WD.VQ35HR |
11320-AF800 |
from US $65.98 |
||
|
11340
|
11340
11310AF800 Member Assy-Engine Mounting, Rear0712--01 ~ ; 4WD.VQ35HR |
11310AF800 |
US $107.71 |
||
|
11375
|
11375
11375-CG100 Damper Assy-Dynamic0712--01 ~ ; 4WD.VQ35HR |
11375-CG100 |
US $151.20 |
||
|
11510A
|
11510A
11298-4M406 Bolt0712--01 ~ ; 4WD.VQ35HR |
11298-4M406 |
US $4.03 |
||
|
11510A
|
11510A
11213-CG100 Bolt0712--01 ~ ; 4WD.VQ35HR |
11213-CG100 |
US $3.46 |
||
|
11510AA
|
11510AA
11213-CG100 Bolt0712--01 ~ ; 4WD.VQ35HR |
11213-CG100 |
US $3.46 |
||
|
1151UA
|
1151UA
11298-4M411 Bolt0712--01 ~ ; 4WD.VQ35HR |
11298-4M411 |
from US $1.76 |
||
|
1151UA
|
1151UA
11298-2J212 Bolt0712--01 ~ ; 4WD.VQ35HR |
11298-2J212 |
US $4.03 |
||
|
1151UA
|
1151UA
11298-4M411 Bolt0712--01 ~ ; 4WD.VQ35HR |
11298-4M411 |
from US $1.76 |
||
|
1151UA
|
1151UA
11298-2J212 Bolt0712--01 ~ ; 4WD.VQ35HR |
11298-2J212 |
US $4.03 |
||
|
1151UAA
|
1151UAA
11298-2J212 Bolt0712--01 ~ ; 4WD.VQ35HR |
11298-2J212 |
US $4.03 |
||
|
1151UAA
|
1151UAA
11298-2J212 Bolt0712--01 ~ ; 4WD.VQ35HR |
11298-2J212 |
US $4.03 |
||
|
11520A
|
11520A
11298AH000 Bolt0712--01 ~ ; 4WD.VQ35HR |
11298AH000 |
US $3.46 |
||
|
11520A
|
11520A
0112502681 BOLT0712--01 ~ ; 4WD.VQ35HR |
0112502681 |
US $2.45 |
||
|
11520A
|
11520A
0112105071 BOLT0712--01 ~ ; 4WD.VQ35HR |
0112105071 |
US $2.91 |
||
|
11520AA
|
11520AA
0112502681 BOLT0712--01 ~ ; 4WD.VQ35HR |
0112502681 |
US $2.45 |
||
|
11520AB
|
11520AB
0112105071 BOLT0712--01 ~ ; 4WD.VQ35HR |
0112105071 |
US $2.91 |
||
|
11520AB
|
11520AB
0112105071 BOLT0712--01 ~ ; 4WD.VQ35HR |
0112105071 |
US $2.91 |
