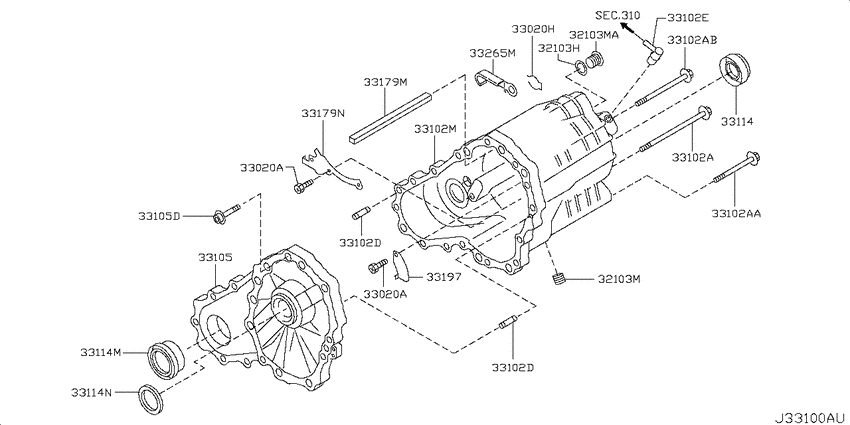

Transfer case (2007-12-01 ~ ; 4WD.VQ35HR) Diagram Nissan FUGA
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- VQ35HR
- drive
- 4WD
- transmission
- AT
- grade
- 350GT4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
32103H
|
32103H
11026-1CA0A Washer-Drain Plug0712--01 ~ ; 4WD.VQ35HR |
11026-1CA0A |
from US $3.46 |
||
|
32103M
|
32103M
3210301A0A
Plug-Drain
0712--01 ~ ; 4WD.VQ35HR |
3210301A0A |
— | ||
| replacement | |||||
|
32103M
|
32103M
32103-01A0D 3210301A0D0712--01 ~ ; 4WD.VQ35HR |
32103-01A0D |
from US $6.66 |
||
|
32103M
|
32103M
32103-MA00B Plug-Gear Oil, Filler0712--01 ~ ; 4WD.VQ35HR |
32103-MA00B |
US $7.06 |
||
|
32103MA
|
32103MA
32103-MA00B Plug-Gear Oil, Filler0712--01 ~ ; 4WD.VQ35HR |
32103-MA00B |
US $7.06 |
||
|
33020A
|
33020A
01121-04911 BOLT0712--01 ~ ; 4WD.VQ35HR |
01121-04911 |
US $0.86 |
||
|
33020A
|
33020A
01121-04911 BOLT0712--01 ~ ; 4WD.VQ35HR |
01121-04911 |
US $0.86 |
||
|
33020H
|
33020H
31506-2W510 Ring-Snap0712--01 ~ ; 4WD.VQ35HR |
31506-2W510 |
US $2.45 |
||
|
33102A
|
33102A
33201-23U0E Bolt0712--01 ~ ; 4WD.VQ35HR |
33201-23U0E |
US $2.45 |
||
|
33102A
|
33102A
33201-23U0B Bolt0712--01 ~ ; 4WD.VQ35HR |
33201-23U0B |
US $2.45 |
||
|
33102A
|
33102A
33201-23U0A Bolt0712--01 ~ ; 4WD.VQ35HR |
33201-23U0A |
US $2.45 |
||
|
33102AA
|
33102AA
33201-23U0B Bolt0712--01 ~ ; 4WD.VQ35HR |
33201-23U0B |
US $2.45 |
||
|
33102AB
|
33102AB
33201-23U0A Bolt0712--01 ~ ; 4WD.VQ35HR |
33201-23U0A |
US $2.45 |
||
|
33102D
|
33102D
04651-0818P Pin-Dowel0712--01 ~ ; 4WD.VQ35HR |
04651-0818P |
US $2.45 |
||
|
33102D
|
33102D
04651-0818P Pin-Dowel0712--01 ~ ; 4WD.VQ35HR |
04651-0818P |
US $2.45 |
||
|
33102E
|
33102E
38322-23U0A Breather0712--01 ~ ; 4WD.VQ35HR |
38322-23U0A |
US $10.80 |
||
|
33102M
|
33102M
33103-CG000 Case-Transfer, Rear0712--01 ~ ; 4WD.VQ35HR |
33103-CG000 |
US $430.46 |
||
|
33105
|
33105
33107-AQ310 Case-Transfer, Front0712--01 ~ ; 4WD.VQ35HR |
33107-AQ310 |
US $334.18 |
||
|
33105
|
33105
33159-05U1A Screw0712--01 ~ ; 4WD.VQ35HR |
33159-05U1A |
US $3.46 |
||
|
33105D
|
33105D
33159-05U1A Screw0712--01 ~ ; 4WD.VQ35HR |
33159-05U1A |
US $3.46 |
||
|
33114
|
33114
3314201J10 Seal-Oil, Transfer Case0712--01 ~ ; 4WD.VQ35HR |
3314201J10 |
from US $12.33 |
||
|
33114
|
33114
33216-CG01A Seal-Oil, Transfer Case0712--01 ~ ; 4WD.VQ35HR |
33216-CG01A |
from US $12.33 |
||
|
33114
|
33114
33111-AA400 Seal-Oil, Transfer Cover0712--01 ~ ; 4WD.VQ35HR |
33111-AA400 |
from US $12.33 |
||
|
33114M
|
33114M
33216-CG01A Seal-Oil, Transfer Case0712--01 ~ ; 4WD.VQ35HR |
33216-CG01A |
from US $12.33 |
||
|
33114N
|
33114N
33111-AA400 Seal-Oil, Transfer Cover0712--01 ~ ; 4WD.VQ35HR |
33111-AA400 |
from US $12.33 |
||
|
33179M
|
33179M
33149-CG000 Gutter-Oil0712--01 ~ ; 4WD.VQ35HR |
33149-CG000 |
US $7.06 |
||
|
33179N
|
33179N
33146-CG000 Cover-Oil0712--01 ~ ; 4WD.VQ35HR |
33146-CG000 |
US $11.95 |
||
|
33197
|
33197
33108-1CA0A Plate-Baffle0712--01 ~ ; 4WD.VQ35HR |
33108-1CA0A |
US $2.30 |
||
|
33265M
|
33265M
33265-CG00A Bracket-Transfer Cable0712--01 ~ ; 4WD.VQ35HR |
33265-CG00A |
US $8.06 |
||
