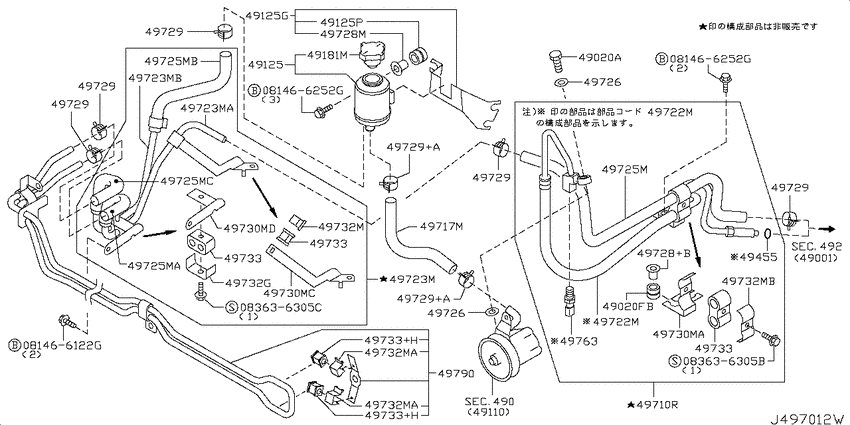

Power steering piping (2004-10-01 ~ 2006-05-01; 2WD.VQ35DE) Diagram Nissan FUGA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- VQ35DE
- drive
- 2WD
- transmission
- AT
- grade
- 350GT
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
083636305B
|
083636305B
08363-6305B
SCREWMACHINE
|
08363-6305B |
— | ||
|
083636305C
|
083636305C
08363-6305C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6305C |
— | ||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
49020A
|
49020A
49738-4W000 Bolt0410--01 ~ 0605--01; 2WD.VQ35DE |
49738-4W000 |
US $2.45 |
||
|
49020A
|
49020A
497384W00A Bolt0701--01 ~ 0712--01; (2WD+2WD/HI).VQ35DE |
497384W00A |
from US $1.31 |
||
|
49020FB
|
49020FB
18316S3260 Bush0410--01 ~ 0605--01; 2WD.VQ35DE |
18316S3260 |
from US $3.39 |
||
|
49125
|
49125
49192AA000 Tank Assy-Reservoir0410--01 ~ 0605--01; 2WD.VQ35DE |
49192AA000 |
from US $168.48 |
||
|
49125
|
49125
49190EG000 Bracket-Reservoir Tank0410--01 ~ 0605--01; 2WD.VQ35DE |
49190EG000 |
US $39.02 |
||
|
49125
|
49125
18316S3260 Bush0410--01 ~ 0605--01; 2WD.VQ35DE |
18316S3260 |
from US $3.39 |
||
|
49125G
|
49125G
49190EG000 Bracket-Reservoir Tank0410--01 ~ 0605--01; 2WD.VQ35DE |
49190EG000 |
US $39.02 |
||
|
49125P
|
49125P
18316S3260 Bush0410--01 ~ 0605--01; 2WD.VQ35DE |
18316S3260 |
from US $3.39 |
||
|
49181M
|
49181M
49181AA000 Cap Assy-Reservoir0410--01 ~ 0605--01; 2WD.VQ35DE |
49181AA000 |
from US $18.99 |
||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
49455
|
49455
4974501E00 SEAL-O RING0410--01 ~ 0605--01; 2WD.VQ35DE |
4974501E00 |
US $2.78 |
||
|
49710R
|
49710R
49710-EG000 Power steeringhose & tube set0410--01 ~ 0605--01; 2WD.VQ35DE |
49710-EG000 |
US $433.30 |
||
|
49710R
|
49710R
49710-EG00A Power steeringhose & tube set0605--01 ~ 0712--01; (2WD+2WD/HI).VQ35DE |
49710-EG00A |
US $628.99 |
||
|
49717M
|
49717M
49717-EG000 Hose Assy-Suction, Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49717-EG000 |
US $35.42 |
||
|
49722M
|
49722M
49720-EG000
Hose & tube assembly, pressure PS
0410--01 ~ 0605--01; 2WD.VQ35DE |
49720-EG000 |
— | ||
| replacement | |||||
|
49722M
|
49722M
49710-EG00A Power steeringhose & tube set0410--01 ~ 0605--01; 2WD.VQ35DE |
49710-EG00A |
US $628.99 |
||
|
49722M
|
49722M
49720-EG000
Hose & tube assembly, pressure PS
0410--01 ~ 0605--01; 2WD.VQ35DE |
49720-EG000 |
— | ||
| replacement | |||||
|
49722M
|
49722M
49710-EG00A Power steeringhose & tube set0410--01 ~ 0605--01; 2WD.VQ35DE |
49710-EG00A |
US $628.99 |
||
|
49723M
|
49723M
49721-EG000
Hose & Tube Assy-Power Steering
0410--01 ~ 0605--01; 2WD.VQ35DE |
49721-EG000 |
— | ||
|
49723M
|
49723M
49721-EG003 Hose & Tube Assy-Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49721-EG003 |
US $27.07 |
||
|
49723M
|
49723M
49721-EG004 Hose & Tube Assy-Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49721-EG004 |
US $27.07 |
||
|
49723MA
|
49723MA
49721-EG003 Hose & Tube Assy-Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49721-EG003 |
US $27.07 |
||
|
49723MB
|
49723MB
49721-EG004 Hose & Tube Assy-Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49721-EG004 |
US $27.07 |
||
|
49725M
|
49725M
49725-EG000 ﾎ-ｽ,ﾘﾀ-ﾝ ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ0410--01 ~ 0605--01; 2WD.VQ35DE |
49725-EG000 |
US $27.07 |
||
|
49725M
|
49725M
49725-EG002 Hose-Return, Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49725-EG002 |
US $27.07 |
||
|
49725M
|
49725M
49725EG003 Hose-Return, Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49725EG003 |
US $27.07 |
||
|
49725M
|
49725M
49725-EG004 Hose-Return, Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49725-EG004 |
US $27.07 |
||
|
49725MA
|
49725MA
49725-EG002 Hose-Return, Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49725-EG002 |
US $27.07 |
||
|
49725MB
|
49725MB
49725EG003 Hose-Return, Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49725EG003 |
US $27.07 |
||
|
49725MC
|
49725MC
49725-EG004 Hose-Return, Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49725-EG004 |
US $27.07 |
||
|
49726
|
49726
49726Y0100 Washer-Copper0410--01 ~ 0605--01; 2WD.VQ35DE |
49726Y0100 |
from US $1.72 |
||
|
49726
|
49726
49726Y0100 Washer-Copper0410--01 ~ 0605--01; 2WD.VQ35DE |
49726Y0100 |
from US $1.72 |
||
|
49728+B
|
49728+B
49728-55S00
Collar
0410--01 ~ 0605--01; 2WD.VQ35DE |
49728-55S00 |
— | ||
| replacement | |||||
|
49728+B
|
49728+B
49728-55S0A Collar-Insulator0410--01 ~ 0605--01; 2WD.VQ35DE |
49728-55S0A |
US $2.64 |
||
|
49728M
|
49728M
49728-55S00
Collar
0410--01 ~ 0605--01; 2WD.VQ35DE |
49728-55S00 |
— | ||
| replacement | |||||
|
49728M
|
49728M
49728-55S0A Collar-Insulator0410--01 ~ 0605--01; 2WD.VQ35DE |
49728-55S0A |
US $2.64 |
||
|
49728M
|
49728M
49728-55S0A Collar-Insulator0703--01 ~ 0712--01; (2WD+2WD/HI).VQ35DE |
49728-55S0A |
US $2.64 |
||
|
49729
|
49729
49729-2J000 Clamp0410--01 ~ 0605--01; 2WD.VQ35DE |
49729-2J000 |
US $2.45 |
||
|
49729
|
49729
49729-2J015 Clamp0410--01 ~ 0605--01; 2WD.VQ35DE |
49729-2J015 |
US $2.45 |
||
|
49729
|
49729
49729-2J000 Clamp0410--01 ~ 0605--01; 2WD.VQ35DE |
49729-2J000 |
US $2.45 |
||
|
49729
|
49729
49729-2J015 Clamp0410--01 ~ 0605--01; 2WD.VQ35DE |
49729-2J015 |
US $2.45 |
||
|
49729
|
49729
49729-2J000 Clamp0410--01 ~ 0605--01; 2WD.VQ35DE |
49729-2J000 |
US $2.45 |
||
|
49729
|
49729
49729-2J015 Clamp0410--01 ~ 0605--01; 2WD.VQ35DE |
49729-2J015 |
US $2.45 |
||
|
49729
|
49729
49729-2J000 Clamp0410--01 ~ 0605--01; 2WD.VQ35DE |
49729-2J000 |
US $2.45 |
||
|
49729
|
49729
49729-2J015 Clamp0410--01 ~ 0605--01; 2WD.VQ35DE |
49729-2J015 |
US $2.45 |
||
|
49729
|
49729
49729-2J000 Clamp0410--01 ~ 0605--01; 2WD.VQ35DE |
49729-2J000 |
US $2.45 |
||
|
49729
|
49729
49729-2J015 Clamp0410--01 ~ 0605--01; 2WD.VQ35DE |
49729-2J015 |
US $2.45 |
||
|
49729+A
|
49729+A
49729-2J015 Clamp0410--01 ~ 0605--01; 2WD.VQ35DE |
49729-2J015 |
US $2.45 |
||
|
49729+A
|
49729+A
49729-2J015 Clamp0410--01 ~ 0605--01; 2WD.VQ35DE |
49729-2J015 |
US $2.45 |
||
|
49730MA
|
49730MA
49730-EG000 ﾌﾞﾗｹﾂﾄ,ﾁﾕ-ﾌﾞ0410--01 ~ 0605--01; 2WD.VQ35DE |
49730-EG000 |
US $9.94 |
||
|
49730MC
|
49730MC
49730EG002 Bracket-Tube0410--01 ~ 0605--01; 2WD.VQ35DE |
49730EG002 |
US $9.94 |
||
|
49730MD
|
49730MD
49730-AM901 Bracket-Tube0410--01 ~ 0605--01; 2WD.VQ35DE |
49730-AM901 |
US $10.08 |
||
|
49732G
|
49732G
49732-79961 Bracket-Power Steering Tube0410--01 ~ 0605--01; 2WD.VQ35DE |
49732-79961 |
US $4.18 |
||
|
49732M
|
49732M
49732-36E00 BRACKET-POWER STEERING TUBE0410--01 ~ 0605--01; 2WD.VQ35DE |
49732-36E00 |
US $9.79 |
||
|
49732M
|
49732M
49732-36E00 BRACKET-POWER STEERING TUBE0410--01 ~ 0605--01; 2WD.VQ35DE |
49732-36E00 |
US $9.79 |
||
|
49732M
|
49732M
49732-EG00B Bracket-Tube0410--01 ~ 0605--01; 2WD.VQ35DE |
49732-EG00B |
US $10.37 |
||
|
49732MA
|
49732MA
49732-36E00 BRACKET-POWER STEERING TUBE0410--01 ~ 0605--01; 2WD.VQ35DE |
49732-36E00 |
US $9.79 |
||
|
49732MA
|
49732MA
49732-36E00 BRACKET-POWER STEERING TUBE0410--01 ~ 0605--01; 2WD.VQ35DE |
49732-36E00 |
US $9.79 |
||
|
49732MB
|
49732MB
49732-EG00B Bracket-Tube0410--01 ~ 0605--01; 2WD.VQ35DE |
49732-EG00B |
US $10.37 |
||
|
49733
|
49733
49733-01C00 Insulator0410--01 ~ 0605--01; 2WD.VQ35DE |
49733-01C00 |
US $5.33 |
||
|
49733
|
49733
49733-55M00 Insulator0410--01 ~ 0605--01; 2WD.VQ35DE |
49733-55M00 |
US $4.57 |
||
|
49733
|
49733
49733-01C00 Insulator0410--01 ~ 0605--01; 2WD.VQ35DE |
49733-01C00 |
US $5.33 |
||
|
49733
|
49733
49733-55M00 Insulator0410--01 ~ 0605--01; 2WD.VQ35DE |
49733-55M00 |
US $4.57 |
||
|
49733
|
49733
49733-01C00 Insulator0410--01 ~ 0605--01; 2WD.VQ35DE |
49733-01C00 |
US $5.33 |
||
|
49733
|
49733
49733-55M00 Insulator0410--01 ~ 0605--01; 2WD.VQ35DE |
49733-55M00 |
US $4.57 |
||
|
49733+H
|
49733+H
49733-55M00 Insulator0410--01 ~ 0605--01; 2WD.VQ35DE |
49733-55M00 |
US $4.57 |
||
|
49733+H
|
49733+H
49733-55M00 Insulator0410--01 ~ 0605--01; 2WD.VQ35DE |
49733-55M00 |
US $4.57 |
||
|
49763
|
49763
49763-6N200 Sensor Assy-Pressure, Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49763-6N200 |
US $103.82 |
||
|
49790
|
49790
49790-EG000 Oil Cooler Assy-Power Steering0410--01 ~ 0605--01; 2WD.VQ35DE |
49790-EG000 |
US $112.03 |
||
