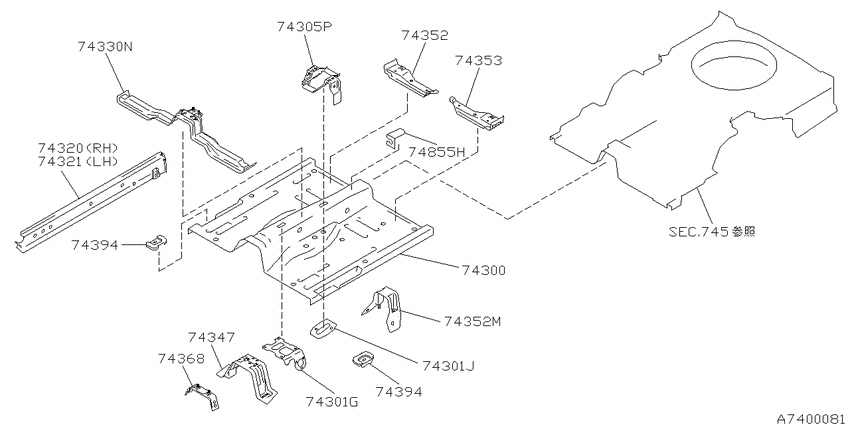

Floor panel (1993-06-01 ~ ; S) Diagram Nissan INFINITI Q45
- Year
- 1989 - 1993
- Sales region
- Japan
- Engine
- VH45D
- transmission
- AT
- grade
- LUX
- body
- S
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74300
|
74300
74312-60U30 Floor-Front8910--01 ~ 9306--01; S |
74312-60U30 |
US $1,512 |
||
|
74300
|
74300
01658-00451 PLUG-REAR FLOOR8910--01 ~ 9306--01; S |
01658-00451 |
US $4.03 |
||
|
74300
|
74300
0165800951 PLUG-FRONT FLOOR8910--01 ~ 9306--01; S |
0165800951 |
US $4.99 |
||
|
74300
|
74300
24253-M9400
Cover-Dust, Parking Brake
8910--01 ~ 9306--01; S |
24253-M9400 |
— | ||
| replacement | |||||
|
74300
|
74300
0165801361 PLUG-RUBBER8910--01 ~ 9306--01; S |
0165801361 |
US $3.18 |
||
|
74300
|
74300
01658-00551
PLUG-BLIND
8910--01 ~ 9306--01; S |
01658-00551 |
— | ||
| replacement | |||||
|
74300
|
74300
0165800155 PLUG-DOOR INNER PANEL8910--01 ~ 9306--01; S |
0165800155 |
US $3.75 |
||
|
74300
|
74300
7481601E10 PLUG-FRONT FLOOR8910--01 ~ 9306--01; S |
7481601E10 |
from US $7.35 |
||
|
74300
|
74300
74816-60U00 Plug-Front Floor9010--01 ~ 9306--01; S |
74816-60U00 |
US $1.15 |
||
|
74300
|
74300
0165801611 PLUG-BLIND8910--01 ~ 9306--01; S |
0165801611 |
US $3.06 |
||
|
74301G
|
74301G
74370-60U30 Reinforce-Transmission Control8910--01 ~ 9306--01; S |
74370-60U30 |
US $71.28 |
||
|
74301J
|
74301J
74354-60U30 Reinforce-Hand Brake & Seat Belt8910--01 ~ 9306--01; S |
74354-60U30 |
US $91.87 |
||
|
74305P
|
74305P
74386-60U00 Bracket Assy-Sensor8910--01 ~ 9306--01; S |
74386-60U00 |
US $58.75 |
||
|
74320
|
74320
76450-60U00 Sill-Inner, Rh8910--01 ~ 9306--01; S |
76450-60U00 |
US $135.07 |
||
|
74321
|
74321
76451-60U00 Sill-Inner, Lh8910--01 ~ 9306--01; S |
76451-60U00 |
US $135.07 |
||
|
74330N
|
74330N
74330-60U00 Member Assy-Cross 2Nd8910--01 ~ 9306--01; S |
74330-60U00 |
US $216 |
||
|
74347
|
74347
74360-60U00 Bracket-Rear Engine Mounting8910--01 ~ 9306--01; S |
74360-60U00 |
US $122.26 |
||
|
74352
|
74352
74350-60U30 Bracket-Front Seat Mounting, Outer Rh8910--01 ~ 9306--01; S |
74350-60U30 |
US $59.76 |
||
|
74352
|
74352
74340-60U00 Bracket-Front Seat Mounting, Inner Rh8910--01 ~ 9010--01; S |
74340-60U00 |
US $63.50 |
||
|
74352
|
74352
74340-66U00 Bracket-Front Seat Mounting, Inner Rh9010--01 ~ 9306--01; S |
74340-66U00 |
US $48.67 |
||
|
74352
|
74352
74340-66U10 Bracket-Front Seat Mounting, Inner Rh9504--01 ~ ; S |
74340-66U10 |
US $54 |
||
|
74352M
|
74352M
74340-60U00 Bracket-Front Seat Mounting, Inner Rh8910--01 ~ 9010--01; S |
74340-60U00 |
US $63.50 |
||
|
74352M
|
74352M
74340-66U00 Bracket-Front Seat Mounting, Inner Rh9010--01 ~ 9306--01; S |
74340-66U00 |
US $48.67 |
||
|
74352M
|
74352M
74340-66U10 Bracket-Front Seat Mounting, Inner Rh9504--01 ~ ; S |
74340-66U10 |
US $54 |
||
|
74353
|
74353
74351-60U30 Bracket-Front Seat Mounting, Outer Lh8910--01 ~ 9306--01; S |
74351-60U30 |
US $59.76 |
||
|
74368
|
74368
74368-60U31 Bracket Assy-Instrument Stay8910--01 ~ 9306--01; S |
74368-60U31 |
US $35.28 |
||
|
74394
|
74394
74394-60U00 Bracket-Jack Up Point8910--01 ~ 9306--01; S |
74394-60U00 |
US $7.78 |
||
|
74394
|
74394
74394-60U10 Bracket-Jack Up Point9609--01 ~ ; S |
74394-60U10 |
US $5.90 |
||
|
74394
|
74394
74394-60U00 Bracket-Jack Up Point8910--01 ~ 9306--01; S |
74394-60U00 |
US $7.78 |
||
|
74394
|
74394
74394-60U10 Bracket-Jack Up Point9609--01 ~ ; S |
74394-60U10 |
US $5.90 |
||
|
745
|
Floor panel (rear)
745
|
||||
|
745
|
Floor panel (rear)
745
|
||||
|
74855H
|
74855H
74357-60U00 Bracket-Hand Brake Lever8910--01 ~ 9306--01; S |
74357-60U00 |
US $50.54 |
||
