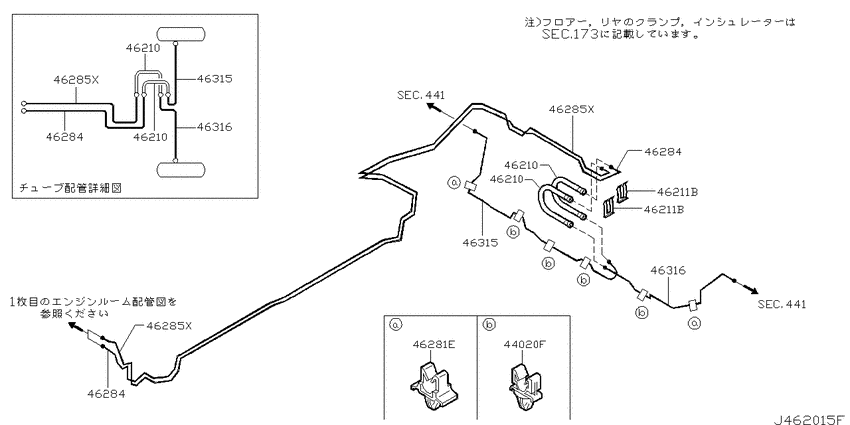

Brake piping & control (2004-12-01 ~ 2007-05-01; リヤ パイピング; W.2WD) Diagram Nissan LAFESTA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20M
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44020F
|
44020F
462893U801 Clamp0412--01 ~ 0705--01; W.2WD |
462893U801 |
US $3.46 |
||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
46210
|
46210
46214-0M817 Hose Assy-Brake0412--01 ~ 0705--01; W.2WD |
46214-0M817 |
US $20.88 |
||
|
46210
|
46210
46214-0M817 Hose Assy-Brake0412--01 ~ 0705--01; W.2WD |
46214-0M817 |
US $20.88 |
||
|
46210
|
46210
46214-0M817 Hose Assy-Brake0412--01 ~ 0705--01; W.2WD |
46214-0M817 |
US $20.88 |
||
|
46210
|
46210
46214-0M817 Hose Assy-Brake0412--01 ~ 0705--01; W.2WD |
46214-0M817 |
US $20.88 |
||
|
46211B
|
46211B
46206-2J000
Spring-Lock
0412--01 ~ 0610--01; W.2WD.20M |
46206-2J000 |
— | ||
| replacement | |||||
|
46211B
|
46211B
462062J00A Spring-Lock, Brake Hose0412--01 ~ 0610--01; W.2WD.20M |
462062J00A |
from US $0.80 |
||
|
46211B
|
46211B
462062J00A Spring-Lock, Brake Hose0610--01 ~ 0705--01; *W.2WD |
462062J00A |
from US $0.80 |
||
|
46211B
|
46211B
46206-2J000
Spring-Lock
0412--01 ~ 0610--01; W.2WD.20M |
46206-2J000 |
— | ||
| replacement | |||||
|
46211B
|
46211B
462062J00A Spring-Lock, Brake Hose0412--01 ~ 0610--01; W.2WD.20M |
462062J00A |
from US $0.80 |
||
|
46211B
|
46211B
462062J00A Spring-Lock, Brake Hose0610--01 ~ 0705--01; *W.2WD |
462062J00A |
from US $0.80 |
||
|
46281E
|
46281E
462711W214 Clamp-Tube0412--01 ~ 0705--01; W.2WD |
462711W214 |
US $4.32 |
||
|
46284
|
46284
46284-EN000 Tube Assy-Brake, Rear0412--01 ~ 0705--01; W.2WD |
46284-EN000 |
US $31.39 |
||
|
46284
|
46284
46284-EN000 Tube Assy-Brake, Rear0412--01 ~ 0705--01; W.2WD |
46284-EN000 |
US $31.39 |
||
|
46284
|
46284
46284-EN000 Tube Assy-Brake, Rear0412--01 ~ 0705--01; W.2WD |
46284-EN000 |
US $31.39 |
||
|
46285X
|
46285X
46285-EN000 Tube Assy-Brake, Rear0412--01 ~ 0705--01; W.2WD |
46285-EN000 |
US $25.20 |
||
|
46285X
|
46285X
46285-EN000 Tube Assy-Brake, Rear0412--01 ~ 0705--01; W.2WD |
46285-EN000 |
US $25.20 |
||
|
46285X
|
46285X
46285-EN000 Tube Assy-Brake, Rear0412--01 ~ 0705--01; W.2WD |
46285-EN000 |
US $25.20 |
||
|
46315
|
46315
46315-EN001
Tube Assy-Brake Rear, Rh
0412--01 ~ 0705--01; W.2WD; ﾐｷﾞ ﾖｳ |
46315-EN001 |
— | ||
|
46315
|
46315
46315EN00A Tube Assy-Brake Rear, Rh0512--01 ~ 0705--01; *W.2WD; ﾐｷﾞ ﾖｳ |
46315EN00A |
US $13.25 |
||
|
46315
|
46315
46315-EN001
Tube Assy-Brake Rear, Rh
0412--01 ~ 0705--01; W.2WD; ﾐｷﾞ ﾖｳ |
46315-EN001 |
— | ||
|
46315
|
46315
46315EN00A Tube Assy-Brake Rear, Rh0512--01 ~ 0705--01; *W.2WD; ﾐｷﾞ ﾖｳ |
46315EN00A |
US $13.25 |
||
|
46316
|
46316
46316-EN001 Tube Assy-Brake Rear, Lh0412--01 ~ 0705--01; W.2WD; ﾋﾀﾞﾘ ﾖｳ |
46316-EN001 |
US $13.25 |
||
|
46316
|
46316
46316-EN00A Tube Assy-Brake Rear, Lh0512--01 ~ 0705--01; *W.2WD; ﾋﾀﾞﾘ ﾖｳ |
46316-EN00A |
US $13.25 |
||
|
46316
|
46316
46316-EN001 Tube Assy-Brake Rear, Lh0412--01 ~ 0705--01; W.2WD; ﾋﾀﾞﾘ ﾖｳ |
46316-EN001 |
US $13.25 |
||
|
46316
|
46316
46316-EN00A Tube Assy-Brake Rear, Lh0512--01 ~ 0705--01; *W.2WD; ﾋﾀﾞﾘ ﾖｳ |
46316-EN00A |
US $13.25 |
||
