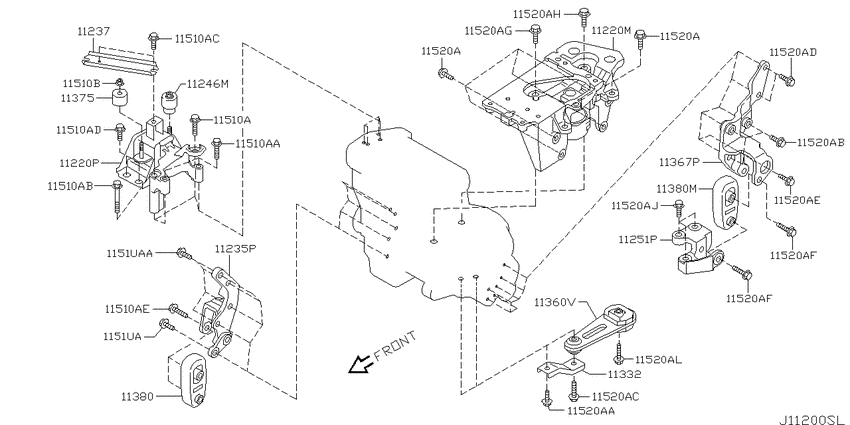

Engine & transmission mounting (2004-12-01 ~ 2007-05-01; 2WD.MR20DE) Diagram Nissan LAFESTA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20M
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11220M
|
11220M
11220-EN00A
Insulator Assy-Engine Mounting, Front Lh
0412--01 ~ 0705--01; 2WD.MR20DE |
11220-EN00A |
— | ||
| replacements | |||||
|
11220M
|
11220M
11220-CY00B Insulator-Engine Mounting, Lh0412--01 ~ 0705--01; 2WD.MR20DE |
11220-CY00B |
from US $154.97 |
||
|
11220M
|
11220M
11210-EN00D Insulator-Engine Mounting, Rh0412--01 ~ 0705--01; 2WD.MR20DE |
11210-EN00D |
US $242.58 |
||
|
11220M
|
11220M
11298EN000 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN000 |
from US $1.72 |
||
|
11220P
|
11220P
11210-EN00B
Insulator-Engine Mounting, Rh
0412--01 ~ 0705--01; 2WD.MR20DE |
11210-EN00B |
— | ||
| replacements | |||||
|
11220P
|
11220P
11210-EN00D Insulator-Engine Mounting, Rh0412--01 ~ 0705--01; 2WD.MR20DE |
11210-EN00D |
US $242.58 |
||
|
11220P
|
11220P
11298EN000 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN000 |
from US $1.72 |
||
|
11235P
|
11235P
11235EN000 Bracket-Pull Down, Rh0412--01 ~ 0705--01; 2WD.MR20DE |
11235EN000 |
US $52.42 |
||
|
11237
|
11237
11237-EN000 Stay-Engine Mounting, Rh0412--01 ~ 0604--01; 2WD.MR20DE |
11237-EN000 |
US $7.49 |
||
|
11237
|
11237
11237-JG000 Stay-Engine Mounting, Rh0604--01 ~ 0705--01; 2WD.MR20DE |
11237-JG000 |
US $7.51 |
||
|
11246M
|
11246M
11246EN00A Damper Assy-Mass0412--01 ~ 0705--01; 2WD.MR20DE |
11246EN00A |
US $88.99 |
||
|
11251P
|
11251P
11251-EN000 Support Assy-Engine Mounting, Lh0412--01 ~ 0705--01; 2WD.MR20DE |
11251-EN000 |
US $75.54 |
||
|
11332
|
11332
11332EN000 Bracket-Engine Mounting, Rear Rh0412--01 ~ 0705--01; 2WD.MR20DE |
11332EN000 |
from US $6.24 |
||
|
11360V
|
11360V
11360EN000 Rod Assy-Torque0412--01 ~ 0705--01; 2WD.MR20DE |
11360EN000 |
US $86.61 |
||
|
11367P
|
11367P
11367-EN000 Bracket-Pull Down, Lh0412--01 ~ 0705--01; 2WD.MR20DE |
11367-EN000 |
US $102.82 |
||
|
11375
|
11375
11375EN00A Damper Assy-Dynamic0412--01 ~ 0705--01; 2WD.MR20DE |
11375EN00A |
US $67.39 |
||
|
11380
|
11380
11380EN000
New Genuine Part
0412--01 ~ 0705--01; 2WD.MR20DE |
11380EN000 |
— | ||
| replacement | |||||
|
11380
|
11380
11380-EN00A ROD ASSY, PULL D0412--01 ~ 0705--01; 2WD.MR20DE |
11380-EN00A |
from US $42.05 |
||
|
11380
|
11380
11380EN000
New Genuine Part
0412--01 ~ 0705--01; 2WD.MR20DE |
11380EN000 |
— | ||
| replacement | |||||
|
11380
|
11380
11380-EN00A ROD ASSY, PULL D0412--01 ~ 0705--01; 2WD.MR20DE |
11380-EN00A |
from US $42.05 |
||
|
11380M
|
11380M
11380EN000
New Genuine Part
0412--01 ~ 0705--01; 2WD.MR20DE |
11380EN000 |
— | ||
| replacement | |||||
|
11380M
|
11380M
11380-EN00A ROD ASSY, PULL D0412--01 ~ 0705--01; 2WD.MR20DE |
11380-EN00A |
from US $42.05 |
||
|
11510A
|
11510A
01125-N1131 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N1131 |
US $3.46 |
||
|
11510A
|
11510A
01125-N1191 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N1191 |
US $3.46 |
||
|
11510A
|
11510A
01125-N1201 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N1201 |
US $3.46 |
||
|
11510A
|
11510A
01125-N8021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N8021 |
from US $0.87 |
||
|
11510A
|
11510A
11298EN000 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN000 |
from US $1.72 |
||
|
11510A
|
11510A
11298EN005 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN005 |
from US $1.76 |
||
|
11510AA
|
11510AA
01125-N1191 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N1191 |
US $3.46 |
||
|
11510AB
|
11510AB
01125-N1201 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N1201 |
US $3.46 |
||
|
11510AC
|
11510AC
01125-N8021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N8021 |
from US $0.87 |
||
|
11510AD
|
11510AD
11298EN000 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN000 |
from US $1.72 |
||
|
11510AE
|
11510AE
11298EN005 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN005 |
from US $1.76 |
||
|
11510B
|
11510B
01225N8011 Nut0412--01 ~ 0705--01; 2WD.MR20DE |
01225N8011 |
from US $0.70 |
||
|
1151UA
|
1151UA
01125E2061 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125E2061 |
US $3.46 |
||
|
1151UA
|
1151UA
11298EN003 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN003 |
US $3.46 |
||
|
1151UAA
|
1151UAA
11298EN003 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN003 |
US $3.46 |
||
|
11520A
|
11520A
01125N0121 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N0121 |
US $3.46 |
||
|
11520A
|
11520A
01125-N2711 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N2711 |
US $3.46 |
||
|
11520A
|
11520A
01125-N2721 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N2721 |
US $3.46 |
||
|
11520A
|
11520A
01125N2731 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N2731 |
from US $1.76 |
||
|
11520A
|
11520A
01125N2731 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N2731 |
from US $1.76 |
||
|
11520A
|
11520A
01125-N2741 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N2741 |
US $3.46 |
||
|
11520A
|
11520A
11298EN005 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN005 |
from US $1.76 |
||
|
11520A
|
11520A
11298EN006 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN006 |
US $4.16 |
||
|
11520A
|
11520A
11298EN007 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN007 |
US $4.16 |
||
|
11520A
|
11520A
11298-EN011 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298-EN011 |
US $3.46 |
||
|
11520A
|
11520A
11298EN013 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN013 |
from US $1.76 |
||
|
11520A
|
11520A
01125N0121 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N0121 |
US $3.46 |
||
|
11520A
|
11520A
01125-N2711 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N2711 |
US $3.46 |
||
|
11520A
|
11520A
01125-N2721 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N2721 |
US $3.46 |
||
|
11520A
|
11520A
01125N2731 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N2731 |
from US $1.76 |
||
|
11520A
|
11520A
01125N2731 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N2731 |
from US $1.76 |
||
|
11520A
|
11520A
01125-N2741 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N2741 |
US $3.46 |
||
|
11520A
|
11520A
11298EN005 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN005 |
from US $1.76 |
||
|
11520A
|
11520A
11298EN006 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN006 |
US $4.16 |
||
|
11520A
|
11520A
11298EN007 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN007 |
US $4.16 |
||
|
11520A
|
11520A
11298-EN011 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298-EN011 |
US $3.46 |
||
|
11520A
|
11520A
11298EN013 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN013 |
from US $1.76 |
||
|
11520AA
|
11520AA
01125-N2711 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N2711 |
US $3.46 |
||
|
11520AB
|
11520AB
01125-N2721 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N2721 |
US $3.46 |
||
|
11520AC
|
11520AC
01125N2731 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N2731 |
from US $1.76 |
||
|
11520AD
|
11520AD
01125N2731 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N2731 |
from US $1.76 |
||
|
11520AE
|
11520AE
01125-N2741 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N2741 |
US $3.46 |
||
|
11520AF
|
11520AF
11298EN005 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN005 |
from US $1.76 |
||
|
11520AF
|
11520AF
11298EN005 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN005 |
from US $1.76 |
||
|
11520AG
|
11520AG
11298EN006 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN006 |
US $4.16 |
||
|
11520AH
|
11520AH
11298EN007 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN007 |
US $4.16 |
||
|
11520AJ
|
11520AJ
11298-EN011 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298-EN011 |
US $3.46 |
||
|
11520AL
|
11520AL
11298EN013 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
11298EN013 |
from US $1.76 |
||
