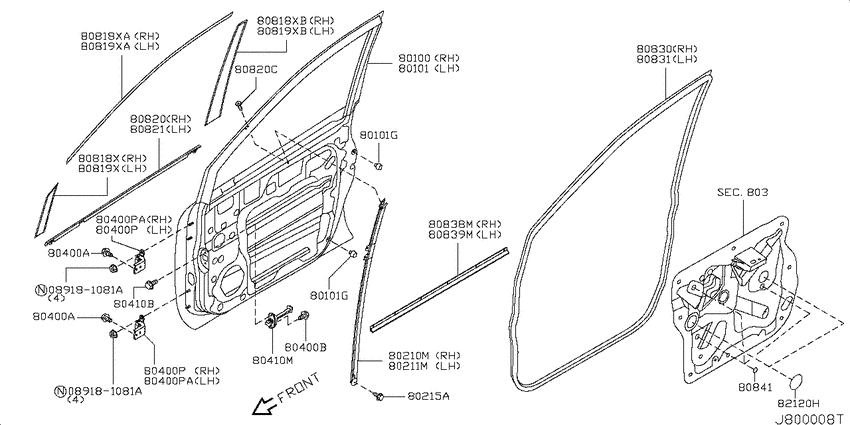

Front door panel & fitting (2004-12-01 ~ 2007-05-01; W) Diagram Nissan LAFESTA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20M
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
089181081A
|
089181081A
089181081A NUTHEX |
089181081A |
US $0.50 |
||
|
80100
|
80100
H0100-EN0MM Door-Front, Rh0412--01 ~ 0512--01; W.(20S/20G+20M+PLAYFUL) |
H0100-EN0MM |
US $744.82 |
||
|
80100
|
80100
H010MEN0MB Door-Front, Rh0512--01 ~ 0705--01; W.(20S/20G+20M+PLAYFUL) |
H010MEN0MB |
US $744.82 |
||
|
80101
|
80101
H0101-EN0MM Door-Front, Lh0412--01 ~ 0512--01; W.(20S/20G+20M+PLAYFUL) |
H0101-EN0MM |
US $744.82 |
||
|
80101
|
80101
H010AEN0MB Door-Front, Lh0512--01 ~ 0705--01; W.(20S/20G+20M+PLAYFUL) |
H010AEN0MB |
US $744.82 |
||
|
80101
|
80101
80872W1011 Bumper Rubber-Door0412--01 ~ 0705--01; W |
80872W1011 |
from US $3.32 |
||
|
80101G
|
80101G
80872W1011 Bumper Rubber-Door0412--01 ~ 0705--01; W |
80872W1011 |
from US $3.32 |
||
|
80101G
|
80101G
80872W1011 Bumper Rubber-Door0412--01 ~ 0705--01; W |
80872W1011 |
from US $3.32 |
||
|
80210M
|
80210M
80214EN000 Sash Assy-Front Door, Lower Rh0412--01 ~ 0705--01; W |
80214EN000 |
US $82.80 |
||
|
80211M
|
80211M
80215-EN000 Sash Assy-Front Door, Lower Lh0412--01 ~ 0705--01; W |
80215-EN000 |
US $82.80 |
||
|
80215A
|
80215A
01121N6211 Screw0412--01 ~ 0705--01; W |
01121N6211 |
from US $1.17 |
||
|
803
|
Front door window & regulator
803
|
||||
|
80400A
|
80400A
01121N8041 Bolt0412--01 ~ 0705--01; W |
01121N8041 |
from US $0.57 |
||
|
80400A
|
80400A
01121N8041 Bolt0412--01 ~ 0705--01; W |
01121N8041 |
from US $0.57 |
||
|
80400B
|
80400B
80498-40U00
Bolt
0412--01 ~ 0612--01; W |
80498-40U00 |
— | ||
| replacement | |||||
|
80400B
|
80400B
80498-40U0B Bolt0412--01 ~ 0612--01; W |
80498-40U0B |
from US $0.87 |
||
|
80400B
|
80400B
80498-40U0A Bolt0612--01 ~ 0705--01; W |
80498-40U0A |
US $2.45 |
||
|
80400P
|
80400P
82420-4P000 Hinge Assy-Rear Door0412--01 ~ 0705--01; W; UPR LH & LWR RH |
82420-4P000 |
US $29.52 |
||
|
80400P
|
80400P
82421-4P000 Hinge Assy-Rear Door0412--01 ~ 0705--01; W; UPR RH & LWR LH |
82421-4P000 |
US $29.52 |
||
|
80400P
|
80400P
82420-4P000 Hinge Assy-Rear Door0412--01 ~ 0705--01; W; UPR LH & LWR RH |
82420-4P000 |
US $29.52 |
||
|
80400P
|
80400P
82421-4P000 Hinge Assy-Rear Door0412--01 ~ 0705--01; W; UPR RH & LWR LH |
82421-4P000 |
US $29.52 |
||
|
80400PA
|
80400PA
82421-4P000 Hinge Assy-Rear Door0412--01 ~ 0705--01; W; UPR RH & LWR LH |
82421-4P000 |
US $29.52 |
||
|
80400PA
|
80400PA
82421-4P000 Hinge Assy-Rear Door0412--01 ~ 0705--01; W; UPR RH & LWR LH |
82421-4P000 |
US $29.52 |
||
|
80410B
|
80410B
01121-07261 BOLT0412--01 ~ 0705--01; W |
01121-07261 |
from US $0.72 |
||
|
80410M
|
80410M
80430-EN000 Link-Door Stopper0412--01 ~ 0705--01; W |
80430-EN000 |
US $29.66 |
||
|
80818X
|
80818X
80818EN000 Tape-Front Door Sash Rear, Rh0412--01 ~ 0705--01; W |
80818EN000 |
US $15.26 |
||
|
80818X
|
80818X
80818EN010 Tape-Front Door Sash Rear, Rh0412--01 ~ 0705--01; W |
80818EN010 |
US $44.64 |
||
|
80818X
|
80818X
80818EN020 Tape-Front Door Sash Rear, Rh0412--01 ~ 0705--01; W |
80818EN020 |
US $44.64 |
||
|
80818XA
|
80818XA
80818EN010 Tape-Front Door Sash Rear, Rh0412--01 ~ 0705--01; W |
80818EN010 |
US $44.64 |
||
|
80818XB
|
80818XB
80818EN020 Tape-Front Door Sash Rear, Rh0412--01 ~ 0705--01; W |
80818EN020 |
US $44.64 |
||
|
80819X
|
80819X
80819EN000 Tape-Front Door Sash Rear, Lh0412--01 ~ 0705--01; W |
80819EN000 |
US $15.26 |
||
|
80819X
|
80819X
80819EN010 Tape-Front Door Sash Rear, Lh0412--01 ~ 0705--01; W |
80819EN010 |
US $44.64 |
||
|
80819X
|
80819X
80819EN020 Tape-Front Door Sash Rear, Lh0412--01 ~ 0705--01; W |
80819EN020 |
US $44.64 |
||
|
80819XA
|
80819XA
80819EN010 Tape-Front Door Sash Rear, Lh0412--01 ~ 0705--01; W |
80819EN010 |
US $44.64 |
||
|
80819XB
|
80819XB
80819EN020 Tape-Front Door Sash Rear, Lh0412--01 ~ 0705--01; W |
80819EN020 |
US $44.64 |
||
|
80820
|
80820
80820EN000 Moulding Assy-Front Door Outside, Rh0412--01 ~ 0705--01; W |
80820EN000 |
US $62.35 |
||
|
80820
|
80820
01141N5041 Screw0412--01 ~ 0705--01; W |
01141N5041 |
US $1.73 |
||
|
80820C
|
80820C
01141N5041 Screw0412--01 ~ 0705--01; W |
01141N5041 |
US $1.73 |
||
|
80821
|
80821
80821EN000 Moulding Assy-Front Door Outside, Lh0412--01 ~ 0705--01; W |
80821EN000 |
US $62.35 |
||
|
80830
|
80830
80830-EN000 Weatherstrip-Front Door, Rh0412--01 ~ 0705--01; W |
80830-EN000 |
US $93.17 |
||
|
80831
|
80831
80831EN000 Weatherstrip-Front Door, Lh0412--01 ~ 0705--01; W |
80831EN000 |
US $93.17 |
||
|
80838M
|
80838M
80838-EN000 Seal-Front Door Parting, Rh0412--01 ~ 0705--01; W |
80838-EN000 |
US $48.38 |
||
|
80839M
|
80839M
80839EN000 Seal-Front Door Parting, Lh0412--01 ~ 0705--01; W |
80839EN000 |
US $48.38 |
||
|
80841
|
80841
64891W5000 Plug-Rubber0412--01 ~ 0705--01; W |
64891W5000 |
from US $0.80 |
||
|
82120H
|
82120H
80895-R8000 Cover-Hole0412--01 ~ 0705--01; W |
80895-R8000 |
US $1.73 |
||
