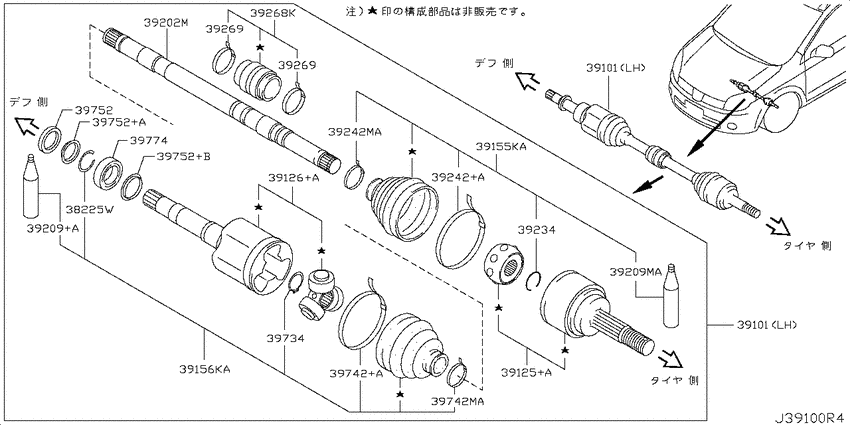

Front drive shaft (ff) (2004-12-01 ~ 2007-05-01; 左側; 2WD.MR20DE) Diagram Nissan LAFESTA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20M
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38225W
|
38225W
3822530R00 Circlip-Side Gear0412--01 ~ 0705--01; 2WD.MR20DE |
3822530R00 |
US $1.73 |
||
|
39101
|
39101
39101EN000 Shaft Assy-Front Drive, Lh0412--01 ~ 0705--01; 2WD.MR20DE |
39101EN000 |
US $978.46 |
||
|
39101
|
39101
39101EN000 Shaft Assy-Front Drive, Lh0412--01 ~ 0705--01; 2WD.MR20DE |
39101EN000 |
US $978.46 |
||
|
39125+A
|
39125+A
39211-CN000
Joint Assy-Outer
0412--01 ~ 0705--01; 2WD.MR20DE |
39211-CN000 |
— | ||
| replacement | |||||
|
39125+A
|
39125+A
39211-CN00A 39211CN00A0412--01 ~ 0705--01; 2WD.MR20DE |
39211-CN00A |
US $516.97 |
||
|
39126+A
|
39126+A
39711-EN000 Joint Assy-Inner0412--01 ~ 0705--01; 2WD.MR20DE |
39711-EN000 |
from US $179.99 |
||
|
39155KA
|
39155KA
392419Y028 Repair Kit-Dust Boot, Outer0412--01 ~ 0705--01; 2WD.MR20DE |
392419Y028 |
US $81.36 |
||
|
39156KA
|
39156KA
39741EN025
Repair Kit-Dust B00T, Inner
0412--01 ~ 0705--01; 2WD.MR20DE |
39741EN025 |
— | ||
| replacement | |||||
|
39156KA
|
39156KA
C974AEN02H REPAIR KITDUST0412--01 ~ 0705--01; 2WD.MR20DE |
C974AEN02H |
from US $53.82 |
||
|
39202M
|
39202M
39204-EN000 Shaft-Front Drive, Rh0412--01 ~ 0705--01; 2WD.MR20DE |
39204-EN000 |
US $236.16 |
||
|
39209+A
|
39209+A
C9709-CG020 Grease-Inner0412--01 ~ 0705--01; 2WD.MR20DE |
C9709-CG020 |
US $25.91 |
||
|
39209MA
|
39209MA
C9209-9Y015 Grease-Outer0412--01 ~ 0705--01; 2WD.MR20DE |
C9209-9Y015 |
US $20.23 |
||
|
39234
|
39234
39234-9Y016 Circlip-Drive Shaft0412--01 ~ 0705--01; 2WD.MR20DE |
39234-9Y016 |
US $3.17 |
||
|
39242+A
|
39242+A
392429Y010 Band-Boot, Drive Shaft Outer0412--01 ~ 0705--01; 2WD.MR20DE.(20S/20G+20M+PLAYFUL) |
392429Y010 |
US $6.51 |
||
|
39242MA
|
39242MA
39242-9Y015 Band-Boot, Drive Shaft0412--01 ~ 0705--01; 2WD.MR20DE.(20S/20G+20M+PLAYFUL) |
39242-9Y015 |
US $19.44 |
||
|
39268K
|
39268K
392685U025 Damper Kit-Dynamic, Front Drive Shaft0412--01 ~ 0705--01; 2WD.MR20DE |
392685U025 |
US $39.89 |
||
|
39268K
|
39268K
392685U025 Damper Kit-Dynamic, Front Drive Shaft0412--01 ~ 0705--01; 2WD.MR20DE |
392685U025 |
US $39.89 |
||
|
39269
|
39269
3926911A10 Band-Damper0412--01 ~ 0705--01; 2WD.MR20DE |
3926911A10 |
US $9.50 |
||
|
39269
|
39269
3926911A10 Band-Damper0412--01 ~ 0705--01; 2WD.MR20DE |
3926911A10 |
US $9.50 |
||
|
39734
|
39734
39708-EN000 Ring-Snap0412--01 ~ 0705--01; 2WD.MR20DE |
39708-EN000 |
US $1.58 |
||
|
39742+A
|
39742+A
39742EN000 Band-Boot, Drive Shaft Inner0412--01 ~ 0705--01; 2WD.MR20DE |
39742EN000 |
US $4.99 |
||
|
39742MA
|
39742MA
39742EN001
Band-Boot, Drive Shaft Inner
0412--01 ~ 0705--01; 2WD.MR20DE |
39742EN001 |
— | ||
| replacement | |||||
|
39742MA
|
39742MA
C974AEN02H REPAIR KITDUST0412--01 ~ 0705--01; 2WD.MR20DE |
C974AEN02H |
from US $53.82 |
||
|
39752
|
39752
39752-77A10 Shield-Dust0412--01 ~ 0705--01; 2WD.MR20DE |
39752-77A10 |
US $4.03 |
||
|
39752
|
39752
39752EN000 Shield-Dust0412--01 ~ 0705--01; 2WD.MR20DE |
39752EN000 |
US $4.03 |
||
|
39752
|
39752
39752-EN010 Shield-Dust0412--01 ~ 0705--01; 2WD.MR20DE |
39752-EN010 |
US $4.03 |
||
|
39752
|
39752
39752-10E02 SHIELD-DUST0412--01 ~ 0705--01; 2WD.MR20DE |
39752-10E02 |
US $4.03 |
||
|
39752+A
|
39752+A
39752EN000 Shield-Dust0412--01 ~ 0705--01; 2WD.MR20DE |
39752EN000 |
US $4.03 |
||
|
39752+B
|
39752+B
39752-EN010 Shield-Dust0412--01 ~ 0705--01; 2WD.MR20DE |
39752-EN010 |
US $4.03 |
||
|
39774
|
39774
39774EN000 Bearing-Support0412--01 ~ 0705--01; 2WD.MR20DE |
39774EN000 |
US $51.26 |
||
