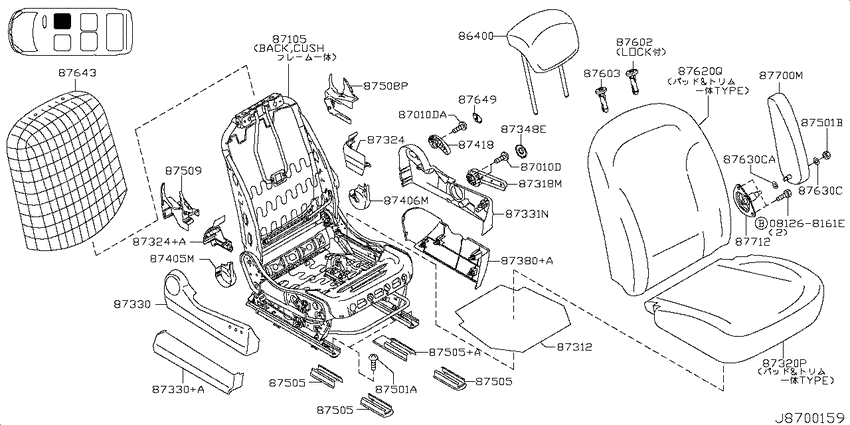

Front seat (2004-12-01 ~ 2007-05-01; RH(PAD&TRIMｲｯﾀｲ ﾀｲﾌﾟ); W.(20S/20G+20M)) Diagram Nissan LAFESTA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20M
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268161E
|
081268161E
08126-8161E
Bolt-hexagon
|
08126-8161E |
— | ||
|
86400
|
86400
86400-EN010 Headrest Assy-Front Seat0412--01 ~ 0705--01; W.(20S/20G+20M) |
86400-EN010 |
US $214.56 |
||
|
86400
|
86400
86400-EN100 Headrest Assy-Front Seat0412--01 ~ 0705--01; W.(20S/20G+20M) |
86400-EN100 |
US $214.56 |
||
|
86400
|
86400
88400-EN010 Headrest Assy-Rear Seat0412--01 ~ 0705--01; W.(20S/20G+20M) |
88400-EN010 |
US $214.56 |
||
|
86400
|
86400
88400-EN100 Headrest Assy-Rear Seat0412--01 ~ 0705--01; W.(20S/20G+20M) |
88400-EN100 |
US $214.56 |
||
|
86400
|
86400
86430-EN100 Headrest Assy-3Rd Seat0412--01 ~ 0705--01; W.(20S/20G+20M) |
86430-EN100 |
US $214.56 |
||
|
87010D
|
87010D
87183-EN000 Screw0412--01 ~ 0705--01; W.(20S/20G+20M) |
87183-EN000 |
US $2.30 |
||
|
87010D
|
87010D
87183-EN000 Screw0412--01 ~ 0705--01; W.(20S/20G+20M) |
87183-EN000 |
US $2.30 |
||
|
87010DA
|
87010DA
87183-EN000 Screw0412--01 ~ 0705--01; W.(20S/20G+20M) |
87183-EN000 |
US $2.30 |
||
|
87105
|
87105
87105-EN000 ﾌﾚｰﾑ & ｱｼﾞﾔｽﾀｰ ｱﾂｼｰ ﾌﾛﾝﾄ ｼｰﾄ rh0412--01 ~ 0509--01; *W.(20S/20G+20M) |
87105-EN000 |
US $1,103.06 |
||
|
87105
|
87105
87105-EN01A ﾌﾚｰﾑ & ｱｼﾞﾔｽﾀｰ ｱﾂｼｰ ﾌﾛﾝﾄ ｼｰﾄ rh0509--01 ~ 0705--01; W.(20S/20G+20M) |
87105-EN01A |
US $1,103.06 |
||
|
87312
|
87312
87326EN000 Supporter-Front Seat Cushion0412--01 ~ 0705--01; W.(20S/20G+20M) |
87326EN000 |
US $21.02 |
||
|
87312
|
87312
87326EN000 Supporter-Front Seat Cushion0412--01 ~ 0705--01; W.(20S/20G+20M) |
87326EN000 |
US $21.02 |
||
|
87318M
|
87318M
87318-EN000 Lever Assy-Front Seat Cushion, Rh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87318-EN000 |
US $24.91 |
||
|
87318M
|
87318M
87318-EN010 Lever Assy-Front Seat Cushion, Rh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87318-EN010 |
US $24.91 |
||
|
87320P
|
87320P
87320-EN000 ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0412--01 ~ 0504--01; W.(20S/20G+20M); [D410] |
87320-EN000 |
US $781.63 |
||
|
87320P
|
87320P
87320-EN010 ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0412--01 ~ 0504--01; W.(20S/20G+20M); [D410] |
87320-EN010 |
US $781.63 |
||
|
87320P
|
87320P
87320-EN01E ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0504--01 ~ 0705--01; W.(20S/20G+20M); [D410] |
87320-EN01E |
US $781.63 |
||
|
87320P
|
87320P
87320-EN10E ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0504--01 ~ 0705--01; W.(20S/20G+20M); [D410] |
87320-EN10E |
US $781.63 |
||
|
87320P
|
87320P
87370-EN000 ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0412--01 ~ 0504--01; W.(20S/20G+20M); [D410] |
87370-EN000 |
US $781.63 |
||
|
87320P
|
87320P
87370-EN010 ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0412--01 ~ 0504--01; W.(20S/20G+20M); [D410] |
87370-EN010 |
US $781.63 |
||
|
87320P
|
87320P
87370-EN01E ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0504--01 ~ 0705--01; W.(20S/20G+20M); [D410] |
87370-EN01E |
US $781.63 |
||
|
87320P
|
87320P
87370-EN10E ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0504--01 ~ 0705--01; W.(20S/20G+20M); [D410] |
87370-EN10E |
US $781.63 |
||
|
87324
|
87324
87323EN000 Finisher-Cushion, Front Seat Rh Front0412--01 ~ 0705--01; W.(20S/20G+20M) |
87323EN000 |
US $17.86 |
||
|
87324
|
87324
87323-EN010 Finisher-Cushion, Front Seat Rh Front0412--01 ~ 0606--01; W.(20S/20G+20M) |
87323-EN010 |
US $17.86 |
||
|
87324
|
87324
87324-EN000 Finisher-Cushion, Front Seat Rh Front0504--01 ~ 0705--01; W.(20S/20G+20M) |
87324-EN000 |
US $17.86 |
||
|
87324
|
87324
87324-EN010 Finisher-Cushion, Front Seat Rh Front0412--01 ~ 0606--01; W.(20S/20G+20M) |
87324-EN010 |
US $17.86 |
||
|
87324+A
|
87324+A
87324-EN000 Finisher-Cushion, Front Seat Rh Front0504--01 ~ 0705--01; W.(20S/20G+20M) |
87324-EN000 |
US $17.86 |
||
|
87324+A
|
87324+A
87324-EN010 Finisher-Cushion, Front Seat Rh Front0412--01 ~ 0606--01; W.(20S/20G+20M) |
87324-EN010 |
US $17.86 |
||
|
87330
|
87330
87330-EN000 Finisher Assy-Cushion, Front Seat Rh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87330-EN000 |
US $58.61 |
||
|
87330
|
87330
87330-EN010 Finisher Assy-Cushion, Front Seat Rh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87330-EN010 |
US $58.61 |
||
|
87330
|
87330
87339-EN000 Finisher Assy-Cushion, Front Seat Rh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87339-EN000 |
US $58.61 |
||
|
87330
|
87330
87339-EN010 Finisher Assy-Cushion, Front Seat Rh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87339-EN010 |
US $58.61 |
||
|
87330+A
|
87330+A
87339-EN000 Finisher Assy-Cushion, Front Seat Rh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87339-EN000 |
US $58.61 |
||
|
87330+A
|
87330+A
87339-EN010 Finisher Assy-Cushion, Front Seat Rh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87339-EN010 |
US $58.61 |
||
|
87331N
|
87331N
87331-EN000 Finisher-Cushion, Front Seat Inner Rh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87331-EN000 |
US $60.99 |
||
|
87331N
|
87331N
87331-EN010 Finisher-Cushion, Front Seat Inner Rh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87331-EN010 |
US $58.61 |
||
|
87348E
|
87348E
87348EN000 Cap-Lifter Knob0412--01 ~ 0705--01; W.(20S/20G+20M) |
87348EN000 |
US $3.31 |
||
|
87348E
|
87348E
87348-EN010 Cap-Lifter Knob0412--01 ~ 0606--01; *W.(20S/20G+20M) |
87348-EN010 |
US $3.31 |
||
|
87380+A
|
87380+A
87389-EN000 Finisher Assy-Cushion, Front Seat Lh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87389-EN000 |
US $58.61 |
||
|
87380+A
|
87380+A
87389-EN010 Finisher Assy-Cushion, Front Seat Lh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87389-EN010 |
US $58.61 |
||
|
87405M
|
87405M
87405-EN000 Cover-Reclining Device, Front Seat Otr Rh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87405-EN000 |
US $9.22 |
||
|
87405M
|
87405M
87405-EN010 Cover-Reclining Device, Front Seat Otr Rh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87405-EN010 |
US $9.22 |
||
|
87406M
|
87406M
87406-EN000 Cover-Reclining Device, Front Seat Inner0412--01 ~ 0705--01; W.(20S/20G+20M) |
87406-EN000 |
US $9.22 |
||
|
87406M
|
87406M
87406-EN010 Cover-Reclining Device, Front Seat Inner0412--01 ~ 0606--01; W.(20S/20G+20M) |
87406-EN010 |
US $9.22 |
||
|
87406M
|
87406M
87456EN000 Cover-Reclining Device, Front Seat Inner0412--01 ~ 0705--01; W.(20S/20G+20M) |
87456EN000 |
US $9.22 |
||
|
87406M
|
87406M
87456-EN010 Cover-Reclining Device, Front Seat Inner0412--01 ~ 0606--01; W.(20S/20G+20M) |
87456-EN010 |
US $9.22 |
||
|
87418
|
87418
87418-EN000 Knob-Reclining Device Lever0412--01 ~ 0705--01; W.(20S/20G+20M) |
87418-EN000 |
US $8.06 |
||
|
87418
|
87418
87418-EN010 Knob-Reclining Device Lever0412--01 ~ 0606--01; *W.(20S/20G+20M) |
87418-EN010 |
US $8.06 |
||
|
87418
|
87418
87468-EN000 Knob-Reclining Device Lever0412--01 ~ 0705--01; W.(20S/20G+20M) |
87468-EN000 |
US $8.06 |
||
|
87418
|
87418
87468EN010 Knob-Reclining Device Lever0412--01 ~ 0606--01; W.(20S/20G+20M) |
87468EN010 |
US $8.06 |
||
|
87501A
|
87501A
86899-79910 Bolt0412--01 ~ 0705--01; W.(20S/20G+20M) |
86899-79910 |
from US $1.13 |
||
|
87501B
|
87501B
87798-EN000 Nut0412--01 ~ 0705--01; W.(20S/20G+20M) |
87798-EN000 |
US $1.73 |
||
|
87505
|
87505
87505EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87505EN000 |
US $10.66 |
||
|
87505
|
87505
87505-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87505-EN010 |
US $10.66 |
||
|
87505
|
87505
87508-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87508-EN010 |
US $10.66 |
||
|
87505
|
87505
87505EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87505EN000 |
US $10.66 |
||
|
87505
|
87505
87505-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87505-EN010 |
US $10.66 |
||
|
87505
|
87505
87508-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87508-EN010 |
US $10.66 |
||
|
87505
|
87505
87505EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87505EN000 |
US $10.66 |
||
|
87505
|
87505
87505-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87505-EN010 |
US $10.66 |
||
|
87505
|
87505
87508-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87508-EN010 |
US $10.66 |
||
|
87505+A
|
87505+A
87508-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87508-EN010 |
US $10.66 |
||
|
87508P
|
87508P
87305-EN000 Cover-Seat Slide Inner, Rh0504--01 ~ 0705--01; W.(20S/20G+20M) |
87305-EN000 |
US $11.52 |
||
|
87508P
|
87508P
87305-EN010 Cover-Seat Slide Inner, Rh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87305-EN010 |
US $11.52 |
||
|
87509
|
87509
87304-EN000 Cover-Seat Slide Outer, Rh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87304-EN000 |
US $11.52 |
||
|
87509
|
87509
87304-EN010 Cover-Seat Slide Outer, Rh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87304-EN010 |
US $11.52 |
||
|
87602
|
87602
87602-EN000 Holder Assy-Headrest, Lock0412--01 ~ 0606--01; W.(20S/20G+20M) |
87602-EN000 |
US $4.18 |
||
|
87602
|
87602
87602EN010 Holder-Lock, Headrest0412--01 ~ 0606--01; W.(20S/20G+20M) |
87602EN010 |
US $4.18 |
||
|
87602
|
87602
87602-EN000 Holder Assy-Headrest, Lock0412--01 ~ 0606--01; W.(20S/20G+20M) |
87602-EN000 |
US $4.18 |
||
|
87602
|
87602
87602EN010 Holder-Lock, Headrest0412--01 ~ 0705--01; W.(20S/20G+20M) |
87602EN010 |
US $4.18 |
||
|
87603
|
87603
87603-EN000 Holder Assy-Headrest, Free0412--01 ~ 0606--01; W.(20S/20G+20M) |
87603-EN000 |
US $2.45 |
||
|
87603
|
87603
87603EN010 Holder Assy-Free, Headrest0412--01 ~ 0606--01; W.(20S/20G+20M) |
87603EN010 |
US $2.45 |
||
|
87603
|
87603
87603-EN000 Holder Assy-Headrest, Free0412--01 ~ 0606--01; W.(20S/20G+20M) |
87603-EN000 |
US $2.45 |
||
|
87603
|
87603
87603EN010 Holder Assy-Free, Headrest0412--01 ~ 0606--01; W.(20S/20G+20M) |
87603EN010 |
US $2.45 |
||
|
87620Q
|
87620Q
87620-EN000 ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0412--01 ~ 0705--01; W.(20S/20G+20M); [D410] |
87620-EN000 |
US $781.63 |
||
|
87620Q
|
87620Q
87620-EN010 ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0412--01 ~ 0705--01; W.(20S/20G+20M); [D410] |
87620-EN010 |
US $781.63 |
||
|
87620Q
|
87620Q
87670-EN000 ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0412--01 ~ 0705--01; W.(20S/20G+20M); [D410] |
87670-EN000 |
US $781.63 |
||
|
87620Q
|
87620Q
87670-EN010 ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0412--01 ~ 0705--01; W.(20S/20G+20M); [D410] |
87670-EN010 |
US $781.63 |
||
|
87630C
|
87630C
87792-EN000 Washer-Plain0412--01 ~ 0705--01; W.(20S/20G+20M) |
87792-EN000 |
US $2.45 |
||
|
87630C
|
87630C
87792-EN00A Washer0504--01 ~ 0705--01; W.(20S/20G+20M) |
87792-EN00A |
US $3.31 |
||
|
87630CA
|
87630CA
87792-EN00A Washer0504--01 ~ 0705--01; W.(20S/20G+20M) |
87792-EN00A |
US $3.31 |
||
|
87643
|
87643
87643EN000 Supporter-Front Seat Back0412--01 ~ 0705--01; *W.(20S/20G+20M) |
87643EN000 |
US $23.47 |
||
|
87643
|
87643
87643EN000 Supporter-Front Seat Back0412--01 ~ 0705--01; W.(20S/20G+20M) |
87643EN000 |
US $23.47 |
||
|
87649
|
87649
87349-EN000 Cap0412--01 ~ 0705--01; W.(20S/20G+20M) |
87349-EN000 |
US $3.31 |
||
|
87649
|
87649
87349-EN010 Cap0412--01 ~ 0606--01; *W.(20S/20G+20M) |
87349-EN010 |
US $3.31 |
||
|
87649
|
87649
87649EN010 Cap0412--01 ~ 0606--01; W.(20S/20G+20M) |
87649EN010 |
US $3.31 |
||
|
87649
|
87649
87649-EN000 Cap0412--01 ~ 0705--01; W.(20S/20G+20M) |
87649-EN000 |
US $3.31 |
||
|
87649
|
87649
87649EN010 Cap0412--01 ~ 0705--01; W.20M |
87649EN010 |
US $3.31 |
||
|
87700M
|
87700M
87700-EN000 ｱ-ﾑﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ rh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87700-EN000 |
US $116.93 |
||
|
87700M
|
87700M
87700-EN010 ｱ-ﾑﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ rh0412--01 ~ 0705--01; *W.20M |
87700-EN010 |
US $116.93 |
||
|
87712
|
87712
87712-EN000 Stopper Assy-Armrest0412--01 ~ 0705--01; W.(20S/20G+20M) |
87712-EN000 |
US $9.22 |
