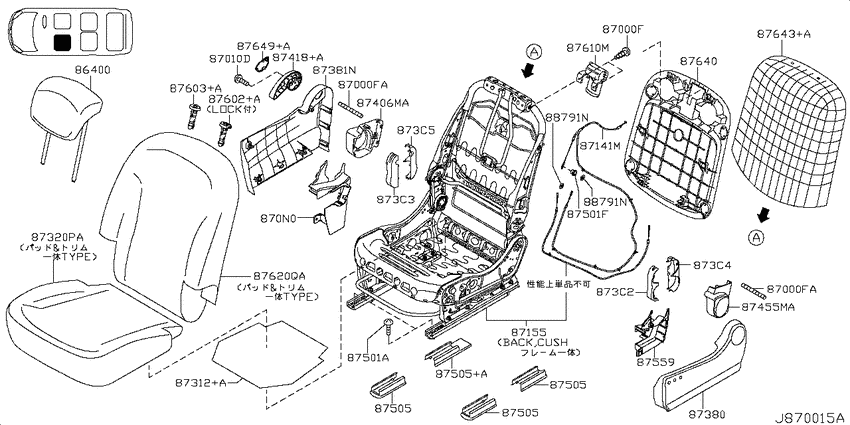

Front seat (2004-12-01 ~ 2007-05-01; LH(PAD&TRIMｲｯﾀｲ ﾀｲﾌﾟ); W.(20S/20G+20M)) Diagram Nissan LAFESTA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20M
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86400
|
86400
86400-EN010 Headrest Assy-Front Seat0412--01 ~ 0705--01; W.(20S/20G+20M) |
86400-EN010 |
US $214.56 |
||
|
86400
|
86400
86400-EN100 Headrest Assy-Front Seat0412--01 ~ 0705--01; W.(20S/20G+20M) |
86400-EN100 |
US $214.56 |
||
|
86400
|
86400
88400-EN010 Headrest Assy-Rear Seat0412--01 ~ 0705--01; W.(20S/20G+20M) |
88400-EN010 |
US $214.56 |
||
|
86400
|
86400
88400-EN100 Headrest Assy-Rear Seat0412--01 ~ 0705--01; W.(20S/20G+20M) |
88400-EN100 |
US $214.56 |
||
|
86400
|
86400
86430-EN100 Headrest Assy-3Rd Seat0412--01 ~ 0705--01; W.(20S/20G+20M) |
86430-EN100 |
US $214.56 |
||
|
87000F
|
87000F
87184-EN000 Screw0412--01 ~ 0705--01; W.(20S/20G+20M) |
87184-EN000 |
US $1.01 |
||
|
87000F
|
87000F
88795-EN00A Screw0504--01 ~ 0705--01; W.(20S/20G+20M) |
88795-EN00A |
US $1.15 |
||
|
87000FA
|
87000FA
88795-EN00A Screw0504--01 ~ 0705--01; W.(20S/20G+20M) |
88795-EN00A |
US $1.15 |
||
|
87000FA
|
87000FA
88795-EN00A Screw0504--01 ~ 0705--01; W.(20S/20G+20M) |
88795-EN00A |
US $1.15 |
||
|
87010D
|
87010D
87183-EN000 Screw0412--01 ~ 0705--01; W.(20S/20G+20M) |
87183-EN000 |
US $2.30 |
||
|
87010D
|
87010D
87183-EN000 Screw0412--01 ~ 0705--01; W.(20S/20G+20M) |
87183-EN000 |
US $2.30 |
||
|
870N0
|
870N0
87357-EN000 Cover-Front Seat Cushion0412--01 ~ 0705--01; W.(20S/20G+20M) |
87357-EN000 |
US $44.78 |
||
|
870N0
|
870N0
87357-EN010 Cover-Front Seat Cushion0412--01 ~ 0606--01; W.(20S/20G+20M) |
87357-EN010 |
US $44.78 |
||
|
87141M
|
87141M
87141-EN00A Wire Assy-Reclining Device Lh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87141-EN00A |
US $37.01 |
||
|
87155
|
87155
87155-EN000 ﾌﾚｰﾑ & ｱｼﾞﾔｽﾀｰ ｱﾂｼｰ ﾌﾛﾝﾄ ｼｰﾄ lh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87155-EN000 |
US $1,045.01 |
||
|
87312+A
|
87312+A
87326EN000 Supporter-Front Seat Cushion0412--01 ~ 0705--01; W.(20S/20G+20M) |
87326EN000 |
US $21.02 |
||
|
87320PA
|
87320PA
87370-EN000 ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0412--01 ~ 0504--01; W.(20S/20G+20M); [D410] |
87370-EN000 |
US $781.63 |
||
|
87320PA
|
87320PA
87370-EN010 ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0412--01 ~ 0504--01; W.(20S/20G+20M); [D410] |
87370-EN010 |
US $781.63 |
||
|
87320PA
|
87320PA
87370-EN01E ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0504--01 ~ 0705--01; W.(20S/20G+20M); [D410] |
87370-EN01E |
US $781.63 |
||
|
87320PA
|
87320PA
87370-EN10E ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0504--01 ~ 0705--01; W.(20S/20G+20M); [D410] |
87370-EN10E |
US $781.63 |
||
|
87380
|
87380
87380EN000 Finisher Assy-Cushion, Front Seat Lh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87380EN000 |
US $58.61 |
||
|
87380
|
87380
87380-EN010 Finisher Assy-Cushion, Front Seat Lh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87380-EN010 |
US $58.61 |
||
|
87380
|
87380
87389-EN000 Finisher Assy-Cushion, Front Seat Lh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87389-EN000 |
US $58.61 |
||
|
87380
|
87380
87389-EN010 Finisher Assy-Cushion, Front Seat Lh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87389-EN010 |
US $58.61 |
||
|
87381N
|
87381N
87381-EN000 Finisher-Cushion, Front Seat Inner Lh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87381-EN000 |
US $88.27 |
||
|
87381N
|
87381N
87381-EN010 Finisher-Cushion, Front Seat Inner Lh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87381-EN010 |
US $88.27 |
||
|
873C2
|
873C2
873C2EN000 Cover-Link, Front Outer0412--01 ~ 0705--01; W.(20S/20G+20M) |
873C2EN000 |
US $22.46 |
||
|
873C2
|
873C2
873C2-EN010 Cover-Link, Front Outer0412--01 ~ 0606--01; W.(20S/20G+20M) |
873C2-EN010 |
US $22.46 |
||
|
873C3
|
873C3
873C3EN000 Cover-Link, Front Inner0412--01 ~ 0705--01; W.(20S/20G+20M) |
873C3EN000 |
US $22.46 |
||
|
873C3
|
873C3
873C3-EN010 Cover-Link, Front Inner0412--01 ~ 0606--01; W.(20S/20G+20M) |
873C3-EN010 |
US $22.46 |
||
|
873C4
|
873C4
873C4EN000 Cover-Link, Rear Outer0412--01 ~ 0705--01; W.(20S/20G+20M) |
873C4EN000 |
US $22.46 |
||
|
873C4
|
873C4
873C4-EN010 Cover-Link, Rear Outer0412--01 ~ 0606--01; W.(20S/20G+20M) |
873C4-EN010 |
US $22.46 |
||
|
873C5
|
873C5
873C5EN000 Cover-Link, Rear Inner0412--01 ~ 0705--01; W.(20S/20G+20M) |
873C5EN000 |
US $22.46 |
||
|
873C5
|
873C5
873C5-EN010 Cover-Link, Rear Inner0412--01 ~ 0606--01; W.(20S/20G+20M) |
873C5-EN010 |
US $22.46 |
||
|
87406MA
|
87406MA
87456EN000 Cover-Reclining Device, Front Seat Inner0412--01 ~ 0705--01; W.(20S/20G+20M) |
87456EN000 |
US $9.22 |
||
|
87406MA
|
87406MA
87456-EN010 Cover-Reclining Device, Front Seat Inner0412--01 ~ 0606--01; W.(20S/20G+20M) |
87456-EN010 |
US $9.22 |
||
|
87418+A
|
87418+A
87468-EN000 Knob-Reclining Device Lever0412--01 ~ 0705--01; W.(20S/20G+20M) |
87468-EN000 |
US $8.06 |
||
|
87418+A
|
87418+A
87468EN010 Knob-Reclining Device Lever0412--01 ~ 0606--01; W.(20S/20G+20M) |
87468EN010 |
US $8.06 |
||
|
87455MA
|
87455MA
87455-EN000 Cover-Reclining Device, Front Seat Otr Lh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87455-EN000 |
US $9.22 |
||
|
87455MA
|
87455MA
87455-EN010 Cover-Reclining Device, Front Seat Otr Lh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87455-EN010 |
US $9.22 |
||
|
87501A
|
87501A
86899-79910 Bolt0412--01 ~ 0705--01; W.(20S/20G+20M) |
86899-79910 |
from US $1.13 |
||
|
87501F
|
87501F
87182-EN000 Nut0412--01 ~ 0705--01; W.(20S/20G+20M) |
87182-EN000 |
US $1.73 |
||
|
87505
|
87505
87505EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87505EN000 |
US $10.66 |
||
|
87505
|
87505
87505-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87505-EN010 |
US $10.66 |
||
|
87505
|
87505
87508-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87508-EN010 |
US $10.66 |
||
|
87505
|
87505
87505EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87505EN000 |
US $10.66 |
||
|
87505
|
87505
87505-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87505-EN010 |
US $10.66 |
||
|
87505
|
87505
87508-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87508-EN010 |
US $10.66 |
||
|
87505
|
87505
87505EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87505EN000 |
US $10.66 |
||
|
87505
|
87505
87505-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87505-EN010 |
US $10.66 |
||
|
87505
|
87505
87508-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87508-EN010 |
US $10.66 |
||
|
87505+A
|
87505+A
87508-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(20S/20G+20M) |
87508-EN010 |
US $10.66 |
||
|
87559
|
87559
87306-EN000 Cover-Seat Slide Outer, Lh0412--01 ~ 0705--01; W.(20S/20G+20M) |
87306-EN000 |
US $11.52 |
||
|
87559
|
87559
87306-EN010 Cover-Seat Slide Outer, Lh0412--01 ~ 0606--01; W.(20S/20G+20M) |
87306-EN010 |
US $11.52 |
||
|
87602+A
|
87602+A
87602-EN000 Holder Assy-Headrest, Lock0412--01 ~ 0606--01; W.(20S/20G+20M) |
87602-EN000 |
US $4.18 |
||
|
87602+A
|
87602+A
87602EN010 Holder-Lock, Headrest0412--01 ~ 0705--01; W.(20S/20G+20M) |
87602EN010 |
US $4.18 |
||
|
87603+A
|
87603+A
87603-EN000 Holder Assy-Headrest, Free0412--01 ~ 0606--01; W.(20S/20G+20M) |
87603-EN000 |
US $2.45 |
||
|
87603+A
|
87603+A
87603EN010 Holder Assy-Free, Headrest0412--01 ~ 0606--01; W.(20S/20G+20M) |
87603EN010 |
US $2.45 |
||
|
87610M
|
87610M
87610-EN00B ﾚﾊﾞ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0412--01 ~ 0705--01; W.(20S/20G+20M) |
87610-EN00B |
US $6.91 |
||
|
87610M
|
87610M
87610-EN01B ﾚﾊﾞ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0412--01 ~ 0705--01; W.(20S/20G+20M) |
87610-EN01B |
US $6.91 |
||
|
87620QA
|
87620QA
87670-EN000 ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0412--01 ~ 0705--01; W.(20S/20G+20M); [D410] |
87670-EN000 |
US $781.63 |
||
|
87620QA
|
87620QA
87670-EN010 ﾄﾘﾑ & ﾊﾟﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0412--01 ~ 0705--01; W.(20S/20G+20M); [D410] |
87670-EN010 |
US $781.63 |
||
|
87640
|
87640
87690-EN000 Board Assy-Front Seat Back0412--01 ~ 0705--01; W.(20S/20G+20M) |
87690-EN000 |
US $116.93 |
||
|
87640
|
87640
87690-EN010 Board Assy-Front Seat Back0412--01 ~ 0606--01; W.(20S/20G+20M) |
87690-EN010 |
US $116.93 |
||
|
87643+A
|
87643+A
87643EN000 Supporter-Front Seat Back0412--01 ~ 0705--01; W.(20S/20G+20M) |
87643EN000 |
US $23.47 |
||
|
87649+A
|
87649+A
87649-EN000 Cap0412--01 ~ 0705--01; W.(20S/20G+20M) |
87649-EN000 |
US $3.31 |
||
|
87649+A
|
87649+A
87649EN010 Cap0412--01 ~ 0705--01; W.20M |
87649EN010 |
US $3.31 |
||
|
88791N
|
88791N
88791-EN000 ﾘﾝｸﾞ0412--01 ~ 0705--01; W.(20S/20G+20M) |
88791-EN000 |
US $2.30 |
||
|
88791N
|
88791N
88791-EN000 ﾘﾝｸﾞ0412--01 ~ 0705--01; W.(20S/20G+20M) |
88791-EN000 |
US $2.30 |
