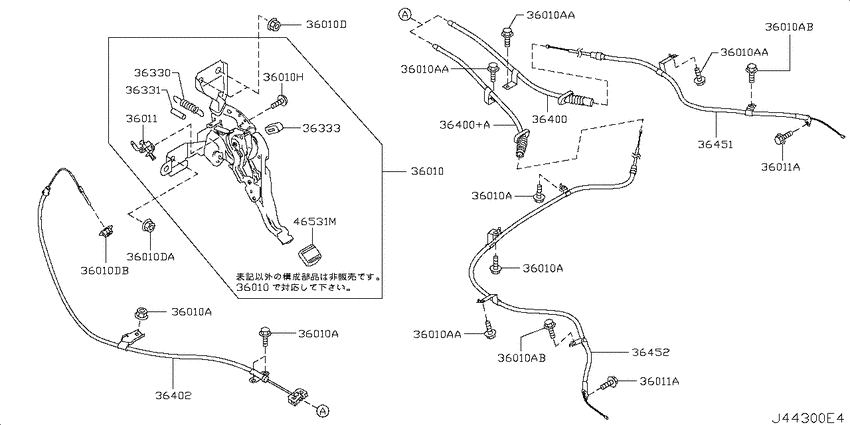

Parking brake control (2006-10-01 ~ 2007-05-01; 2WD.MR20DE) Diagram Nissan LAFESTA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20M
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36010
|
36010
36010-EN000 Device Assy-Parking Brake Control0412--01 ~ 0705--01; 2WD.MR20DE |
36010-EN000 |
US $175.68 |
||
|
36010
|
36010
01125N8031 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N8031 |
from US $1.41 |
||
|
36010
|
36010
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010
|
36010
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010
|
36010
01225N8011 Nut0412--01 ~ 0705--01; 2WD.MR20DE |
01225N8011 |
from US $0.70 |
||
|
36010
|
36010
01225N8011 Nut0412--01 ~ 0705--01; 2WD.MR20DE |
01225N8011 |
from US $0.70 |
||
|
36010
|
36010
0122500901 NUT0412--01 ~ 0705--01; 2WD.MR20DE |
0122500901 |
from US $0.72 |
||
|
36010
|
36010
0145400431 SCREW0412--01 ~ 0705--01; 2WD.MR20DE |
0145400431 |
US $1.73 |
||
|
36010
|
36010
36010-EN000 Device Assy-Parking Brake Control0412--01 ~ 0705--01; 2WD.MR20DE |
36010-EN000 |
US $175.68 |
||
|
36010
|
36010
01125N8031 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N8031 |
from US $1.41 |
||
|
36010
|
36010
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010
|
36010
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010
|
36010
01225N8011 Nut0412--01 ~ 0705--01; 2WD.MR20DE |
01225N8011 |
from US $0.70 |
||
|
36010
|
36010
01225N8011 Nut0412--01 ~ 0705--01; 2WD.MR20DE |
01225N8011 |
from US $0.70 |
||
|
36010
|
36010
0122500901 NUT0412--01 ~ 0705--01; 2WD.MR20DE |
0122500901 |
from US $0.72 |
||
|
36010
|
36010
0145400431 SCREW0412--01 ~ 0705--01; 2WD.MR20DE |
0145400431 |
US $1.73 |
||
|
36010A
|
36010A
01125N8031 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N8031 |
from US $1.41 |
||
|
36010A
|
36010A
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010A
|
36010A
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010A
|
36010A
01125N8031 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N8031 |
from US $1.41 |
||
|
36010A
|
36010A
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010A
|
36010A
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010A
|
36010A
01125N8031 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N8031 |
from US $1.41 |
||
|
36010A
|
36010A
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010A
|
36010A
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010A
|
36010A
01125N8031 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N8031 |
from US $1.41 |
||
|
36010A
|
36010A
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010A
|
36010A
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010AA
|
36010AA
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010AA
|
36010AA
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010AA
|
36010AA
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010AA
|
36010AA
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010AB
|
36010AB
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010AB
|
36010AB
01125N6021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N6021 |
US $1.61 |
||
|
36010D
|
36010D
01225N8011 Nut0412--01 ~ 0705--01; 2WD.MR20DE |
01225N8011 |
from US $0.70 |
||
|
36010D
|
36010D
01225N8011 Nut0412--01 ~ 0705--01; 2WD.MR20DE |
01225N8011 |
from US $0.70 |
||
|
36010D
|
36010D
0122500901 NUT0412--01 ~ 0705--01; 2WD.MR20DE |
0122500901 |
from US $0.72 |
||
|
36010DA
|
36010DA
01225N8011 Nut0412--01 ~ 0705--01; 2WD.MR20DE |
01225N8011 |
from US $0.70 |
||
|
36010DB
|
36010DB
0122500901 NUT0412--01 ~ 0705--01; 2WD.MR20DE |
0122500901 |
from US $0.72 |
||
|
36010H
|
36010H
0145400431 SCREW0412--01 ~ 0705--01; 2WD.MR20DE |
0145400431 |
US $1.73 |
||
|
36011
|
36011
3601130R00 Switch Assy-Parking Brake Lamp0412--01 ~ 0705--01; 2WD.MR20DE |
3601130R00 |
US $8.64 |
||
|
36011
|
36011
01125N8031 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N8031 |
from US $1.41 |
||
|
36011
|
36011
01125N6011 Bolt0506--01 ~ 0610--01; 2WD.MR20DE |
01125N6011 |
from US $2.21 |
||
|
36011A
|
36011A
01125N8031 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N8031 |
from US $1.41 |
||
|
36011A
|
36011A
01125N6011 Bolt0506--01 ~ 0610--01; 2WD.MR20DE |
01125N6011 |
from US $2.21 |
||
|
36011A
|
36011A
01125N8031 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125N8031 |
from US $1.41 |
||
|
36011A
|
36011A
01125N6011 Bolt0506--01 ~ 0610--01; 2WD.MR20DE |
01125N6011 |
from US $2.21 |
||
|
36330
|
36330
36330-EN000 Spring-Return, Pawl0412--01 ~ 0705--01; 2WD.MR20DE |
36330-EN000 |
US $5.04 |
||
|
36331
|
36331
36331-EN000 Silencer-Spring0412--01 ~ 0705--01; 2WD.MR20DE |
36331-EN000 |
US $5.04 |
||
|
36333
|
36333
36333-EN000 Stopper-Rubber0412--01 ~ 0705--01; 2WD.MR20DE |
36333-EN000 |
US $5.04 |
||
|
36400
|
36400
36400EN000 Cable Assy-Parking Brake0412--01 ~ 0705--01; 2WD.MR20DE |
36400EN000 |
US $63.65 |
||
|
36400
|
36400
36400EN010 Cable Assy-Parking Brake0412--01 ~ 0705--01; 2WD.MR20DE |
36400EN010 |
US $63.65 |
||
|
36400+A
|
36400+A
36400EN010 Cable Assy-Parking Brake0412--01 ~ 0705--01; 2WD.MR20DE |
36400EN010 |
US $63.65 |
||
|
36402
|
36402
36402EN000 Cable Assy-Parking Brake, Front0412--01 ~ 0705--01; 2WD.MR20DE |
36402EN000 |
US $30.53 |
||
|
36451
|
36451
36530-EN000 Cable Assy-Brake, Rear Rh0412--01 ~ 0705--01; 2WD.MR20DE |
36530-EN000 |
US $61.63 |
||
|
36452
|
36452
36531-EN000 Cable Assy-Brake, Rear Lh0412--01 ~ 0705--01; 2WD.MR20DE |
36531-EN000 |
US $61.63 |
||
|
46531M
|
46531M
46531-CK000 Pad-Pedal0412--01 ~ 0705--01; 2WD.MR20DE |
46531-CK000 |
US $8.45 |
