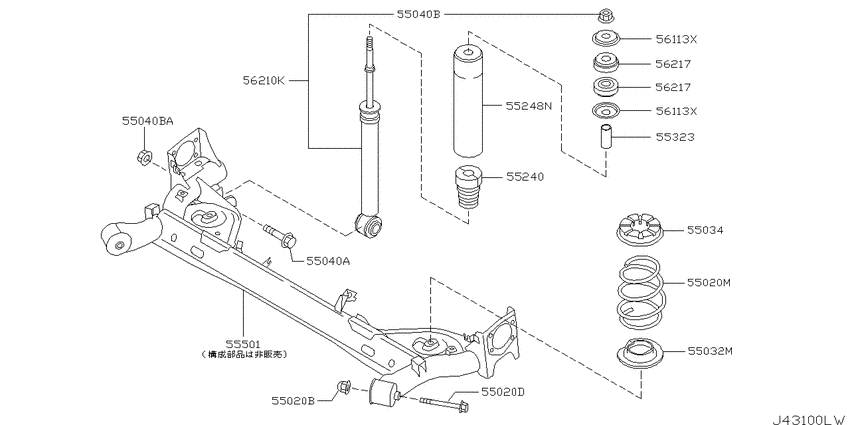

Rear suspension (2004-12-01 ~ 2007-05-01; 2WD.MR20DE) Diagram Nissan LAFESTA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20M
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55020B
|
55020B
54588-EN005 Nut0412--01 ~ 0705--01; 2WD.MR20DE |
54588-EN005 |
from US $0.80 |
||
|
55020D
|
55020D
55222-EN000 Bolt0506--01 ~ 0608--01; 2WD.MR20DE.20M |
55222-EN000 |
US $2.45 |
||
|
55020M
|
55020M
55020-EN00A Spring-Rear Suspension0412--01 ~ 0705--01; 2WD.MR20DE |
55020-EN00A |
US $116.93 |
||
|
55032M
|
55032M
55032EN00A Seat-Rubber, Rear Spring Lower0412--01 ~ 0705--01; 2WD.MR20DE |
55032EN00A |
from US $8.99 |
||
|
55034
|
55034
55034EN101 Seat-Rubber, Rear Spring Upper0412--01 ~ 0705--01; 2WD.MR20DE |
55034EN101 |
from US $12.53 |
||
|
55040A
|
55040A
54459-EN010 Bolt0412--01 ~ 0702--01; 2WD.MR20DE.20M |
54459-EN010 |
US $2.45 |
||
|
55040B
|
55040B
01223N0011 Nut0412--01 ~ 0705--01; 2WD.MR20DE |
01223N0011 |
US $1.73 |
||
|
55040B
|
55040B
01225N2031 Nut0412--01 ~ 0705--01; 2WD.MR20DE |
01225N2031 |
from US $0.70 |
||
|
55040BA
|
55040BA
01225N2031 Nut0412--01 ~ 0705--01; 2WD.MR20DE |
01225N2031 |
from US $0.70 |
||
|
55240
|
55240
55240-EN000 Bumper Assy-Bound Rear Suspension0412--01 ~ 0705--01; 2WD.MR20DE |
55240-EN000 |
US $47.81 |
||
|
55248N
|
55248N
55248EN000 Cover-Bound Bumper, Rear0412--01 ~ 0705--01; 2WD.MR20DE |
55248EN000 |
US $20.02 |
||
|
55323
|
55323
55323AX000 Tube-Distance, Shock Absorber Mounting0412--01 ~ 0705--01; 2WD.MR20DE |
55323AX000 |
US $7.76 |
||
|
55501
|
55501
55501-EN000 Arm Assy-Rear Suspension, Rh0412--01 ~ 0602--01; 2WD.MR20DE |
55501-EN000 |
US $698.09 |
||
|
55501
|
55501
55501-EN00A Arm Assy-Rear Suspension, Rh0512--01 ~ 0602--01; !*2WD.MR20DE.(20S/20G+20M+PLAYFUL) |
55501-EN00A |
US $698.09 |
||
|
55501
|
55501
55501-EN00B Arm Assy-Rear Suspension, Rh0602--01 ~ 0705--01; *2WD.MR20DE |
55501-EN00B |
US $698.09 |
||
|
55501
|
55501
55501-EN01A Arm Assy-Rear Suspension, Rh0602--01 ~ 0607--01; 2WD.MR20DE |
55501-EN01A |
US $698.09 |
||
|
56113X
|
56113X
56113AX000 Washer-Special0412--01 ~ 0705--01; 2WD.MR20DE |
56113AX000 |
US $1.67 |
||
|
56113X
|
56113X
56113AX000 Washer-Special0412--01 ~ 0705--01; 2WD.MR20DE |
56113AX000 |
US $1.67 |
||
|
56210K
|
56210K
56210-EN025 Absorber Kit-Shock, Rear0412--01 ~ 0705--01; 2WD.MR20DE.20M |
56210-EN025 |
US $182.88 |
||
|
56217
|
56217
56217-EN002 Bush-Rear Shock Absorber0412--01 ~ 0705--01; 2WD.MR20DE |
56217-EN002 |
from US $5.68 |
||
|
56217
|
56217
56217-EN002 Bush-Rear Shock Absorber0412--01 ~ 0705--01; 2WD.MR20DE |
56217-EN002 |
from US $5.68 |
