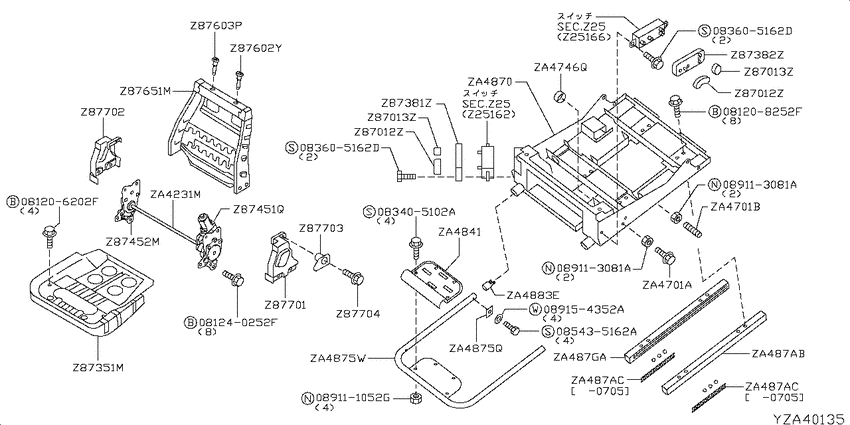

turning Сидение (2004-12-01 ~ ; レッグ,フットレスト; ｱﾝｼｬﾝﾃ (ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ)) Diagram Nissan LAFESTA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20M
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206202F
|
081206202F
081206202F
Bolt-hexagon
|
081206202F |
— | ||
|
081208252F
|
081208252F
081208252F
Bolt-hexagon
|
081208252F |
— | ||
|
081240252F
|
081240252F
081240252F Bolt-hexagon |
081240252F |
US $3.18 |
||
|
083405102A
|
083405102A
083405102A
ｽｸﾘﾕ-,ﾏｼﾝ
|
083405102A |
— | ||
|
083605162D
|
083605162D
08360-5162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-5162D |
— | ||
|
083605162D
|
083605162D
08360-5162D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-5162D |
— | ||
|
085435162A
|
085435162A
08543-5162A SCREWTAPPING |
08543-5162A |
US $0.65 |
||
|
089111052G
|
089111052G
089111052G Nut |
089111052G |
from US $0.52 |
||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
089113081A
|
089113081A
08911-3081A
Nut-Wiper Arm
|
08911-3081A |
— | ||
|
089154352A
|
089154352A
089154352A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
089154352A |
— | ||
|
Z87012Z
|
Z87012Z
87012-C9919 Knob-Switch, Front Seat Slide Rh0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87012-C9919 |
US $5.18 |
||
|
Z87012Z
|
Z87012Z
87012-C9919 Knob-Switch, Front Seat Slide Rh0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87012-C9919 |
US $5.18 |
||
|
Z87013Z
|
Z87013Z
87013C9913 Knob-Switch, Front Seat Reclining Rh0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87013C9913 |
US $5.18 |
||
|
Z87013Z
|
Z87013Z
87013C9913 Knob-Switch, Front Seat Reclining Rh0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87013C9913 |
US $5.18 |
||
|
Z87351M
|
Z87351M
87L12-AX000
Frame Assy-Cushion Front Seat
0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87L12-AX000 |
— | ||
|
Z87381Z
|
Z87381Z
87332-C9900 Escutcheon0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87332-C9900 |
US $4.18 |
||
|
Z87382Z
|
Z87382Z
87382-C9900 Escutcheon0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87382-C9900 |
US $4.18 |
||
|
Z87451Q
|
Z87451Q
87451-AR060 Device Assy-Reclining Motor Lh0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87451-AR060 |
US $406.39 |
||
|
Z87452M
|
Z87452M
87401-AR000 Device Assy0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87401-AR000 |
US $406.39 |
||
|
Z87602Y
|
Z87602Y
87602-89900 Holder Assy-Headrest, Lock0412--01 ~ 0512--01; W.20M; (G),ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87602-89900 |
US $4.18 |
||
|
Z87603P
|
Z87603P
87603-89900 Holder Assy-Headrest, Free0412--01 ~ 0512--01; W.20M; (G),ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87603-89900 |
US $4.18 |
||
|
Z87651M
|
Z87651M
87648-0A130
ﾌﾚ-ﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾌﾛﾝﾄ ｼ-ﾄ
0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87648-0A130 |
— | ||
|
Z87701
|
Z87701
87MH0-CX060
Bracket Assy-Arm Rest Lh
0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87MH0-CX060 |
— | ||
|
Z87702
|
Z87702
87MK0-CX060
Bracket Assy-Arm Rest Rh
0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87MK0-CX060 |
— | ||
|
Z87703
|
Z87703
V0BSH-1A001 Bush0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
V0BSH-1A001 |
US $2.88 |
||
|
Z87704
|
Z87704
V0BOL-1A005 Bolt0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
V0BOL-1A005 |
US $3.60 |
||
|
ZA4231M
|
ZA4231M
87404-0A195 ﾛﾂﾄﾞ ｱﾂｾﾝﾌﾞﾘ-0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
87404-0A195 |
US $4.03 |
||
|
ZA4701A
|
ZA4701A
B1180-0A045
ﾎﾞﾙﾄ
0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
B1180-0A045 |
— | ||
|
ZA4701B
|
ZA4701B
B1177-0A0A2 Bolt A0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
B1177-0A0A2 |
US $1.44 |
||
|
ZA4746Q
|
ZA4746Q
88545-1A701 Cap-Check Foot0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
88545-1A701 |
US $4.46 |
||
|
ZA4841
|
ZA4841
87540-0A195 ｶﾊﾞ-,ﾌ-ﾄ ﾚｽﾄ0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
87540-0A195 |
US $399.31 |
||
|
ZA4870
|
ZA4870
87170-0A112 ﾚﾂｸﾞ ｱﾂｾﾝﾌﾞﾘ-,ｼ-ﾄ ｱﾂﾊﾟ-0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
87170-0A112 |
US $1,046.42 |
||
|
ZA4870
|
ZA4870
87184-0A112 ｷﾞﾔ,ｽｲﾍﾞﾙ ﾛｱ0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
87184-0A112 |
US $252 |
||
|
ZA4875Q
|
ZA4875Q
87352-0A375 ｶﾗ-,ﾗﾊﾞ-0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
87352-0A375 |
US $15.84 |
||
|
ZA4875W
|
ZA4875W
87540-0A195 ｶﾊﾞ-,ﾌ-ﾄ ﾚｽﾄ0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
87540-0A195 |
US $399.31 |
||
|
ZA487AB
|
ZA487AB
87110-0A376 ﾚ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾌﾄ ｽﾗｲﾄﾞ ｱｳﾀ- lh0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
87110-0A376 |
US $216 |
||
|
ZA487AC
|
ZA487AC
87280-0A197 ｶﾞｲﾄﾞ,ﾎﾞ-ﾙ0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
87280-0A197 |
US $34.56 |
||
|
ZA487AC
|
ZA487AC
87380-0A197
ｶﾞｲﾄﾞ,ﾎﾞ-ﾙ
0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87380-0A197 |
— | ||
|
ZA487AC
|
ZA487AC
87280-0A197 ｶﾞｲﾄﾞ,ﾎﾞ-ﾙ0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
87280-0A197 |
US $34.56 |
||
|
ZA487AC
|
ZA487AC
87380-0A197
ｶﾞｲﾄﾞ,ﾎﾞ-ﾙ
0412--01 ~ 0512--01; W.(20S+20M); ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ |
87380-0A197 |
— | ||
|
ZA487GA
|
ZA487GA
87109-0A376 ﾚ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾌﾄ ｽﾗｲﾄﾞ ｱｳﾀ- rh0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
87109-0A376 |
US $216 |
||
|
ZA4883E
|
ZA4883E
88319-0A376 ﾌﾞﾂｼﾕ,ﾌﾂﾄﾚｽﾄ0412--01 ~ 0512--01; W.(20S+20M); "ｱﾝｼｬﾝﾃ,ｼﾞｮｼｭｾｷ ｽﾗｲﾄﾞｱｯﾌﾟ,ｼﾖｳ[K116] |
88319-0A376 |
US $3.89 |
