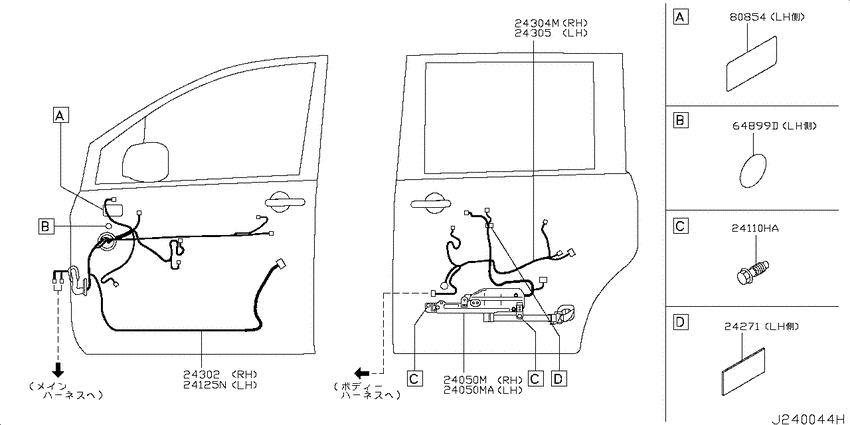

Wiring (2004-12-01 ~ 2007-05-01; ﾄﾞｱﾊｰﾈｽ; W) Diagram Nissan LAFESTA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20M
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24050M
|
24050M
24050EN000 Harness-Door Sub0412--01 ~ 0705--01; W |
24050EN000 |
US $112.32 |
||
|
24050M
|
24050M
24050-EN001 Harness-Door Sub0412--01 ~ 0705--01; *W |
24050-EN001 |
US $112.32 |
||
|
24050M
|
24050M
24050EN100 Harness-Door Sub0412--01 ~ 0705--01; W |
24050EN100 |
US $112.32 |
||
|
24050M
|
24050M
24050EN101 Harness-Door Sub0412--01 ~ 0705--01; *W |
24050EN101 |
US $112.32 |
||
|
24050MA
|
24050MA
24050EN100 Harness-Door Sub0412--01 ~ 0705--01; W |
24050EN100 |
US $112.32 |
||
|
24050MA
|
24050MA
24050EN101 Harness-Door Sub0412--01 ~ 0705--01; *W |
24050EN101 |
US $112.32 |
||
|
24110HA
|
24110HA
01125N6011 Bolt0412--01 ~ 0705--01; W |
01125N6011 |
from US $2.21 |
||
|
24125N
|
24125N
24125-EN000
Harness Assy-Door, Front Lh
0412--01 ~ 0705--01; W |
24125-EN000 |
— | ||
|
24125N
|
24125N
24125-EN001
Harness Assy-Door, Front Lh
0412--01 ~ 0705--01; *W |
24125-EN001 |
— | ||
|
24125N
|
24125N
24125-EN002 Harness Assy-Door, Front Lh0412--01 ~ 0705--01; *W |
24125-EN002 |
US $143.28 |
||
|
24125N
|
24125N
24125-EN003 Harness Assy-Door, Front Lh0412--01 ~ 0705--01; *W |
24125-EN003 |
US $143.28 |
||
|
24271
|
24271
24271-N7100
Protector-Flat Wire
0603--01 ~ 0705--01; *W |
24271-N7100 |
— | ||
| replacement | |||||
|
24271
|
24271
B4271U0100 Spacer0603--01 ~ 0705--01; *W |
B4271U0100 |
from US $3.68 |
||
|
24271
|
24271
24271-N7100
Protector-Flat Wire
0412--01 ~ 0705--01; W.2WD |
24271-N7100 |
— | ||
| replacement | |||||
|
24271
|
24271
B4271U0100 Spacer0412--01 ~ 0705--01; W.2WD |
B4271U0100 |
from US $3.68 |
||
|
24302
|
24302
24124-EN000
Harness Assy-Door, Front Rh
0412--01 ~ 0705--01; W |
24124-EN000 |
— | ||
|
24302
|
24302
24124-EN001
Harness Assy-Door, Front Rh
0412--01 ~ 0705--01; *W |
24124-EN001 |
— | ||
|
24302
|
24302
24124-EN002 Harness Assy-Door, Front Rh0412--01 ~ 0705--01; *W |
24124-EN002 |
US $143.28 |
||
|
24302
|
24302
24124-EN003 Harness Assy-Door, Front Rh0412--01 ~ 0705--01; *W |
24124-EN003 |
US $143.28 |
||
|
24304M
|
24304M
24126-EN000 Harness Assy-Door, Rear Rh0412--01 ~ 0705--01; W |
24126-EN000 |
US $143.28 |
||
|
24304M
|
24304M
24126-EN001 Harness Assy-Door, Rear Rh0412--01 ~ 0705--01; *W |
24126-EN001 |
US $143.28 |
||
|
24305
|
24305
24127EN000 Harness Assy-Door, Rear Lh0412--01 ~ 0705--01; W |
24127EN000 |
US $143.28 |
||
|
24305
|
24305
24127-EN001 Harness Assy-Door, Rear Lh0412--01 ~ 0705--01; *W |
24127-EN001 |
US $143.28 |
||
|
24305
|
24305
24127-EN002 Harness Assy-Door, Rear Lh0412--01 ~ 0705--01; *W |
24127-EN002 |
US $143.28 |
||
|
64899D
|
64899D
64891W5000 Plug-Rubber0412--01 ~ 0705--01; W |
64891W5000 |
US $0.82 |
||
|
80854
|
80854
80854-AG000 Cover-Seal0412--01 ~ 0705--01; W |
80854-AG000 |
US $5.47 |
||
