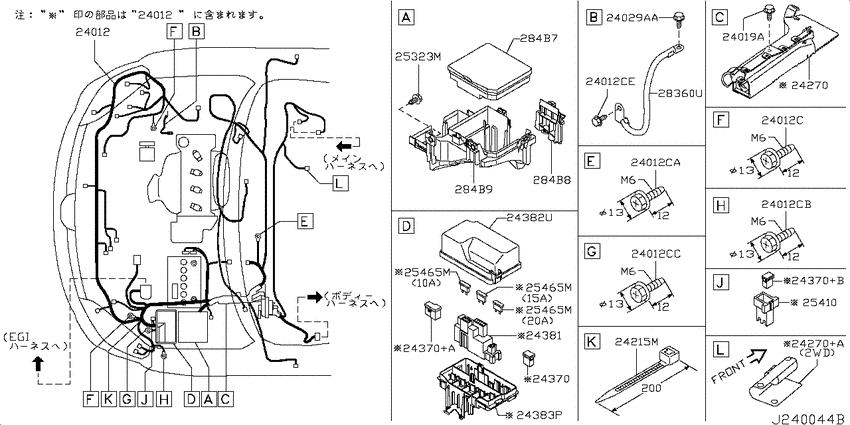

Wiring (2004-12-01 ~ 2007-05-01; ｴﾝｼﾞﾝ ﾙｰﾑ; W) Diagram Nissan LAFESTA
- Year
- 2004 - 2007
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- 20M
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24012
|
24012
24012-0A12A Harness Assy-Engine Room0412--01 ~ 0506--01; *W.2WD.(20S/20G+20M); [K116] |
24012-0A12A |
US $1,039.91 |
||
|
24012
|
24012
24012-0A12B
Harness Assy-Engine Room
0512--01 ~ 0703--01; *W.2WD.(20S/20G+20M+H/S); [K116] |
24012-0A12B |
— | ||
|
24012
|
24012
24012-0A12D Harness Assy-Engine Room0703--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); [K116] |
24012-0A12D |
US $1,153.76 |
||
|
24012
|
24012
24012-EN001 Harness Assy-Engine Room0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S) |
24012-EN001 |
US $1,178.11 |
||
|
24012
|
24012
24012-EN002 Harness Assy-Engine Room0412--01 ~ 0506--01; *W.2WD.(20S/20G+20M) |
24012-EN002 |
US $1,178.11 |
||
|
24012
|
24012
24012-EN00A Harness Assy-Engine Room0512--01 ~ 0703--01; *W.2WD.(20S/20G+20M+H/S) |
24012-EN00A |
US $1,178.11 |
||
|
24012
|
24012
24012-EN00B Harness Assy-Engine Room0512--01 ~ 0703--01; *W.2WD.(20S/20G+20M+H/S) |
24012-EN00B |
US $1,178.11 |
||
|
24012
|
24012
24012-EN00C Harness Assy-Engine Room0512--01 ~ 0703--01; *W.2WD.(20S/20G+20M+H/S) |
24012-EN00C |
US $1,178.11 |
||
|
24012
|
24012
24012-EN01A Harness Assy-Engine Room0703--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S) |
24012-EN01A |
US $1,178.11 |
||
|
24012
|
24012
24012EN01B Harness Assy-Engine Room0703--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S) |
24012EN01B |
US $1,178.11 |
||
|
24012
|
24012
24012-EN01C Harness Assy-Engine Room0703--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S) |
24012-EN01C |
US $1,178.11 |
||
|
24012
|
24012
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
24012-0A12A Harness Assy-Engine Room0412--01 ~ 0506--01; *W.2WD.(20S/20G+20M); [K116] |
24012-0A12A |
US $1,039.91 |
||
|
24012
|
24012
24012-0A12B
Harness Assy-Engine Room
0512--01 ~ 0703--01; *W.2WD.(20S/20G+20M+H/S); [K116] |
24012-0A12B |
— | ||
|
24012
|
24012
24012-0A12D Harness Assy-Engine Room0703--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); [K116] |
24012-0A12D |
US $1,153.76 |
||
|
24012
|
24012
24012-EN001 Harness Assy-Engine Room0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S) |
24012-EN001 |
US $1,178.11 |
||
|
24012
|
24012
24012-EN002 Harness Assy-Engine Room0412--01 ~ 0506--01; *W.2WD.(20S/20G+20M) |
24012-EN002 |
US $1,178.11 |
||
|
24012
|
24012
24012-EN00A Harness Assy-Engine Room0512--01 ~ 0703--01; *W.2WD.(20S/20G+20M+H/S) |
24012-EN00A |
US $1,178.11 |
||
|
24012
|
24012
24012-EN00B Harness Assy-Engine Room0512--01 ~ 0703--01; *W.2WD.(20S/20G+20M+H/S) |
24012-EN00B |
US $1,178.11 |
||
|
24012
|
24012
24012-EN00C Harness Assy-Engine Room0512--01 ~ 0703--01; *W.2WD.(20S/20G+20M+H/S) |
24012-EN00C |
US $1,178.11 |
||
|
24012
|
24012
24012-EN01A Harness Assy-Engine Room0703--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S) |
24012-EN01A |
US $1,178.11 |
||
|
24012
|
24012
24012EN01B Harness Assy-Engine Room0703--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S) |
24012EN01B |
US $1,178.11 |
||
|
24012
|
24012
24012-EN01C Harness Assy-Engine Room0703--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S) |
24012-EN01C |
US $1,178.11 |
||
|
24012
|
24012
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012
|
24012
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012CA
|
24012CA
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012CB
|
24012CB
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012CC
|
24012CC
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24012CE
|
24012CE
0145600411 SCREW0412--01 ~ 0705--01; W |
0145600411 |
US $1.67 |
||
|
24019A
|
24019A
01125N6011 Bolt0412--01 ~ 0705--01; W |
01125N6011 |
from US $2.21 |
||
|
24019A
|
24019A
01125N8031 Bolt0412--01 ~ 0705--01; W |
01125N8031 |
from US $1.41 |
||
|
24029AA
|
24029AA
01125N6011 Bolt0412--01 ~ 0705--01; W |
01125N6011 |
from US $2.21 |
||
|
24215M
|
24215M
24216-S5802 Clip0412--01 ~ 0705--01; W.(20S/20G+20M+PLAYFUL) |
24216-S5802 |
US $4.18 |
||
|
24215M
|
24215M
24220-C9913 Clip-Wiring Harness0505--01 ~ 0705--01; *W |
24220-C9913 |
US $4.32 |
||
|
24270
|
24270
24270-EN000 Protector-Harness0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S) |
24270-EN000 |
US $24.05 |
||
|
24270
|
24270
24271-EN00A Protector-Harness0412--01 ~ 0705--01; W.2WD |
24271-EN00A |
US $24.05 |
||
|
24270+A
|
24270+A
24271-EN00A Protector-Harness0412--01 ~ 0705--01; W.2WD |
24271-EN00A |
US $24.05 |
||
|
24370
|
24370
24370C9922 Connector Assy-Fusible Link0412--01 ~ 0705--01; W; 40A |
24370C9922 |
US $13.10 |
||
|
24370
|
24370
24370C9904 Connector Assy-Fusible Link0412--01 ~ 0506--01; *W.2WD.(20S/20G+20M+H/S); 60A+30A+30A |
24370C9904 |
from US $13.40 |
||
|
24370
|
24370
24370C9907 Connector Assy-Fusible Link0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S) +*W.4WD; 50A+30A+40A |
24370C9907 |
from US $13.10 |
||
|
24370
|
24370
24370-C9912 Connector Assy-Fusible Link0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); 30A |
24370-C9912 |
US $13.10 |
||
|
24370+A
|
24370+A
24370C9904 Connector Assy-Fusible Link0412--01 ~ 0506--01; *W.2WD.(20S/20G+20M+H/S); 60A+30A+30A |
24370C9904 |
from US $13.40 |
||
|
24370+A
|
24370+A
24370C9907 Connector Assy-Fusible Link0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S) +*W.4WD; 50A+30A+40A |
24370C9907 |
from US $13.10 |
||
|
24370+B
|
24370+B
24370-C9912 Connector Assy-Fusible Link0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); 30A |
24370-C9912 |
US $13.10 |
||
|
24381
|
24381
24381C9900 Housing-Fusible Link Holder0412--01 ~ 0705--01; W |
24381C9900 |
from US $46.57 |
||
|
24382U
|
24382U
24382-EN000 Cover-Fusible Link Holder0412--01 ~ 0705--01; W |
24382-EN000 |
US $14.69 |
||
|
24383P
|
24383P
24383EN000 Housing-Relay Box0412--01 ~ 0705--01; W |
24383EN000 |
US $17.14 |
||
|
25323M
|
25323M
01125N6011 Bolt0412--01 ~ 0705--01; W |
01125N6011 |
from US $2.21 |
||
|
25410
|
25410
24311-5U300 Block Assy-Fuse0412--01 ~ 0506--01; *W.2WD.(20S/20G+20M) |
24311-5U300 |
US $78.91 |
||
|
25410
|
25410
24321-79901 Puller-Fuse0412--01 ~ 0705--01; W |
24321-79901 |
US $3.46 |
||
|
25410
|
25410
01121N6241 Screw0412--01 ~ 0705--01; W |
01121N6241 |
from US $1.78 |
||
|
25465M
|
25465M
24319C9910 Fuse0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); 10A |
24319C9910 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9915 Fuse0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); 15A |
24319C9915 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9920 Fuse0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); 20A |
24319C9920 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9910 Fuse0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); 10A |
24319C9910 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9915 Fuse0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); 15A |
24319C9915 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9920 Fuse0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); 20A |
24319C9920 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9910 Fuse0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); 10A |
24319C9910 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9915 Fuse0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); 15A |
24319C9915 |
from US $0.86 |
||
|
25465M
|
25465M
24319C9920 Fuse0412--01 ~ 0705--01; *W.2WD.(20S/20G+20M+H/S); 20A |
24319C9920 |
from US $0.86 |
||
|
28360U
|
28360U
28360-EN100 Wire-Bonding0412--01 ~ 0705--01; W |
28360-EN100 |
US $12.67 |
||
|
284B7
|
284B7
284B7-EN000 Controller Unit-Ipdm Engine Room0412--01 ~ 0603--01; W |
284B7-EN000 |
US $440.38 |
||
|
284B7
|
284B7
284B7-EN01A Controller Unit-Ipdm Engine Room0603--01 ~ 0608--01; W |
284B7-EN01A |
US $440.38 |
||
|
284B7
|
284B7
284B7-EN02A Controller Unit-Ipdm Engine Room0608--01 ~ 0705--01; W |
284B7-EN02A |
US $440.38 |
||
|
284B8
|
284B8
284B8-EN000 Cover-Usm0412--01 ~ 0705--01; W |
284B8-EN000 |
US $11.52 |
||
|
284B9
|
284B9
284B9EN000 Cover-Usm0412--01 ~ 0705--01; W |
284B9EN000 |
US $56.16 |
