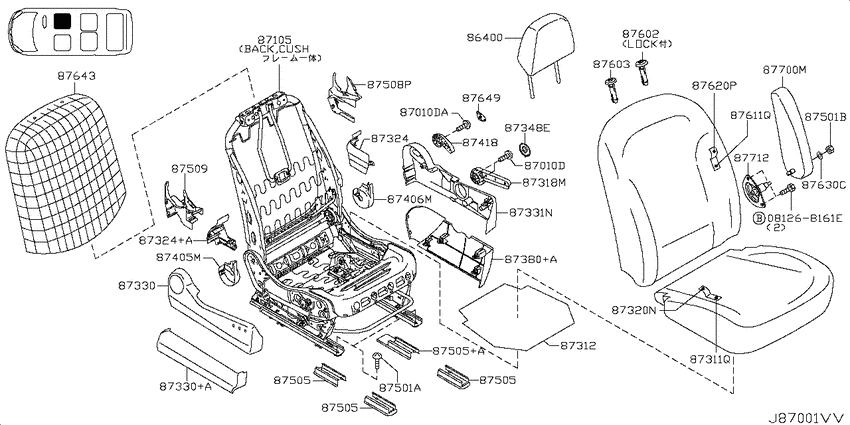

Front seat (2007-05-01 ~ ; RHシート(ﾄﾘﾑ&ﾊﾟｯﾄﾞﾍﾞｯﾀｲ ﾀｲﾌﾟ); W) Diagram Nissan LAFESTA
- Year
- 2005 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- H/S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268161E
|
081268161E
08126-8161E
Bolt-hexagon
|
08126-8161E |
— | ||
|
86400
|
86400
86400-EN20A ﾍﾂﾄﾞ ﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ0508--01 ~ 0705--01; W.H/S |
86400-EN20A |
US $214.56 |
||
|
86400
|
86400
86400-EN90A Headrest Assy-Front Seat0705--01 ~ ; *W.(20S+H/S) |
86400-EN90A |
US $214.56 |
||
|
86400
|
86400
86400EN90B Headrest Assy-Front Seat0705--01 ~ ; *W.(20S+H/S) |
86400EN90B |
US $214.56 |
||
|
86400
|
86400
88400-EN20A ﾍﾂﾄﾞﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ0508--01 ~ 0705--01; W.H/S |
88400-EN20A |
US $214.56 |
||
|
86400
|
86400
88400-EN90A Headrest Assy-Rear Seat0705--01 ~ ; W |
88400-EN90A |
US $214.56 |
||
|
86400
|
86400
88400-EN90B Headrest Assy-Rear Seat0705--01 ~ ; W |
88400-EN90B |
US $214.56 |
||
|
86400
|
86400
86430-EN20A ﾍﾂﾄﾞ ﾚｽﾄ,ｻ-ﾄﾞ ｼ-ﾄ0508--01 ~ 0705--01; W.H/S |
86430-EN20A |
US $214.56 |
||
|
86400
|
86400
86430-EN90A Headrest Assy-3Rd Seat0705--01 ~ ; W |
86430-EN90A |
US $214.56 |
||
|
86400
|
86400
86430-EN90B Headrest Assy-3Rd Seat0705--01 ~ ; W |
86430-EN90B |
US $214.56 |
||
|
87010D
|
87010D
87183-EN000 Screw0508--01 ~ 0705--01; W.H/S |
87183-EN000 |
US $2.30 |
||
|
87010D
|
87010D
87183-EN000 Screw0508--01 ~ 0705--01; W.H/S |
87183-EN000 |
US $2.30 |
||
|
87010DA
|
87010DA
87183-EN000 Screw0508--01 ~ 0705--01; W.H/S |
87183-EN000 |
US $2.30 |
||
|
87105
|
87105
87105-EN000 ﾌﾚｰﾑ & ｱｼﾞﾔｽﾀｰ ｱﾂｼｰ ﾌﾛﾝﾄ ｼｰﾄ rh0508--01 ~ 0705--01; W.H/S |
87105-EN000 |
US $1,103.06 |
||
|
87105
|
87105
87105-EN90B Frame & Adjuster Assy-Front Seat, Rh0705--01 ~ 0710--01; W |
87105-EN90B |
US $1,103.06 |
||
|
87105
|
87105
87105EN91B Frame & Adjuster Assy-Front Seat, Rh0710--01 ~ ; W |
87105EN91B |
US $1,103.06 |
||
|
87311Q
|
87311Q
87311EN005 Pad Assy-Cushion, Front Seat0508--01 ~ 0705--01; W.H/S |
87311EN005 |
US $269.28 |
||
|
87311Q
|
87311Q
87311-EN90B Pad Assy-Cushion, Front Seat0705--01 ~ ; W |
87311-EN90B |
US $269.28 |
||
|
87311Q
|
87311Q
87361-EN005 Pad Assy-Cushion, Front Seat0508--01 ~ 0705--01; W.H/S |
87361-EN005 |
US $269.28 |
||
|
87311Q
|
87311Q
87361-EN90B Pad Assy-Cushion, Front Seat0705--01 ~ ; W |
87361-EN90B |
US $269.28 |
||
|
87312
|
87312
87326EN000 Supporter-Front Seat Cushion0508--01 ~ 0705--01; W.H/S |
87326EN000 |
US $21.02 |
||
|
87312
|
87312
87326EN000 Supporter-Front Seat Cushion0508--01 ~ 0705--01; W.H/S |
87326EN000 |
US $21.02 |
||
|
87318M
|
87318M
87318-EN010 Lever Assy-Front Seat Cushion, Rh0508--01 ~ 0705--01; *W.H/S |
87318-EN010 |
US $24.91 |
||
|
87320N
|
87320N
87320-EN20A ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0508--01 ~ 0705--01; W.H/S; [D410] |
87320-EN20A |
US $519.67 |
||
|
87320N
|
87320N
87320-EN91B ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ｸﾂｼﾖﾝ0705--01 ~ ; W.H/S; [D410] |
87320-EN91B |
US $519.67 |
||
|
87324
|
87324
87323-EN010 Finisher-Cushion, Front Seat Rh Front0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87323-EN010 |
US $17.86 |
||
|
87324
|
87324
87324-EN010 Finisher-Cushion, Front Seat Rh Front0508--01 ~ 0705--01; W.H/S |
87324-EN010 |
US $17.86 |
||
|
87324+A
|
87324+A
87324-EN010 Finisher-Cushion, Front Seat Rh Front0508--01 ~ 0705--01; W.H/S |
87324-EN010 |
US $17.86 |
||
|
87330
|
87330
87330-EN010 Finisher Assy-Cushion, Front Seat Rh0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87330-EN010 |
US $58.61 |
||
|
87330
|
87330
87339-EN010 Finisher Assy-Cushion, Front Seat Rh0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87339-EN010 |
US $58.61 |
||
|
87330+A
|
87330+A
87339-EN010 Finisher Assy-Cushion, Front Seat Rh0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87339-EN010 |
US $58.61 |
||
|
87331N
|
87331N
87331-EN010 Finisher-Cushion, Front Seat Inner Rh0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87331-EN010 |
US $58.61 |
||
|
87348E
|
87348E
87348-EN010 Cap-Lifter Knob0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87348-EN010 |
US $3.31 |
||
|
87380+A
|
87380+A
87389-EN010 Finisher Assy-Cushion, Front Seat Lh0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87389-EN010 |
US $58.61 |
||
|
87405M
|
87405M
87405-EN010 Cover-Reclining Device, Front Seat Otr Rh0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87405-EN010 |
US $9.22 |
||
|
87406M
|
87406M
87406-EN010 Cover-Reclining Device, Front Seat Inner0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87406-EN010 |
US $9.22 |
||
|
87406M
|
87406M
87406-EN010 Cover-Reclining Device, Front Seat Inner0705--01 ~ ; W |
87406-EN010 |
US $9.22 |
||
|
87406M
|
87406M
87456-EN010 Cover-Reclining Device, Front Seat Inner0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87456-EN010 |
US $9.22 |
||
|
87418
|
87418
87418-EN010 Knob-Reclining Device Lever0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87418-EN010 |
US $8.06 |
||
|
87418
|
87418
87468EN010 Knob-Reclining Device Lever0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87468EN010 |
US $8.06 |
||
|
87501A
|
87501A
86899-79910 Bolt0508--01 ~ 0705--01; W.H/S |
86899-79910 |
from US $1.13 |
||
|
87501B
|
87501B
87798-EN000 Nut0508--01 ~ 0705--01; W.H/S |
87798-EN000 |
US $1.73 |
||
|
87505
|
87505
87505EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87505EN000 |
US $10.66 |
||
|
87505
|
87505
87505-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87505-EN010 |
US $10.66 |
||
|
87505
|
87505
87508-EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87508-EN000 |
US $10.66 |
||
|
87505
|
87505
87508-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87508-EN010 |
US $10.66 |
||
|
87505
|
87505
87505EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87505EN000 |
US $10.66 |
||
|
87505
|
87505
87505-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87505-EN010 |
US $10.66 |
||
|
87505
|
87505
87508-EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87508-EN000 |
US $10.66 |
||
|
87505
|
87505
87508-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87508-EN010 |
US $10.66 |
||
|
87505
|
87505
87505EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87505EN000 |
US $10.66 |
||
|
87505
|
87505
87505-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87505-EN010 |
US $10.66 |
||
|
87505
|
87505
87508-EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87508-EN000 |
US $10.66 |
||
|
87505
|
87505
87508-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87508-EN010 |
US $10.66 |
||
|
87505+A
|
87505+A
87508-EN000 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87508-EN000 |
US $10.66 |
||
|
87505+A
|
87505+A
87508-EN010 Cover-Seat Slide0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87508-EN010 |
US $10.66 |
||
|
87508P
|
87508P
87305-EN010 Cover-Seat Slide Inner, Rh0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87305-EN010 |
US $11.52 |
||
|
87509
|
87509
87304-EN010 Cover-Seat Slide Outer, Rh0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87304-EN010 |
US $11.52 |
||
|
87602
|
87602
87602EN010 Holder-Lock, Headrest0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87602EN010 |
US $4.18 |
||
|
87602
|
87602
87602EN010 Holder-Lock, Headrest0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87602EN010 |
US $4.18 |
||
|
87603
|
87603
87603EN010 Holder Assy-Free, Headrest0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87603EN010 |
US $2.45 |
||
|
87603
|
87603
87603EN010 Holder Assy-Free, Headrest0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87603EN010 |
US $2.45 |
||
|
87611Q
|
87611Q
87611-EN005 Pad Assy-Back, Front Seat Outer Rh0508--01 ~ 0705--01; W.H/S |
87611-EN005 |
US $269.28 |
||
|
87611Q
|
87611Q
87611-EN90B Pad Assy-Back, Front Seat Outer Rh0705--01 ~ ; W |
87611-EN90B |
US $269.28 |
||
|
87611Q
|
87611Q
87661-EN005 Pad Assy-Back, Front Seat Outer Rh0508--01 ~ 0705--01; W.H/S |
87661-EN005 |
US $269.28 |
||
|
87611Q
|
87611Q
87661-EN90B Pad Assy-Back, Front Seat Outer Rh0705--01 ~ ; W |
87661-EN90B |
US $269.28 |
||
|
87620P
|
87620P
87620-EN20A ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0508--01 ~ 0705--01; W.H/S; [D410] |
87620-EN20A |
US $519.67 |
||
|
87620P
|
87620P
87620-EN91B ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0705--01 ~ ; W.H/S; [D410] |
87620-EN91B |
US $519.67 |
||
|
87620P
|
87620P
87670-EN20A ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0508--01 ~ 0705--01; W.H/S; [D410] |
87670-EN20A |
US $519.67 |
||
|
87620P
|
87620P
87670-EN91B ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ ﾊﾞﾂｸ0705--01 ~ ; W.H/S; [D410] |
87670-EN91B |
US $519.67 |
||
|
87630C
|
87630C
87792-EN000 Washer-Plain0508--01 ~ 0705--01; W.H/S |
87792-EN000 |
US $2.45 |
||
|
87630C
|
87630C
87792-EN00A Washer0504--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87792-EN00A |
US $3.31 |
||
|
87643
|
87643
87643EN000 Supporter-Front Seat Back0508--01 ~ 0705--01; W.H/S |
87643EN000 |
US $23.47 |
||
|
87643
|
87643
87643EN000 Supporter-Front Seat Back0508--01 ~ 0705--01; W.H/S |
87643EN000 |
US $23.47 |
||
|
87649
|
87649
87349-EN010 Cap0705--01 ~ ; W |
87349-EN010 |
US $3.31 |
||
|
87649
|
87649
87649EN010 Cap0412--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87649EN010 |
US $3.31 |
||
|
87649
|
87649
87349-EN010 Cap0503--01 ~ 0705--01; W.(PLAYFUL+H/S) |
87349-EN010 |
US $3.31 |
||
|
87649
|
87649
87649EN010 Cap0705--01 ~ ; W |
87649EN010 |
US $3.31 |
||
|
87700M
|
87700M
87700-EN20A ｱ-ﾑﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌﾛﾝﾄ ｼ-ﾄ rh0508--01 ~ 0705--01; W.H/S |
87700-EN20A |
US $116.93 |
||
|
87700M
|
87700M
87700-EN90B Armrest Assy-Front Seat, Rh0705--01 ~ ; W |
87700-EN90B |
US $116.93 |
||
|
87712
|
87712
87712-EN000 Stopper Assy-Armrest0508--01 ~ 0705--01; W.H/S |
87712-EN000 |
US $9.22 |
