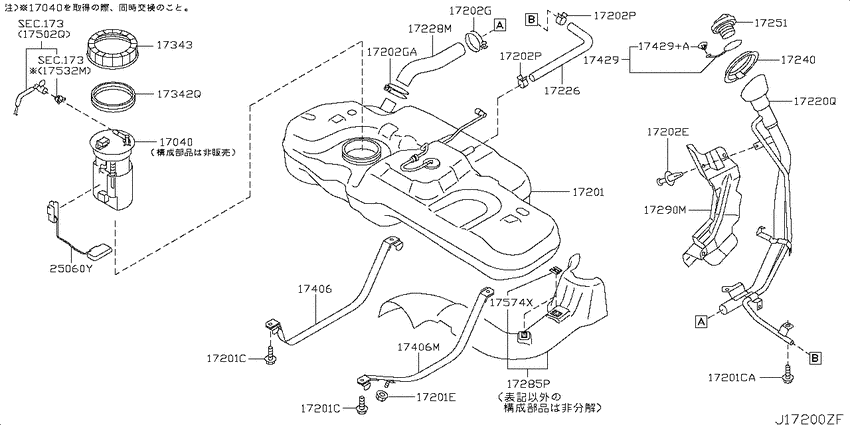

Fuel tank (2007-05-01 ~ ; 2WD.MR20DE) Diagram Nissan LAFESTA
- Year
- 2005 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 2WD
- transmission
- CVT
- grade
- H/S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17040
|
17040
17040-EN000 Pump Compl-Fuel0412--01 ~ 0607--01; 2WD.MR20DE |
17040-EN000 |
US $682.51 |
||
|
17040
|
17040
17040-EN00A Pump Compl-Fuel0607--01 ~ 0705--01; 2WD.MR20DE |
17040-EN00A |
US $682.51 |
||
|
17040
|
17040
17040-EN000 Pump Compl-Fuel0412--01 ~ 0607--01; 2WD.MR20DE |
17040-EN000 |
US $682.51 |
||
|
17040
|
17040
17040-EN00A Pump Compl-Fuel0607--01 ~ 0705--01; 2WD.MR20DE |
17040-EN00A |
US $682.51 |
||
|
17201
|
17201
17202EN000 Tank Assy-Fuel0412--01 ~ 0705--01; 2WD.MR20DE |
17202EN000 |
US $576.31 |
||
|
17201
|
17201
01121-N0031 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01121-N0031 |
US $2.45 |
||
|
17201
|
17201
01125-N8021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N8021 |
from US $0.87 |
||
|
17201
|
17201
0122100351 NUT0412--01 ~ 0705--01; 2WD.MR20DE |
0122100351 |
from US $0.86 |
||
|
17201C
|
17201C
01121-N0031 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01121-N0031 |
US $2.45 |
||
|
17201C
|
17201C
01125-N8021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N8021 |
from US $0.87 |
||
|
17201C
|
17201C
01121-N0031 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01121-N0031 |
US $2.45 |
||
|
17201C
|
17201C
01125-N8021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N8021 |
from US $0.87 |
||
|
17201CA
|
17201CA
01125-N8021 Bolt0412--01 ~ 0705--01; 2WD.MR20DE |
01125-N8021 |
from US $0.87 |
||
|
17201E
|
17201E
0122100351 NUT0412--01 ~ 0705--01; 2WD.MR20DE |
0122100351 |
from US $0.86 |
||
|
17202E
|
17202E
0155309321 CLIP0412--01 ~ 0705--01; 2WD.MR20DE |
0155309321 |
US $0.97 |
||
|
17202E
|
17202E
17213-9Y000
ｸﾘﾂﾌﾟ
0705--01 ~ ; 2WD.MR20DE |
17213-9Y000 |
— | ||
|
17202G
|
17202G
01555-00291
CLAMP-HOSE
0412--01 ~ 0705--01; 2WD.MR20DE |
01555-00291 |
— | ||
| replacement | |||||
|
17202G
|
17202G
0155500911 CLAMP-HOSE0412--01 ~ 0705--01; 2WD.MR20DE |
0155500911 |
from US $3 |
||
|
17202G
|
17202G
0155500911 CLAMP-HOSE0705--01 ~ ; 2WD.MR20DE |
0155500911 |
from US $3 |
||
|
17202G
|
17202G
01555-00381
CLAMP-HOSE
0412--01 ~ 0702--01; 2WD.MR20DE.(20S/20G+PLAYFUL+H/S) |
01555-00381 |
— | ||
| replacement | |||||
|
17202G
|
17202G
0155500931 CLAMP-HOSE0412--01 ~ 0702--01; 2WD.MR20DE.(20S/20G+PLAYFUL+H/S) |
0155500931 |
from US $1.33 |
||
|
17202G
|
17202G
0155500931 CLAMP-HOSE0702--01 ~ 0705--01; 2WD.MR20DE.(20S/20G+PLAYFUL+H/S) |
0155500931 |
from US $1.33 |
||
|
17202GA
|
17202GA
01555-00381
CLAMP-HOSE
0412--01 ~ 0702--01; 2WD.MR20DE.(20S/20G+PLAYFUL+H/S) |
01555-00381 |
— | ||
| replacement | |||||
|
17202GA
|
17202GA
0155500931 CLAMP-HOSE0412--01 ~ 0702--01; 2WD.MR20DE.(20S/20G+PLAYFUL+H/S) |
0155500931 |
from US $1.33 |
||
|
17202GA
|
17202GA
0155500931 CLAMP-HOSE0702--01 ~ 0705--01; 2WD.MR20DE.(20S/20G+PLAYFUL+H/S) |
0155500931 |
from US $1.33 |
||
|
17202P
|
17202P
16439-V5000
Clamp-Hose A
0412--01 ~ 0702--01; 2WD.MR20DE.(20S/20G+PLAYFUL+H/S) |
16439-V5000 |
— | ||
| replacement | |||||
|
17202P
|
17202P
16439V500B Clamp-Hose A0412--01 ~ 0702--01; 2WD.MR20DE.(20S/20G+PLAYFUL+H/S) |
16439V500B |
from US $2.52 |
||
|
17202P
|
17202P
16439V500B Clamp-Hose A0702--01 ~ 0705--01; 2WD.MR20DE.(20S/20G+PLAYFUL+H/S) |
16439V500B |
from US $2.52 |
||
|
17202P
|
17202P
16439-V5000
Clamp-Hose A
0412--01 ~ 0702--01; 2WD.MR20DE.(20S/20G+PLAYFUL+H/S) |
16439-V5000 |
— | ||
| replacement | |||||
|
17202P
|
17202P
16439V500B Clamp-Hose A0412--01 ~ 0702--01; 2WD.MR20DE.(20S/20G+PLAYFUL+H/S) |
16439V500B |
from US $2.52 |
||
|
17202P
|
17202P
16439V500B Clamp-Hose A0702--01 ~ 0705--01; 2WD.MR20DE.(20S/20G+PLAYFUL+H/S) |
16439V500B |
from US $2.52 |
||
|
17220Q
|
17220Q
17221-EN000 Tube Assy-Filler0412--01 ~ 0705--01; 2WD.MR20DE |
17221-EN000 |
US $182.88 |
||
|
17226
|
17226
17226-EN000 Hose-Ventilation0412--01 ~ 0705--01; 2WD.MR20DE |
17226-EN000 |
US $21.89 |
||
|
17228M
|
17228M
17228EN000 Hose-Filler0412--01 ~ 0705--01; 2WD.MR20DE |
17228EN000 |
US $39.89 |
||
|
17240
|
17240
17240AN000 Grommet-Filler Base0412--01 ~ 0705--01; 2WD.MR20DE |
17240AN000 |
from US $7.76 |
||
|
17251
|
17251
17251-79921 Cap Assy-Filler0412--01 ~ 0705--01; 2WD.MR20DE |
17251-79921 |
US $46.85 |
||
|
17285P
|
17285P
17285-EN000 Protector-Fuel Tank0412--01 ~ 0705--01; 2WD.MR20DE |
17285-EN000 |
US $149.76 |
||
|
17290M
|
17290M
17290EN000 Protector-Filler Tube0412--01 ~ 0705--01; 2WD.MR20DE |
17290EN000 |
US $18 |
||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
173
|
Fuel piping
173
|
||||
|
17342Q
|
17342Q
1734279900 Packing-Fuel Gauge0412--01 ~ 0705--01; 2WD.MR20DE |
1734279900 |
from US $16.50 |
||
|
17343
|
17343
1734379900 Plate-Lock, Fuel Gauge0412--01 ~ 0705--01; 2WD.MR20DE |
1734379900 |
US $5.61 |
||
|
17406
|
17406
17406-EN000 Band Assy-Fuel Tank Mounting0412--01 ~ 0705--01; 2WD.MR20DE |
17406-EN000 |
US $61.34 |
||
|
17406
|
17406
17407-EN000 Band Assy-Fuel Tank, Mounting0412--01 ~ 0705--01; 2WD.MR20DE |
17407-EN000 |
US $61.34 |
||
|
17406M
|
17406M
17407-EN000 Band Assy-Fuel Tank, Mounting0412--01 ~ 0705--01; 2WD.MR20DE |
17407-EN000 |
US $61.34 |
||
|
17429
|
17429
1742979923 Pin-Fuel Cap Mounting0412--01 ~ 0705--01; 2WD.MR20DE |
1742979923 |
US $5.47 |
||
|
17429
|
17429
1742979970 Pin-Fuel Cap Mounting0705--01 ~ ; 2WD.MR20DE |
1742979970 |
from US $3.55 |
||
|
17429+A
|
17429+A
1742979970 Pin-Fuel Cap Mounting0705--01 ~ ; 2WD.MR20DE |
1742979970 |
from US $3.55 |
||
|
17574X
|
17574X
17574-8H300 Clip0412--01 ~ 0705--01; 2WD.MR20DE |
17574-8H300 |
US $4.57 |
||
|
25060Y
|
25060Y
25060EN01A Sender Unit-Fuel Gauge0412--01 ~ 0705--01; 2WD.MR20DE |
25060EN01A |
US $190.08 |
||
