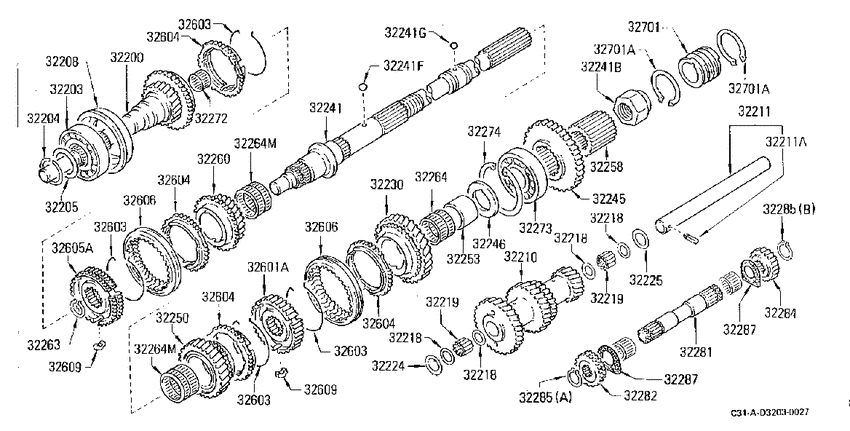

Transmission gear (1980-11-01 ~ ; F4W63L) Diagram Nissan LAUREL
- Year
- 1982 - 2012
- Sales region
- Japan
- Engine
- CA18S
- transmission
- F4
- grade
- SGL
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32200
|
32200
32200-W1001
Gear Assy-Main Drive
8102--01 ~ 8203--01; F4W63L; 22T |
32200-W1001 |
— | ||
|
32200
|
32200
32200-W1011 Gear Assy-Main Drive8203--01 ~ 8210--01; F4W63L-DS; 22T |
32200-W1011 |
US $149.76 |
||
|
32200
|
32200
32200-W4500 Gear Assy-Main Drive8210--01 ~ ; F4W63L-DS; 22T |
32200-W4500 |
US $152.64 |
||
|
32203
|
32203
37510-86160 Bearing-Main Drive8102--01 ~ ; F4W63L |
37510-86160 |
US $13.94 |
||
|
32204
|
32204
32204-08000 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.49-1.55 |
32204-08000 |
US $3.31 |
||
|
32204
|
32204
32204-08001 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.55-1.62 |
32204-08001 |
US $2.45 |
||
|
32204
|
32204
32204-08002 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.62-1.68 |
32204-08002 |
US $2.45 |
||
|
32204
|
32204
32204-08003 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.68-1.74 |
32204-08003 |
US $2.45 |
||
|
32204
|
32204
32204-08004 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.74-1.80 |
32204-08004 |
US $2.45 |
||
|
32204
|
32204
32204-08005
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
8111--01 ~ ; F4W63L; SELECT T=1.74-1.80 |
32204-08005 |
— | ||
|
32204
|
32204
32204-16500 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.80-1.86 |
32204-16500 |
US $2.45 |
||
|
32204
|
32204
32204-16501 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.86-1.92 |
32204-16501 |
US $2.45 |
||
|
32205
|
32205
32205-08002 Spacer-Bearing, Main Drive Gear8102--01 ~ ; F4W63L |
32205-08002 |
US $0.86 |
||
|
32208
|
32208
32208-14600
Retainer-Bearing, Main Drive
8102--01 ~ ; F4W63L |
32208-14600 |
— | ||
|
32210
|
32210
32213-W1001 Gear Assy-Counter8102--01 ~ ; F4W63L |
32213-W1001 |
US $228.96 |
||
|
32211
|
32211
32211-A0951
Shaft-Counter Gear
8102--01 ~ ; F4W63L |
32211-A0951 |
— | ||
|
32211
|
32211
3229214600 Pin-Retaining8102--01 ~ ; F4W63L |
3229214600 |
from US $0.82 |
||
|
32211A
|
32211A
3229214600 Pin-Retaining8102--01 ~ ; F4W63L |
3229214600 |
from US $0.82 |
||
|
32218
|
32218
32218-A0601 Spacer-Counter Shaft8102--01 ~ ; F4W63L |
32218-A0601 |
US $2.45 |
||
|
32218
|
32218
32218-A0601 Spacer-Counter Shaft8102--01 ~ ; F4W63L |
32218-A0601 |
US $2.45 |
||
|
32218
|
32218
32218-A0601 Spacer-Counter Shaft8102--01 ~ ; F4W63L |
32218-A0601 |
US $2.45 |
||
|
32218
|
32218
32218-A0601 Spacer-Counter Shaft8102--01 ~ ; F4W63L |
32218-A0601 |
US $2.45 |
||
|
32219
|
32219
32219-A0600 Bearing-Counter Shaft8102--01 ~ ; F4W63L |
32219-A0600 |
US $0.23 |
||
|
32219
|
32219
32219-A0600 Bearing-Counter Shaft8102--01 ~ ; F4W63L |
32219-A0600 |
US $0.23 |
||
|
32224
|
32224
32224-A0900 Washer-Thrust, Counter Shaft8102--01 ~ ; F4W63L |
32224-A0900 |
US $3.31 |
||
|
32225
|
32225
32225-A0900 Washer-Thrust, Counter Rear8102--01 ~ ; F4W63L; SELECT T=2.40 |
32225-A0900 |
US $3.31 |
||
|
32225
|
32225
32225-A0901 Washer-Thrust, Counter Rear8102--01 ~ ; F4W63L; SELECT T=2.45 |
32225-A0901 |
US $3.31 |
||
|
32225
|
32225
32225-A0902 Washer-Thrust, Counter Rear8102--01 ~ ; F4W63L; SELECT T=2.50 |
32225-A0902 |
US $3.31 |
||
|
32225
|
32225
32225-A0903 Washer-Thrust, Counter Rear8102--01 ~ ; F4W63L; SELECT T=2.55 |
32225-A0903 |
US $3.31 |
||
|
32225
|
32225
32225-A0904
Washer-Thrust, Counter Rear
8102--01 ~ ; F4W63L; SELECT T=2.60 |
32225-A0904 |
— | ||
|
32230
|
32230
32230-W1000
Gear Assy-1St
8102--01 ~ ; F4W63L; 36T |
32230-W1000 |
— | ||
|
32241
|
32241
32241-U7400 Shaft-Main8102--01 ~ ; F4W63L |
32241-U7400 |
US $243.36 |
||
|
32241
|
32241
32354-A7400
Nut-Main Shaft
8102--01 ~ ; F4W63L |
32354-A7400 |
— | ||
|
32241
|
32241
3272014600 Ball-Steel8102--01 ~ 8110--01; F4W63L |
3272014600 |
from US $0.41 |
||
|
32241
|
32241
32720-36900 Ball-Steel8102--01 ~ ; F4W63L |
32720-36900 |
US $0.82 |
||
|
32241B
|
32241B
32354-A7400
Nut-Main Shaft
8102--01 ~ ; F4W63L |
32354-A7400 |
— | ||
|
32241F
|
32241F
3272014600 Ball-Steel8102--01 ~ 8110--01; F4W63L |
3272014600 |
from US $0.41 |
||
|
32241G
|
32241G
32720-36900 Ball-Steel8102--01 ~ ; F4W63L |
32720-36900 |
US $0.82 |
||
|
32245
|
32245
32245-W1000 Gear-Reverse, Main Shaft8102--01 ~ ; F4W63L; 39T |
32245-W1000 |
US $85.10 |
||
|
32246
|
32246
32246-14600 Washer-Thrust8102--01 ~ ; F4W63L |
32246-14600 |
US $5.47 |
||
|
32250
|
32250
32250-W1000 Gear Assy-2Nd8102--01 ~ ; F4W63L; 30T |
32250-W1000 |
US $116.21 |
||
|
32253
|
32253
32253-14601
Bush-1St Gear
8102--01 ~ ; F4W63L |
32253-14601 |
— | ||
| replacement | |||||
|
32253
|
32253
32253-14611 Bush-1st gear8102--01 ~ ; F4W63L |
32253-14611 |
US $28.55 |
||
|
32258
|
32258
32258-A0900 Hub-Synchronizer, Overdrive8102--01 ~ ; F4W63L |
32258-A0900 |
US $54.14 |
||
|
32260
|
32260
32260-16510 Gear Assy-3Rd8102--01 ~ ; F4W63L; 27T |
32260-16510 |
US $116.21 |
||
|
32263
|
32263
32263-14600 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.40 |
32263-14600 |
US $4.03 |
||
|
32263
|
32263
32263-14601 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.45 |
32263-14601 |
US $4.03 |
||
|
32263
|
32263
32263-14602 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.50 |
32263-14602 |
US $4.03 |
||
|
32263
|
32263
32263-14603 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.55 |
32263-14603 |
US $4.03 |
||
|
32263
|
32263
32263-14604 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.60 |
32263-14604 |
US $4.03 |
||
|
32264
|
32264
32264-14600
Bearing-Main Shaft
8102--01 ~ ; F4W63L |
32264-14600 |
— | ||
| replacement | |||||
|
32264
|
32264
32264-14601 Bearing-Needle, Main Shaft8102--01 ~ ; F4W63L |
32264-14601 |
US $14.51 |
||
|
32264
|
32264
32264-14600
Bearing-Main Shaft
8102--01 ~ ; F4W63L |
32264-14600 |
— | ||
| replacement | |||||
|
32264
|
32264
32264-14601 Bearing-Needle, Main Shaft8102--01 ~ ; F4W63L |
32264-14601 |
US $14.51 |
||
|
32264M
|
32264M
32264-14600
Bearing-Main Shaft
8102--01 ~ ; F4W63L |
32264-14600 |
— | ||
| replacement | |||||
|
32264M
|
32264M
32264-14601 Bearing-Needle, Main Shaft8102--01 ~ ; F4W63L |
32264-14601 |
US $14.51 |
||
|
32264M
|
32264M
32264-14600
Bearing-Main Shaft
8102--01 ~ ; F4W63L |
32264-14600 |
— | ||
| replacement | |||||
|
32264M
|
32264M
32264-14601 Bearing-Needle, Main Shaft8102--01 ~ ; F4W63L |
32264-14601 |
US $14.51 |
||
|
32272
|
32272
32272-H7300
Bearing-Pilot, Main
8011--01 ~ ; F4W63L |
32272-H7300 |
— | ||
| replacement | |||||
|
32272
|
32272
32272-G3201 Bearing-Pilot, Main8011--01 ~ ; F4W63L |
32272-G3201 |
from US $8.68 |
||
|
32273
|
32273
3227336900 Bearing-Main Shaft8102--01 ~ ; F4W63L |
3227336900 |
from US $13.01 |
||
|
32274
|
32274
32274-36900 Ring-Snap, Main Shaft Bearing8102--01 ~ ; F4W63L |
32274-36900 |
US $5.04 |
||
|
32281
|
32281
32281-14601 Shaft-Reverse Idler8102--01 ~ ; F4W63L |
32281-14601 |
US $54.14 |
||
|
32282
|
32282
32282-14600
Gear-Reverse Idler
8102--01 ~ ; F4W63L; 18T |
32282-14600 |
— | ||
|
32284
|
32284
32284-14600
Gear-Reverse Idler
8102--01 ~ ; F4W63L; 14T |
32284-14600 |
— | ||
|
32285
|
32285
3228514600 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.2 |
3228514600 |
US $3.31 |
||
|
32285
|
32285
32285-14601 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.4 |
32285-14601 |
US $3.31 |
||
|
32285
|
32285
32285-14602 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.3 |
32285-14602 |
US $3.31 |
||
|
32285
|
32285
32285-14603 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.5 |
32285-14603 |
US $4.03 |
||
|
32285
|
32285
32285-14604 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.1 |
32285-14604 |
US $3.31 |
||
|
32285
|
32285
3228514600 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.2 |
3228514600 |
US $3.31 |
||
|
32285
|
32285
32285-14601 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.4 |
32285-14601 |
US $3.31 |
||
|
32285
|
32285
32285-14602 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.3 |
32285-14602 |
US $3.31 |
||
|
32285
|
32285
32285-14603 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.5 |
32285-14603 |
US $4.03 |
||
|
32285
|
32285
32285-14604 Ring-Snap8102--01 ~ ; F4W63L; SELECT T=1.1 |
32285-14604 |
US $3.31 |
||
|
32287
|
32287
32287-14600 Washer-Thrust, Reverse Idler8102--01 ~ ; F4W63L |
32287-14600 |
US $4.03 |
||
|
32287
|
32287
32287-14600 Washer-Thrust, Reverse Idler8102--01 ~ ; F4W63L |
32287-14600 |
US $4.03 |
||
|
32601A
|
32601A
32601-73200 Hub-Synchronizer, 1St & 2Nd8102--01 ~ ; F4W63L |
32601-73200 |
US $39.74 |
||
|
32603
|
32603
32603-73200 Ring-Synchronizer8102--01 ~ ; F4W63L |
32603-73200 |
US $1.67 |
||
|
32603
|
32603
32603-73200 Ring-Synchronizer8102--01 ~ ; F4W63L |
32603-73200 |
US $1.67 |
||
|
32603
|
32603
32603-73200 Ring-Synchronizer8102--01 ~ ; F4W63L |
32603-73200 |
US $1.67 |
||
|
32603
|
32603
32603-73200 Ring-Synchronizer8102--01 ~ ; F4W63L |
32603-73200 |
US $1.67 |
||
|
32604
|
32604
32604-A4610
Ring-Baulk
8102--01 ~ ; F4W63L |
32604-A4610 |
— | ||
|
32604
|
32604
32604-A4610
Ring-Baulk
8102--01 ~ ; F4W63L |
32604-A4610 |
— | ||
|
32604
|
32604
32604-A4610
Ring-Baulk
8102--01 ~ ; F4W63L |
32604-A4610 |
— | ||
|
32604
|
32604
32604-A4610
Ring-Baulk
8102--01 ~ ; F4W63L |
32604-A4610 |
— | ||
|
32605A
|
32605A
32605-A8610
Hub-Synchronizer, 3Rd & 4Th
8102--01 ~ ; F4W63L |
32605-A8610 |
— | ||
|
32606
|
32606
32606-73200
Sleeve-Coupling
8102--01 ~ ; F4W63L; SELECT |
32606-73200 |
— | ||
|
32606
|
32606
32606-N7100
Sleeve-Coupling
8102--01 ~ ; F4W63L; SELECT |
32606-N7100 |
— | ||
|
32606
|
32606
32606-73200
Sleeve-Coupling
8102--01 ~ ; F4W63L; SELECT |
32606-73200 |
— | ||
|
32606
|
32606
32606-N7100
Sleeve-Coupling
8102--01 ~ ; F4W63L; SELECT |
32606-N7100 |
— | ||
|
32609
|
32609
32609-73201 Insert-Shifting8102--01 ~ 8110--01; F4W63L |
32609-73201 |
US $2.36 |
||
|
32609
|
32609
32609-73201 Insert-Shifting8102--01 ~ 8110--01; F4W63L |
32609-73201 |
US $2.36 |
||
|
32701
|
32701
32701-66005 Gear-Drive, Speedometer8102--01 ~ ; F4W63L; 6T |
32701-66005 |
US $17.32 |
||
|
32701
|
32701
3222820101 Ring-Snap, Overdrive Bearing8102--01 ~ ; F4W63L |
3222820101 |
US $3.06 |
||
|
32701A
|
32701A
3222820101 Ring-Snap, Overdrive Bearing8102--01 ~ ; F4W63L |
3222820101 |
US $3.06 |
||
|
32701A
|
32701A
3222820101 Ring-Snap, Overdrive Bearing8102--01 ~ ; F4W63L |
3222820101 |
US $3.06 |
||
