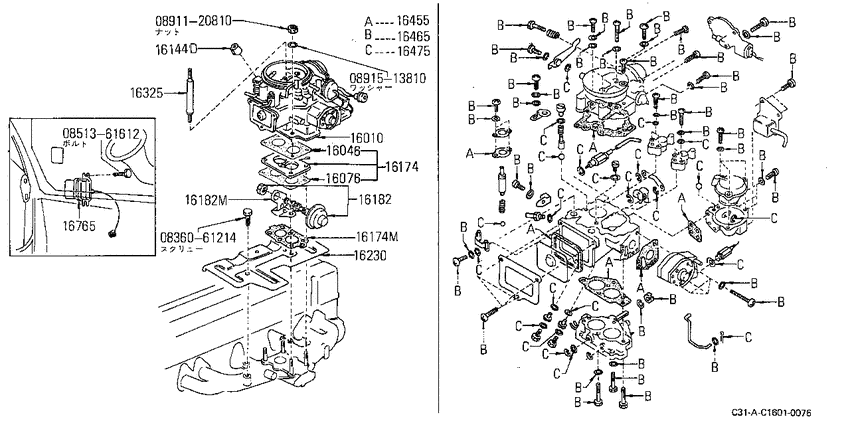

Carburetor (1980-11-01 ~ 1982-09-01; アッセンブリー&フィッティング; L20S) Diagram Nissan LAUREL
- Year
- 1980 - 1982
- Sales region
- Japan
- Engine
- L20S
- transmission
- F4
- grade
- SGL
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836061214
|
0836061214
08360-61214
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61214 |
— | ||
|
0851361612
|
0851361612
08513-61612
Bolt
|
08513-61612 |
— | ||
|
0891120810
|
0891120810
08911-20810
Nut
|
08911-20810 |
— | ||
| replacement | |||||
|
0891120810
|
0891120810
089112082A NUT |
089112082A |
US $2.21 |
||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
16010
|
16010
16010-07L00 Carburetor8011--01 ~ 8209--01; L20S.MT |
16010-07L00 |
US $2,338 |
||
|
16010
|
16010
16272N2810 Plug-Drain8011--01 ~ 8209--01; L20S |
16272N2810 |
US $4.30 |
||
|
16046
|
16046
16076-01L01 Gasket8011--01 ~ 8209--01; L20S |
16076-01L01 |
US $26.35 |
||
|
16076
|
16076
16076-01L02 Gasket8011--01 ~ 8209--01; L20S |
16076-01L02 |
US $26.35 |
||
|
16144D
|
16144D
16147-U2000 Cap-Idle Screw8011--01 ~ 8209--01; L20S |
16147-U2000 |
US $2.74 |
||
|
16174
|
16174
16174-01L01 Insulator-Carburetor8011--01 ~ 8209--01; L20S |
16174-01L01 |
US $50.98 |
||
|
16174
|
16174
16175-01L00 Gasket-Insulator, Carburetor8011--01 ~ 8209--01; L20S |
16175-01L00 |
US $13.39 |
||
|
16174M
|
16174M
16175-01L00 Gasket-Insulator, Carburetor8011--01 ~ 8209--01; L20S |
16175-01L00 |
US $13.39 |
||
|
16182
|
16182
16182-Y7000 Idle Speed Control-Fi Pot8011--01 ~ 8209--01; L20S.MT |
16182-Y7000 |
US $61.49 |
||
|
16182
|
16182
16182-Y7011 Idle Speed Control-Fi Pot8011--01 ~ 8209--01; L20S.AT *L20S.MT; F/AIRCON |
16182-Y7011 |
US $148.32 |
||
|
16182
|
16182
16258-01L01 Bracket8011--01 ~ 8209--01; L20S.AT *L20S.MT; F/AIRCON |
16258-01L01 |
US $18.72 |
||
|
16182
|
16182
16258-Y7000 Bracket8011--01 ~ 8209--01; L20S.MT |
16258-Y7000 |
US $13.25 |
||
|
16182M
|
16182M
16258-01L01 Bracket8011--01 ~ 8209--01; L20S.AT *L20S.MT; F/AIRCON |
16258-01L01 |
US $18.72 |
||
|
16182M
|
16182M
16258-Y7000 Bracket8011--01 ~ 8209--01; L20S.MT |
16258-Y7000 |
US $13.25 |
||
|
16230
|
16230
14330-01L00 Plate-Heat Shield, Carburetor8011--01 ~ 8110--01; L20S |
14330-01L00 |
US $34.13 |
||
|
16230
|
16230
14330-01L01 Plate-Heat Shield, Carburetor8111--01 ~ 8209--01; L20S |
14330-01L01 |
US $34.13 |
||
|
16325
|
16325
16525-Y7000 Stud8011--01 ~ 8209--01; L20S |
16525-Y7000 |
US $3.31 |
||
|
16455
|
16455
16455-Q1100 Gasket Kit8011--01 ~ 8209--01; L20S |
16455-Q1100 |
US $28.22 |
||
|
16465
|
16465
16465-Y7000 Screw & Washer Kit-A8011--01 ~ 8209--01; L20S |
16465-Y7000 |
US $18 |
||
|
16475
|
16475
16475-Y7000 Screw & Washer Kit-B8011--01 ~ 8209--01; L20S |
16475-Y7000 |
US $13.82 |
||
|
16765
|
16765
16767-Y7001 Switch-Engine Revolution8011--01 ~ 8209--01; L20S |
16767-Y7001 |
US $327.10 |
||
