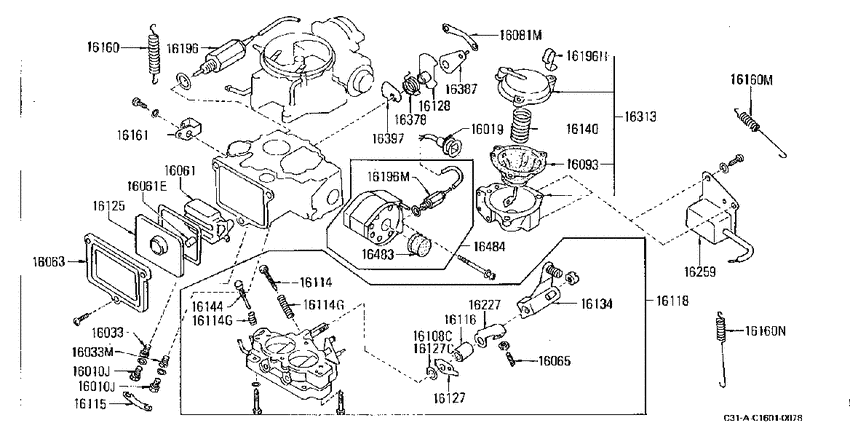

Carburetor (1980-11-01 ~ 1982-09-01; $スロットル チャンバー 関係構成部品; L20S) Diagram Nissan LAUREL
- Year
- 1980 - 1982
- Sales region
- Japan
- Engine
- L20S
- transmission
- F4
- grade
- SGL
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16010J
|
16010J
16272N2810 Plug-Drain8011--01 ~ 8209--01; L20S |
16272N2810 |
US $4.30 |
||
|
16010J
|
16010J
16272N2810 Plug-Drain8011--01 ~ 8209--01; L20S |
16272N2810 |
US $4.30 |
||
|
16019
|
16019
16019-Y7000
Coupler
8011--01 ~ 8209--01; L20S |
16019-Y7000 |
— | ||
|
16033
|
16033
16033-S5800 Jet-Main8011--01 ~ 8209--01; L20S |
16033-S5800 |
US $9.50 |
||
|
16033
|
16033
16033-07L00 Jet-Main8011--01 ~ 8209--01; L20S |
16033-07L00 |
US $28.80 |
||
|
16033M
|
16033M
16033-07L00 Jet-Main8011--01 ~ 8209--01; L20S |
16033-07L00 |
US $28.80 |
||
|
16061
|
16061
16061-23010 Float8011--01 ~ 8209--01; L20S |
16061-23010 |
US $9.65 |
||
|
16061
|
16061
16062-U6000 Collar-Float Pin8011--01 ~ 8209--01; L20S |
16062-U6000 |
US $3.46 |
||
|
16061E
|
16061E
16062-U6000 Collar-Float Pin8011--01 ~ 8209--01; L20S |
16062-U6000 |
US $3.46 |
||
|
16063
|
16063
16395-W0400 Cover-Gauge Lever8011--01 ~ 8209--01; L20S |
16395-W0400 |
US $5.18 |
||
|
16065
|
16065
16065-Y7000
Screw-Idle Fast
8011--01 ~ 8209--01; L20S |
16065-Y7000 |
— | ||
|
16081M
|
16081M
16015-S5800 Rod-Connecting8111--01 ~ 8209--01; L20S |
16015-S5800 |
US $5.47 |
||
|
16093
|
16093
16093-W0400 Diaphragm8011--01 ~ 8209--01; L20S |
16093-W0400 |
US $19.58 |
||
|
16108C
|
16108C
16084-22010 Washer8111--01 ~ 8209--01; L20S |
16084-22010 |
US $0.86 |
||
|
16114
|
16114
16114-U2000 Screw-Adjust, Throttle8011--01 ~ 8209--01; L20S |
16114-U2000 |
US $0.86 |
||
|
16114
|
16114
16193-U2000 Spring-Screw, Adjust8011--01 ~ 8110--01; L20S |
16193-U2000 |
US $0.86 |
||
|
16114G
|
16114G
16193-U2000 Spring-Screw, Adjust8011--01 ~ 8110--01; L20S |
16193-U2000 |
US $0.86 |
||
|
16114G
|
16114G
16193-U2000 Spring-Screw, Adjust8011--01 ~ 8110--01; L20S |
16193-U2000 |
US $0.86 |
||
|
16115
|
16115
16273-U6800 Plate-Lock, Main Jet Plug8011--01 ~ 8209--01; L20S |
16273-U6800 |
US $2.45 |
||
|
16116
|
16116
16116-Y7005
Sleeve-A
8011--01 ~ 8110--01; L20S |
16116-Y7005 |
— | ||
|
16116
|
16116
16116-Y7006
Sleeve-A
8111--01 ~ 8209--01; L20S |
16116-Y7006 |
— | ||
|
16116
|
16116
16116-Y7000 Sleeve-B8011--01 ~ 8209--01; L20S |
16116-Y7000 |
US $4.90 |
||
|
16118
|
16118
16118-07L00
Throttle Body
8011--01 ~ 8110--01; L20S |
16118-07L00 |
— | ||
|
16118
|
16118
16118-07L01 Throttle Body8111--01 ~ 8209--01; L20S |
16118-07L01 |
US $390.82 |
||
|
16125
|
16125
16125-U6700 Gauge-Level8011--01 ~ 8209--01; L20S |
16125-U6700 |
US $16.13 |
||
| replacement | |||||
|
16125
|
16125
16125-U6701 Gauge-Level8011--01 ~ 8209--01; L20S |
16125-U6701 |
US $8.06 |
||
|
16127
|
16127
16127-Y7000
Plate-Return
8011--01 ~ 8110--01; L20S |
16127-Y7000 |
— | ||
|
16127
|
16127
16127-Y7001
Plate-Return
8111--01 ~ 8209--01; L20S |
16127-Y7001 |
— | ||
|
16127
|
16127
16084-22010 Washer8011--01 ~ 8209--01; L20S |
16084-22010 |
US $0.86 |
||
|
16127C
|
16127C
16084-22010 Washer8011--01 ~ 8209--01; L20S |
16084-22010 |
US $0.86 |
||
|
16128
|
16128
16063-Y7000
Cam-Fast Idle
8011--01 ~ 8209--01; L20S |
16063-Y7000 |
— | ||
|
16134
|
16134
16134-Y7000 Lever-Throttle8011--01 ~ 8209--01; L20S |
16134-Y7000 |
US $20.88 |
||
|
16140
|
16140
16140-U9400 Spring-Diaphragm8011--01 ~ 8110--01; L20S |
16140-U9400 |
US $4.18 |
||
|
16140
|
16140
16140-Y4010
Spring-Diaphragm
8111--01 ~ 8209--01; L20S |
16140-Y4010 |
— | ||
|
16144
|
16144
16144-N0910 Screw-Adjust, Idle8011--01 ~ 8209--01; L20S |
16144-N0910 |
US $4.90 |
||
|
16144
|
16144
16147-U2000 Cap-Idle Screw8011--01 ~ 8209--01; L20S |
16147-U2000 |
US $2.74 |
||
|
16160
|
16160
16160-P5300 Spring-Throttle Primary8011--01 ~ 8209--01; L20S |
16160-P5300 |
US $5.76 |
||
|
16160
|
16160
16160-Y7000 Spring-Throttle Assist8111--01 ~ 8209--01; L20S |
16160-Y7000 |
US $5.47 |
||
|
16160
|
16160
16160-Y7000 Spring-Throttle Assist8011--01 ~ 8209--01; L20S |
16160-Y7000 |
US $5.47 |
||
|
16160M
|
16160M
16160-Y7000 Spring-Throttle Assist8111--01 ~ 8209--01; L20S |
16160-Y7000 |
US $5.47 |
||
|
16160N
|
16160N
16160-Y7000 Spring-Throttle Assist8011--01 ~ 8209--01; L20S |
16160-Y7000 |
US $5.47 |
||
|
16161
|
16161
16161-W0400
Hanger-Spring
8011--01 ~ 8209--01; L20S |
16161-W0400 |
— | ||
|
16196
|
16196
16196-Y7000 Iacv-Ficd Solenoid Valve8011--01 ~ 8209--01; L20S |
16196-Y7000 |
US $116.50 |
||
|
16196
|
16196
16187-Y7000
Holder
8011--01 ~ 8209--01; L20S |
16187-Y7000 |
— | ||
|
16196
|
16196
16196-Y7005 Iacv-Ficd Solenoid Valve8011--01 ~ 8209--01; L20S |
16196-Y7005 |
US $90.29 |
||
|
16196H
|
16196H
16187-Y7000
Holder
8011--01 ~ 8209--01; L20S |
16187-Y7000 |
— | ||
|
16196M
|
16196M
16196-Y7005 Iacv-Ficd Solenoid Valve8011--01 ~ 8209--01; L20S |
16196-Y7005 |
US $90.29 |
||
|
16227
|
16227
16227-Y7000
Lever-Adjust, Fast
8011--01 ~ 8209--01; L20S |
16227-Y7000 |
— | ||
|
16259
|
16259
16260-Y7000 Throttle Position Switch8011--01 ~ 8209--01; L20S |
16260-Y7000 |
US $180 |
||
|
16313
|
16313
16313-07L00 Diaphragm Assy-Chamber8011--01 ~ 8110--01; L20S |
16313-07L00 |
US $108.43 |
||
|
16313
|
16313
16313-Y7000 Diaphragm Assy-Chamber8111--01 ~ 8209--01; L20S |
16313-Y7000 |
US $90.29 |
||
|
16378
|
16378
16378-S5800 Spring-Cam8011--01 ~ 8209--01; L20S |
16378-S5800 |
US $2.45 |
||
|
16387
|
16387
16015-S5800 Rod-Connecting8011--01 ~ 8110--01; L20S |
16015-S5800 |
US $5.47 |
||
|
16387
|
16387
16063-S5805 Stopper-Cam8111--01 ~ 8209--01; L20S |
16063-S5805 |
US $5.47 |
||
|
16397
|
16397
16063-S5805 Stopper-Cam8011--01 ~ 8110--01; L20S |
16063-S5805 |
US $5.47 |
||
|
16397
|
16397
16397-Y7000
Lever-Counter
8111--01 ~ 8209--01; L20S |
16397-Y7000 |
— | ||
|
16483
|
16483
16483-P5320 Cap-Rubber8011--01 ~ 8209--01; L20S |
16483-P5320 |
US $4.90 |
||
|
16484
|
16484
16484-Y7000 Barometic Pressure Sensor-B.c.d.d8011--01 ~ 8209--01; L20S |
16484-Y7000 |
US $399.31 |
||
