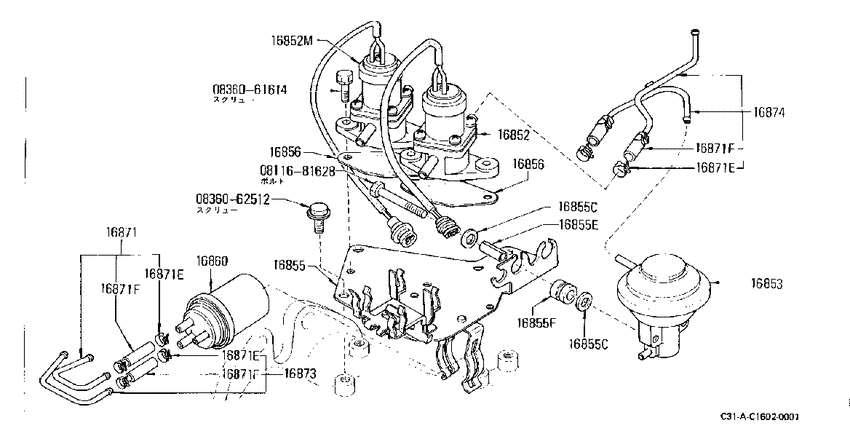

ｴﾚｸﾄﾛﾆﾂｸ ｷﾔﾌﾞﾚ-ﾀ- ｺﾝﾄﾛ-ﾙ (1980-11-01 ~ 1982-09-01; L20S) Diagram Nissan LAUREL
- Year
- 1980 - 1982
- Sales region
- Japan
- Engine
- L20S
- transmission
- F4
- grade
- SGL
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811681628
|
0811681628
08116-81628
Bolt-hexagon
|
08116-81628 |
— | ||
|
0836061614
|
0836061614
08360-61614
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61614 |
— | ||
|
0836062512
|
0836062512
08360-62512
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-62512 |
— | ||
|
16852
|
16852
16852-Y7000 Valve Assy-Solenoid8011--01 ~ 8209--01; L20S |
16852-Y7000 |
US $101.95 |
||
|
16852
|
16852
16852-Y7010 Valve Assy-Solenoid8011--01 ~ 8209--01; L20S |
16852-Y7010 |
US $101.95 |
||
|
16852M
|
16852M
16852-Y7010 Valve Assy-Solenoid8011--01 ~ 8209--01; L20S |
16852-Y7010 |
US $101.95 |
||
|
16853
|
16853
16853-Y7001 Valve Assy-Variable8011--01 ~ 8209--01; L20S |
16853-Y7001 |
US $129.31 |
||
|
16855
|
16855
16855-01L00
Bracket-Control Valve
8011--01 ~ 8209--01; L20S |
16855-01L00 |
— | ||
|
16855
|
16855
17091-28531 Washer-Plain8011--01 ~ 8209--01; L20S |
17091-28531 |
US $0.86 |
||
|
16855
|
16855
17023-28530 Collar-Fuel Pump8011--01 ~ 8209--01; L20S |
17023-28530 |
US $6.05 |
||
|
16855
|
16855
14746-U9605 Mounting Rubber8011--01 ~ 8209--01; L20S |
14746-U9605 |
US $2.74 |
||
|
16855C
|
16855C
17091-28531 Washer-Plain8011--01 ~ 8209--01; L20S |
17091-28531 |
US $0.86 |
||
|
16855C
|
16855C
17091-28531 Washer-Plain8011--01 ~ 8209--01; L20S |
17091-28531 |
US $0.86 |
||
|
16855E
|
16855E
17023-28530 Collar-Fuel Pump8011--01 ~ 8209--01; L20S |
17023-28530 |
US $6.05 |
||
|
16855F
|
16855F
14746-U9605 Mounting Rubber8011--01 ~ 8209--01; L20S |
14746-U9605 |
US $2.74 |
||
|
16856
|
16856
16856-Y7000 Insulator-Air Control Valve8011--01 ~ 8209--01; L20S |
16856-Y7000 |
US $1.73 |
||
|
16856
|
16856
16856-Y7000 Insulator-Air Control Valve8011--01 ~ 8209--01; L20S |
16856-Y7000 |
US $1.73 |
||
|
16860
|
16860
16860Y7000 Filter Assy-Air8011--01 ~ 8209--01; L20S |
16860Y7000 |
US $25.78 |
||
|
16871
|
16871
16871-Y7001
Pipe Assy-Air Control
8011--01 ~ 8209--01; L20S |
16871-Y7001 |
— | ||
|
16871
|
16871
16439-N2100
Clamp-Hose
8011--01 ~ 8209--01; L20S |
16439-N2100 |
— | ||
| replacement | |||||
|
16871
|
16871
16439N210A Clamp-Hose8011--01 ~ 8209--01; L20S |
16439N210A |
from US $1.33 |
||
|
16871
|
16871
02143-603W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=30 S/#A8761-M4901 |
02143-603W0 |
— | ||
|
16871
|
16871
02143-604W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=40 S/#A8761-M4901 |
02143-604W0 |
— | ||
|
16871
|
16871
02143-605W0
Hose-Boost
8011--01 ~ 8209--01; L20S; L=50 S/#A8761-M4901 |
02143-605W0 |
— | ||
|
16871
|
16871
02143-608W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=80 S/#A8761-M4901 |
02143-608W0 |
— | ||
|
16871
|
16871
02143-618W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=180 S/#A8761-M4901 |
02143-618W0 |
— | ||
|
16871
|
16871
A8761-M4901
Hose-Vacuum Control
8011--01 ~ 8209--01; L20S; L=5000 CUT USE |
A8761-M4901 |
— | ||
| replacement | |||||
|
16871
|
16871
B2320AU370 Hose-Vacuum Control, B8011--01 ~ 8209--01; L20S; L=5000 CUT USE |
B2320AU370 |
from US $72.11 |
||
|
16871E
|
16871E
16439-N2100
Clamp-Hose
8011--01 ~ 8209--01; L20S |
16439-N2100 |
— | ||
| replacement | |||||
|
16871E
|
16871E
16439N210A Clamp-Hose8011--01 ~ 8209--01; L20S |
16439N210A |
from US $1.33 |
||
|
16871E
|
16871E
16439-N2100
Clamp-Hose
8011--01 ~ 8209--01; L20S |
16439-N2100 |
— | ||
| replacement | |||||
|
16871E
|
16871E
16439N210A Clamp-Hose8011--01 ~ 8209--01; L20S |
16439N210A |
from US $1.33 |
||
|
16871E
|
16871E
16439-N2100
Clamp-Hose
8011--01 ~ 8209--01; L20S |
16439-N2100 |
— | ||
| replacement | |||||
|
16871E
|
16871E
16439N210A Clamp-Hose8011--01 ~ 8209--01; L20S |
16439N210A |
from US $1.33 |
||
|
16871F
|
16871F
02143-603W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=30 S/#A8761-M4901 |
02143-603W0 |
— | ||
|
16871F
|
16871F
02143-604W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=40 S/#A8761-M4901 |
02143-604W0 |
— | ||
|
16871F
|
16871F
02143-605W0
Hose-Boost
8011--01 ~ 8209--01; L20S; L=50 S/#A8761-M4901 |
02143-605W0 |
— | ||
|
16871F
|
16871F
02143-608W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=80 S/#A8761-M4901 |
02143-608W0 |
— | ||
|
16871F
|
16871F
02143-618W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=180 S/#A8761-M4901 |
02143-618W0 |
— | ||
|
16871F
|
16871F
A8761-M4901
Hose-Vacuum Control
8011--01 ~ 8209--01; L20S; L=5000 CUT USE |
A8761-M4901 |
— | ||
| replacement | |||||
|
16871F
|
16871F
B2320AU370 Hose-Vacuum Control, B8011--01 ~ 8209--01; L20S; L=5000 CUT USE |
B2320AU370 |
from US $72.11 |
||
|
16871F
|
16871F
02143-603W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=30 S/#A8761-M4901 |
02143-603W0 |
— | ||
|
16871F
|
16871F
02143-604W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=40 S/#A8761-M4901 |
02143-604W0 |
— | ||
|
16871F
|
16871F
02143-605W0
Hose-Boost
8011--01 ~ 8209--01; L20S; L=50 S/#A8761-M4901 |
02143-605W0 |
— | ||
|
16871F
|
16871F
02143-608W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=80 S/#A8761-M4901 |
02143-608W0 |
— | ||
|
16871F
|
16871F
02143-618W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=180 S/#A8761-M4901 |
02143-618W0 |
— | ||
|
16871F
|
16871F
A8761-M4901
Hose-Vacuum Control
8011--01 ~ 8209--01; L20S; L=5000 CUT USE |
A8761-M4901 |
— | ||
| replacement | |||||
|
16871F
|
16871F
B2320AU370 Hose-Vacuum Control, B8011--01 ~ 8209--01; L20S; L=5000 CUT USE |
B2320AU370 |
from US $72.11 |
||
|
16871F
|
16871F
02143-603W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=30 S/#A8761-M4901 |
02143-603W0 |
— | ||
|
16871F
|
16871F
02143-604W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=40 S/#A8761-M4901 |
02143-604W0 |
— | ||
|
16871F
|
16871F
02143-605W0
Hose-Boost
8011--01 ~ 8209--01; L20S; L=50 S/#A8761-M4901 |
02143-605W0 |
— | ||
|
16871F
|
16871F
02143-608W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=80 S/#A8761-M4901 |
02143-608W0 |
— | ||
|
16871F
|
16871F
02143-618W0
Hose-Control
8011--01 ~ 8209--01; L20S; L=180 S/#A8761-M4901 |
02143-618W0 |
— | ||
|
16871F
|
16871F
A8761-M4901
Hose-Vacuum Control
8011--01 ~ 8209--01; L20S; L=5000 CUT USE |
A8761-M4901 |
— | ||
| replacement | |||||
|
16871F
|
16871F
B2320AU370 Hose-Vacuum Control, B8011--01 ~ 8209--01; L20S; L=5000 CUT USE |
B2320AU370 |
from US $72.11 |
||
|
16873
|
16873
16873-Y7001
Pipe Assy-Air Control
8011--01 ~ 8209--01; L20S |
16873-Y7001 |
— | ||
|
16874
|
16874
16874-Y7002
Pipe Assy-Air Control
8011--01 ~ 8209--01; L20S |
16874-Y7002 |
— | ||
