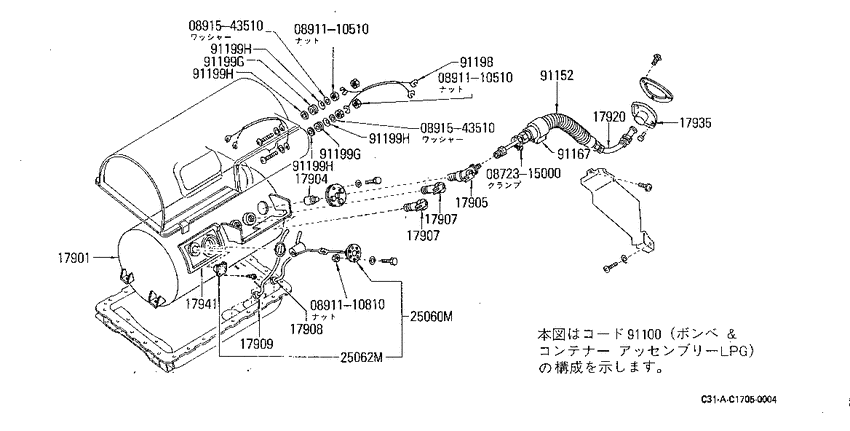

Bombelpg (1983-10-01 ~ ; 構成部品; Z18P) Diagram Nissan LAUREL
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- Z18P
- transmission
- F5
- grade
- GL
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0872315000
|
0872315000
08723-15000
ｸﾗﾝﾌﾟ,ﾎ-ｽ
|
08723-15000 |
— | ||
|
0891110510
|
0891110510
0891110510 NUT |
0891110510 |
US $1.73 |
||
|
0891110510
|
0891110510
0891110510 NUT |
0891110510 |
US $1.73 |
||
|
0891110810
|
0891110810
08911-10810
NUT
|
08911-10810 |
— | ||
| replacement | |||||
|
0891110810
|
0891110810
089111082A NUTHEX |
089111082A |
US $0.50 |
||
|
0891543510
|
0891543510
08915-43510 SUPPORT ASSY-FILLER |
08915-43510 |
US $1.73 |
||
| replacement | |||||
|
0891543510
|
0891543510
089154351A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
089154351A |
— | ||
|
0891543510
|
0891543510
08915-43510 SUPPORT ASSY-FILLER |
08915-43510 |
US $1.73 |
||
| replacement | |||||
|
0891543510
|
0891543510
089154351A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
089154351A |
— | ||
|
17901
|
17901
17901-W1600
Bombe Assy-Lpg
8310--01 ~ ; Z18P |
17901-W1600 |
— | ||
|
17904
|
17904
17904-W1600
Valve Assy-Solenoid
8310--01 ~ ; Z18P |
17904-W1600 |
— | ||
|
17905
|
17905
17905-W1600
Valve Assy-Inlet
8310--01 ~ ; Z18P |
17905-W1600 |
— | ||
|
17907
|
17907
17907-K0700 Valve Assy-Outlet8310--01 ~ ; Z18P; [K202] |
17907-K0700 |
US $159.84 |
||
|
17907
|
17907
17907-K0700 Valve Assy-Outlet8310--01 ~ ; Z18P; [K202] |
17907-K0700 |
US $159.84 |
||
|
17908
|
17908
17504-W1600
Tube Assy-Outlet
8310--01 ~ ; Z18P |
17504-W1600 |
— | ||
|
17909
|
17909
17505-W1600
Tube Assy-Lpg Vapor
8310--01 ~ ; Z18P |
17505-W1600 |
— | ||
|
17920
|
17920
17920-19L00
Hose Assy-Filler
8310--01 ~ ; Z18P |
17920-19L00 |
— | ||
|
17935
|
17935
08915-43510 SUPPORT ASSY-FILLER8310--01 ~ ; Z18P |
08915-43510 |
US $1.73 |
||
| replacement | |||||
|
17935
|
17935
089154351A
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
8310--01 ~ ; Z18P |
089154351A |
— | ||
|
17935
|
17935
17935-19L00
Support Assy-Filler
8310--01 ~ ; Z18P |
17935-19L00 |
— | ||
|
17941
|
17941
17941-W0300 Shim-Dust Seal8310--01 ~ ; Z18P |
17941-W0300 |
US $7.34 |
||
|
25060M
|
25060M
25060-W1600
Gauge Assy-Bombe Unit
8310--01 ~ 8411--01; Z18P; [K202] |
25060-W1600 |
— | ||
|
25060M
|
25060M
25060-W1605
Gauge Assy-Bombe Unit
8411--01 ~ ; Z18P; [K202] |
25060-W1605 |
— | ||
|
25062M
|
25062M
25062-W1600
Indicator
8310--01 ~ 8411--01; Z18P; [K202] |
25062-W1600 |
— | ||
|
25062M
|
25062M
25062-W1605
Indicator
8411--01 ~ ; Z18P; [K202] |
25062-W1605 |
— | ||
|
91100
|
91100
91100-19L00
ﾎﾞﾝﾍﾞ & ｺﾝﾃﾅ- ｱﾂｾﾝﾌﾞﾘ-,lpg
8310--01 ~ ; Z18P; [K202] |
91100-19L00 |
— | ||
|
91152
|
91152
91155-19L00
ﾀﾞｸﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾌｲﾗ- ﾎ-ｽ
8310--01 ~ ; Z18P; [K202] |
91155-19L00 |
— | ||
|
91167
|
91167
91167-A8800
Protector-Duct Hose
8310--01 ~ ; Z18P |
91167-A8800 |
— | ||
|
91198
|
91198
91199-W1600
ﾊ-ﾈｽ ｱﾂｾﾝﾌﾞﾘ-,lpg
8310--01 ~ ; Z18P |
91199-W1600 |
— | ||
|
91199G
|
91199G
24255-68100 Grommet8310--01 ~ ; Z18P; [K202] |
24255-68100 |
US $0.72 |
||
|
91199G
|
91199G
24255-68100 Grommet8310--01 ~ ; Z18P; [K202] |
24255-68100 |
US $0.72 |
||
|
91199H
|
91199H
24292-68100 Cover-Seal8310--01 ~ ; Z18P |
24292-68100 |
US $4.03 |
||
|
91199H
|
91199H
24292-68100 Cover-Seal8310--01 ~ ; Z18P |
24292-68100 |
US $4.03 |
||
|
91199H
|
91199H
24292-68100 Cover-Seal8310--01 ~ ; Z18P |
24292-68100 |
US $4.03 |
||
|
91199H
|
91199H
24292-68100 Cover-Seal8310--01 ~ ; Z18P |
24292-68100 |
US $4.03 |
||
