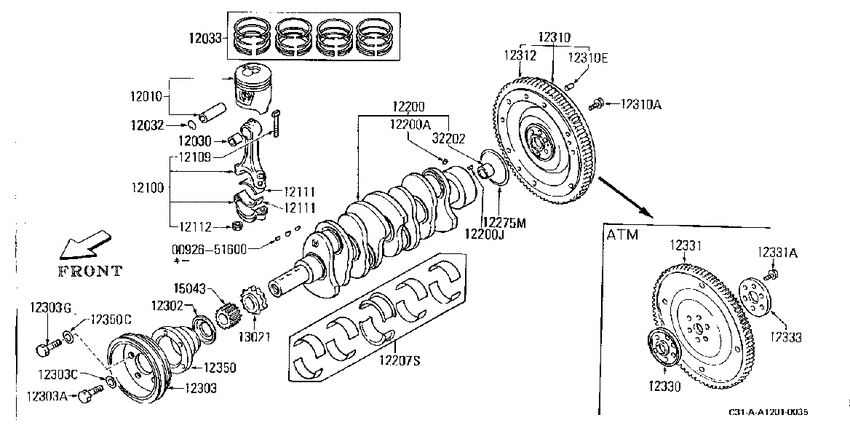

ﾋﾟｽﾄﾝ & ｸﾗﾝｸｼﾔﾌﾄ & ﾌﾗｲﾎｲ-ﾙ (1980-11-01 ~ ; LD20) Diagram Nissan LAUREL
- Year
- 1982 - 2012
- Sales region
- Japan
- Engine
- LD20
- transmission
- F5
- grade
- STD
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092651600
|
0092651600
0092651600 KEY |
0092651600 |
from US $2.44 |
||
|
12010
|
12010
12010-18L02 Piston, W/pin8407--01 ~ ; LD20; ｾﾝﾀｸ STD |
12010-18L02 |
US $93.89 |
||
|
12010
|
12010
12010-18L04 Piston, W/pin8407--01 ~ ; LD20; ｾﾝﾀｸ OS=0.50 |
12010-18L04 |
US $93.89 |
||
|
12010
|
12010
12010-18L06 Piston, W/pin8407--01 ~ ; LD20; ｾﾝﾀｸ OS=1.00 |
12010-18L06 |
US $93.89 |
||
|
12010
|
12010
12010-W1702 Piston, W/pin8011--01 ~ 8407--01; LD20; ｾﾝﾀｸ STD |
12010-W1702 |
US $143.71 |
||
|
12010
|
12010
12010-W1704 Piston, W/pin8011--01 ~ 8407--01; LD20; ｾﾝﾀｸ OS=0.5 |
12010-W1704 |
US $143.71 |
||
|
12010
|
12010
12010-W1706 Piston, W/pin8011--01 ~ 8407--01; LD20; ｾﾝﾀｸ OS=1.00 |
12010-W1706 |
US $143.71 |
||
|
12030
|
12030
12030-V0700 Bush-Piston Pin8011--01 ~ ; LD20 |
12030-V0700 |
US $7.92 |
||
| replacement | |||||
|
12030
|
12030
12030-V0701 Bush-Piston Pin8011--01 ~ ; LD20 |
12030-V0701 |
US $9.50 |
||
|
12032
|
12032
12032-V0700 Ring-Snap8011--01 ~ ; LD20 |
12032-V0700 |
US $0.86 |
||
|
12032
|
12032
1303218000 Dowel-Camshaft8111--01 ~ ; LD20 |
1303218000 |
from US $0.57 |
||
|
12033
|
12033
12033-W1700 Ring Set-Piston8011--01 ~ ; LD20; ｾﾝﾀｸ STD |
12033-W1700 |
US $300.19 |
||
|
12033
|
12033
12036-W1700 Ring Set-Piston8011--01 ~ ; LD20; ｾﾝﾀｸ OS=0.5 |
12036-W1700 |
US $300.19 |
||
|
12033
|
12033
12038-W1700 Ring Set-Piston8011--01 ~ ; LD20; ｾﾝﾀｸ OS=1.00 |
12038-W1700 |
US $300.19 |
||
|
12100
|
12100
12100-W1700 Rod Compl-Connecting8011--01 ~ ; LD20 |
12100-W1700 |
US $188.64 |
||
|
12109
|
12109
12109-N0100 Bolt-Connecting Rod8011--01 ~ ; LD20 |
12109-N0100 |
US $5.27 |
||
|
12111
|
12111
1211173400
Bearing-Connecting Rod
8011--01 ~ ; LD20; ｾﾝﾀｸ STD |
1211173400 |
— | ||
| replacement | |||||
|
12111
|
12111
12111-V0700 Bearing-Connecting Rod8011--01 ~ ; LD20; ｾﾝﾀｸ STD |
12111-V0700 |
from US $9.15 |
||
|
12111
|
12111
1211773400
Bearing-Connecting Rod
8011--01 ~ ; LD20; ｾﾝﾀｸ US=0.25 |
1211773400 |
— | ||
| replacement | |||||
|
12111
|
12111
12117V0700 Bearing-Connecting Rod8011--01 ~ ; LD20; ｾﾝﾀｸ US=0.25 |
12117V0700 |
from US $7.29 |
||
|
12111
|
12111
12118-73400 Bearing-Connecting Rod8011--01 ~ ; LD20; ｾﾝﾀｸ US=0.50 |
12118-73400 |
US $12.67 |
||
|
12111
|
12111
12119-73400 Bearing-Connecting Rod8011--01 ~ ; LD20; ｾﾝﾀｸ US=0.75 |
12119-73400 |
US $12.67 |
||
|
12111
|
12111
12120-73400 Bearing-Connecting Rod8011--01 ~ ; LD20; ｾﾝﾀｸ US=1.00 |
12120-73400 |
US $12.67 |
||
|
12111
|
12111
1211173400
Bearing-Connecting Rod
8011--01 ~ ; LD20; ｾﾝﾀｸ STD |
1211173400 |
— | ||
| replacement | |||||
|
12111
|
12111
12111-V0700 Bearing-Connecting Rod8011--01 ~ ; LD20; ｾﾝﾀｸ STD |
12111-V0700 |
from US $9.15 |
||
|
12111
|
12111
1211773400
Bearing-Connecting Rod
8011--01 ~ ; LD20; ｾﾝﾀｸ US=0.25 |
1211773400 |
— | ||
| replacement | |||||
|
12111
|
12111
12117V0700 Bearing-Connecting Rod8011--01 ~ ; LD20; ｾﾝﾀｸ US=0.25 |
12117V0700 |
from US $7.29 |
||
|
12111
|
12111
12118-73400 Bearing-Connecting Rod8011--01 ~ ; LD20; ｾﾝﾀｸ US=0.50 |
12118-73400 |
US $12.67 |
||
|
12111
|
12111
12119-73400 Bearing-Connecting Rod8011--01 ~ ; LD20; ｾﾝﾀｸ US=0.75 |
12119-73400 |
US $12.67 |
||
|
12111
|
12111
12120-73400 Bearing-Connecting Rod8011--01 ~ ; LD20; ｾﾝﾀｸ US=1.00 |
12120-73400 |
US $12.67 |
||
|
12112
|
12112
12112-N0101
Nut-Connecting Rod
8011--01 ~ ; LD20 |
12112-N0101 |
— | ||
| replacement | |||||
|
12112
|
12112
12112-VS201 Nut-Connecting Rod8011--01 ~ ; LD20 |
12112-VS201 |
US $3.06 |
||
|
12200
|
12200
12201-W1790 Crankshaft Assy8011--01 ~ ; LD20 |
12201-W1790 |
US $1,498 |
||
|
12200
|
12200
1220521000 Plug-Taper8011--01 ~ ; LD20 |
1220521000 |
US $1.73 |
||
|
12200
|
12200
1303218000 Dowel-Camshaft8011--01 ~ ; LD20+LD28 |
1303218000 |
from US $0.57 |
||
|
12200A
|
12200A
1220521000 Plug-Taper8011--01 ~ ; LD20 |
1220521000 |
US $1.73 |
||
|
12200J
|
12200J
1303218000 Dowel-Camshaft8011--01 ~ ; LD20+LD28 |
1303218000 |
from US $0.57 |
||
|
12207S
|
12207S
12207-U6001 Bearing Set-Crankshaft8011--01 ~ ; LD20; ｾﾝﾀｸ STD |
12207-U6001 |
from US $30.01 |
||
|
12207S
|
12207S
12209-U6001 Bearing Set-Crankshaft8011--01 ~ ; LD20; ｾﾝﾀｸ US=0.25 |
12209-U6001 |
from US $32.13 |
||
|
12207S
|
12207S
12210-U6001 Bearing Set-Crankshaft8011--01 ~ ; LD20; ｾﾝﾀｸ US=0.50 |
12210-U6001 |
from US $62.12 |
||
|
12207S
|
12207S
12212-U6001 Bearing Set-Crankshaft8011--01 ~ ; LD20; ｾﾝﾀｸ US=1.00 |
12212-U6001 |
US $134.06 |
||
|
12207S
|
12207S
12214-U6001 Bearing Set-Crankshaft8011--01 ~ ; LD20; ｾﾝﾀｸ US=0.75 |
12214-U6001 |
from US $62.12 |
||
|
12275M
|
12275M
12290-W1700 Spacer-Crankshaft, Rear8011--01 ~ ; LD20; ｾﾝﾀｸ T=1.0 |
12290-W1700 |
US $45.50 |
||
|
12275M
|
12275M
12290-W1701 Spacer-Crankshaft, Rear8011--01 ~ ; LD20; ｾﾝﾀｸ T=2.0 |
12290-W1701 |
US $45.50 |
||
|
12302
|
12302
12302-A3500 Thrower-Oil, Crankshaft8011--01 ~ ; LD20 |
12302-A3500 |
US $1.49 |
||
|
12303
|
12303
12304-W1700 Pulley-Crankshaft8011--01 ~ 8110--01; LD20 |
12304-W1700 |
US $276.48 |
||
|
12303
|
12303
12304-W3401 Pulley-Crankshaft8111--01 ~ ; LD20 |
12304-W3401 |
US $207.36 |
||
|
12303
|
12303
12304-W3410 Pulley-Crankshaft8111--01 ~ ; *LD20; PWST |
12304-W3410 |
US $207.36 |
||
|
12303
|
12303
12309-21000 Bolt-Pulley, Crankshaft8011--01 ~ 8404--01; LD20 |
12309-21000 |
US $4.03 |
||
| replacement | |||||
|
12303
|
12303
12309-91P01 Bolt-Pulley, Crankshaft8011--01 ~ 8404--01; LD20 |
12309-91P01 |
US $5.04 |
||
|
12303
|
12303
12309W3400 Bolt-Pulley, Crankshaft8404--01 ~ ; LD20 |
12309W3400 |
US $7.06 |
||
|
12303
|
12303
12308-V0700 Washer-Pulley, Crankshaft8404--01 ~ ; LD20 |
12308-V0700 |
US $4.18 |
||
|
12303
|
12303
12308W3400 Washer-Pulley, Crankshaft8404--01 ~ ; LD20 |
12308W3400 |
US $7.06 |
||
|
12303
|
12303
01131-00021 BOLT-PULLEY8011--01 ~ ; LD20 |
01131-00021 |
US $2.45 |
||
|
12303A
|
12303A
12309-21000 Bolt-Pulley, Crankshaft8011--01 ~ 8404--01; LD20 |
12309-21000 |
US $4.03 |
||
| replacement | |||||
|
12303A
|
12303A
12309-91P01 Bolt-Pulley, Crankshaft8011--01 ~ 8404--01; LD20 |
12309-91P01 |
US $5.04 |
||
|
12303A
|
12303A
12309W3400 Bolt-Pulley, Crankshaft8404--01 ~ ; LD20 |
12309W3400 |
US $7.06 |
||
|
12303C
|
12303C
12308-V0700 Washer-Pulley, Crankshaft8404--01 ~ ; LD20 |
12308-V0700 |
US $4.18 |
||
|
12303C
|
12303C
12308W3400 Washer-Pulley, Crankshaft8404--01 ~ ; LD20 |
12308W3400 |
US $7.06 |
||
|
12303G
|
12303G
01131-00021 BOLT-PULLEY8011--01 ~ ; LD20 |
01131-00021 |
US $2.45 |
||
|
12310
|
12310
12310-18L00 Flywheel Assy8404--01 ~ ; LD20.MT |
12310-18L00 |
US $404.98 |
||
|
12310
|
12310
12310-W1700 Flywheel Assy8011--01 ~ 8404--01; LD20.MT |
12310-W1700 |
US $566.40 |
||
|
12310
|
12310
12315-U6000
Bolt-Flywheel
8011--01 ~ ; LD20.MT |
12315-U6000 |
— | ||
| replacement | |||||
|
12310
|
12310
1231542L11 Bolt-Flywheel8011--01 ~ ; LD20.MT |
1231542L11 |
from US $3.22 |
||
|
12310
|
12310
1231310600 Dowel-Clutch To Flywheel8011--01 ~ ; LD20.MT |
1231310600 |
from US $0.33 |
||
|
12310
|
12310
12310-18L00 Flywheel Assy8404--01 ~ ; LD20.MT |
12310-18L00 |
US $404.98 |
||
|
12310
|
12310
12310-W1700 Flywheel Assy8011--01 ~ 8404--01; LD20.MT |
12310-W1700 |
US $566.40 |
||
|
12310
|
12310
12315-U6000
Bolt-Flywheel
8011--01 ~ ; LD20.MT |
12315-U6000 |
— | ||
| replacement | |||||
|
12310
|
12310
1231542L11 Bolt-Flywheel8011--01 ~ ; LD20.MT |
1231542L11 |
from US $3.22 |
||
|
12310
|
12310
1231310600 Dowel-Clutch To Flywheel8011--01 ~ ; LD20.MT |
1231310600 |
from US $0.33 |
||
|
12310E
|
12310E
1231310600 Dowel-Clutch To Flywheel8011--01 ~ ; LD20.MT |
1231310600 |
from US $0.33 |
||
|
12350
|
12350
12350-V0700
Pulley-Crankshaft, Inner
8011--01 ~ 8110--01; LD20 |
12350-V0700 |
— | ||
|
12350
|
12350
12350-V0701
Pulley-Crankshaft, Inner
8111--01 ~ ; LD20 |
12350-V0701 |
— | ||
| replacement | |||||
|
12350
|
12350
12350-V0711 Pulley-Crankshaft, Inner8111--01 ~ ; LD20 |
12350-V0711 |
US $129.89 |
||
|
12350
|
12350
13088-78100 Washer-Pulley, Inner8011--01 ~ ; LD20 |
13088-78100 |
US $1.73 |
||
|
12350C
|
12350C
13088-78100 Washer-Pulley, Inner8011--01 ~ ; LD20 |
13088-78100 |
US $1.73 |
||
|
13021
|
13021
13021-U8000
Sprocket-Crankshaft
8011--01 ~ ; LD20 |
13021-U8000 |
— | ||
|
13021
|
13021
13021-U8010 Sprocket-Crankshaft8011--01 ~ ; LD20 |
13021-U8010 |
US $33.41 |
||
|
15043
|
15043
15043-21000 Gear-Crankshaft, Oil Pump8011--01 ~ 8110--01; LD20 |
15043-21000 |
from US $39.09 |
||
|
15043
|
15043
15043-W3400 Gear-Crankshaft, Oil Pump8111--01 ~ ; LD20 |
15043-W3400 |
US $36.58 |
||
|
32202
|
32202
3220230000
Bushing-Crankshaft
8011--01 ~ ; LD20.MT |
3220230000 |
— | ||
| replacement | |||||
|
32202
|
32202
32202B950A Bushing-Crankshaft8011--01 ~ ; LD20.MT |
32202B950A |
from US $2.97 |
||
