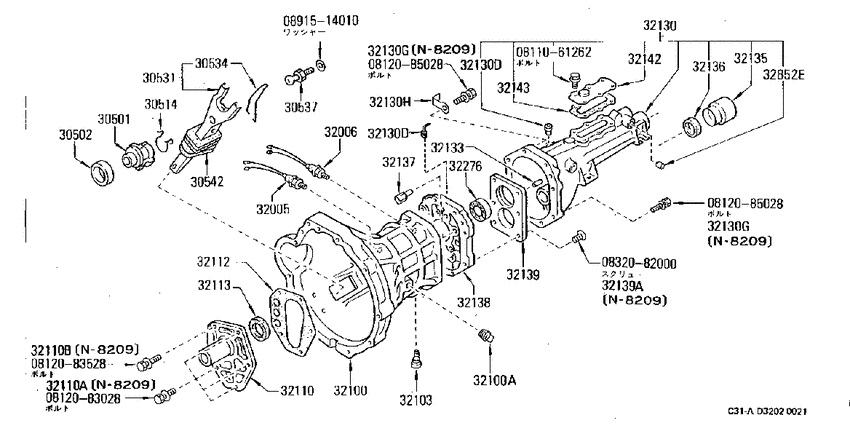

Transmission case (1980-11-01 ~ 1982-09-01; F4W71B) Diagram Nissan LAUREL
- Year
- 1980 - 2012
- Sales region
- Japan
- Engine
- Z20S
- transmission
- F4
- grade
- SGL
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0812083028
|
0812083028
08120-83028
Bolt-hexagon
|
08120-83028 |
— | ||
|
0812083528
|
0812083528
0812083528 Bolt-hexagon |
0812083528 |
US $2.45 |
||
|
0812085028
|
0812085028
08120-85028
Bolt-hexagon
|
08120-85028 |
— | ||
|
0812085028
|
0812085028
08120-85028
Bolt-hexagon
|
08120-85028 |
— | ||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
30501
|
30501
30501-N8400 Sleeve-Clutch Release8011--01 ~ 8209--01; F4W71B.Z20S |
30501-N8400 |
US $21.46 |
||
| replacement | |||||
|
30501
|
30501
30501-N8470
Sleeve-clutch release
8011--01 ~ 8209--01; F4W71B.Z20S |
30501-N8470 |
— | ||
|
30502
|
30502
3050221000 Bearing-Clutch Release8011--01 ~ 8209--01; F4W71B.Z20S; [B106] |
3050221000 |
US $26.68 |
||
| replacement | |||||
|
30502
|
30502
30502-69F1A Bearing-Clutch Release8011--01 ~ 8209--01; F4W71B.Z20S; [B106] |
30502-69F1A |
from US $27.32 |
||
|
30514
|
30514
3051414600 Spring-Holder, Clutch Release Bearing8011--01 ~ 8209--01; F4W71B.Z20S |
3051414600 |
from US $3.07 |
||
|
30531
|
30531
30531-P0151 Lever-Withdrawal, Clutch8011--01 ~ 8209--01; F4W71B.Z20S |
30531-P0151 |
from US $31.01 |
||
|
30534
|
30534
30534E9000 Spring-Retainer, Withdrawal Lever8011--01 ~ 8209--01; F4W71B.Z20S |
30534E9000 |
from US $1.54 |
||
|
30537
|
30537
30537-21010 Pin-Ball, Withdrawal Lever8011--01 ~ 8101--01; F4W71B.Z20S |
30537-21010 |
US $4.42 |
||
|
30542
|
30542
30542E9000 Cover-Dust, Withdrawal Lever8011--01 ~ 8209--01; F4W71B.Z20S |
30542E9000 |
from US $6.51 |
||
|
32005
|
32005
32005-21000
Switch Assy-Reverse Lamp
8011--01 ~ 8101--01; F4W71B.Z20S |
32005-21000 |
— | ||
|
32005
|
32005
32005-K1001
Switch Assy-Reverse Lamp
8111--01 ~ 8209--01; F4W71B.(Z20S,LD20) |
32005-K1001 |
— | ||
|
32006
|
32006
32006-K2401
Switch Assy-Top
8111--01 ~ 8209--01; F4W71B.Z20S |
32006-K2401 |
— | ||
|
32006
|
32006
32006-U2000
Switch Assy-Top
8011--01 ~ 8110--01; F4W71B.Z20S |
32006-U2000 |
— | ||
|
32100
|
32100
32101-V0501 Case Assy-Transmission8011--01 ~ 8209--01; F4W71B.Z20S |
32101-V0501 |
US $420.55 |
||
| replacement | |||||
|
32100
|
32100
32101-07G19
Case assy-transmission
8011--01 ~ 8209--01; F4W71B.Z20S |
32101-07G19 |
— | ||
|
32100
|
32100
0164200021
PLUG-THREAD
8011--01 ~ 8101--01; F4W71B.Z20S |
0164200021 |
— | ||
| replacement | |||||
|
32100
|
32100
33312-33G0B PLUG-THREAD8011--01 ~ 8101--01; F4W71B.Z20S |
33312-33G0B |
US $4.85 |
||
|
32100A
|
32100A
0164200021
PLUG-THREAD
8011--01 ~ 8101--01; F4W71B.Z20S |
0164200021 |
— | ||
| replacement | |||||
|
32100A
|
32100A
33312-33G0B PLUG-THREAD8011--01 ~ 8101--01; F4W71B.Z20S |
33312-33G0B |
US $4.85 |
||
|
32103
|
32103
32103U8400
Plug-Drain
8011--01 ~ 8101--01; F4W71B.Z20S |
32103U8400 |
— | ||
| replacement | |||||
|
32103
|
32103
32103-U840B Plug-Drain8011--01 ~ 8101--01; F4W71B.Z20S |
32103-U840B |
US $7.35 |
||
|
32110
|
32110
32111E9800 Cover Assy-Front8011--01 ~ 8209--01; F4W71B.Z20S |
32111E9800 |
US $46.15 |
||
|
32110
|
32110
32135-K0500 Bolt-Fixing, Front Cover8011--01 ~ 8101--01; F4W71B.Z20S |
32135-K0500 |
US $2.45 |
||
|
32110
|
32110
32136-M0111 Bolt-Fixing Front Cover8011--01 ~ 8101--01; F4W71B.Z20S |
32136-M0111 |
US $2.45 |
||
|
32110A
|
32110A
32135-K0500 Bolt-Fixing, Front Cover8011--01 ~ 8101--01; F4W71B.Z20S |
32135-K0500 |
US $2.45 |
||
|
32110B
|
32110B
32136-M0111 Bolt-Fixing Front Cover8011--01 ~ 8101--01; F4W71B.Z20S |
32136-M0111 |
US $2.45 |
||
|
32112
|
32112
32112-E9001
Gasket-Front Cover
8011--01 ~ 8101--01; F4W71B.Z20S |
32112-E9001 |
— | ||
| replacement | |||||
|
32112
|
32112
3211208U01 Gasket-Front Cover8011--01 ~ 8101--01; F4W71B.Z20S |
3211208U01 |
from US $6.96 |
||
|
32113
|
32113
32114Y4000 Seal-Oil, Front Cover8011--01 ~ 8101--01; F4W71B.Z20S |
32114Y4000 |
from US $3.19 |
||
|
32130
|
32130
32130-E9311 Extension Assy-Rear8011--01 ~ 8209--01; F4W71B.Z20S |
32130-E9311 |
US $276.48 |
||
| replacement | |||||
|
32130
|
32130
32130-E9321
Extension assy-rear
8011--01 ~ 8209--01; F4W71B.Z20S |
32130-E9321 |
— | ||
|
32130
|
32130
01121-00441 BOLT8011--01 ~ 8209--01; F4W71B.(Z20+LD20) |
01121-00441 |
US $2.45 |
||
|
32130
|
32130
24210-89963 Clip-Wiring Harness8011--01 ~ 8209--01; F4W71B.Z20S |
24210-89963 |
US $3.46 |
||
|
32130G
|
32130G
01121-00441 BOLT8011--01 ~ 8209--01; F4W71B.(Z20+LD20) |
01121-00441 |
US $2.45 |
||
|
32130G
|
32130G
01121-00441 BOLT8011--01 ~ 8209--01; F4W71B.(Z20+LD20) |
01121-00441 |
US $2.45 |
||
|
32130H
|
32130H
24210-89963 Clip-Wiring Harness8011--01 ~ 8209--01; F4W71B.Z20S |
24210-89963 |
US $3.46 |
||
|
32133
|
32133
32106-20100 Pin-Dowel8011--01 ~ 8101--01; F4W71B.Z20S |
32106-20100 |
US $1.73 |
||
|
32135
|
32135
3213528600 Cover-Dust, Sleeve Yoke8011--01 ~ 8101--01; F4W71B.Z20S |
3213528600 |
US $11.51 |
||
|
32136
|
32136
32136U0100
Seal-Oil, Rear Extension
8011--01 ~ 8101--01; F4W71B.Z20S |
32136U0100 |
— | ||
| replacement | |||||
|
32136
|
32136
32136-U010A Seal-Oil, Rear Extension8011--01 ~ 8101--01; F4W71B.Z20S |
32136-U010A |
from US $4.92 |
||
|
32137
|
32137
32137-E9000 Gutter-Oil, Adapter8011--01 ~ 8101--01; F4W71B.Z20S |
32137-E9000 |
from US $1.82 |
||
|
32138
|
32138
32138-E9810
Plate-Adapter
8011--01 ~ 8101--01; F4W71B.Z20S |
32138-E9810 |
— | ||
|
32139
|
32139
32139-E9810 Retainer-Bearing8011--01 ~ 8101--01; F4W71B.Z20S |
32139-E9810 |
US $10.37 |
||
|
32139
|
32139
0114100021 BOLT-FIXING,RETAINER8011--01 ~ 8101--01; F4W71B.Z20S |
0114100021 |
US $2.91 |
||
|
32139
|
32139
32139-E9810 Retainer-Bearing8011--01 ~ 8101--01; F4W71B.Z20S |
32139-E9810 |
US $10.37 |
||
|
32139
|
32139
0114100021 BOLT-FIXING,RETAINER8011--01 ~ 8101--01; F4W71B.Z20S |
0114100021 |
US $2.91 |
||
|
32142
|
32142
32142-E9000
Cover-Upper, Extension
8011--01 ~ 8101--01; F4W71B.Z20S |
32142-E9000 |
— | ||
| replacement | |||||
|
32142
|
32142
C2143-0H825
Cover-upper,extension
8011--01 ~ 8101--01; F4W71B.Z20S |
C2143-0H825 |
— | ||
|
32143
|
32143
32143-E9001
Gasket-Upper Cover, Extension
8011--01 ~ 8101--01; F4W71B.Z20S |
32143-E9001 |
— | ||
| replacement | |||||
|
32143
|
32143
C2143-0H825
Cover-upper,extension
8011--01 ~ 8101--01; F4W71B.Z20S |
C2143-0H825 |
— | ||
|
32276
|
32276
3227336900 Bearing-Main Shaft8011--01 ~ 8101--01; F4W71B.Z20S |
3227336900 |
from US $13.01 |
||
|
32852E
|
32852E
32140-24900 Bracket-Return Spring8011--01 ~ 8101--01; F4W71B.Z20S |
32140-24900 |
US $2.45 |
||
